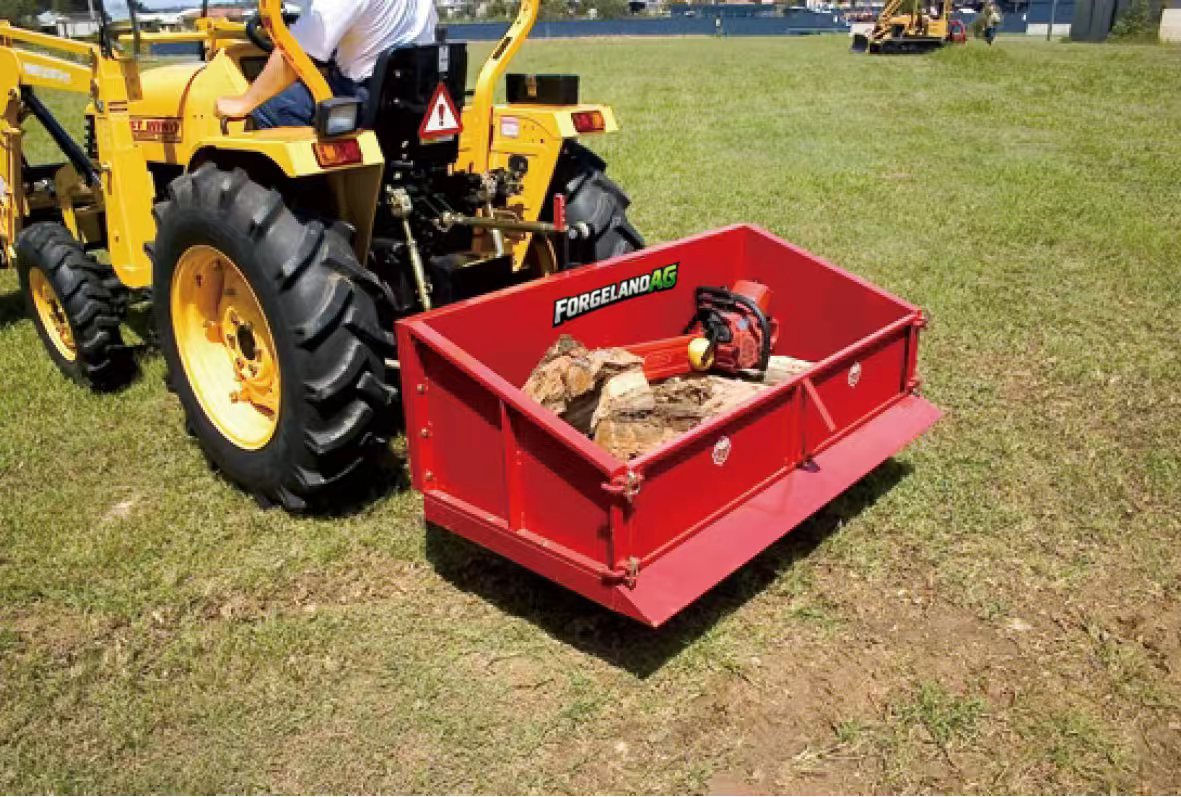

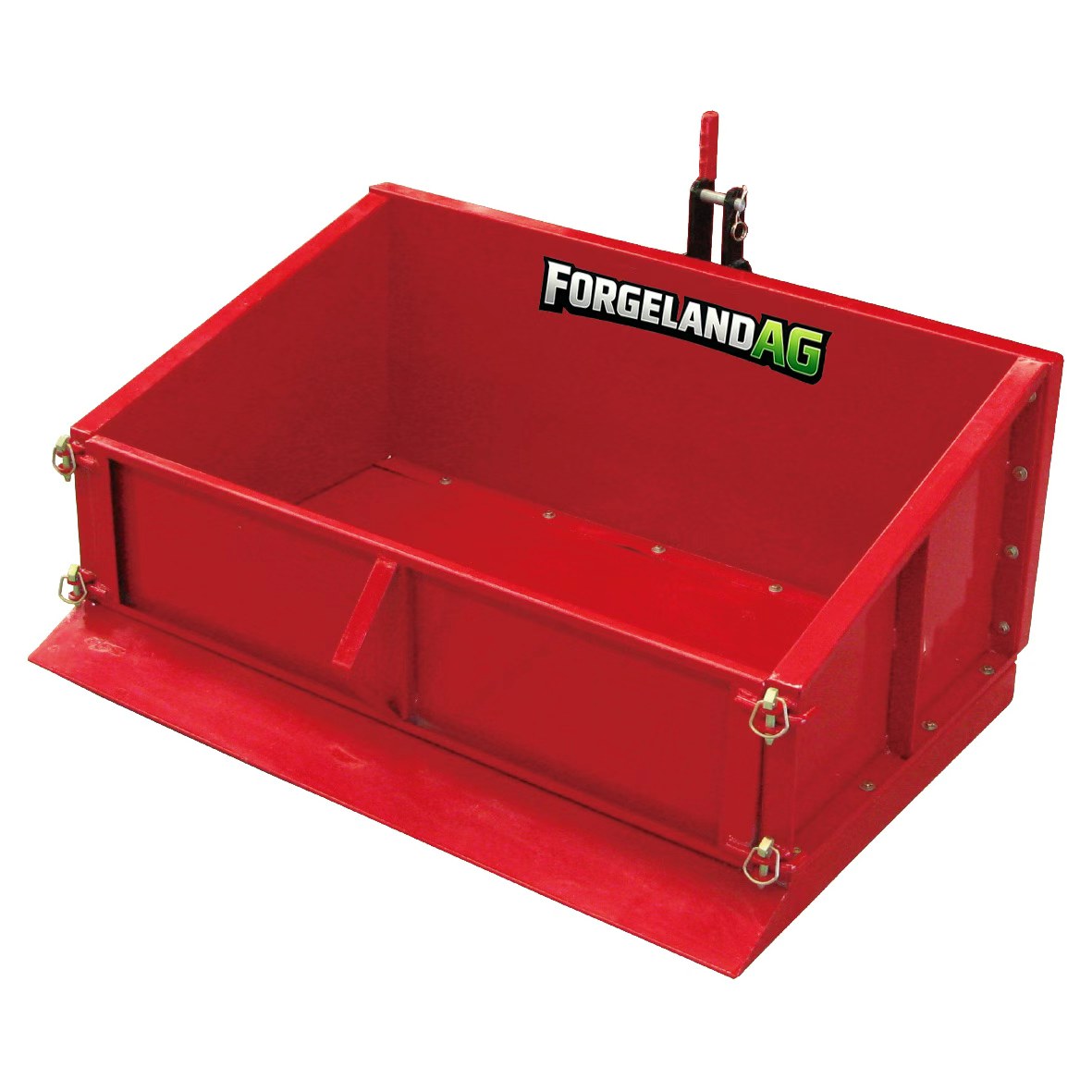

Tipping Transport Box - CB Series
The CB Series Tipping Transport Box features a manual tip-lever that allows the box to tilt up to 52° for easy unloading. With a sharp heavy-duty scraping edge, a removable swing-style rear gate, a safety lock pin preventing accidental tipping, and a durable industrial coating, it handles loads on 14-30HP tractors across widths from 43.3" (1100mm) to 59.1" (1500mm).
Key Features
- Manual Tip-Lever that Allows the Box to Tilt Up to 52°
- Sharp, Heavy-Duty Scraping Edge
- Universal 3-Point Linkage
- Durable Industrial Coating
- Safety Lock Pin Preventing Accidental Tipping
- Removable Swing Style Rear Gate
Optional Accessories
- Galvanized Finish for Corrosive Materials

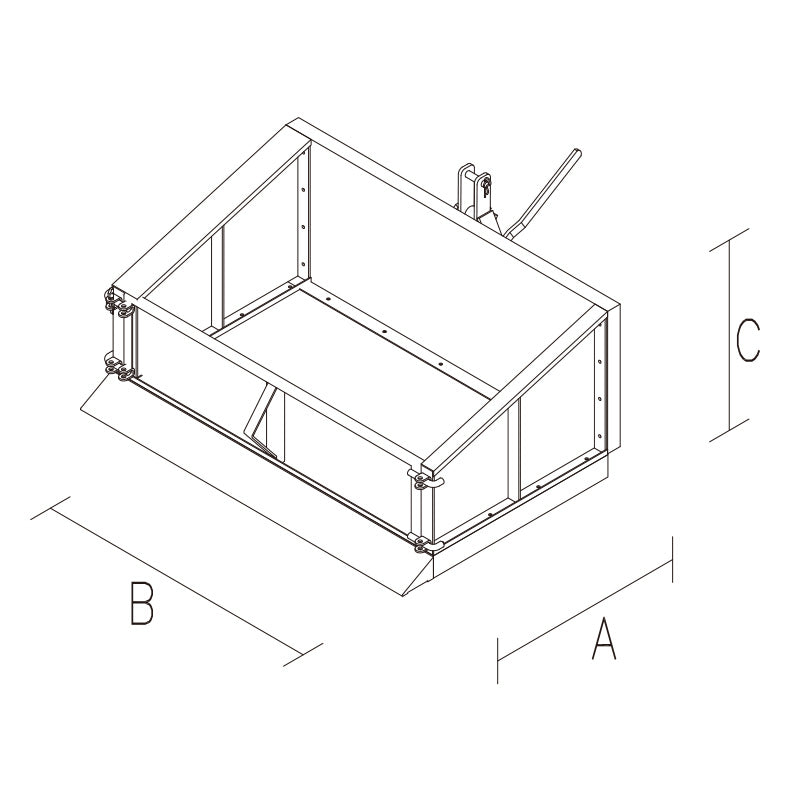

Technical Specifications
| Specification | CB-110 | CB-120 | CB-130 | CB-150 |
|---|---|---|---|---|
| Length | 36.5" (926mm) | 36.5" (926mm) | 36.5" (926mm) | 36.5" (926mm) |
| Width | 43.3" (1100mm) | 47.2" (1200mm) | 51.2" (1300mm) | 59.1" (1500mm) |
| Height | 24.8" (630mm) | 24.8" (630mm) | 24.8" (630mm) | 24.8" (630mm) |
| Weight | 187.4 lb (85kg) | 209.4 lb (95kg) | 231.5 lb (105kg) | 286.6 lb (130kg) |
| Max Tipping Angle | 52° | |||
| Rear Gate | Removable Swing Style | |||
| Tractor HP | 14-18 HP | 18-20 HP | 20-25 HP | 25-30 HP |
