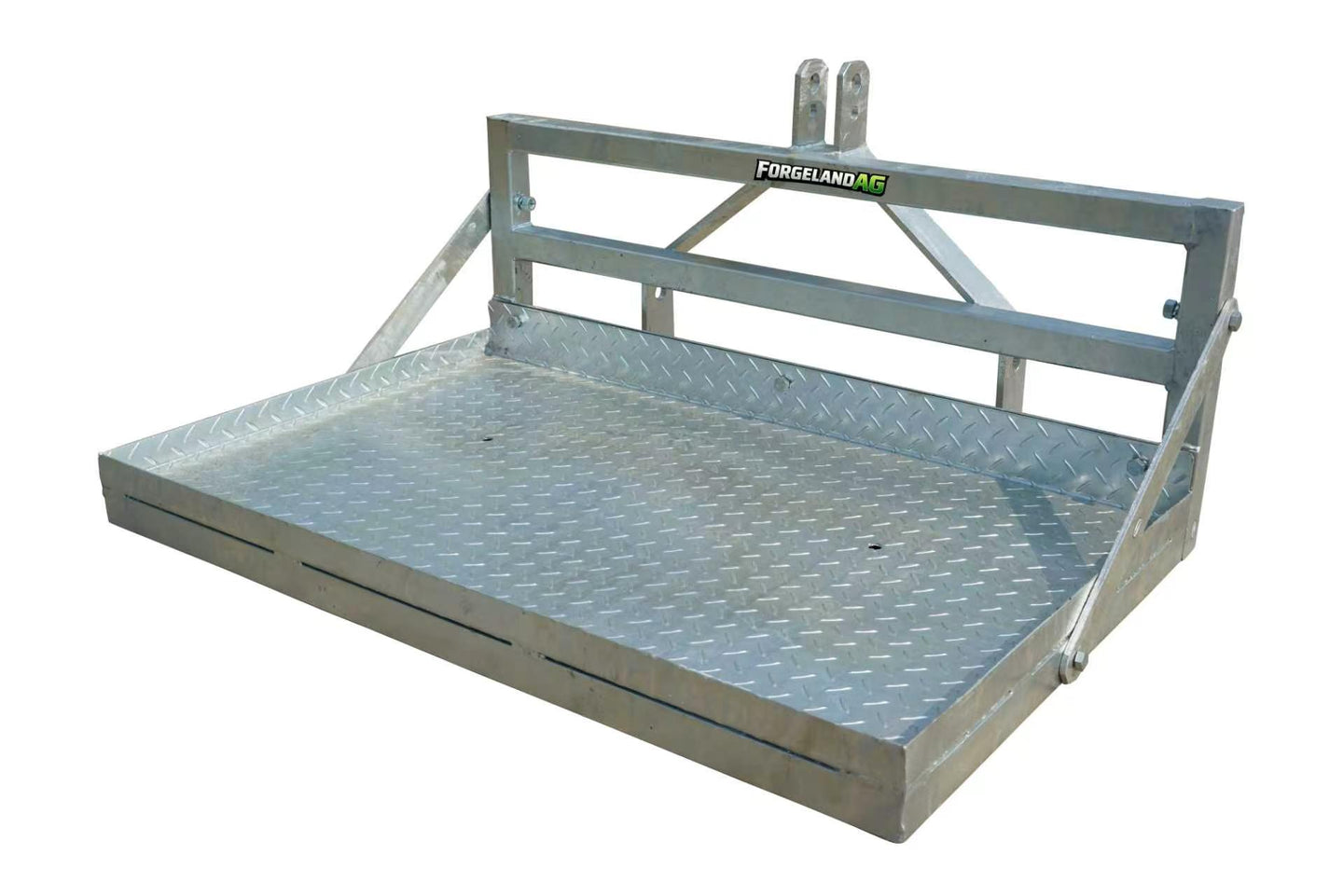

Galvanised Carry ALL Platform - CP-G Series
The CP-G Galvanised Carry ALL Platform is built for heavy-duty load carrying on any tractor. Featuring a reinforced steel checkered plate deck, a hot-dip galvanized finish for maximum corrosion resistance, a heavy-duty box-section frame, and a floor designed close to ground contour, it handles widths from 3.3' (1.0m) to 7.0' (2.1m) with a universal 3-point linkage.
Key Features
- Reinforced Steel Checkered Plate
- Floor Designed Close to Ground Contour
- Heavy-Duty Box-Section Frame
- Hot-Dip Galvanized Finish
- Universal 3-Point Linkage
- Ranging from 3.3' (1.0m) to 6.9' (2.1m) Width
- Steel Deck Included

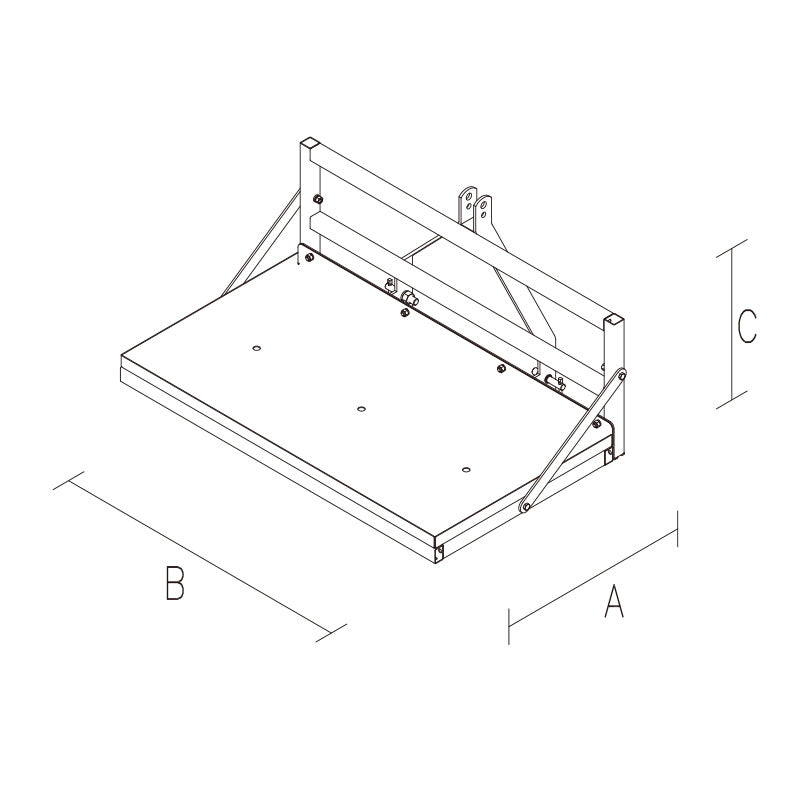

Technical Specifications
| Specification | CP-120-G | CP-150-G | CP-180-G |
|---|---|---|---|
| Length | 34.6" (880mm) | 38.6" (980mm) | 44.4" (1130mm) |
| Width | 48.5" (1233mm) | 60.4" (1533mm) | 72.2" (1833mm) |
| Height | 22.8" (578mm) | 26.8" (680mm) | 41.1" (1045mm) |
| Weight | 207.2 lb (94kg) | 238.1 lb (108kg) | 299.8 lb (136kg) |
| Floor | Steel Deck (Deck Included) | ||
