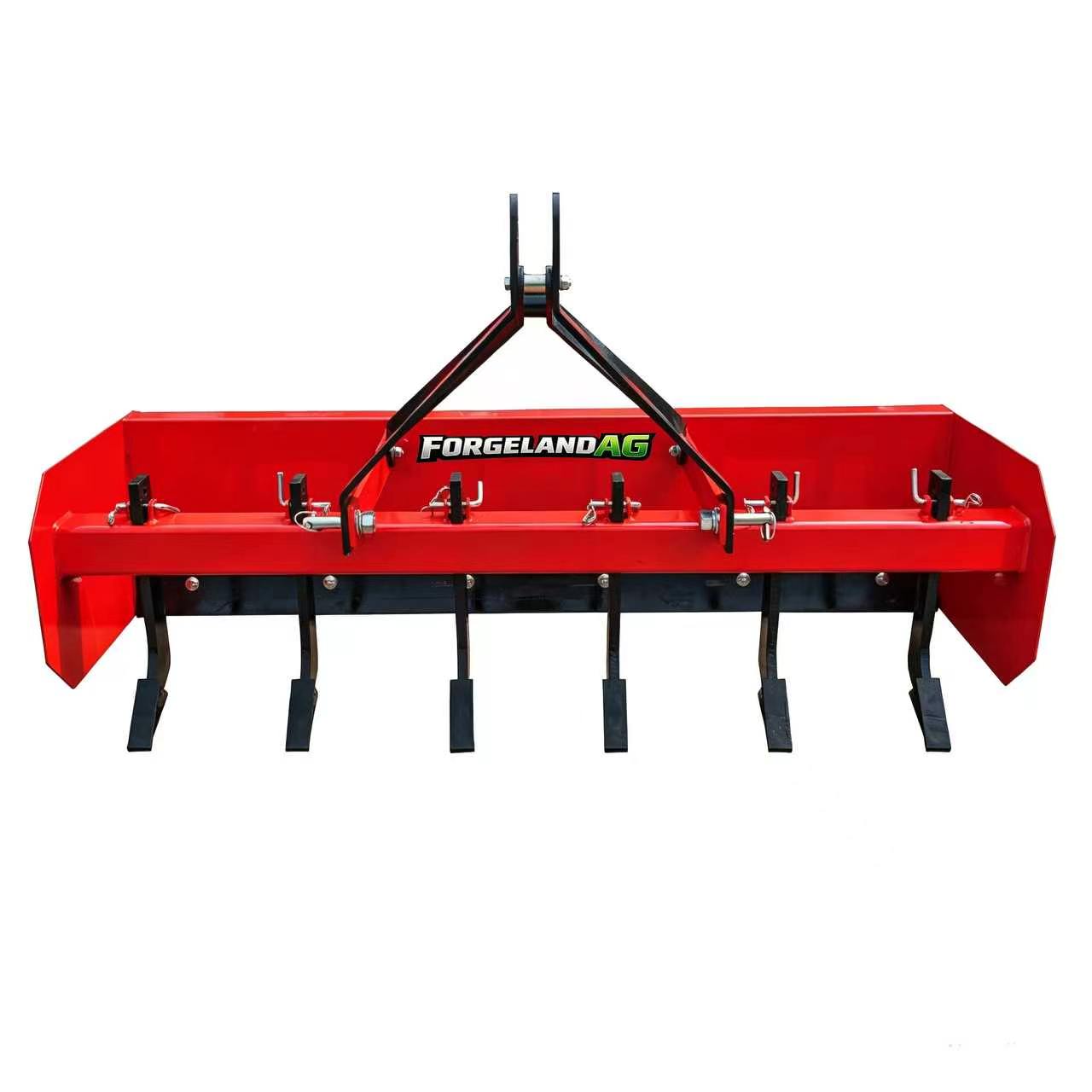

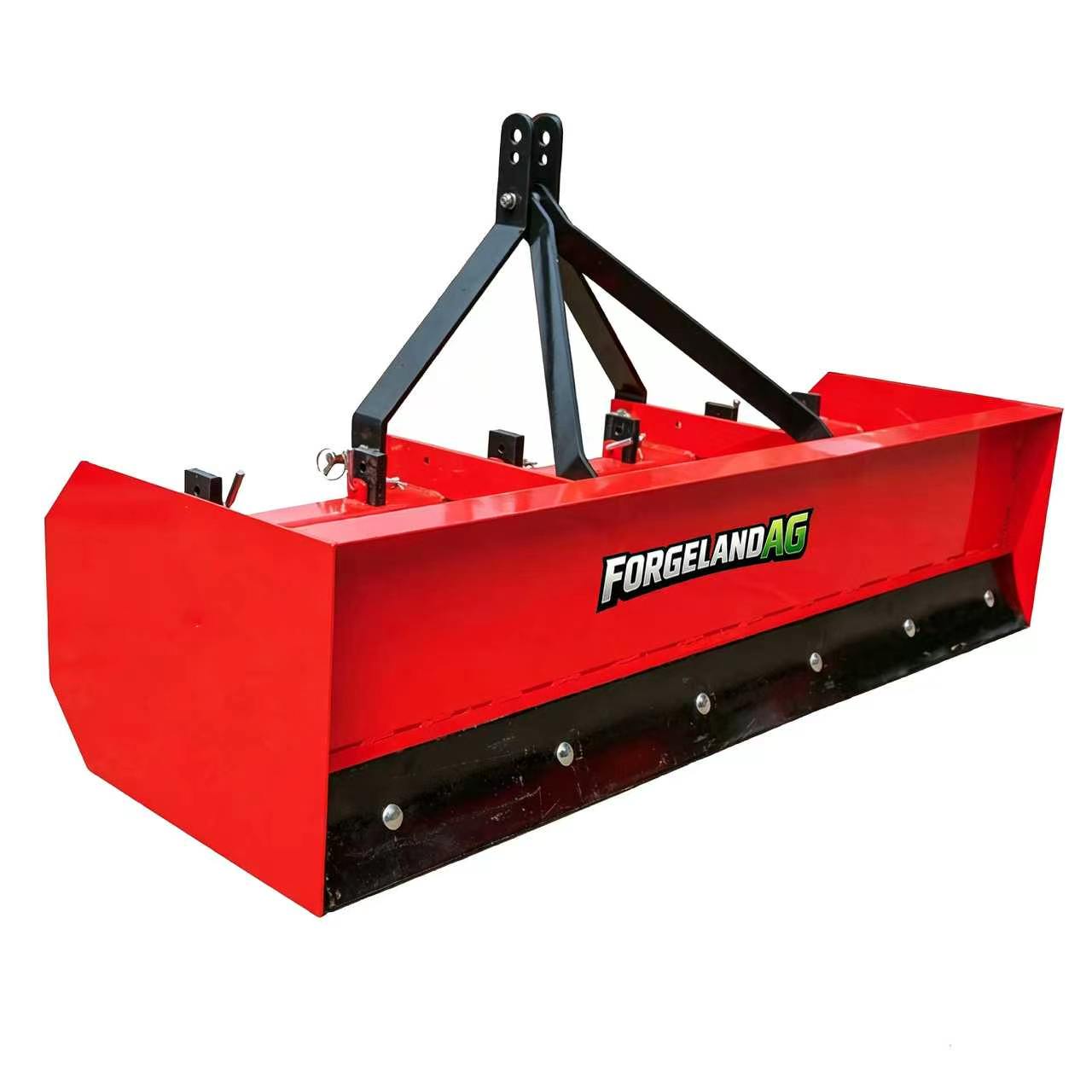

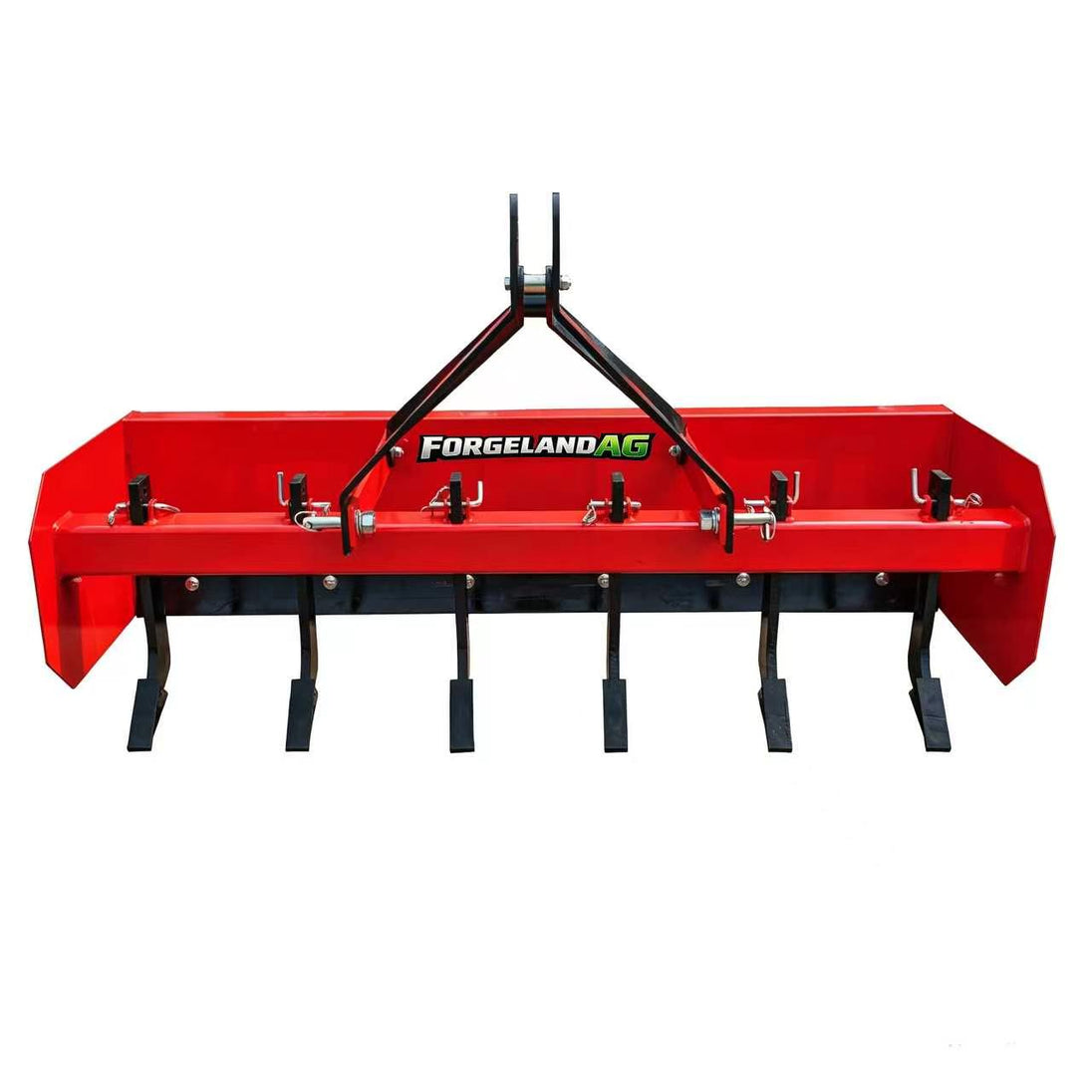

Rear Box Blade - GG-BX Series
The GG-BX Rear Box Blade features a high-capacity box design with heat-treated steel rippers with replaceable tips, double-edge grading blades, and multi-depth settings from 1.38" to 4.92" (35-125mm). With 4 to 6 steel shanks and a universal Cat I 3-point linkage, it handles grading and ripping across working widths from 3.94' (1200mm) to 5.91' (1800mm) on 35-50HP tractors.
Key Features
- High-Capacity Box Design
- Heat-Treated Steel Rippers with Replaceable Tips
- Multi-Depth Settings from 1.38" to 4.92" (35-125mm)
- Heat-Treated Steel Rippers (4 to 6 Shanks)
- Universal Cat I / 3-Point Linkage
- Double-Edge Grading Blades
Technical Specifications
| Specification | GG-BX-4 | GG-BX-5 | GG-BX-6 |
|---|---|---|---|
| Weight | 419 lb (190kg) | 551 lb (164kg) | 683 lb (196kg) |
| Working Width | 3.94' (1200mm) | 4.92' (1500mm) | 5.91' (1800mm) |
| Power | 35 HP | 35 HP | 50 HP |
| Digging Depth | 1.38"-4.92" (35-125mm) | 1.38"-4.92" (35-125mm) | 1.38"-4.92" (35-125mm) |
| Rippers | 4 Steel | 5 Steel | 6 Steel |
Rear Box Blade - GG-BX Series
The GG-BX Rear Box Blade features a high-capacity box design with heat-treated steel rippers with replaceable tips, double-edge grading blades, and multi-depth settings from 1.38" to 4.92" (35-125mm). With 4 to 6 steel shanks and a universal Cat I 3-point linkage, it handles grading and ripping across working widths from 3.94' (1200mm) to 5.91' (1800mm) on 35-50HP tractors.
Key Features
- High-Capacity Box Design
- Heat-Treated Steel Rippers with Replaceable Tips
- Multi-Depth Settings from 1.38" to 4.92" (35-125mm)
- Heat-Treated Steel Rippers (4 to 6 Shanks)
- Universal Cat I / 3-Point Linkage
- Double-Edge Grading Blades
Technical Specifications
| Specification | GG-BX-4 | GG-BX-5 | GG-BX-6 |
|---|---|---|---|
| Weight | 419 lb (190kg) | 551 lb (164kg) | 683 lb (196kg) |
| Working Width | 3.94' (1200mm) | 4.92' (1500mm) | 5.91' (1800mm) |
| Power | 35 HP | 35 HP | 50 HP |
| Digging Depth | 1.38"-4.92" (35-125mm) | 1.38"-4.92" (35-125mm) | 1.38"-4.92" (35-125mm) |
| Rippers | 4 Steel | 5 Steel | 6 Steel |
- Regular price
- $0.00
Rear Box Blade - GG-BX Series
The GG-BX Rear Box Blade features a high-capacity box design with heat-treated steel rippers with replaceable tips, double-edge grading blades, and multi-depth settings from 1.38" to 4.92" (35-125mm). With 4 to 6 steel shanks and a universal Cat I 3-point linkage, it handles grading and ripping across working widths from 3.94' (1200mm) to 5.91' (1800mm) on 35-50HP tractors.
Key Features
- High-Capacity Box Design
- Heat-Treated Steel Rippers with Replaceable Tips
- Multi-Depth Settings from 1.38" to 4.92" (35-125mm)
- Heat-Treated Steel Rippers (4 to 6 Shanks)
- Universal Cat I / 3-Point Linkage
- Double-Edge Grading Blades
Technical Specifications
| Specification | GG-BX-4 | GG-BX-5 | GG-BX-6 |
|---|---|---|---|
| Weight | 419 lb (190kg) | 551 lb (164kg) | 683 lb (196kg) |
| Working Width | 3.94' (1200mm) | 4.92' (1500mm) | 5.91' (1800mm) |
| Power | 35 HP | 35 HP | 50 HP |
| Digging Depth | 1.38"-4.92" (35-125mm) | 1.38"-4.92" (35-125mm) | 1.38"-4.92" (35-125mm) |
| Rippers | 4 Steel | 5 Steel | 6 Steel |
-
