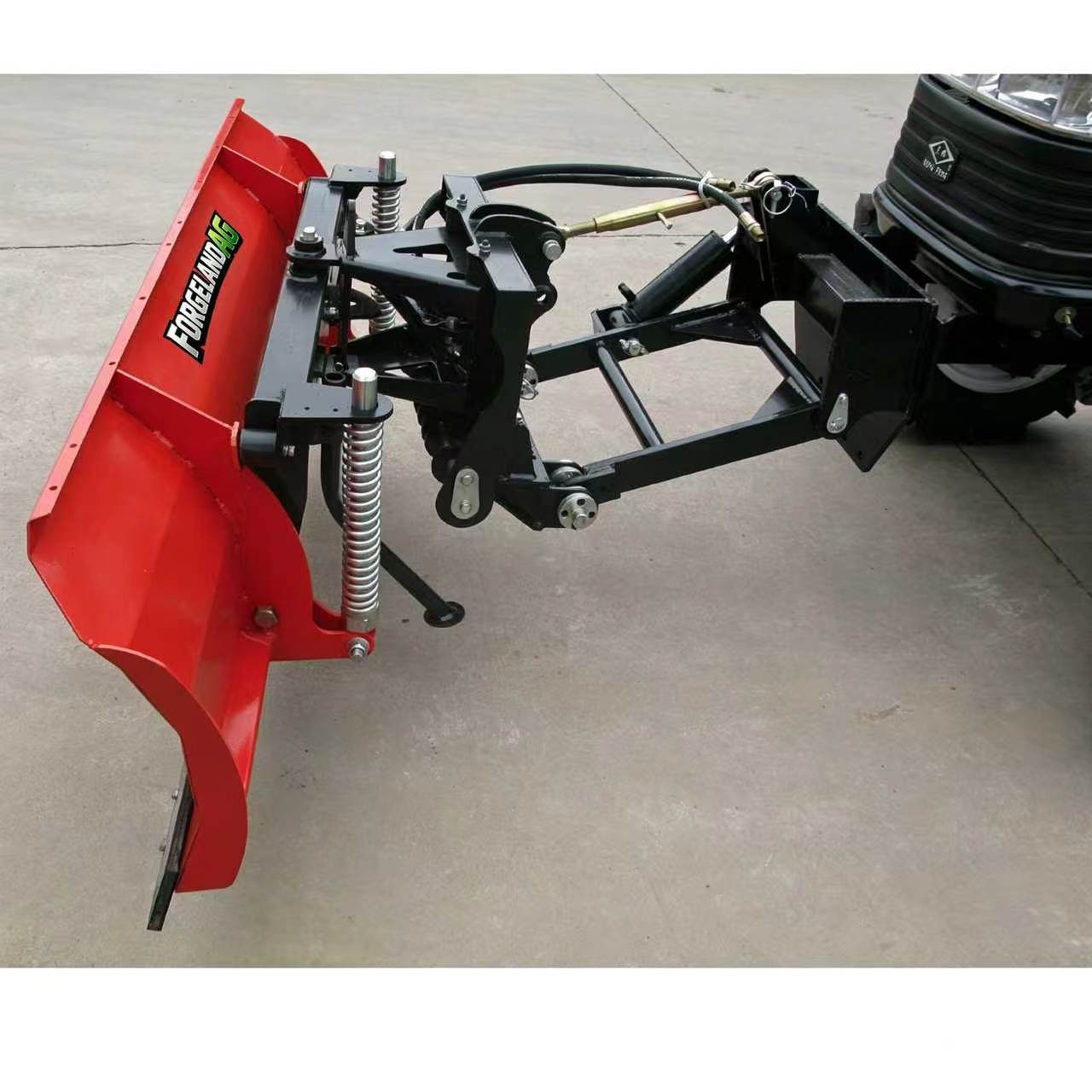

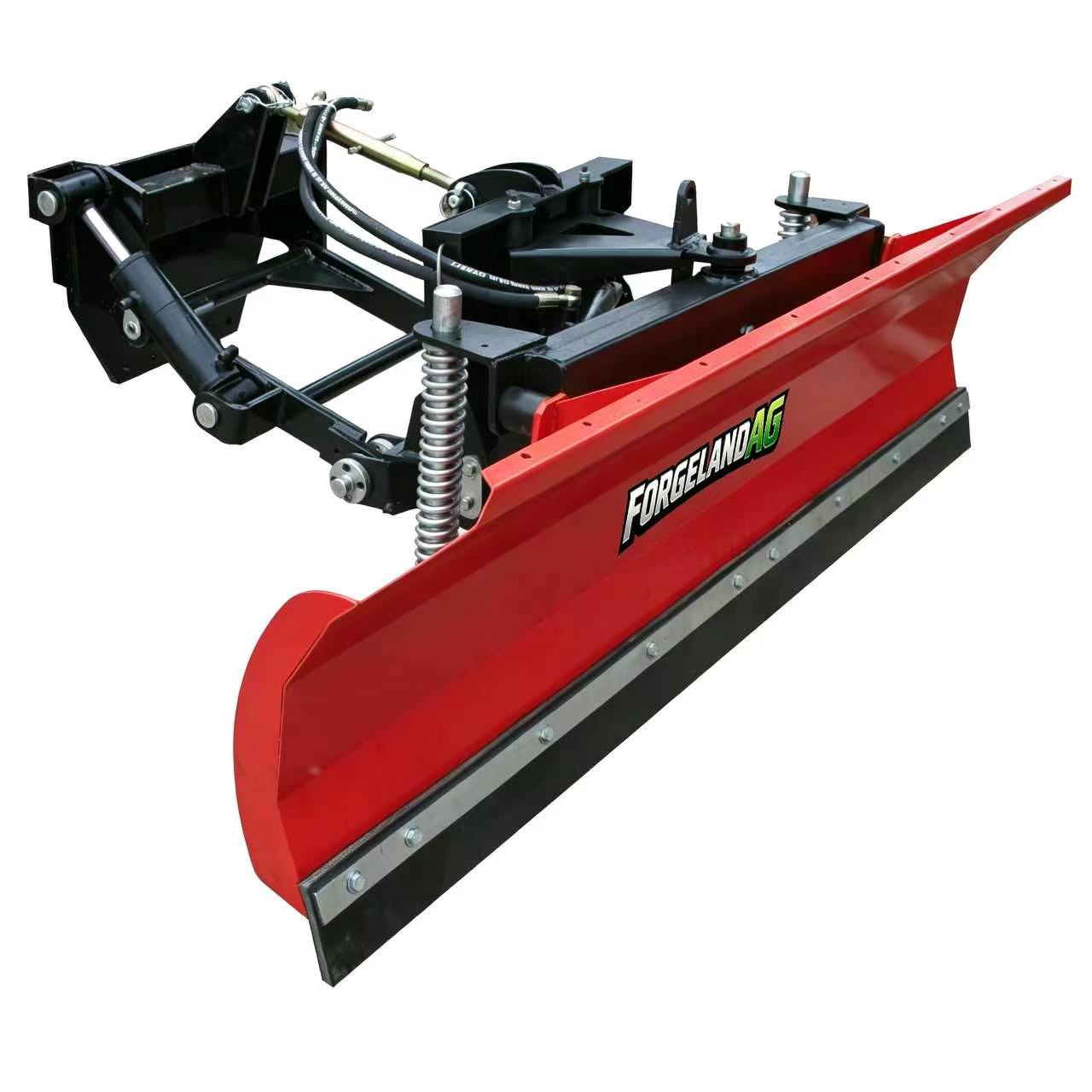

Front-Mounted Hydraulic Front Blade - SC Series
The SC Series Front-Mounted Hydraulic Front Blade features hydraulic angling up to 30° left or right, beefy trip springs, a curved high-performance radius back, and reinforced ribs on the back of the moldboard. With a reinforced quick-hitch and universal front mounting plate, it handles working widths from 55.1" (1400mm) to 98.4" (2500mm) on 20-60HP tractors.
Key Features
- Hydraulic Angling to Pivot Blade Left or Right (Up To 30°)
- Beefy Trip Springs
- Curved High-Performance Radius Back
- Reinforced Quick-Hitch
- Universal Front Mounting Plate From 20HP to 60HP
- Reinforced Ribs on the Back of the Moldboard
- Industrial Powder-Coating Finish

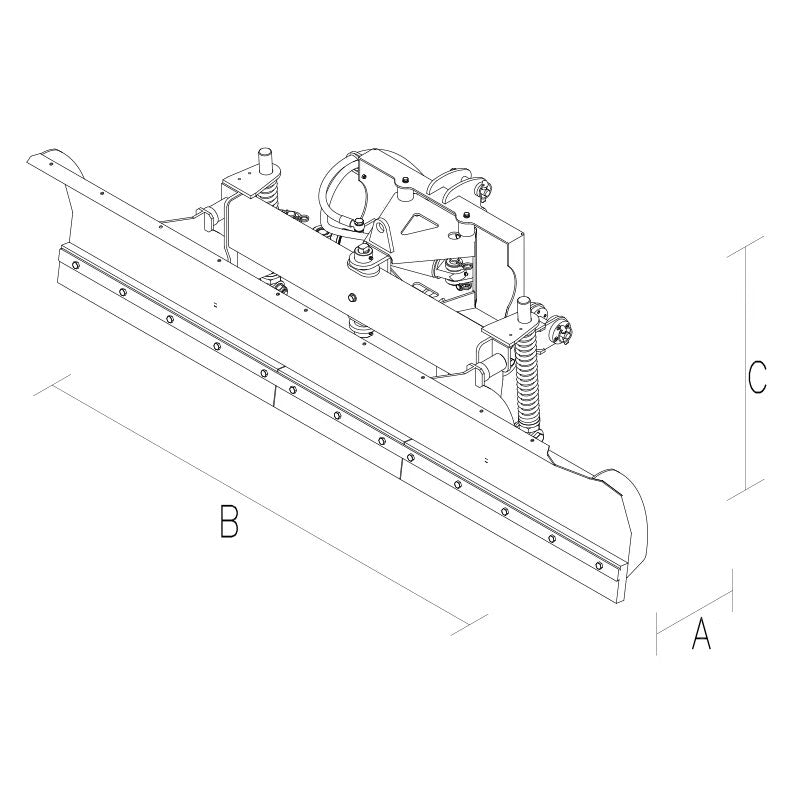

Technical Specifications
| Model | Length | Width | Height | Working Width | Weight | Tractor HP |
|---|---|---|---|---|---|---|
| SC140 | 55.3" (1405mm) | 31.7" (805mm) | 26.6" (676mm) | 55.1" (1400mm) | 365 lb (166kg) | 20-30 HP |
| SC150 | 63.2" (1505mm) | 31.7" (805mm) | 26.6" (676mm) | 62.9" (1500mm) | 379 lb (172kg) | 25-35 HP |
| SC170 | 67.1" (1705mm) | 31.7" (805mm) | 26.6" (676mm) | 66.9" (1700mm) | 386 lb (175kg) | 25-35 HP |
| SC180 | 71.1" (1805mm) | 31.7" (805mm) | 26.6" (676mm) | 70.9" (1800mm) | 392 lb (178kg) | 30-40 HP |
| SC200 | 78.9" (2005mm) | 31.7" (805mm) | 26.6" (676mm) | 78.7" (2000mm) | 405 lb (184kg) | 40-50 HP |
| SC220 | 86.8" (2205mm) | 31.7" (805mm) | 26.6" (676mm) | 86.6" (2200mm) | 418 lb (190kg) | 40-55 HP |
| SC240 | 94.7" (2405mm) | 31.7" (805mm) | 26.6" (676mm) | 94.5" (2400mm) | 436 lb (198kg) | 45-60 HP |
| SC250 | 98.6" (2505mm) | 31.7" (805mm) | 26.6" (676mm) | 98.4" (2500mm) | 447 lb (203kg) | 45-60 HP |
Front-Mounted Hydraulic Front Blade - SC Series
The SC Series Front-Mounted Hydraulic Front Blade features hydraulic angling up to 30° left or right, beefy trip springs, a curved high-performance radius back, and reinforced ribs on the back of the moldboard. With a reinforced quick-hitch and universal front mounting plate, it handles working widths from 55.1" (1400mm) to 98.4" (2500mm) on 20-60HP tractors.
Key Features
- Hydraulic Angling to Pivot Blade Left or Right (Up To 30°)
- Beefy Trip Springs
- Curved High-Performance Radius Back
- Reinforced Quick-Hitch
- Universal Front Mounting Plate From 20HP to 60HP
- Reinforced Ribs on the Back of the Moldboard
- Industrial Powder-Coating Finish
Technical Specifications
| Model | Length | Width | Height | Working Width | Weight | Tractor HP |
|---|---|---|---|---|---|---|
| SC140 | 55.3" (1405mm) | 31.7" (805mm) | 26.6" (676mm) | 55.1" (1400mm) | 365 lb (166kg) | 20-30 HP |
| SC150 | 63.2" (1505mm) | 31.7" (805mm) | 26.6" (676mm) | 62.9" (1500mm) | 379 lb (172kg) | 25-35 HP |
| SC170 | 67.1" (1705mm) | 31.7" (805mm) | 26.6" (676mm) | 66.9" (1700mm) | 386 lb (175kg) | 25-35 HP |
| SC180 | 71.1" (1805mm) | 31.7" (805mm) | 26.6" (676mm) | 70.9" (1800mm) | 392 lb (178kg) | 30-40 HP |
| SC200 | 78.9" (2005mm) | 31.7" (805mm) | 26.6" (676mm) | 78.7" (2000mm) | 405 lb (184kg) | 40-50 HP |
| SC220 | 86.8" (2205mm) | 31.7" (805mm) | 26.6" (676mm) | 86.6" (2200mm) | 418 lb (190kg) | 40-55 HP |
| SC240 | 94.7" (2405mm) | 31.7" (805mm) | 26.6" (676mm) | 94.5" (2400mm) | 436 lb (198kg) | 45-60 HP |
| SC250 | 98.6" (2505mm) | 31.7" (805mm) | 26.6" (676mm) | 98.4" (2500mm) | 447 lb (203kg) | 45-60 HP |
- Regular price
- $0.00
Front-Mounted Hydraulic Front Blade - SC Series
The SC Series Front-Mounted Hydraulic Front Blade features hydraulic angling up to 30° left or right, beefy trip springs, a curved high-performance radius back, and reinforced ribs on the back of the moldboard. With a reinforced quick-hitch and universal front mounting plate, it handles working widths from 55.1" (1400mm) to 98.4" (2500mm) on 20-60HP tractors.
Key Features
- Hydraulic Angling to Pivot Blade Left or Right (Up To 30°)
- Beefy Trip Springs
- Curved High-Performance Radius Back
- Reinforced Quick-Hitch
- Universal Front Mounting Plate From 20HP to 60HP
- Reinforced Ribs on the Back of the Moldboard
- Industrial Powder-Coating Finish
Technical Specifications
| Model | Length | Width | Height | Working Width | Weight | Tractor HP |
|---|---|---|---|---|---|---|
| SC140 | 55.3" (1405mm) | 31.7" (805mm) | 26.6" (676mm) | 55.1" (1400mm) | 365 lb (166kg) | 20-30 HP |
| SC150 | 63.2" (1505mm) | 31.7" (805mm) | 26.6" (676mm) | 62.9" (1500mm) | 379 lb (172kg) | 25-35 HP |
| SC170 | 67.1" (1705mm) | 31.7" (805mm) | 26.6" (676mm) | 66.9" (1700mm) | 386 lb (175kg) | 25-35 HP |
| SC180 | 71.1" (1805mm) | 31.7" (805mm) | 26.6" (676mm) | 70.9" (1800mm) | 392 lb (178kg) | 30-40 HP |
| SC200 | 78.9" (2005mm) | 31.7" (805mm) | 26.6" (676mm) | 78.7" (2000mm) | 405 lb (184kg) | 40-50 HP |
| SC220 | 86.8" (2205mm) | 31.7" (805mm) | 26.6" (676mm) | 86.6" (2200mm) | 418 lb (190kg) | 40-55 HP |
| SC240 | 94.7" (2405mm) | 31.7" (805mm) | 26.6" (676mm) | 94.5" (2400mm) | 436 lb (198kg) | 45-60 HP |
| SC250 | 98.6" (2505mm) | 31.7" (805mm) | 26.6" (676mm) | 98.4" (2500mm) | 447 lb (203kg) | 45-60 HP |
-
Vendor: HAN-SUN
Rear Blade - Manual Angle (GG-RP Series)
Regular price $0.00 -
Vendor: HAN-SUN
Rear Blade - Rear Box Blade (GG-BX Series)
Regular price $0.00 -
Vendor: HAN-SUN

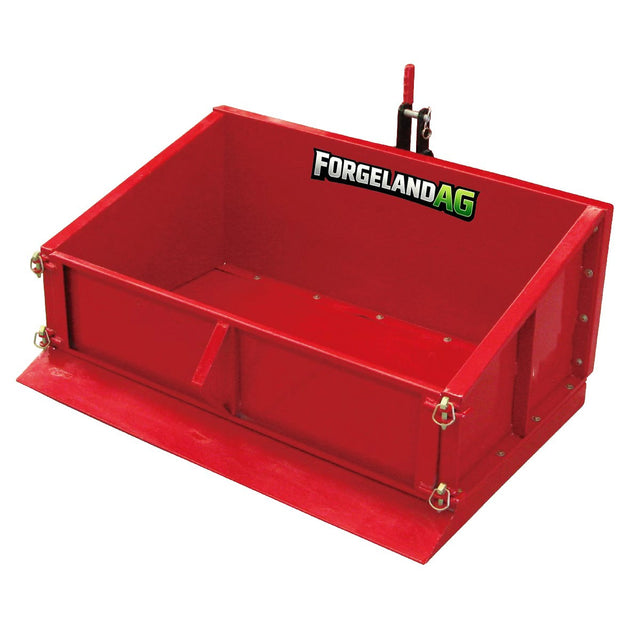

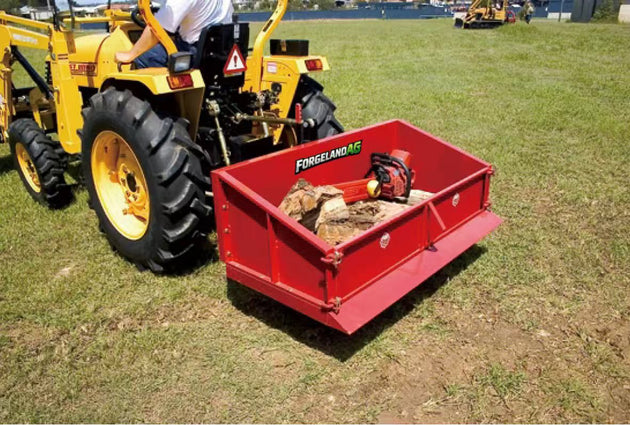

Transport Box - Tipping (CB Series)
Regular price $0.00 -
Vendor: HAN-SUN

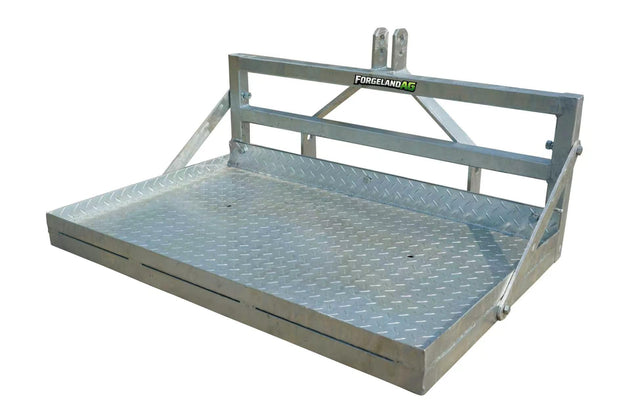

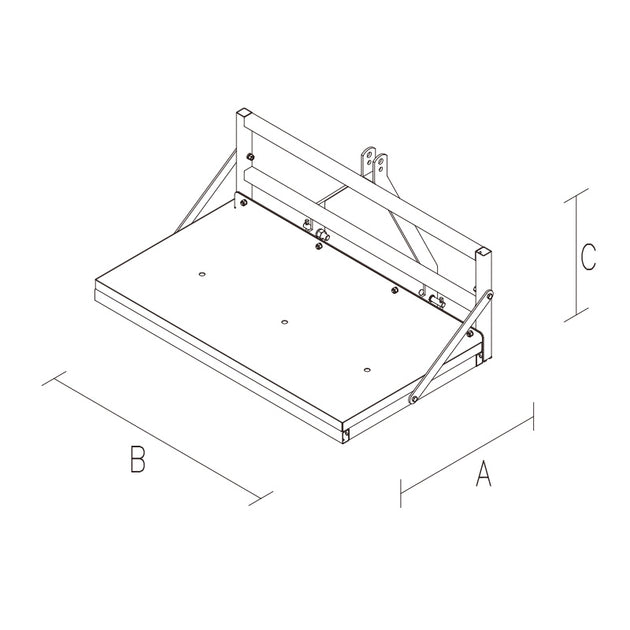

Carry ALL Platform - Galvanised (CP-G Series)
