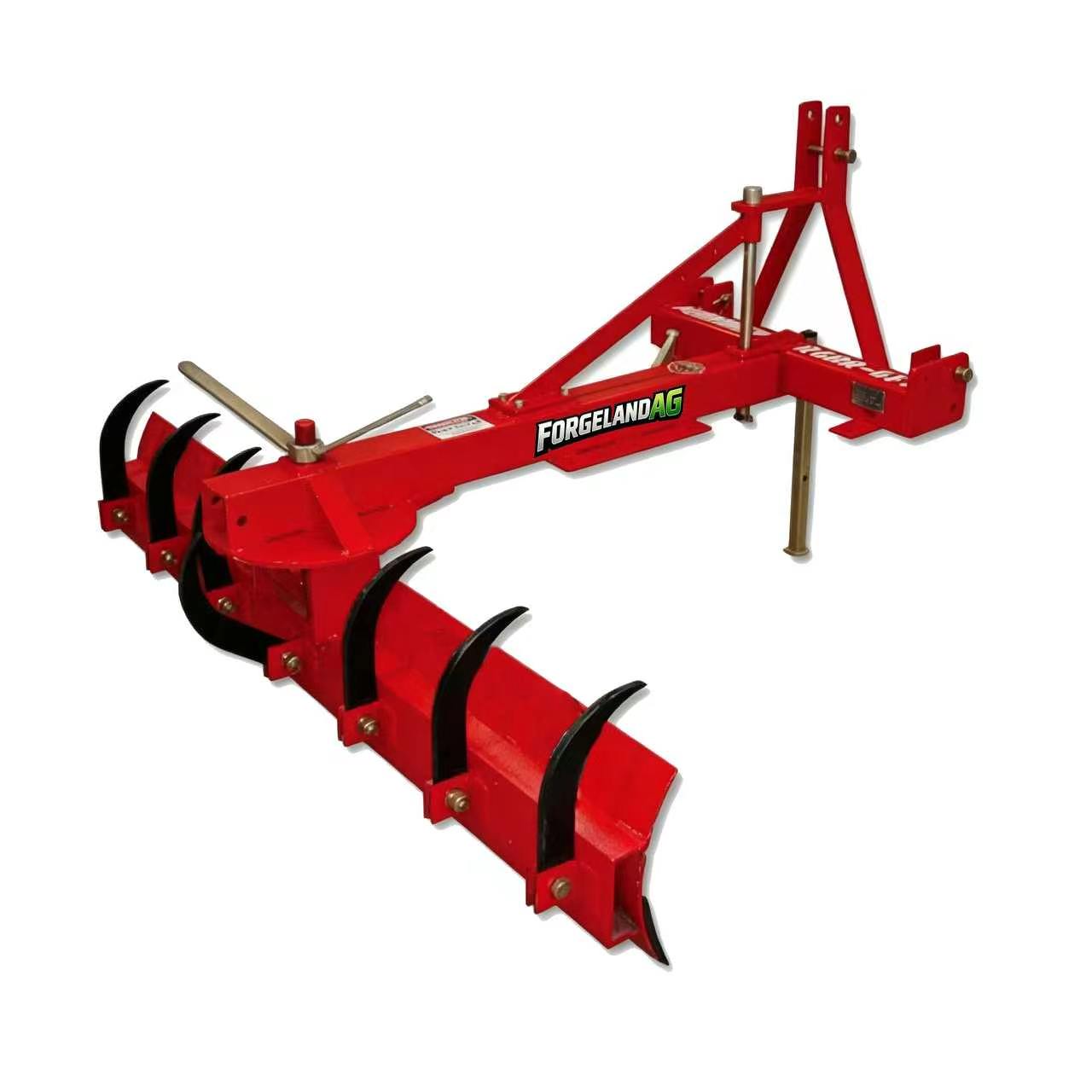

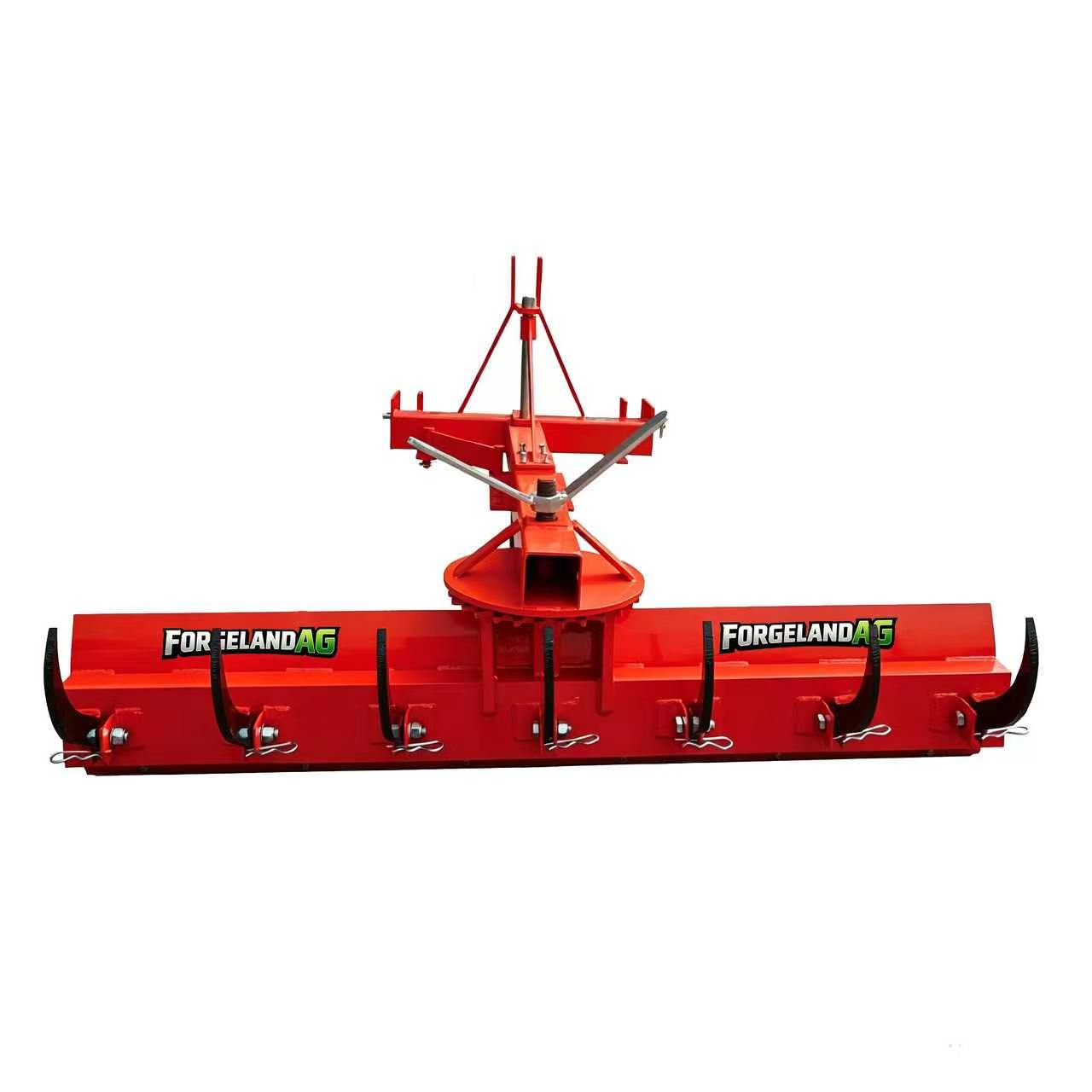

Manual Angle Rear Blade - GG-RP Series
The GG-RP Manual Angle Rear Blade features a 60° rotary adjustment via a heavy-duty indexed turntable, combining soil-carrying with side-casting capability. With 5 to 7 heat-treated ripper shanks, a massive center pivot pin with thick locking plates, multi-position locking pins, and a universal Cat I 3-point linkage, it handles working widths from 3.94' (1200mm) to 5.91' (1800mm) on 15-50HP tractors.
Key Features
- 60° Rotary Adjustment by Heavy-Duty Indexed Turntable
- 5 to 7 Heat-Treated Rippers
- Combine Soil-Carrying with Side-Casting
- Massive Center Pivot Pin and Thick Locking Plates
- Multi-Position Locking Pins
- Heavy-Duty Ripper Shanks
- Universal Cat I / 3-Point Linkage (15HP Up to 50HP)

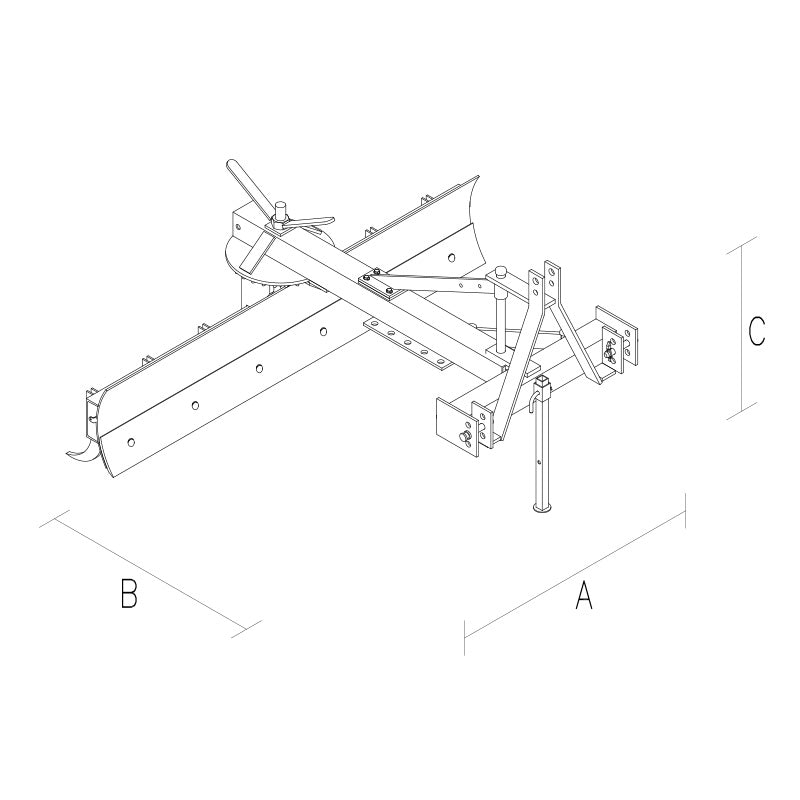

Technical Specifications
| Specification | GG-4-RP5 | GG-5-RP6 | GG-6-RP7 |
|---|---|---|---|
| Length | 4.00' (1200mm) | 4.98' (1500mm) | 4.98' (1800mm) |
| Width | 3.94' (1224mm) | 4.92' (1524mm) | 5.91' (1524mm) |
| Height | 3.28' (1006mm) | 3.48' (1006mm) | 3.48' (1006mm) |
| Weight | 353 lb (175kg) | 375 lb (188kg) | 397 lb (200kg) |
| Working Width | 3.94' (1200mm) | 4.92' (1500mm) | 5.91' (1800mm) |
| Rippers | 5 Tines | 6 Tines | 7 Tines |
| Power | 15-22 HP | 18-35 HP | 25-50 HP |
Manual Angle Rear Blade - GG-RP Series
The GG-RP Manual Angle Rear Blade features a 60° rotary adjustment via a heavy-duty indexed turntable, combining soil-carrying with side-casting capability. With 5 to 7 heat-treated ripper shanks, a massive center pivot pin with thick locking plates, multi-position locking pins, and a universal Cat I 3-point linkage, it handles working widths from 3.94' (1200mm) to 5.91' (1800mm) on 15-50HP tractors.
Key Features
- 60° Rotary Adjustment by Heavy-Duty Indexed Turntable
- 5 to 7 Heat-Treated Rippers
- Combine Soil-Carrying with Side-Casting
- Massive Center Pivot Pin and Thick Locking Plates
- Multi-Position Locking Pins
- Heavy-Duty Ripper Shanks
- Universal Cat I / 3-Point Linkage (15HP Up to 50HP)
Technical Specifications
| Specification | GG-4-RP5 | GG-5-RP6 | GG-6-RP7 |
|---|---|---|---|
| Length | 4.00' (1200mm) | 4.98' (1500mm) | 4.98' (1800mm) |
| Width | 3.94' (1224mm) | 4.92' (1524mm) | 5.91' (1524mm) |
| Height | 3.28' (1006mm) | 3.48' (1006mm) | 3.48' (1006mm) |
| Weight | 353 lb (175kg) | 375 lb (188kg) | 397 lb (200kg) |
| Working Width | 3.94' (1200mm) | 4.92' (1500mm) | 5.91' (1800mm) |
| Rippers | 5 Tines | 6 Tines | 7 Tines |
| Power | 15-22 HP | 18-35 HP | 25-50 HP |
