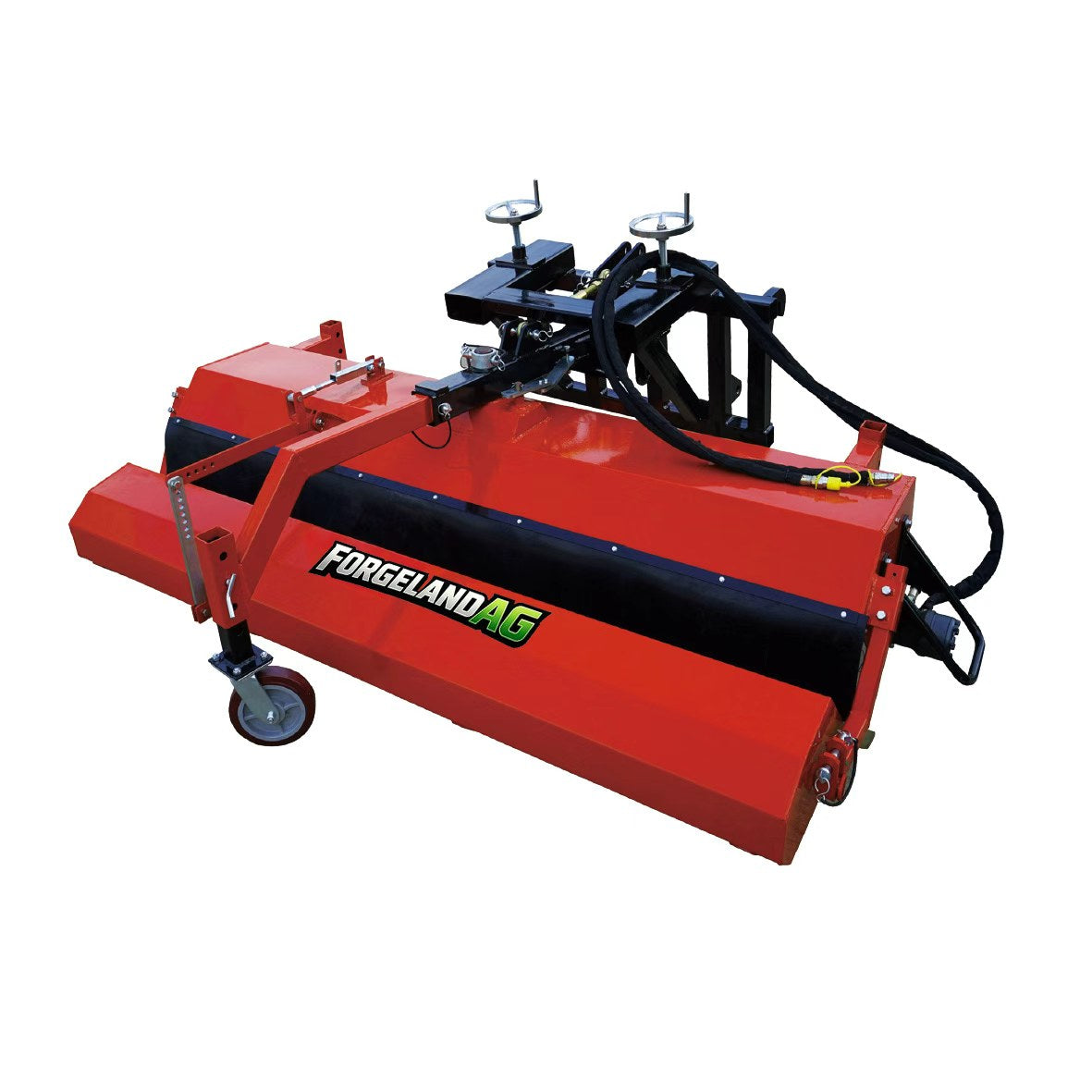

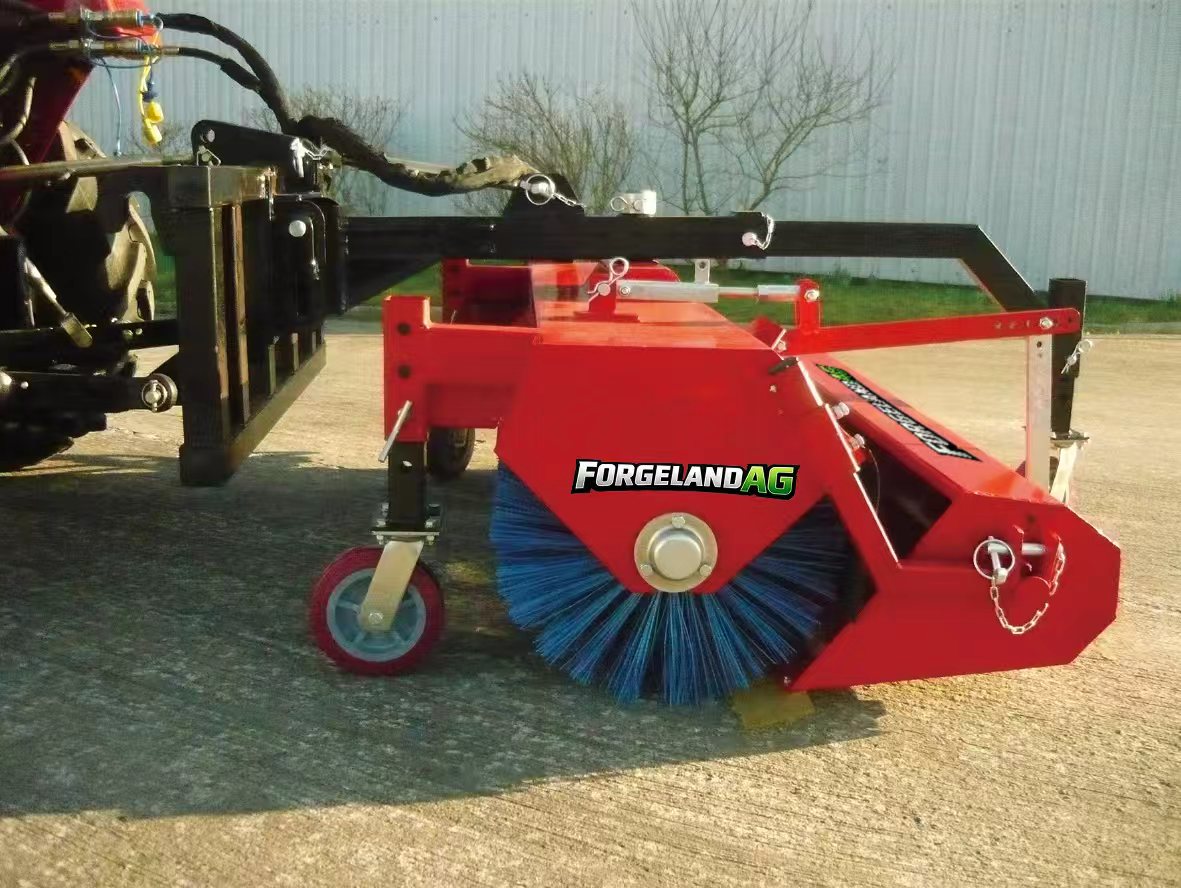

Hydraulic Front Mount Sweeper - SW-FT-HM Series
The SW-FT-HM Hydraulic Front Mount Sweeper eliminates the need for a PTO shaft by using a hydraulic motor powered by your tractor's hydraulic system (18-40 L/min). With wear-resistant high-density PE brushes, dual top-mounted adjustment wheels, an industrial caster to follow ground contours, and a front-mounted heavy rubber curtain, it sweeps working widths from 4.92' (1500mm) to 7.22' (2200mm) on 18-60HP 4-wheel tractors or forklifts.
Key Features
- Hydraulic Drive Without Need for PTO Shaft
- Dual Top-Mounted Adjustment Wheels
- Wear-Resistant & High-Density PE Brushes
- Industrial Caster to Follow Ground Contour
- Hydraulic Motor with Oil Supplies from 18 to 40 L/min
- Front-Mounted Heavy Rubber Curtain
Optional Accessories
- Water Sprinkling System with Tank and Spray Nozzles
- Steel/Poly Mixed Brushes for Stubborn, Compacted Mud
Technical Specifications
| Specification | SW-FT-150-HM | SW-FT-220-HM |
|---|---|---|

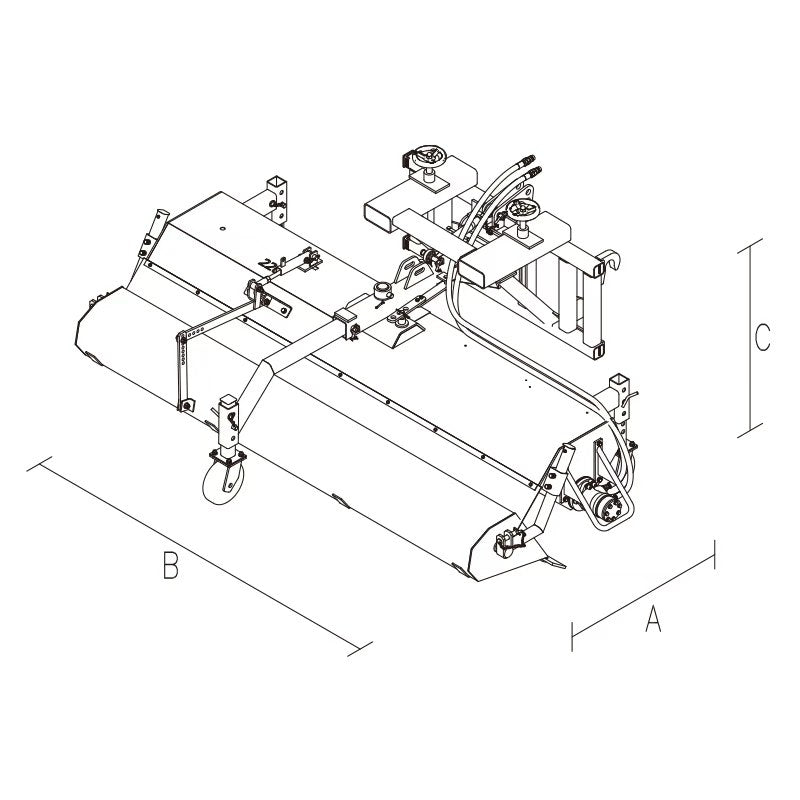

| Overall Dimensions (A×B×C) | 73.9"x73.3"x37.5" (1878x1862x952mm) | 74.3"x102.0"x38.6" (1886x2611x981mm) |
| Working Width | 4.92' (1500mm) | 7.22' (2200mm) |
| HYD Oil Supply | 18-30 L/min | 25-40 L/min |
| Roller Speed | 100-180 r/min | |
| Structure Weight | 606 lb (316kg) | 783 lb (355kg) |
| Power Required | 18-60 HP | |
| Availability | 4-Wheel Tractors / Forklift | |
