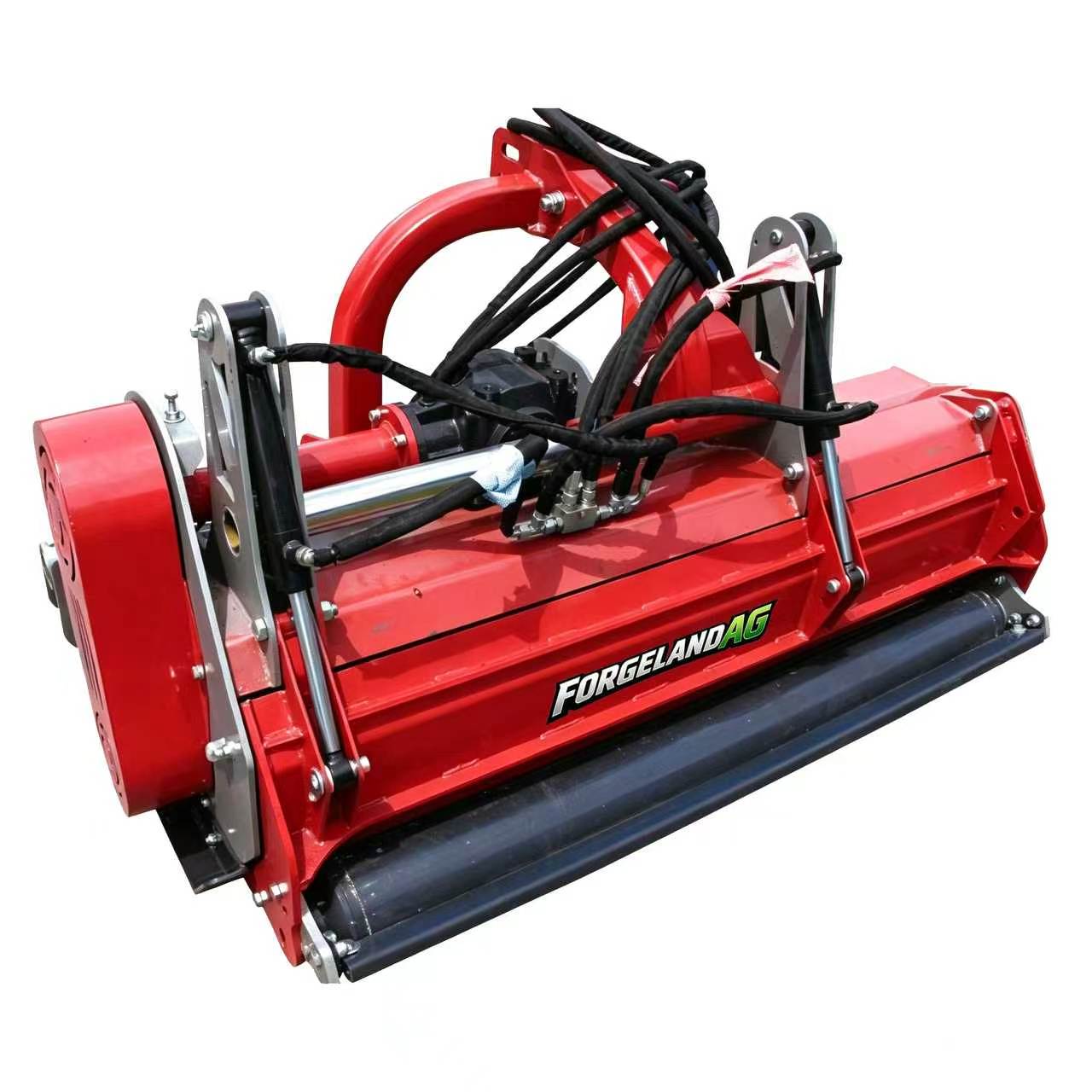

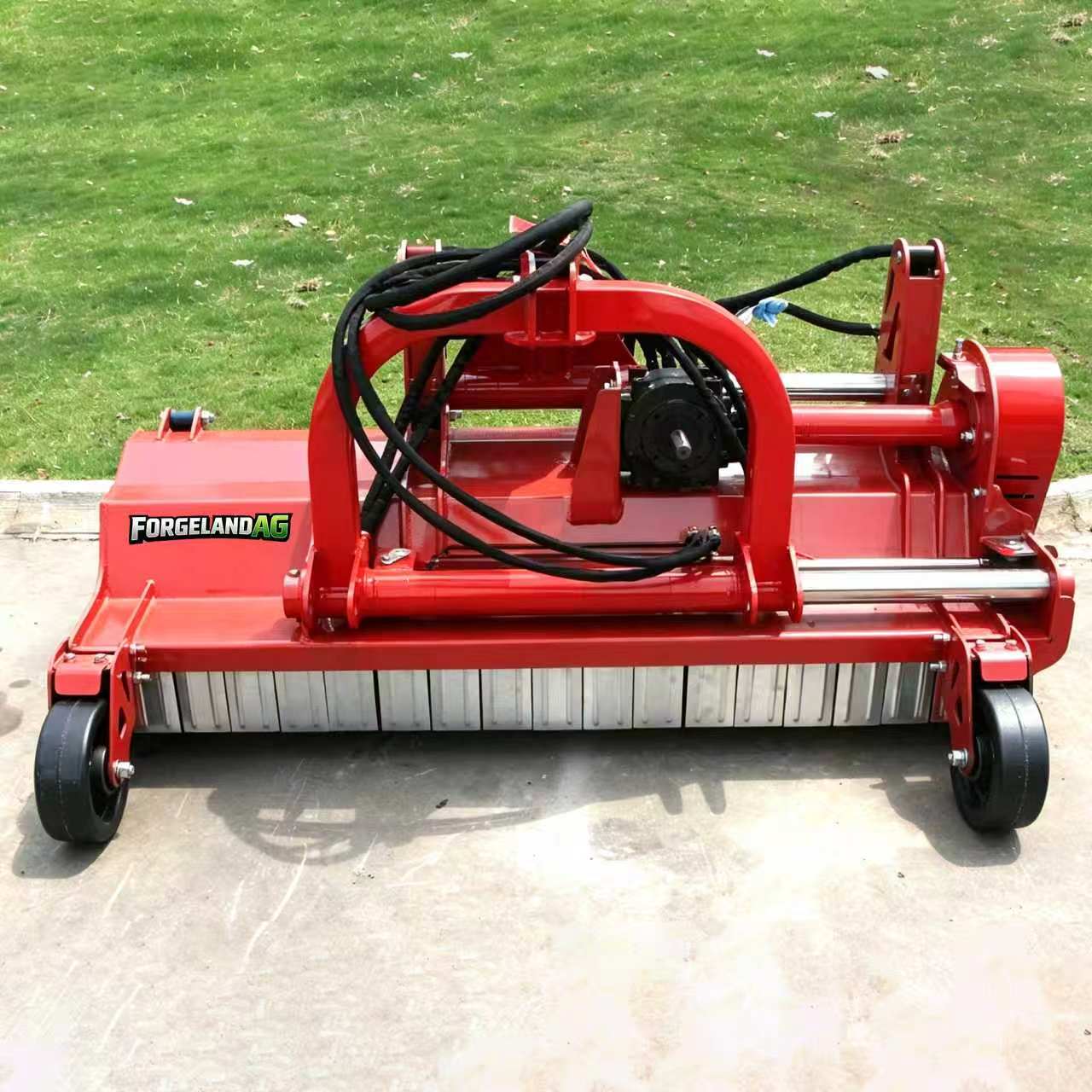

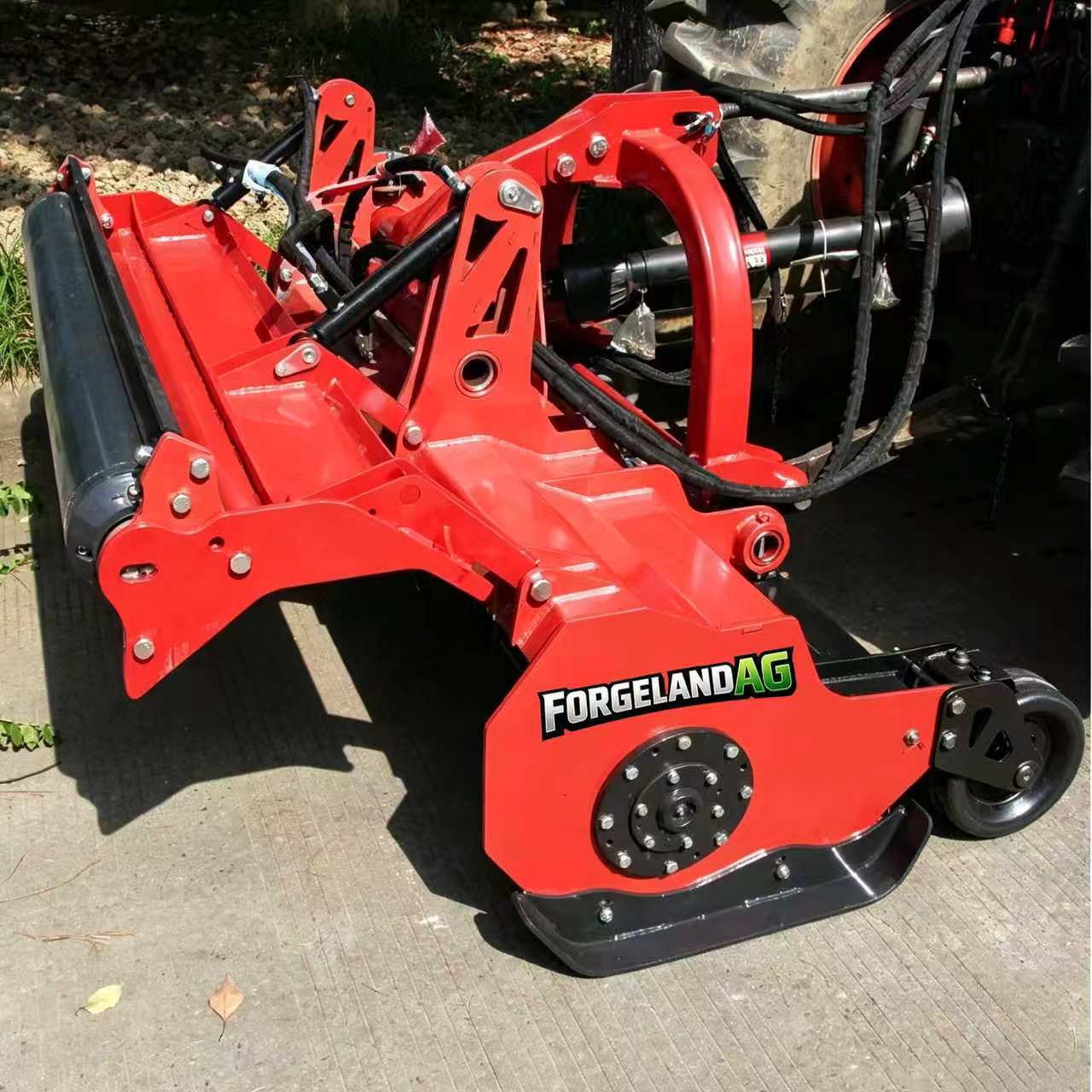

Heavy Duty Side-Shift Flail Mower - MO-SL HO/SW Series
Built for the most demanding field conditions, the MO-SL HO/SW series combines an ultra-rugged dual-layer chassis with an innovative side-shift hitch and NSK precision bearings — delivering unmatched durability and cutting performance for professional agricultural operations.
Key Features
- Ultra-Rugged Dual-Layer Chassis
- Hydraulic Opening Rear Hood
- NSK Bearings and Gearbox with Freewheel
- Innovative Side-Shift Hitch
- 1450g Forged Hammers
- Triple Row Counter-blades
- 5-Belt Drive with Automatic Tensioner
- Dual Front Support Wheels
Technical Specifications

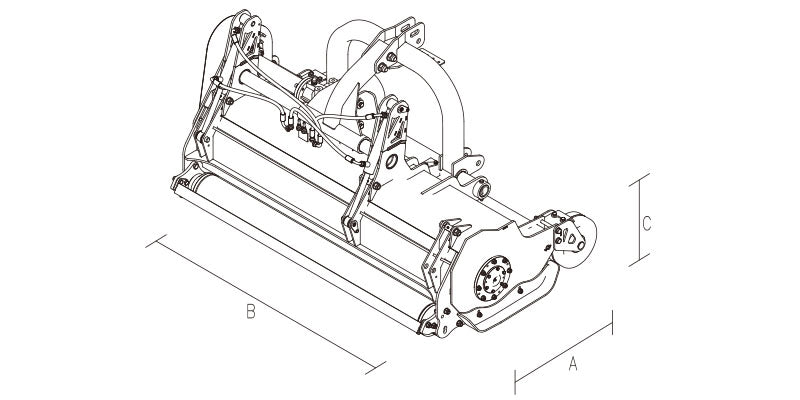

| Model | Working Width | No. of Hammers | No. of Gears | PTO | Cutting Height | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MO-SL-150H-HO/SW | 58.7" (1490mm) | 16 | 5 | 540 r/min | 20.4"-47.5" / 40.1"-27.8" (518-1206 / 1018-706mm) | 80 | 100 | 47.6" (1210mm) | 67.7" (1720mm) | 40.6" (1030mm) | 666 |
| MO-SL-200H-HO/SW | 78.3" (1990mm) | 20 | 5 | 540 r/min | 20.4"-67.2" / 40.1"-47.5" (518-1706 / 1018-1206mm) | 90 | 120 | 47.6" (1210mm) | 87.4" (2220mm) | 40.6" (1030mm) | 754 |
| MO-SL-240H-HO/SW | 94.1" (2390mm) | 24 | 5 | 540 r/min | 20.4"-82.9" / 40.1"-63.2" (518-2106 / 1018-1606mm) | 100 | 120 | 47.6" (1210mm) | 103.1" (2620mm) | 40.6" (1030mm) | 860 |
