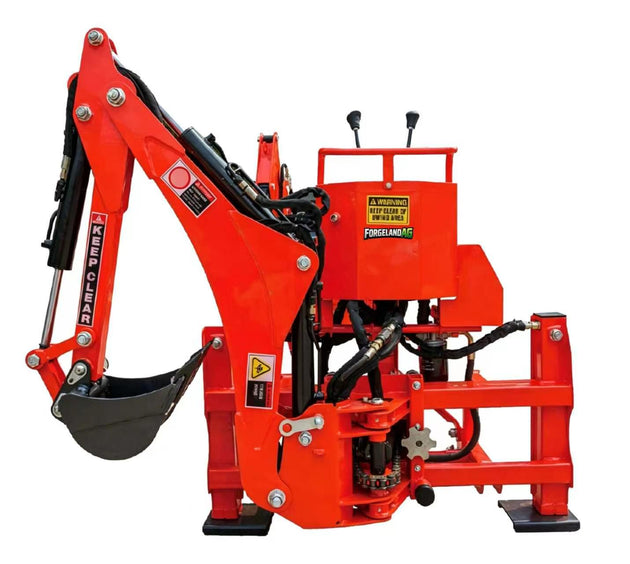

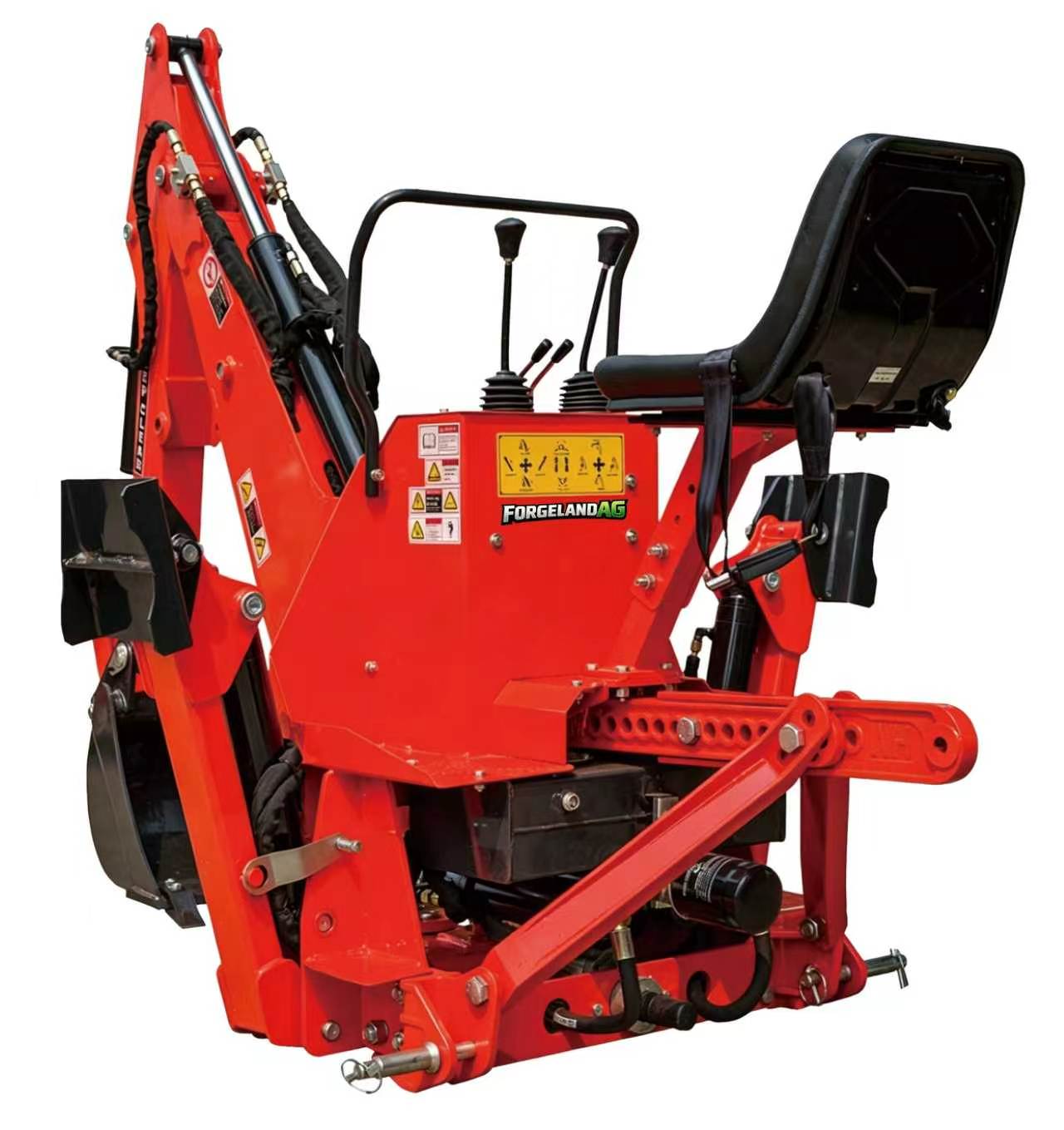

Center Pivot Backhoe - DG-FX-AF Series

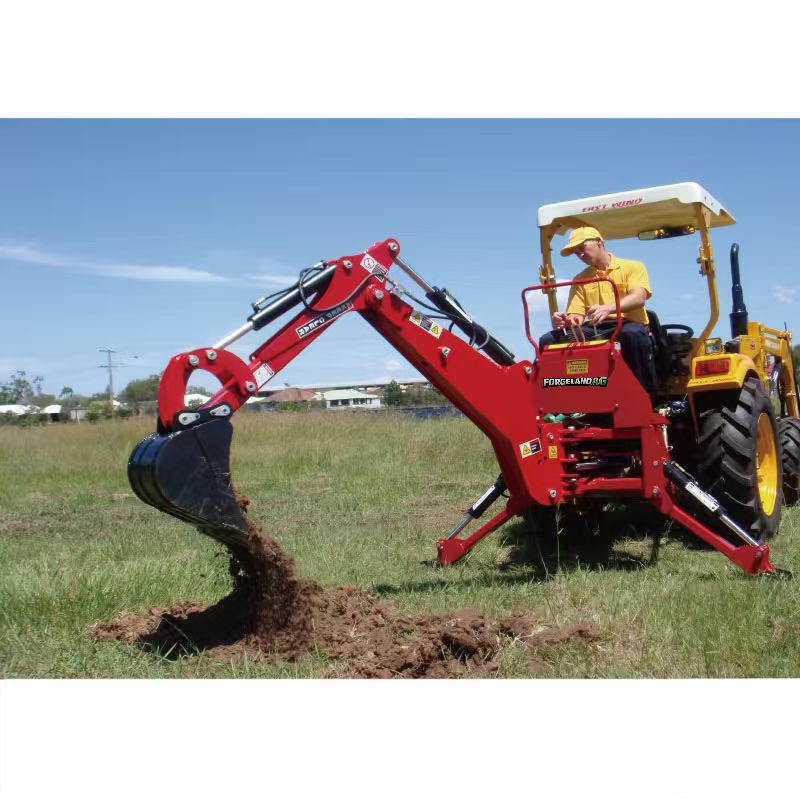

The DG-FX-AF Center Pivot Backhoe delivers professional excavation performance on 12-60HP tractors. With radial-style stab legs, a 180° boom swing, responsive control valves, and an independent hydraulic pump, it digs to depths from 3.1' (950mm) up to 7.4' (2250mm) across working widths from 7.6' (2300mm) to 10.8' (3300mm).
Key Features
- Radial Style Stab Legs
- 180° Boom Swing
- Responsive Control Valves
- Cat I & Cat II / 3-Point Linkage
- Independent Hydraulic Pump
- Boom / Stick / Bucket

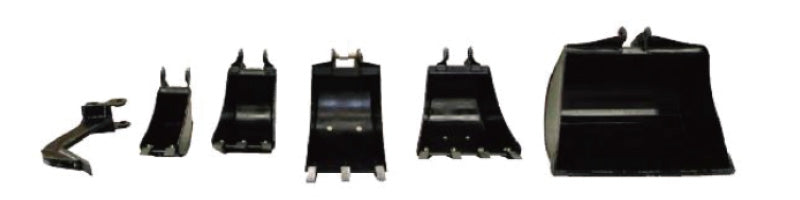

Optional Accessories

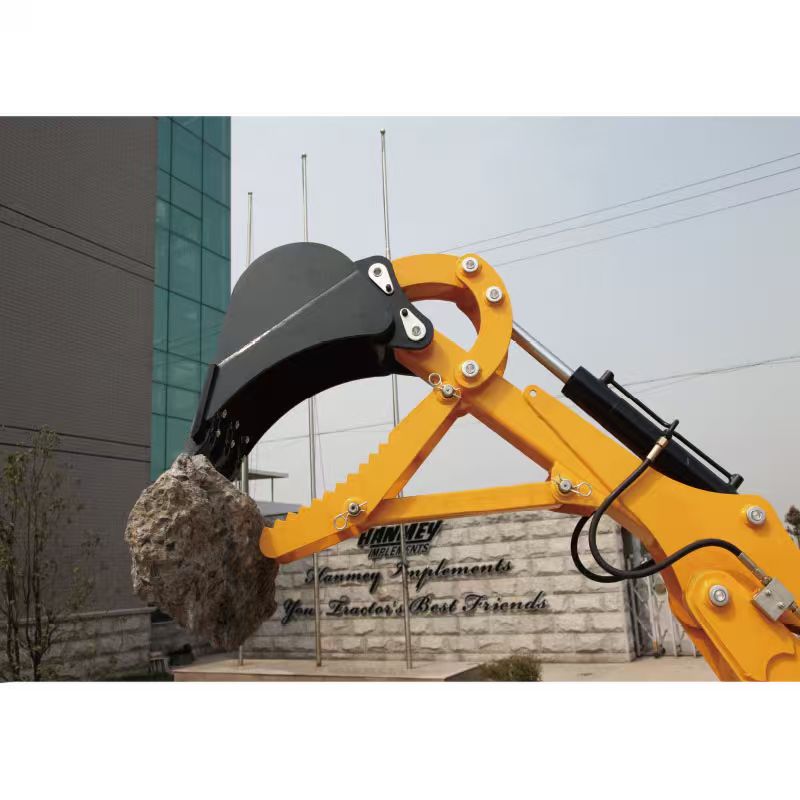

- Mechanical Thumb
- Heavy-Duty Ripper
- Hydraulic Thumb
Technical Specifications
| Specification | DG-FX-95-AF | DG-FX-175-AF | DG-FX-195-AF | DG-FX-225-AF |
|---|---|---|---|---|
| Tractor HP | 12-20 HP | 25-30 HP | 30-45 HP | 45-60 HP |
| 3-Point Linkage | Cat I | Cat I | Cat I | Cat I & II |
| Structure Weight | 683 lb (310kg) | 1120 lb (520kg) | 1190 lb (537kg) | 1698 lb (770kg) |

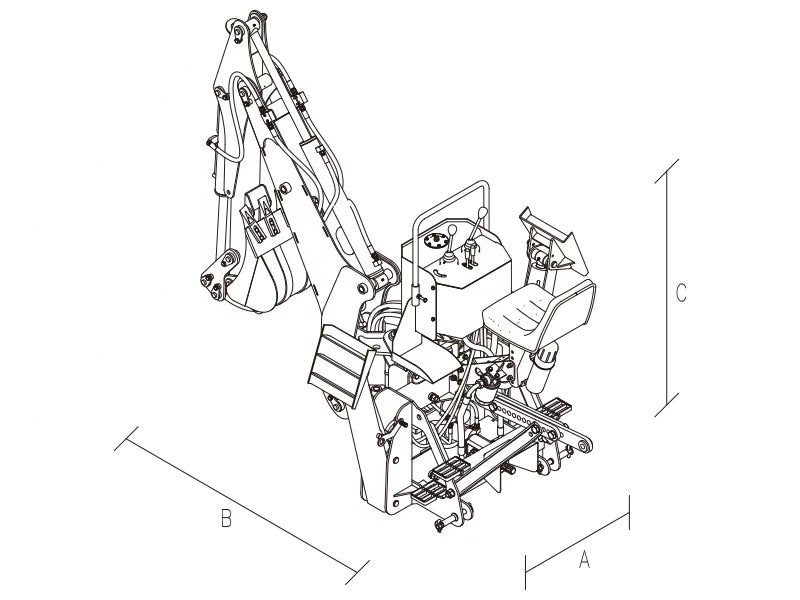

| (A) Loading Height | 4.43' (1350mm) | 7.78' (2370mm) | 7.94' (2420mm) | 8.37' (2550mm) |
| (B) Digging Depth | 3.12' (950mm) | 5.74' (1750mm) | 6.4' (1950mm) | 7.38' (2250mm) |
| (C) Max. Height | 6.89' (2100mm) | 10.24' (3120mm) | 10.4' (3170mm) | 11.32' (3450mm) |
| (D) Digging Width | 7.55' (2300mm) | 8.53' (2600mm) | 9.51' (2900mm) | 10.83' (3300mm) |
| Unload Height | 4.1' (1250mm) | 5.91' (1800mm) | 6.56' (2000mm) | 7.55' (2300mm) |
| Leg Spread | 6.89' (2100mm) | 7.25' (2210mm) | 7.25' (2210mm) | 8.03' (2450mm) |
| Swing Angle (Boom) | 180° | |||
| Bucket Width | 0.9' (290mm) | 0.9' (300mm) | 0.9' (300mm) | 1.3' (400mm) |
