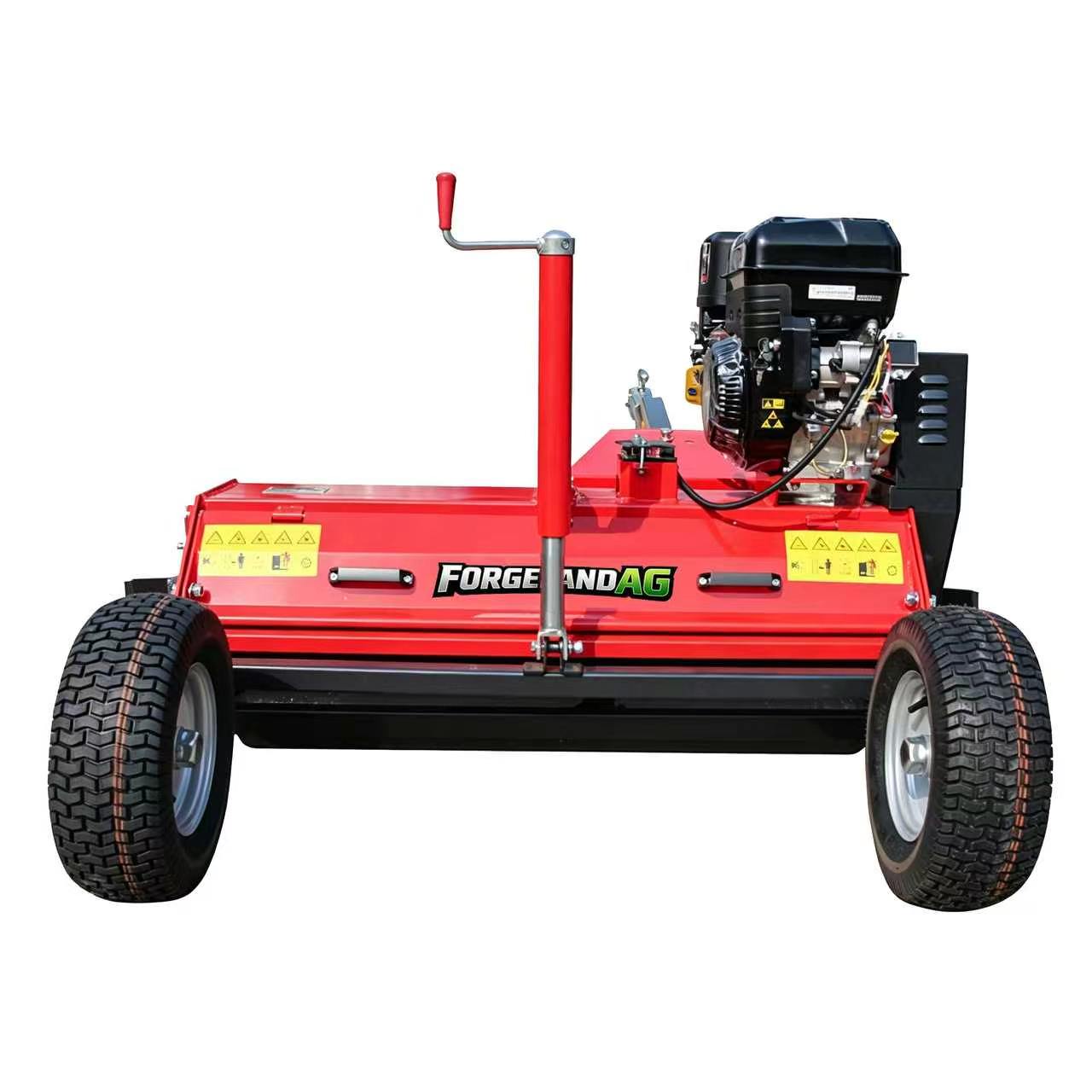

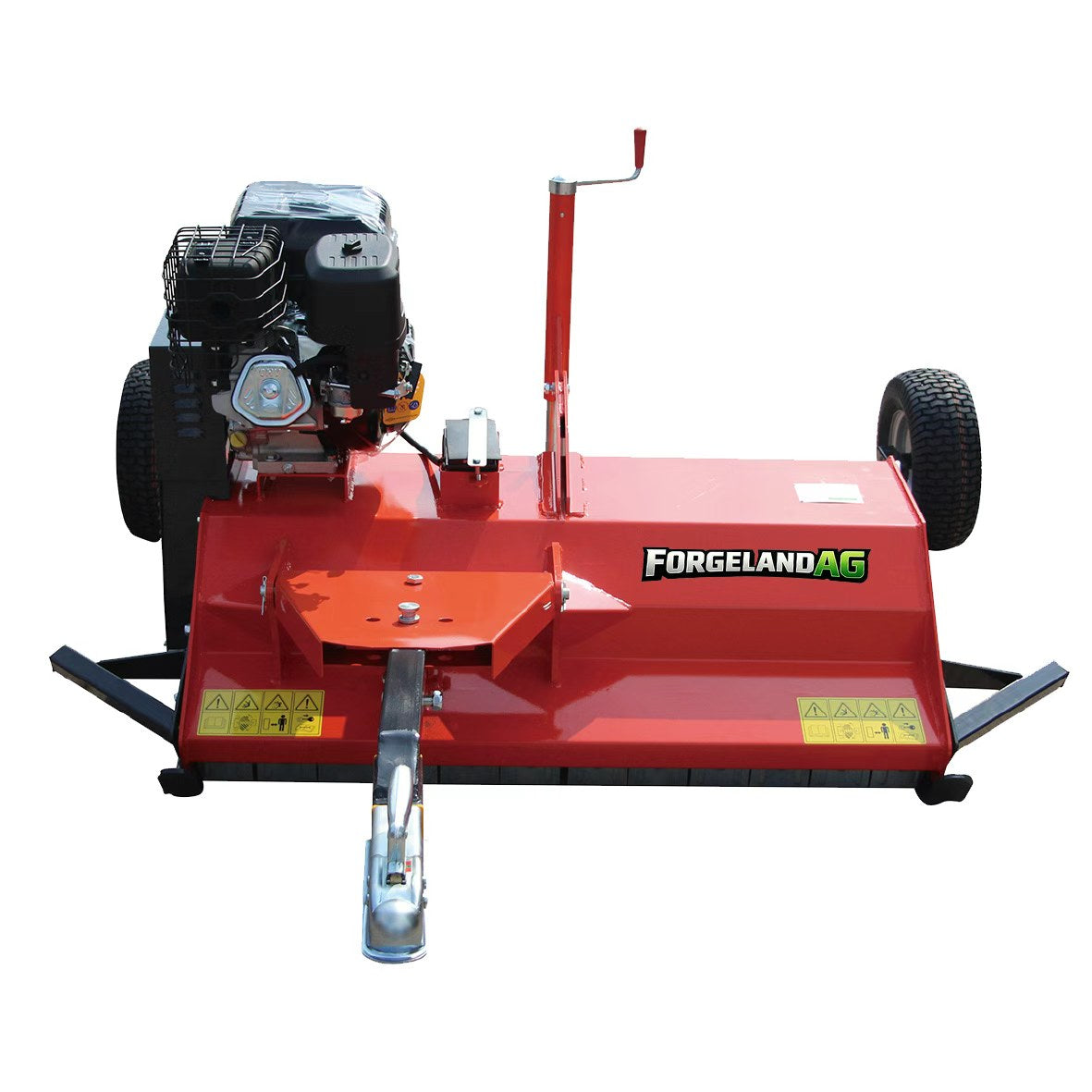

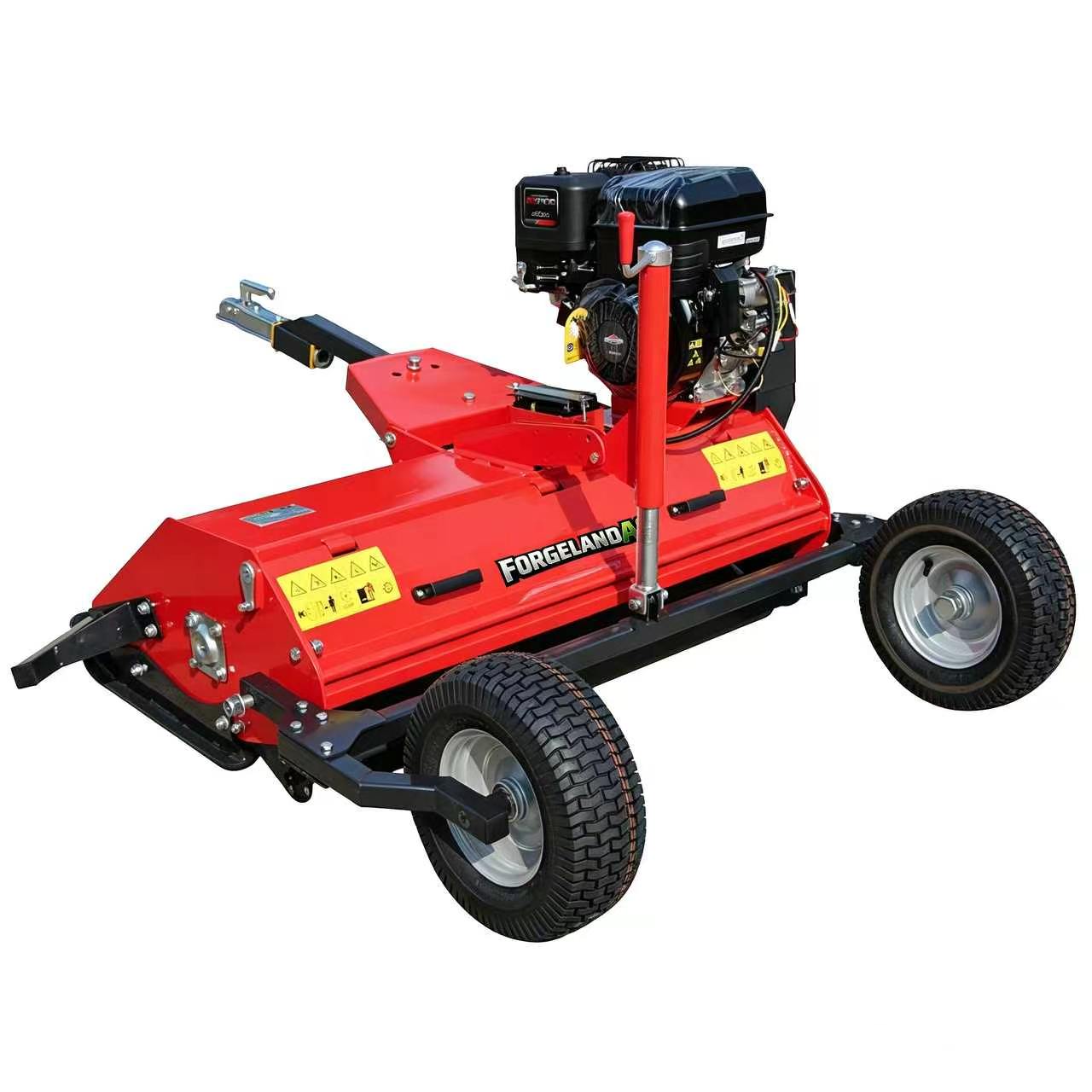

ATV Mower - MO-AT-120
The MO-AT-120 ATV Mower is a self-powered, highly maneuverable flail mower built for ATV and off-road use. Driven by a high-torque 420cc/13.5HP engine with spring-tensioned drive belts and large 16x6.50-8 pneumatic off-road tires, it delivers reliable cutting performance with a 47.2" (1200mm) working width and manual crank cutting height adjustment.
Key Features
- Powered by High-Torque 420cc / 13.5HP Engine
- Rear Discharge Hatch (Bonnet)
- Wheels Can Be Mounted on the Sides
- Side-Adjustable Drawbar
- Manual Crank Cutting Height Adjustment
- Spring-Tensioned Drive Belts
- Large Pneumatic Off-Road Tires: 16x6.50-8
Optional Accessories
- Upgrade to B&S Engine (13.5HP)
- Interchangeable Y Blades
- E-Start System
Technical Specifications
| Model | Working Width | Hammer No. | Y-Blade No. | Counter-Blade No. | PTO (r/min) | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| MO-AT-120 | 47.2" (1200mm) | 28 | 56 | 2 | 540 | 68.7" (1745mm) | 72.4" (1840mm) | 35.8" (910mm) | 268 |
ATV Mower - MO-AT-120
The MO-AT-120 ATV Mower is a self-powered, highly maneuverable flail mower built for ATV and off-road use. Driven by a high-torque 420cc/13.5HP engine with spring-tensioned drive belts and large 16x6.50-8 pneumatic off-road tires, it delivers reliable cutting performance with a 47.2" (1200mm) working width and manual crank cutting height adjustment.
Key Features
- Powered by High-Torque 420cc / 13.5HP Engine
- Rear Discharge Hatch (Bonnet)
- Wheels Can Be Mounted on the Sides
- Side-Adjustable Drawbar
- Manual Crank Cutting Height Adjustment
- Spring-Tensioned Drive Belts
- Large Pneumatic Off-Road Tires: 16x6.50-8
Optional Accessories
- Upgrade to B&S Engine (13.5HP)
- Interchangeable Y Blades
- E-Start System
Technical Specifications
| Model | Working Width | Hammer No. | Y-Blade No. | Counter-Blade No. | PTO (r/min) | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| MO-AT-120 | 47.2" (1200mm) | 28 | 56 | 2 | 540 | 68.7" (1745mm) | 72.4" (1840mm) | 35.8" (910mm) | 268 |
- Regular price
- $0.00
ATV Mower - MO-AT-120
The MO-AT-120 ATV Mower is a self-powered, highly maneuverable flail mower built for ATV and off-road use. Driven by a high-torque 420cc/13.5HP engine with spring-tensioned drive belts and large 16x6.50-8 pneumatic off-road tires, it delivers reliable cutting performance with a 47.2" (1200mm) working width and manual crank cutting height adjustment.
Key Features
- Powered by High-Torque 420cc / 13.5HP Engine
- Rear Discharge Hatch (Bonnet)
- Wheels Can Be Mounted on the Sides
- Side-Adjustable Drawbar
- Manual Crank Cutting Height Adjustment
- Spring-Tensioned Drive Belts
- Large Pneumatic Off-Road Tires: 16x6.50-8
Optional Accessories
- Upgrade to B&S Engine (13.5HP)
- Interchangeable Y Blades
- E-Start System
Technical Specifications
| Model | Working Width | Hammer No. | Y-Blade No. | Counter-Blade No. | PTO (r/min) | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| MO-AT-120 | 47.2" (1200mm) | 28 | 56 | 2 | 540 | 68.7" (1745mm) | 72.4" (1840mm) | 35.8" (910mm) | 268 |
-
Vendor: HAN-SUN

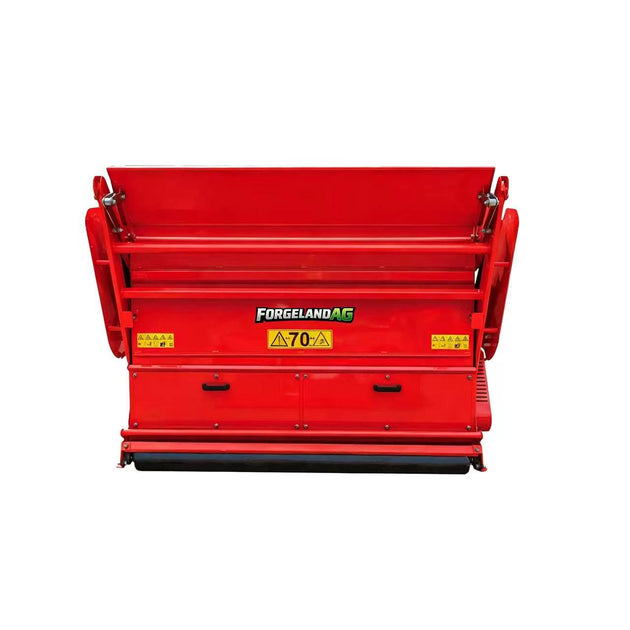

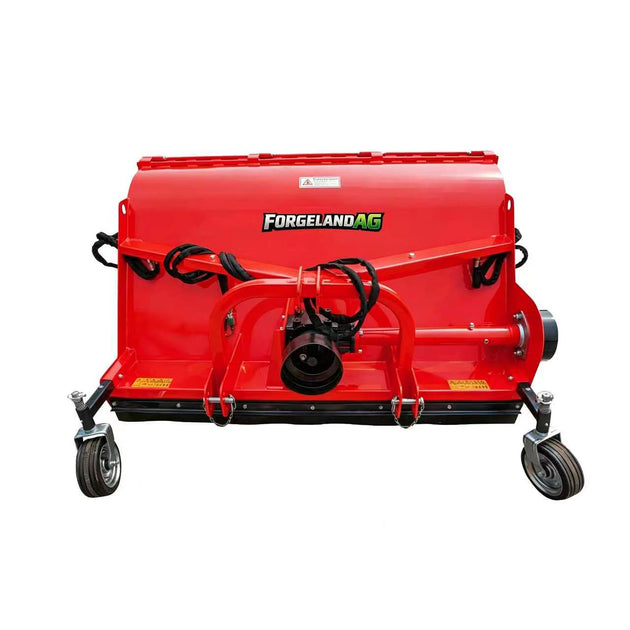

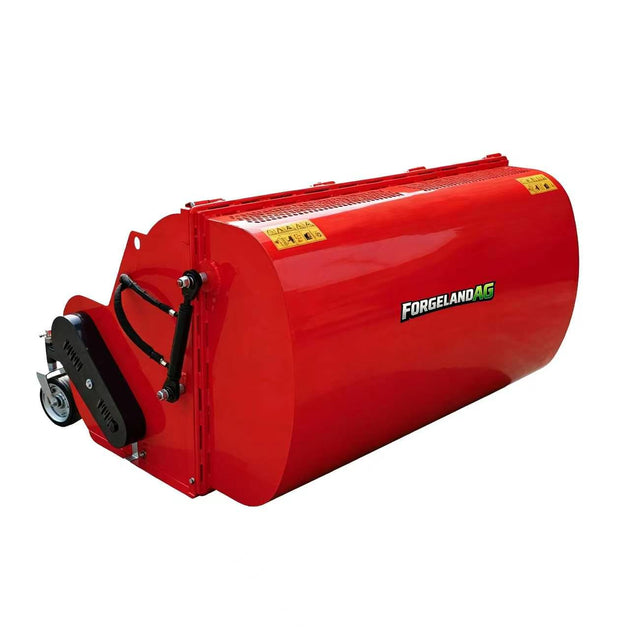

Flail Mower Collector - Ground Type (MO-CB-C Series)
Regular price $0.00 -
Vendor: HAN-SUN

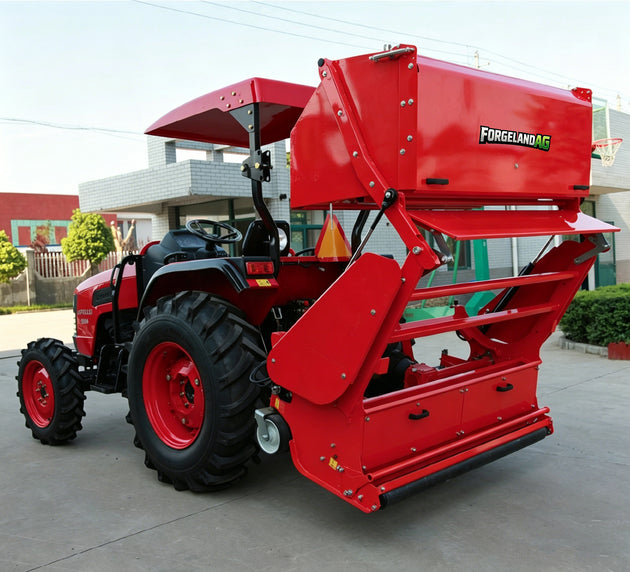

Flail Mower Collector - High-Tip (MO-CB-C/L Series)
Regular price $0.00 -
Vendor: HAN-SUN

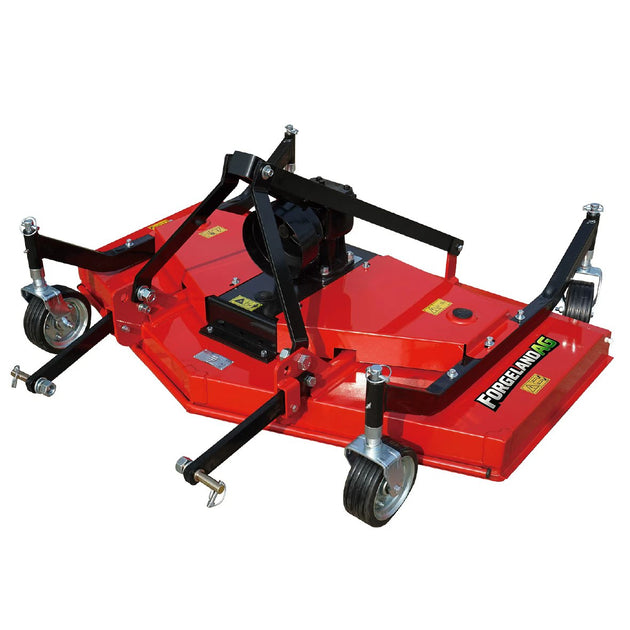

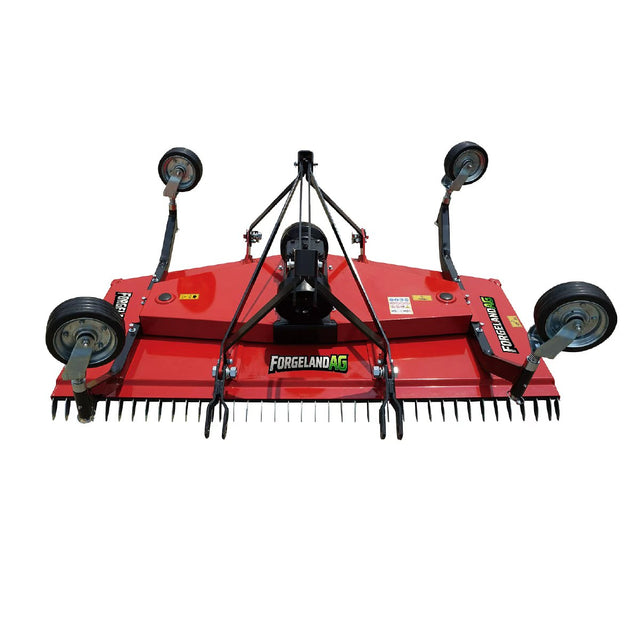

Finish Mower - Senior (MO-FM Series)
Regular price $0.00 -
Vendor: HAN-SUN

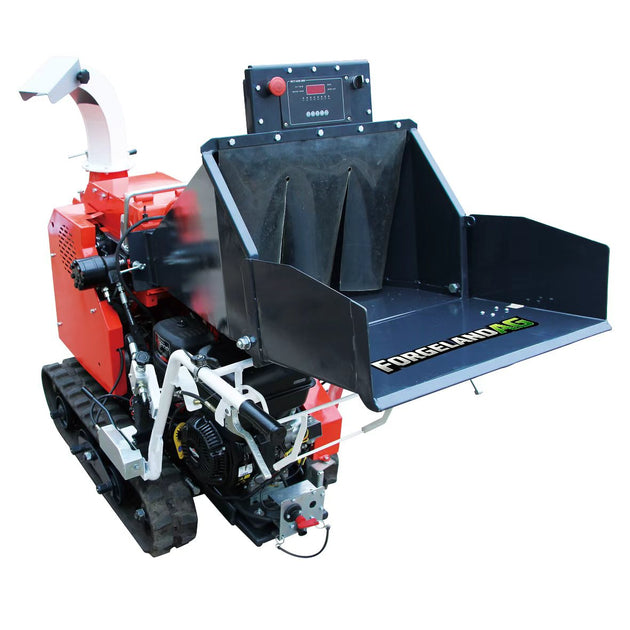

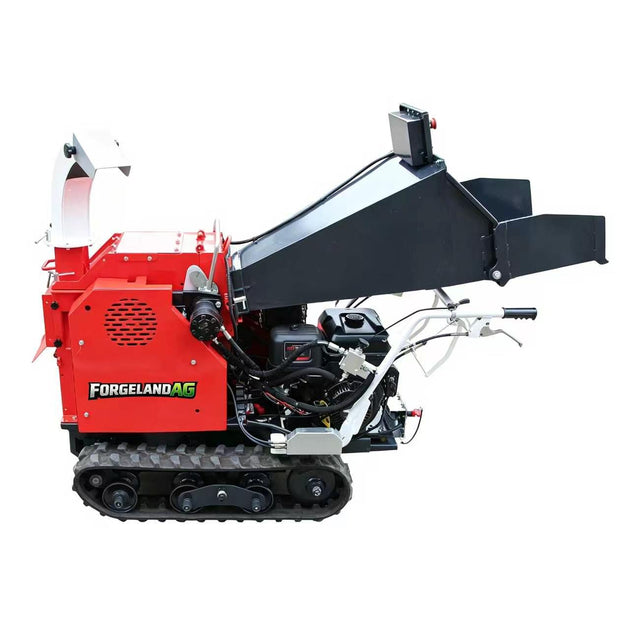

Bamboo & Wood Chipper - Self-Walking Crawler (WC-130-GE/B)
