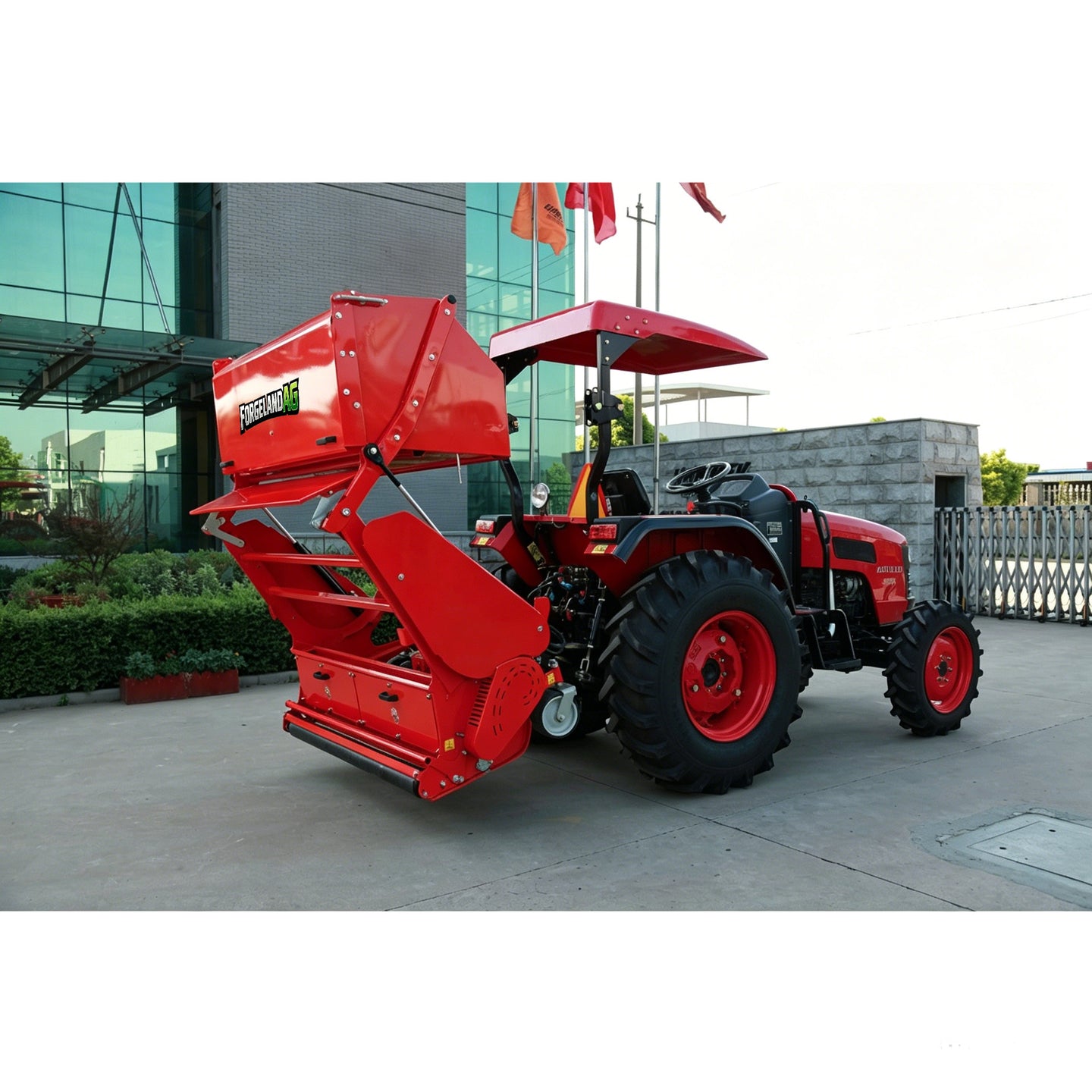

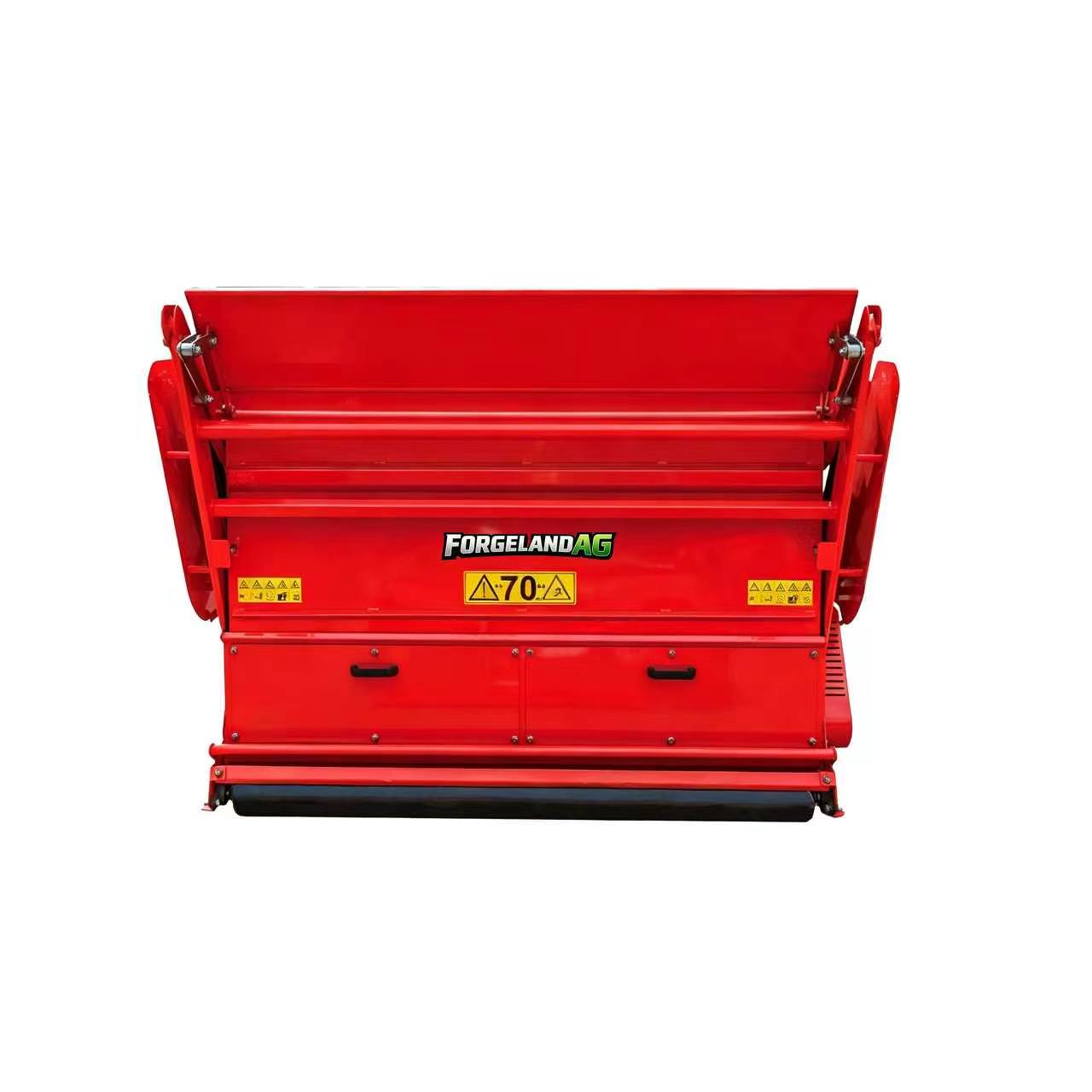

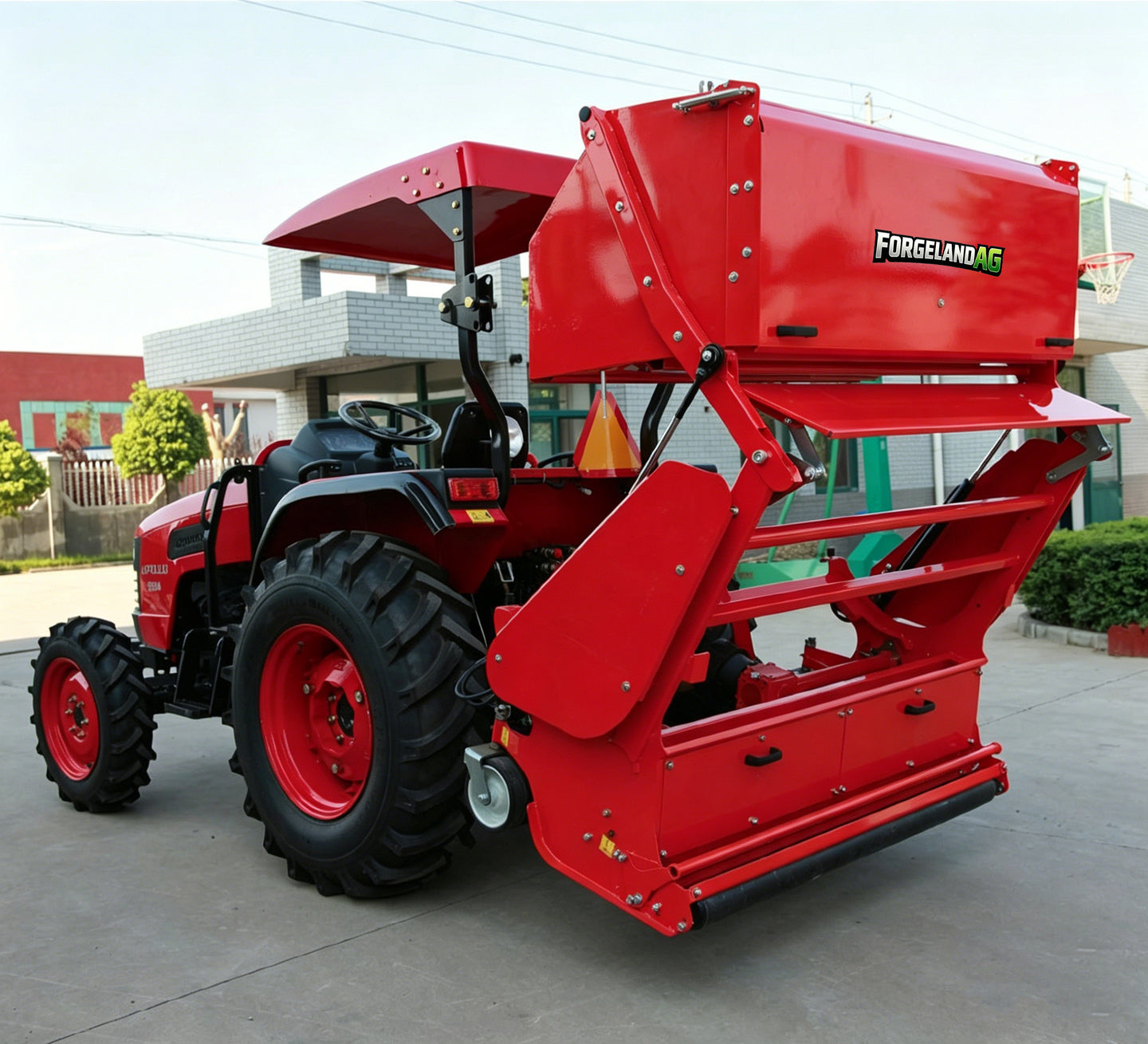

High-Tip Flail Mower Collector - MO-CB-C/L Series
The MO-CB-C/L High-Tip Collector takes grass collection to the next level with a parallel high-lift discharge system and a collection basket up to 28.3 ft³ (0.8m³). Built with a suction-optimized rotor, cast iron 540rpm gearbox with built-in freewheel, and rugged construction rated up to 100HP, this machine is designed for high-volume, high-efficiency collection across working widths from 49.2" (1250mm) to 78.7" (2000mm).
Key Features
- Parallel High-Lift Discharge
- Collection Basket (Up to 28.3 ft³ / 0.8m³)
- Suction-Optimized Rotor
- Rugged Construction up to 100 HP
- Cast Iron Gearbox (540 rpm) with Built-in Freewheel
- Stamping Blades for Weed Cutting
- Front Safety Guards
Optional Accessories
- Interchangeable Y Blades for High-Quality Mowing
Technical Specifications

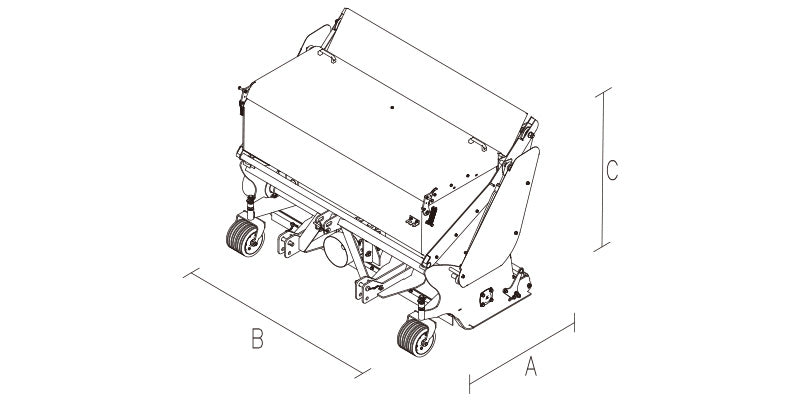

| Model | Working Width | No. of Hammers | No. of Belts | PTO (r/min) | Basket Volume | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MO-CB-120-C/L | 49.2" (1250mm) | 24 | 3 | 540 | 17.7 ft³ (0.5m³) | 35 | 70 | 41.3" (1050mm) | 58.7" (1490mm) | 56.3" (1430mm) | 432 |
| MO-CB-160-C/L | 65.0" (1650mm) | 30 | 3 | 540 | 23.0 ft³ (0.65m³) | 55 | 75 | 41.3" (1050mm) | 74.4" (1890mm) | 56.3" (1430mm) | 512 |
| MO-CB-200-C/L | 78.7" (2000mm) | 36 | 3 | 540 | 28.3 ft³ (0.8m³) | 70 | 100 | 41.3" (1050mm) | 88.2" (2240mm) | 56.3" (1430mm) | 587 |
