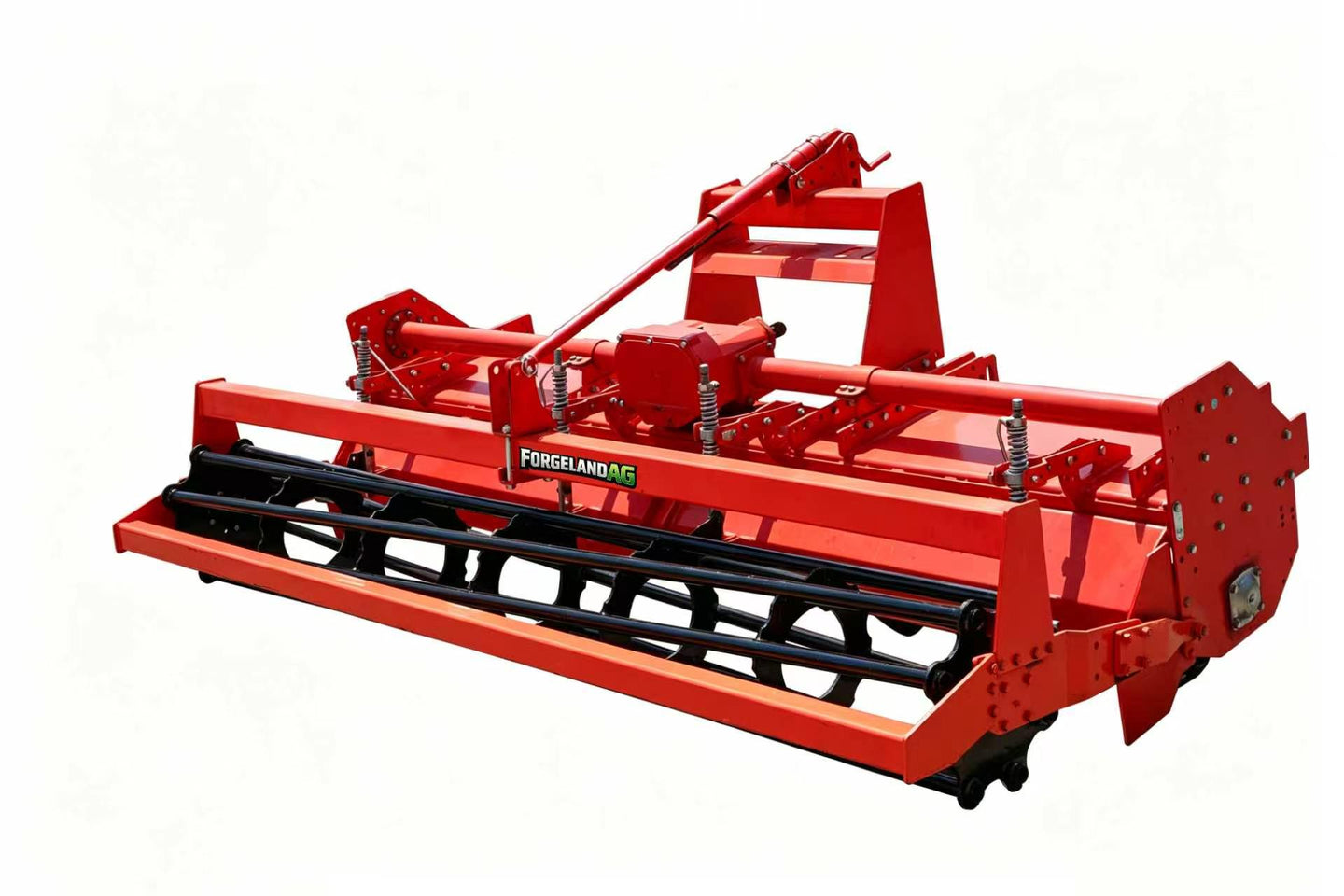

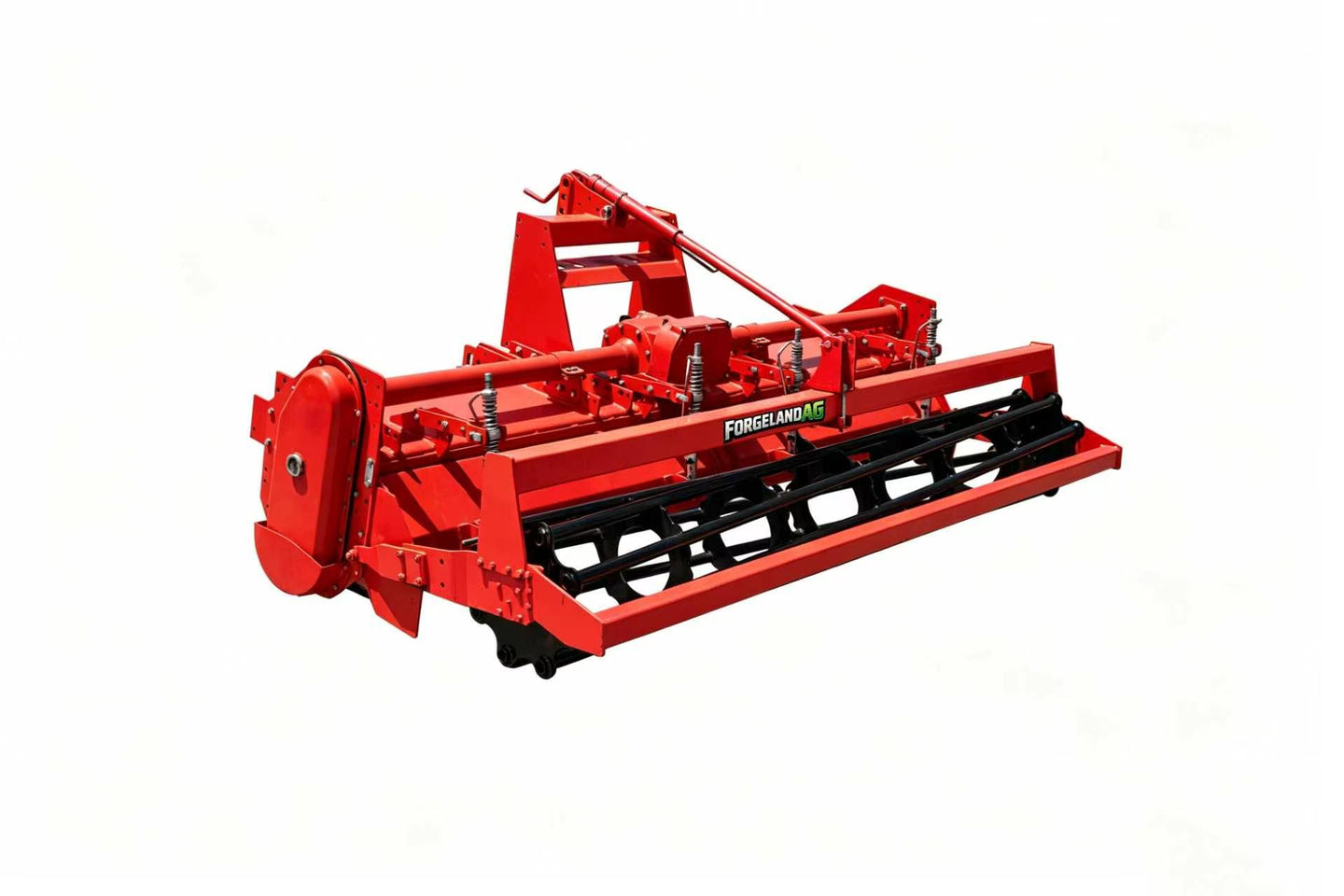

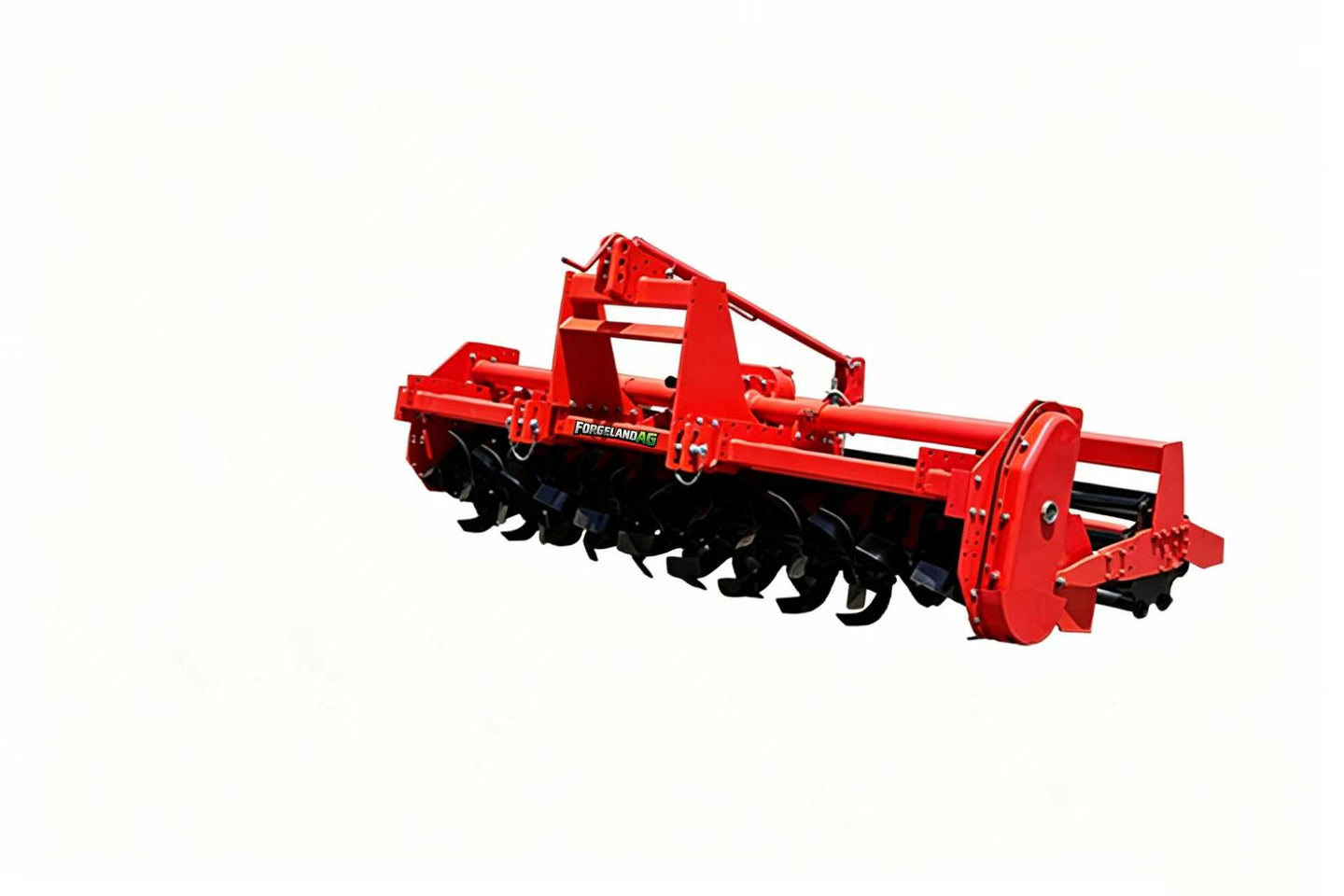

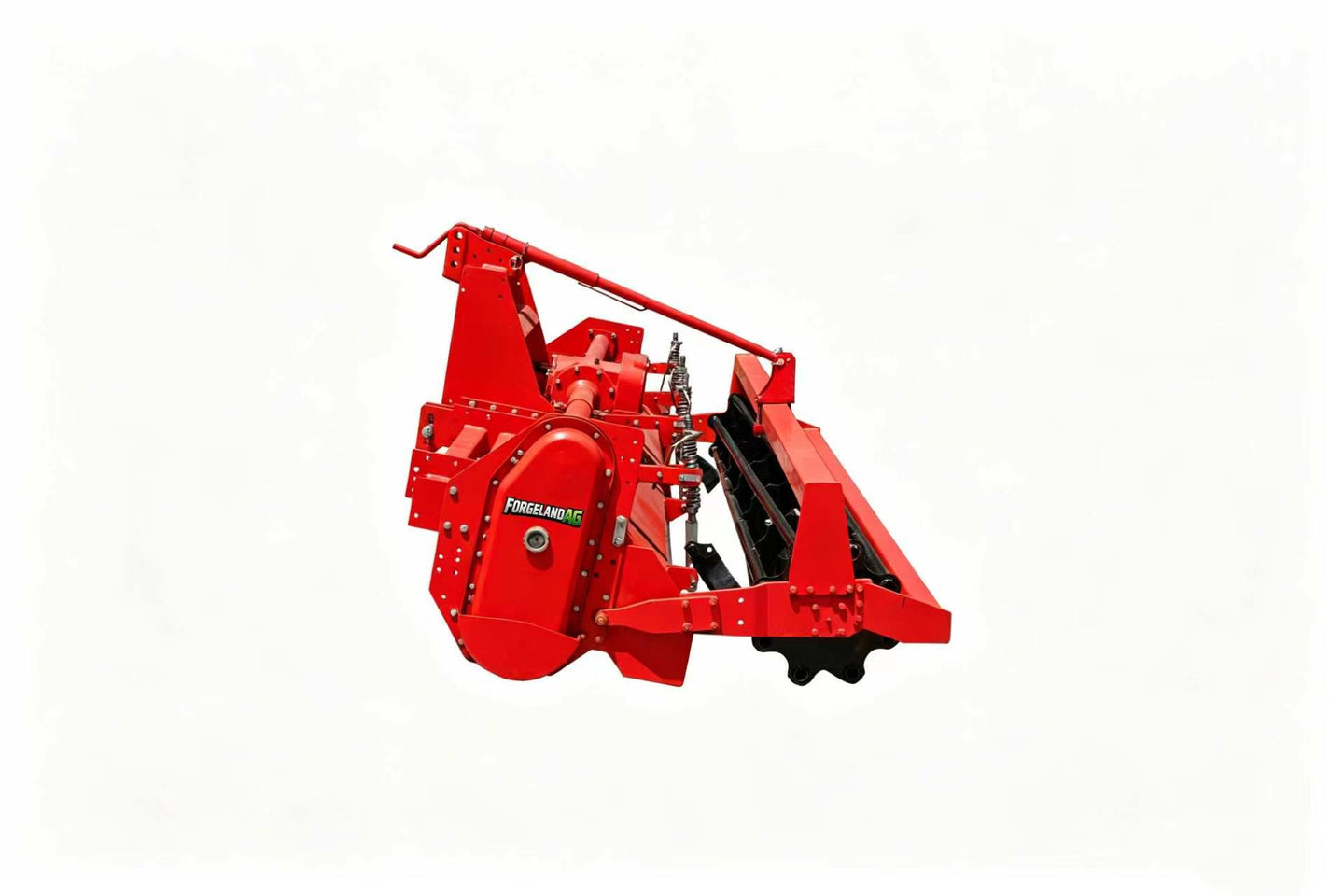

Super Heavy With Cage Rotary Tiller - TL-S-K/LV Series
The TL-S-K/LV Super Heavy With Cage Rotary Tiller is built for the most demanding large-scale tillage operations. Featuring a heavy-duty 17.5" (445mm) diameter cage roller weighing up to 2838 lbs (1288kg), up to 13 flanges with 72 specially hardened forged deep-tilling blades, and a reinforced 3-point linkage Cat II & III, it delivers unmatched stability and penetration across working widths from 9.2' (2800mm) to 9.8' (3000mm) on 110-160HP tractors.
Key Features
- Heavy-Duty 17.5" (445mm) Diameter Cage Roller
- Weighing Up to 2838 lbs (1288kg) Without Skipping or Bouncing
- Up to 13 Flanges and 72 Specially Hardened Blades
- Heavy-Duty Gearbox (540 rpm)
- Reinforced 3-Point Linkage Cat II & III
- Forged Deep-Tilling Blades
Optional Accessories
- PTO Shaft with Friction Clutch
- Heavy-Duty Multi-Tooth Packer Roller
- Custom Widths from 9.2' (2.8m) to 9.8' (3.0m)
Technical Specifications

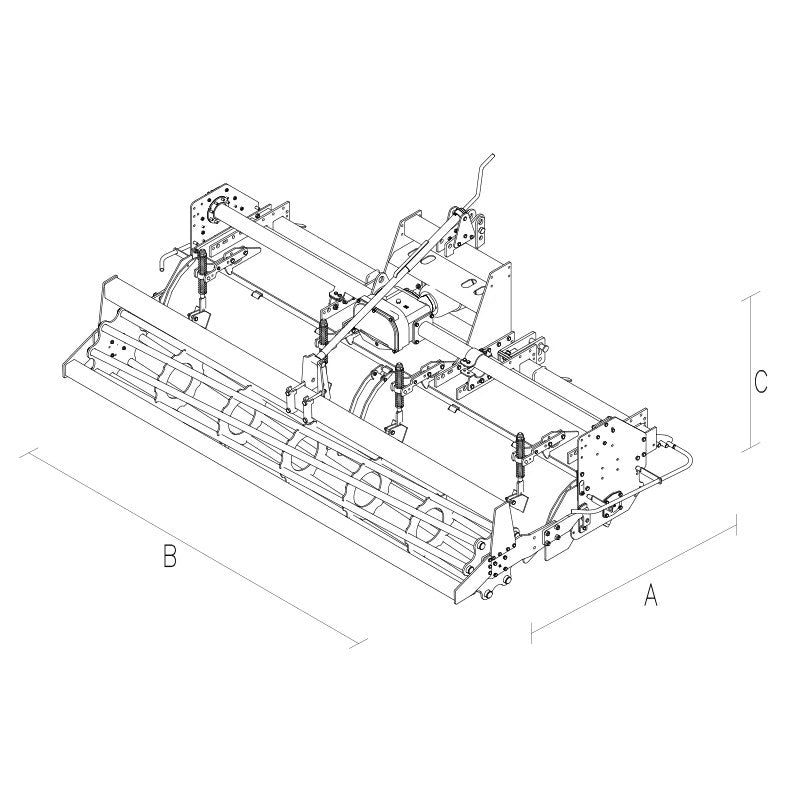

| Model | Working Width | Flange No. | Blade No. | Tilling Depth | Cage Roller Dia. | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-280S-K/LV | 9.2' (2800mm) | 12 | 33+33 | 10.8" (275mm) | 17.5" (445mm) | 540 | 110 | 150 | 76.6" (1945mm) | 130.1" (3305mm) | 58.3" (1480mm) | 1208 |
| TL-300S-K/LV | 9.8' (3000mm) | 13 | 36+36 | 10.8" (275mm) | 17.5" (445mm) | 540 | 130 | 160 | 76.6" (1945mm) | 138.0" (3505mm) | 58.3" (1480mm) | 1288 |
Super Heavy With Cage Rotary Tiller - TL-S-K/LV Series
The TL-S-K/LV Super Heavy With Cage Rotary Tiller is built for the most demanding large-scale tillage operations. Featuring a heavy-duty 17.5" (445mm) diameter cage roller weighing up to 2838 lbs (1288kg), up to 13 flanges with 72 specially hardened forged deep-tilling blades, and a reinforced 3-point linkage Cat II & III, it delivers unmatched stability and penetration across working widths from 9.2' (2800mm) to 9.8' (3000mm) on 110-160HP tractors.
Key Features
- Heavy-Duty 17.5" (445mm) Diameter Cage Roller
- Weighing Up to 2838 lbs (1288kg) Without Skipping or Bouncing
- Up to 13 Flanges and 72 Specially Hardened Blades
- Heavy-Duty Gearbox (540 rpm)
- Reinforced 3-Point Linkage Cat II & III
- Forged Deep-Tilling Blades
Optional Accessories
- PTO Shaft with Friction Clutch
- Heavy-Duty Multi-Tooth Packer Roller
- Custom Widths from 9.2' (2.8m) to 9.8' (3.0m)
Technical Specifications
| Model | Working Width | Flange No. | Blade No. | Tilling Depth | Cage Roller Dia. | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-280S-K/LV | 9.2' (2800mm) | 12 | 33+33 | 10.8" (275mm) | 17.5" (445mm) | 540 | 110 | 150 | 76.6" (1945mm) | 130.1" (3305mm) | 58.3" (1480mm) | 1208 |
| TL-300S-K/LV | 9.8' (3000mm) | 13 | 36+36 | 10.8" (275mm) | 17.5" (445mm) | 540 | 130 | 160 | 76.6" (1945mm) | 138.0" (3505mm) | 58.3" (1480mm) | 1288 |
- Regular price
- $0.00
Super Heavy With Cage Rotary Tiller - TL-S-K/LV Series
The TL-S-K/LV Super Heavy With Cage Rotary Tiller is built for the most demanding large-scale tillage operations. Featuring a heavy-duty 17.5" (445mm) diameter cage roller weighing up to 2838 lbs (1288kg), up to 13 flanges with 72 specially hardened forged deep-tilling blades, and a reinforced 3-point linkage Cat II & III, it delivers unmatched stability and penetration across working widths from 9.2' (2800mm) to 9.8' (3000mm) on 110-160HP tractors.
Key Features
- Heavy-Duty 17.5" (445mm) Diameter Cage Roller
- Weighing Up to 2838 lbs (1288kg) Without Skipping or Bouncing
- Up to 13 Flanges and 72 Specially Hardened Blades
- Heavy-Duty Gearbox (540 rpm)
- Reinforced 3-Point Linkage Cat II & III
- Forged Deep-Tilling Blades
Optional Accessories
- PTO Shaft with Friction Clutch
- Heavy-Duty Multi-Tooth Packer Roller
- Custom Widths from 9.2' (2.8m) to 9.8' (3.0m)
Technical Specifications
| Model | Working Width | Flange No. | Blade No. | Tilling Depth | Cage Roller Dia. | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-280S-K/LV | 9.2' (2800mm) | 12 | 33+33 | 10.8" (275mm) | 17.5" (445mm) | 540 | 110 | 150 | 76.6" (1945mm) | 130.1" (3305mm) | 58.3" (1480mm) | 1208 |
| TL-300S-K/LV | 9.8' (3000mm) | 13 | 36+36 | 10.8" (275mm) | 17.5" (445mm) | 540 | 130 | 160 | 76.6" (1945mm) | 138.0" (3505mm) | 58.3" (1480mm) | 1288 |
-
