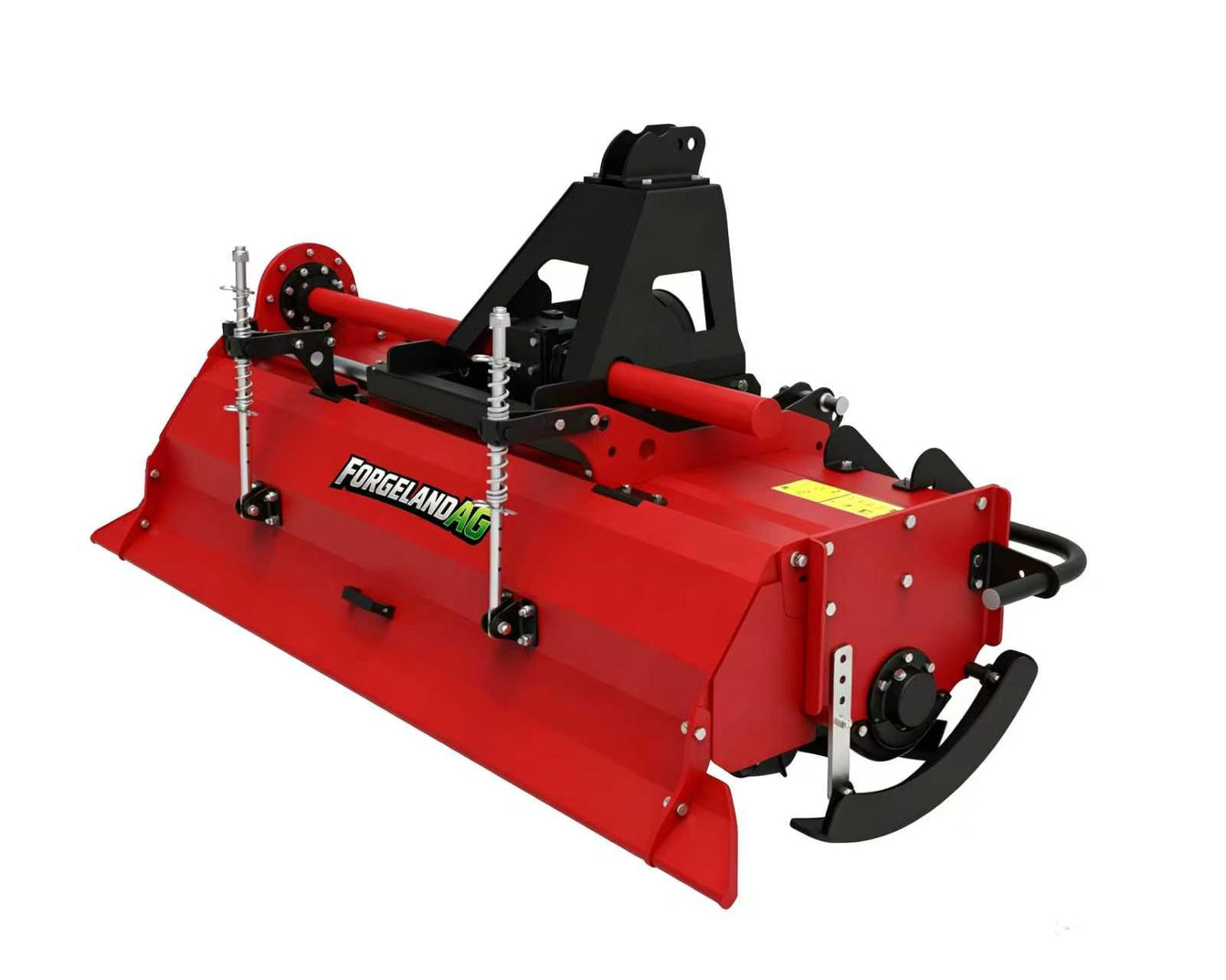

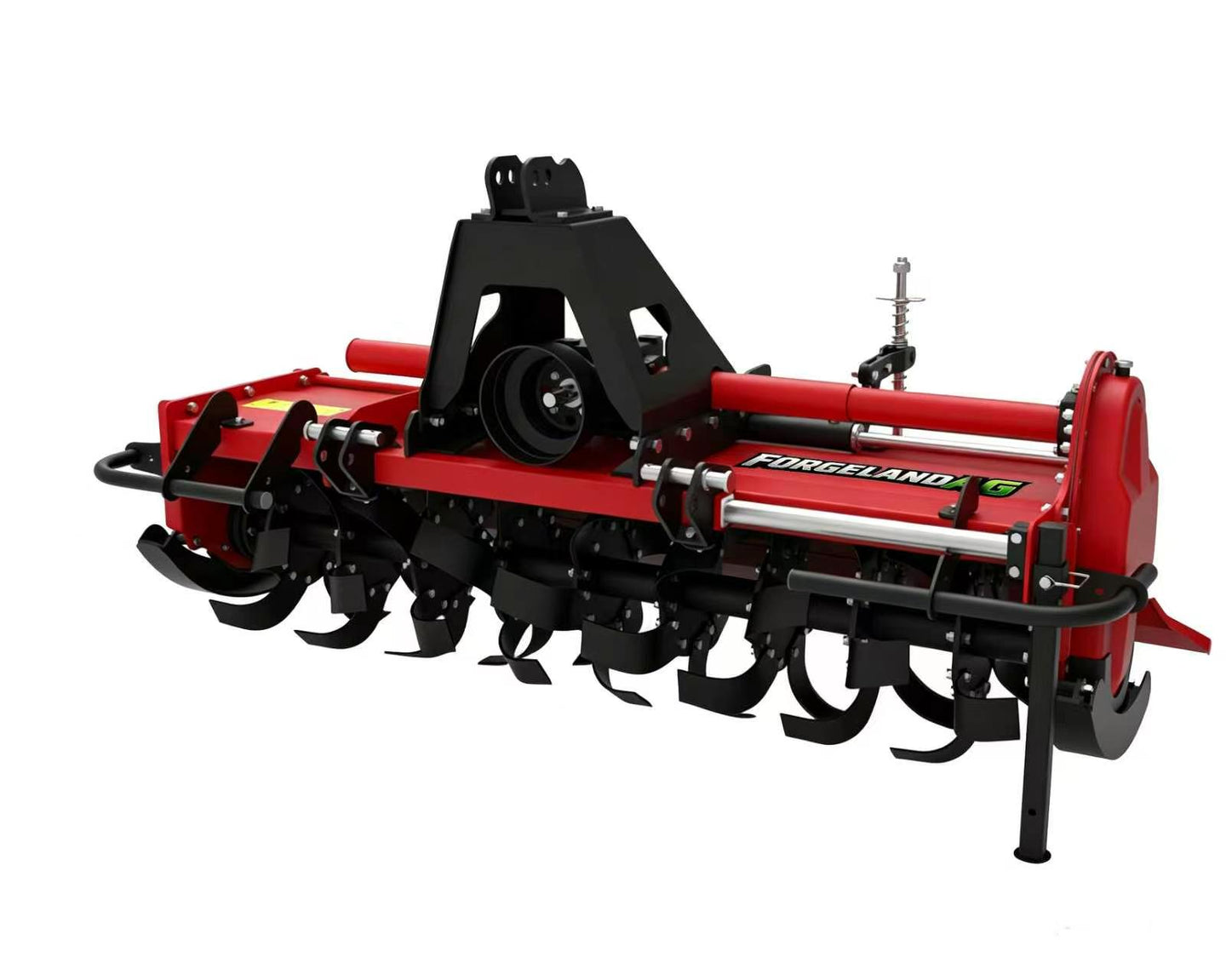

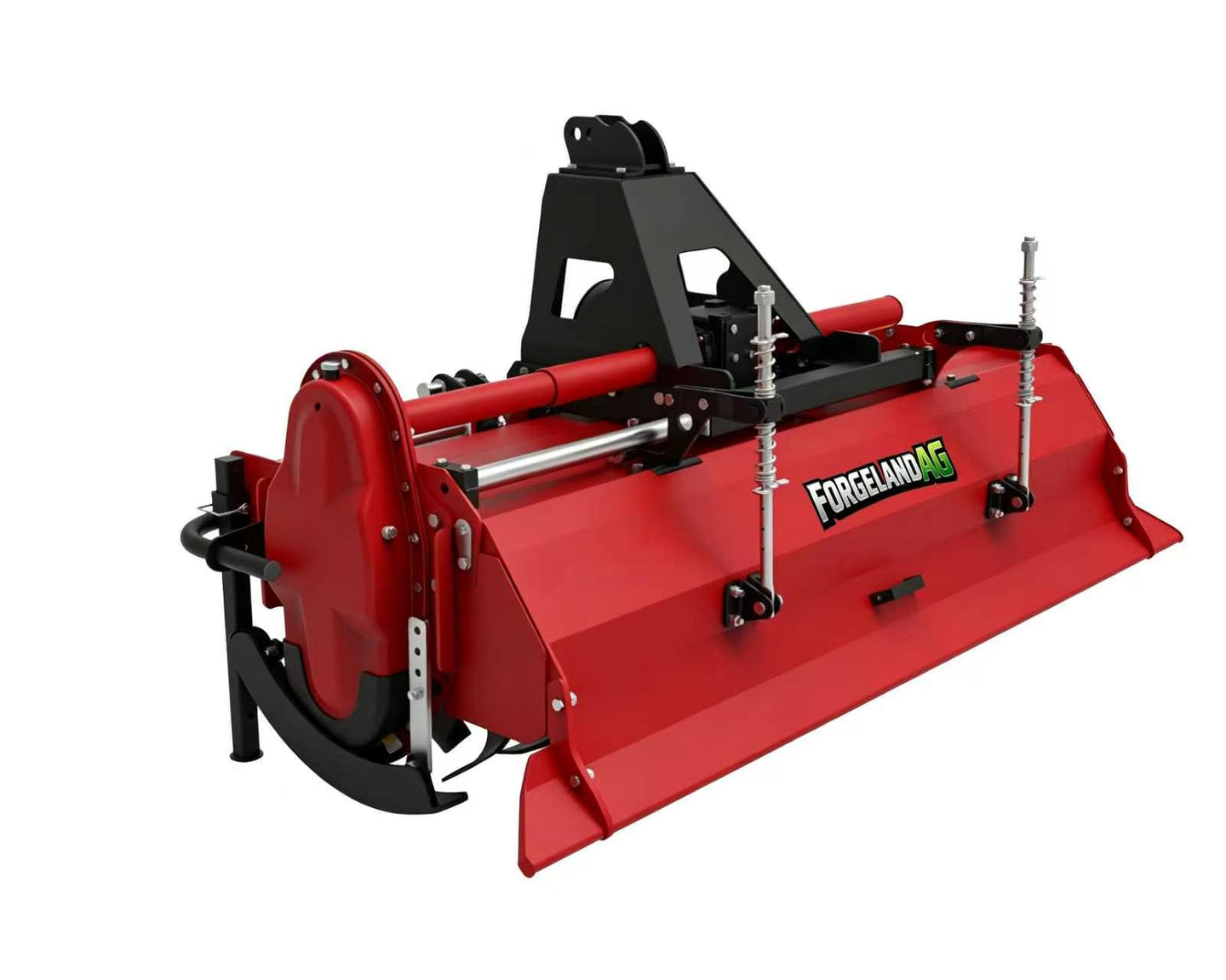

Side-Shift Medium Duty Rotary Tiller - TL-H-A.ROH Series
The TL-H-A.ROH Side-Shift Medium Duty Rotary Tiller adds lateral offset capability to proven medium-duty tillage performance. With a lateral gear drive, 800g specially hardened blades, and a cast iron single-speed gearbox at 540rpm, it delivers precise soil preparation with the flexibility to till close to obstacles across working widths from 49.2" (1250mm) to 70.9" (1800mm).
Key Features
- Additional Side Shifting

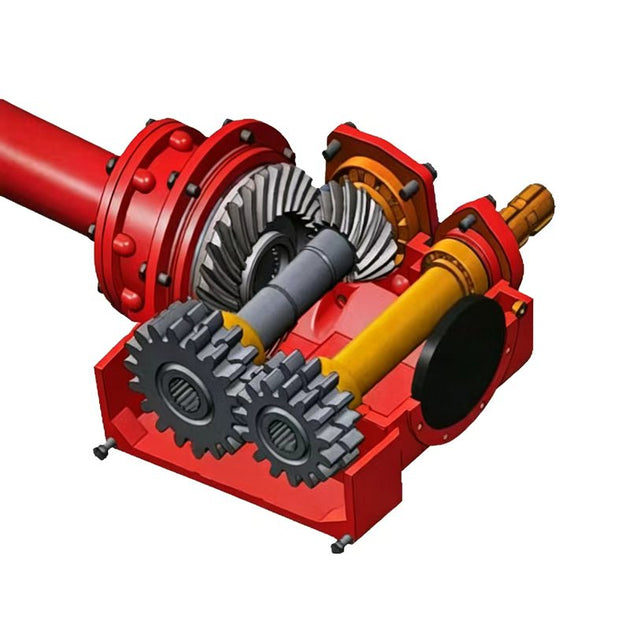

- Lateral Gear Drive
- 800g Specially Hardened Blades
- Cast Iron Single-Speed Gearbox (540 rpm)
- Universal Cat I & II / 3-Point Hitch
- Supporting Stand
Optional Accessories
- PTO Shaft with Friction Clutch
Technical Specifications

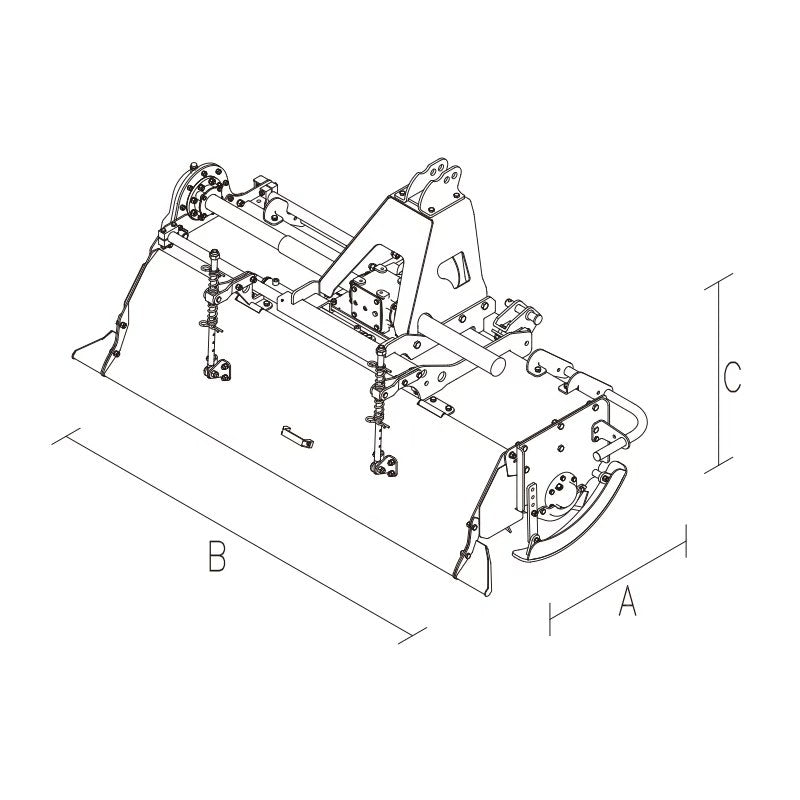

| Model | Working Width | Tilling Width | Side Shift | Blade No. | Flange No. | Rotor Speed (rpm) | Rotor Dia. | HP | Cat. | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-125H-A.ROH | 49.2" (1250mm) | 62.6" (1590mm) | 7.9" (200mm) | 18+18 | 6 | 208 | 5.1" (130mm) | 25-30 | I | 36.4" (925mm) | 57.5" (1460mm) | 38.6" (980mm) | 374 |
| TL-150H-A.ROH | 59.1" (1500mm) | 72.4" (1840mm) | 11.0" (280mm) | 21+21 | 7 | 208 | 5.1" (130mm) | 35-45 | I | 36.4" (925mm) | 67.3" (1710mm) | 38.6" (980mm) | 408 |
| TL-180H-A.ROH | 70.9" (1800mm) | 84.3" (2140mm) | 15.0" (380mm) | 27+27 | 9 | 208 | 5.1" (130mm) | 45-50 | I | 36.8" (935mm) | 79.1" (2010mm) | 38.6" (980mm) | 463 |
Side-Shift Medium Duty Rotary Tiller - TL-H-A.ROH Series
The TL-H-A.ROH Side-Shift Medium Duty Rotary Tiller adds lateral offset capability to proven medium-duty tillage performance. With a lateral gear drive, 800g specially hardened blades, and a cast iron single-speed gearbox at 540rpm, it delivers precise soil preparation with the flexibility to till close to obstacles across working widths from 49.2" (1250mm) to 70.9" (1800mm).
Key Features
- Additional Side Shifting
- Lateral Gear Drive
- 800g Specially Hardened Blades
- Cast Iron Single-Speed Gearbox (540 rpm)
- Universal Cat I & II / 3-Point Hitch
- Supporting Stand
Optional Accessories
- PTO Shaft with Friction Clutch
Technical Specifications
| Model | Working Width | Tilling Width | Side Shift | Blade No. | Flange No. | Rotor Speed (rpm) | Rotor Dia. | HP | Cat. | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-125H-A.ROH | 49.2" (1250mm) | 62.6" (1590mm) | 7.9" (200mm) | 18+18 | 6 | 208 | 5.1" (130mm) | 25-30 | I | 36.4" (925mm) | 57.5" (1460mm) | 38.6" (980mm) | 374 |
| TL-150H-A.ROH | 59.1" (1500mm) | 72.4" (1840mm) | 11.0" (280mm) | 21+21 | 7 | 208 | 5.1" (130mm) | 35-45 | I | 36.4" (925mm) | 67.3" (1710mm) | 38.6" (980mm) | 408 |
| TL-180H-A.ROH | 70.9" (1800mm) | 84.3" (2140mm) | 15.0" (380mm) | 27+27 | 9 | 208 | 5.1" (130mm) | 45-50 | I | 36.8" (935mm) | 79.1" (2010mm) | 38.6" (980mm) | 463 |
