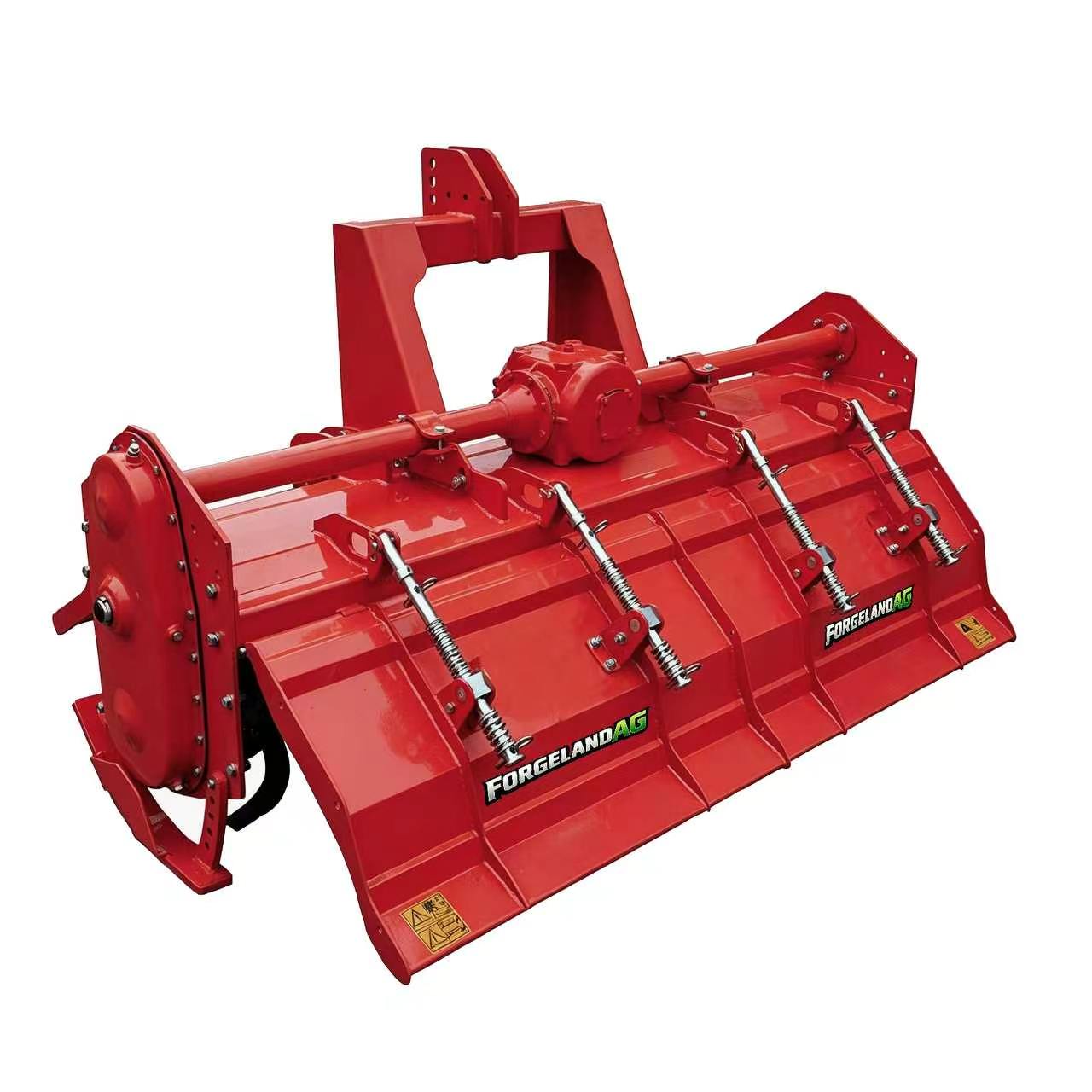

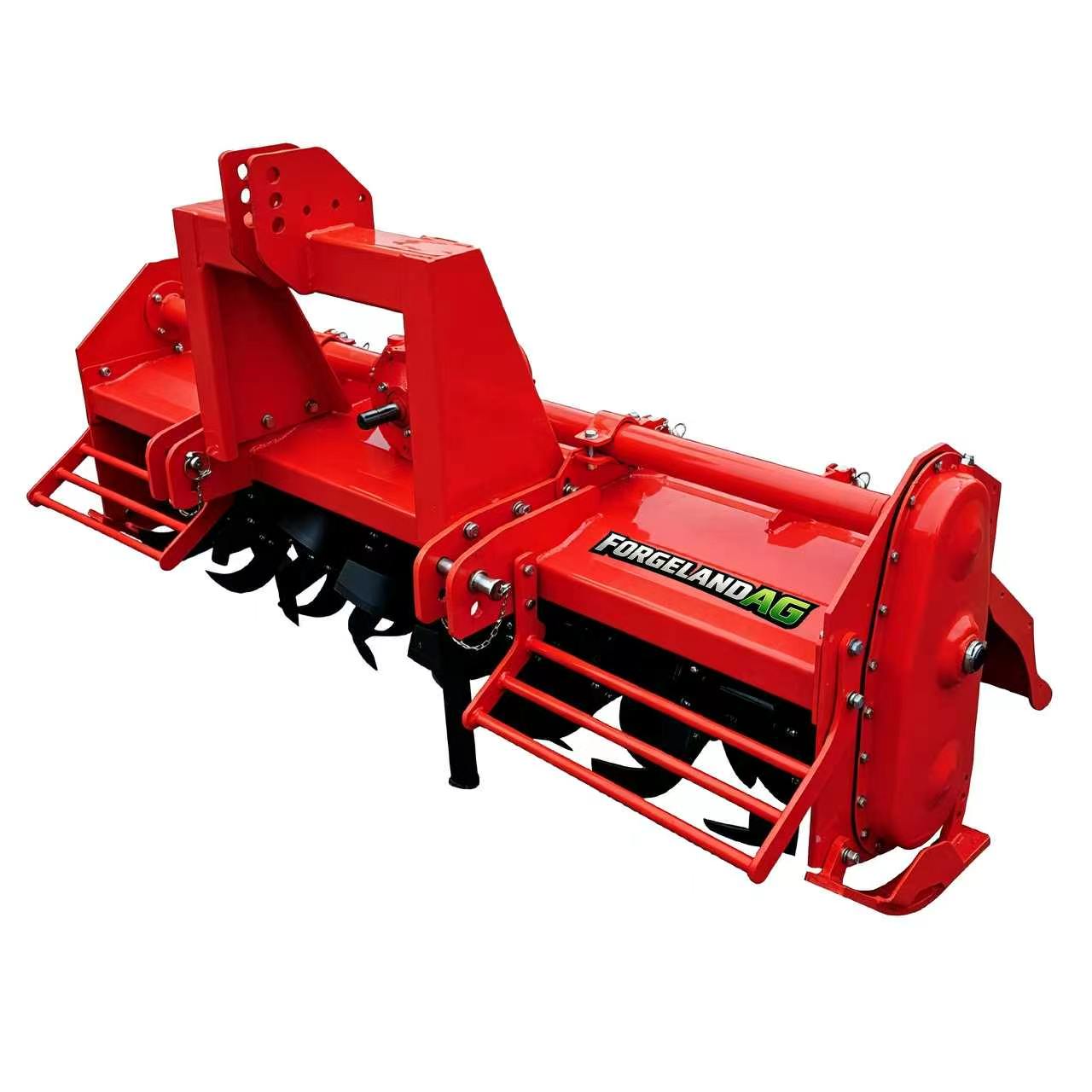

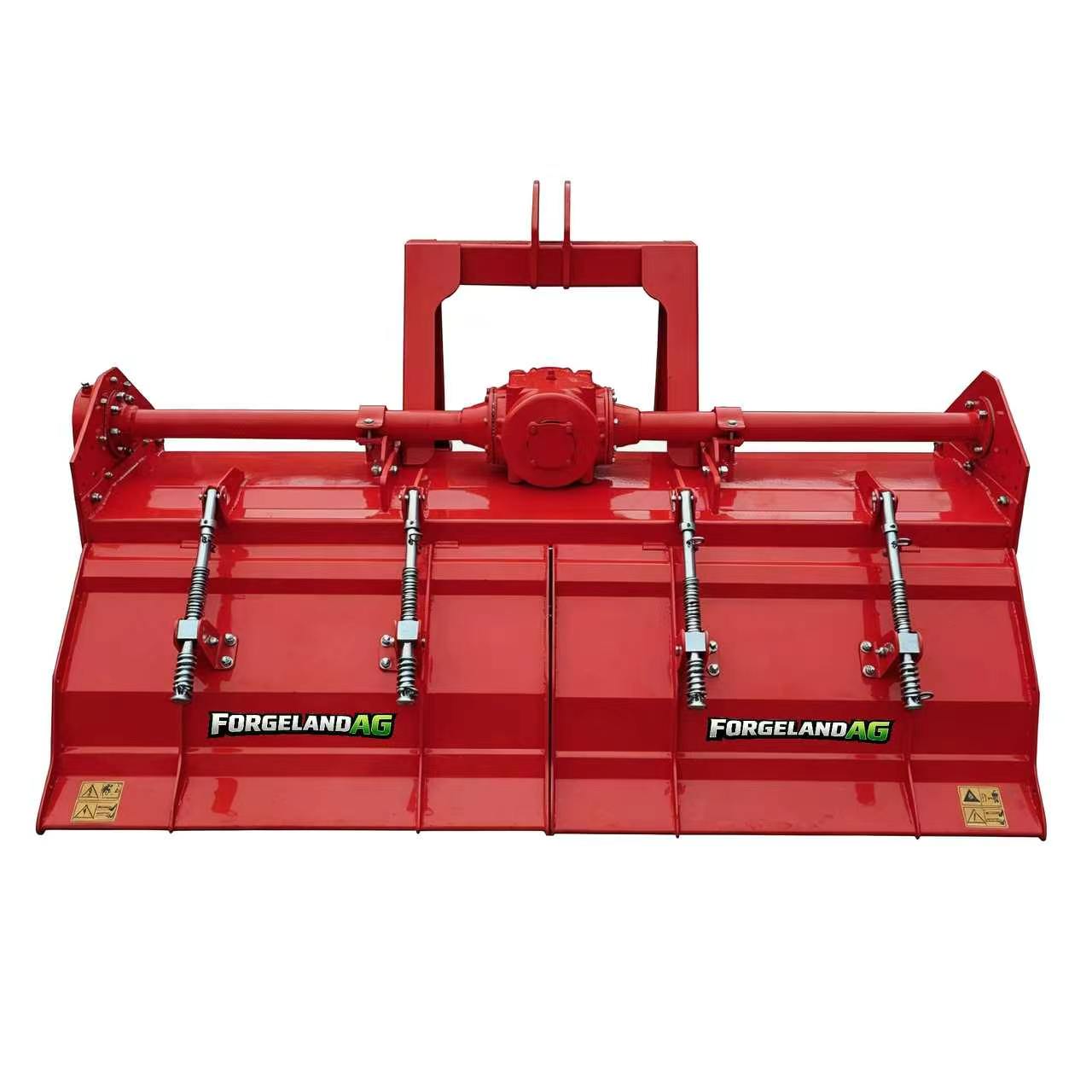

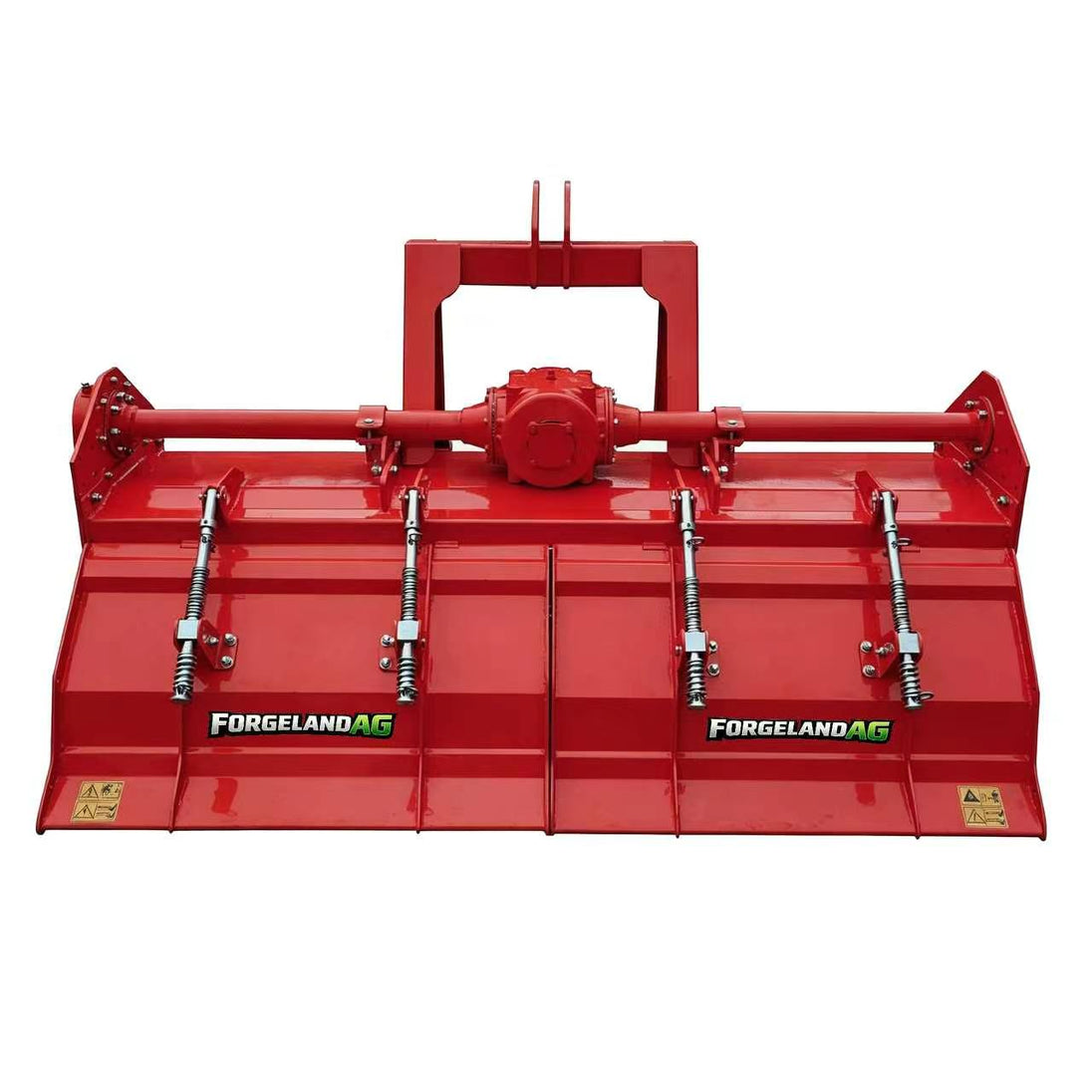

Heavy Duty Rotary Tiller - TL-S-S Series
The TL-S-S Heavy Duty Rotary Tiller is engineered for demanding soil preparation tasks requiring 45-80HP tractors. Built on a reinforced dual-chassis with industrial side gear transmission, a heavy-duty cast iron gearbox at 540rpm, and forged spiral blades, it penetrates deep into the subsoil up to 6.3" (160mm) across working widths from 70.9" (1800mm) to 90.6" (2300mm).
Key Features
- High-Mass Tilting Power
- Reinforced Dual-Chassis Design
- Industrial Side Gear Transmission
- Deeper Into The Subsoil (Up to 6.3" / 160mm)
- Heavy-Duty Cast-Iron Gearbox (540 rpm)
- Reinforced 3-Point Linkage Cat II
- Forged Spiral Blade
- Adjustable Extra-Wide Side Skids
Optional Accessories
- PTO Shaft with Friction Clutch
Technical Specifications

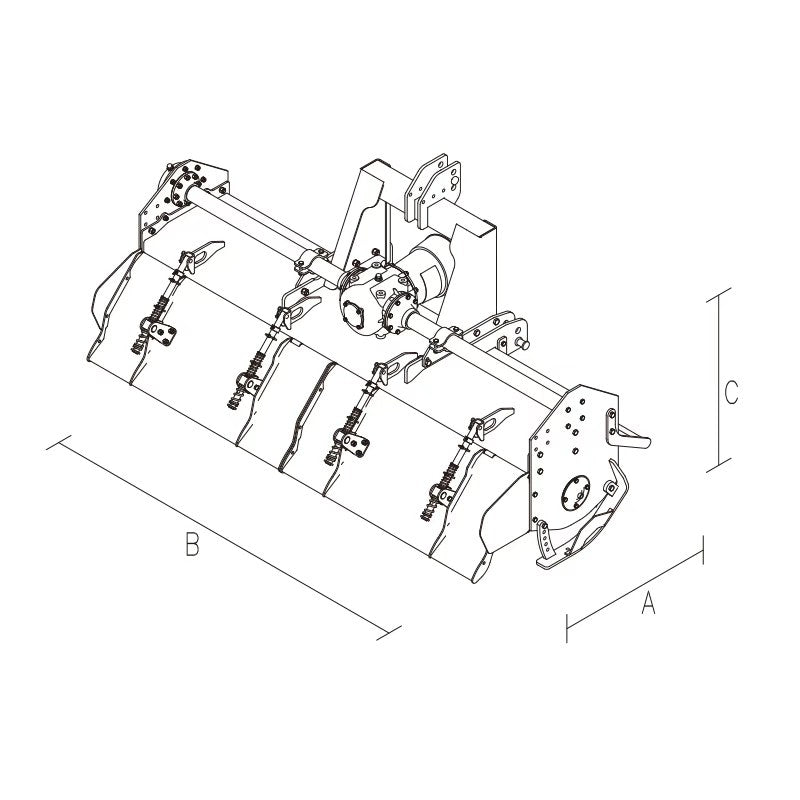

| Model | Working Width | Flange No. | Blade No. | Tilling Depth | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-180S-S | 70.9" (1800mm) | 8 | 24+24 | 6.3" (160mm) | 540 | 45 | 55 | 40.6" (1030mm) | 77.6" (1970mm) | 44.9" (1140mm) | 505 |
| TL-200S-S | 78.7" (2000mm) | 9 | 27+27 | 6.3" (160mm) | 540 | 50 | 60 | 40.6" (1030mm) | 85.4" (2170mm) | 44.9" (1140mm) | 540 |
| TL-220S-S | 86.6" (2200mm) | 10 | 30+30 | 6.3" (160mm) | 540 | 60 | 70 | 40.6" (1030mm) | 93.3" (2370mm) | 44.9" (1140mm) | 575 |
| TL-230S-S | 90.6" (2300mm) | 10 | 30+30 | 6.3" (160mm) | 540 | 70 | 80 | 40.6" (1030mm) | 97.2" (2470mm) | 44.9" (1140mm) | 610 |
Heavy Duty Rotary Tiller - TL-S-S Series
The TL-S-S Heavy Duty Rotary Tiller is engineered for demanding soil preparation tasks requiring 45-80HP tractors. Built on a reinforced dual-chassis with industrial side gear transmission, a heavy-duty cast iron gearbox at 540rpm, and forged spiral blades, it penetrates deep into the subsoil up to 6.3" (160mm) across working widths from 70.9" (1800mm) to 90.6" (2300mm).
Key Features
- High-Mass Tilting Power
- Reinforced Dual-Chassis Design
- Industrial Side Gear Transmission
- Deeper Into The Subsoil (Up to 6.3" / 160mm)
- Heavy-Duty Cast-Iron Gearbox (540 rpm)
- Reinforced 3-Point Linkage Cat II
- Forged Spiral Blade
- Adjustable Extra-Wide Side Skids
Optional Accessories
- PTO Shaft with Friction Clutch
Technical Specifications
| Model | Working Width | Flange No. | Blade No. | Tilling Depth | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-180S-S | 70.9" (1800mm) | 8 | 24+24 | 6.3" (160mm) | 540 | 45 | 55 | 40.6" (1030mm) | 77.6" (1970mm) | 44.9" (1140mm) | 505 |
| TL-200S-S | 78.7" (2000mm) | 9 | 27+27 | 6.3" (160mm) | 540 | 50 | 60 | 40.6" (1030mm) | 85.4" (2170mm) | 44.9" (1140mm) | 540 |
| TL-220S-S | 86.6" (2200mm) | 10 | 30+30 | 6.3" (160mm) | 540 | 60 | 70 | 40.6" (1030mm) | 93.3" (2370mm) | 44.9" (1140mm) | 575 |
| TL-230S-S | 90.6" (2300mm) | 10 | 30+30 | 6.3" (160mm) | 540 | 70 | 80 | 40.6" (1030mm) | 97.2" (2470mm) | 44.9" (1140mm) | 610 |
