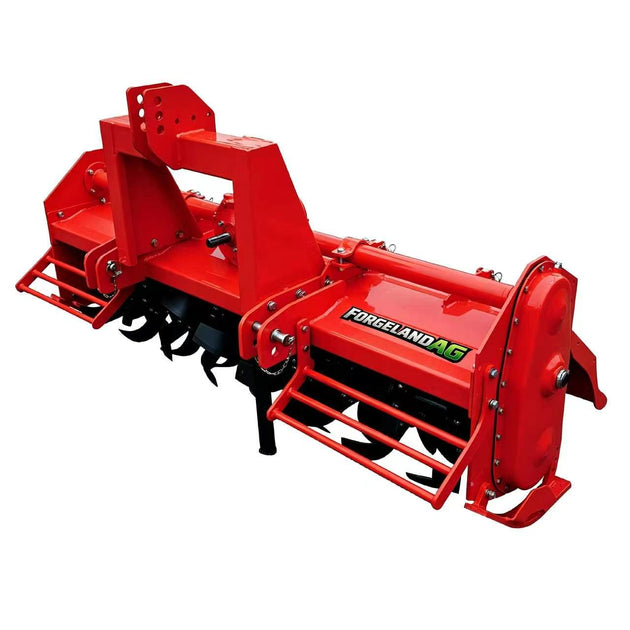

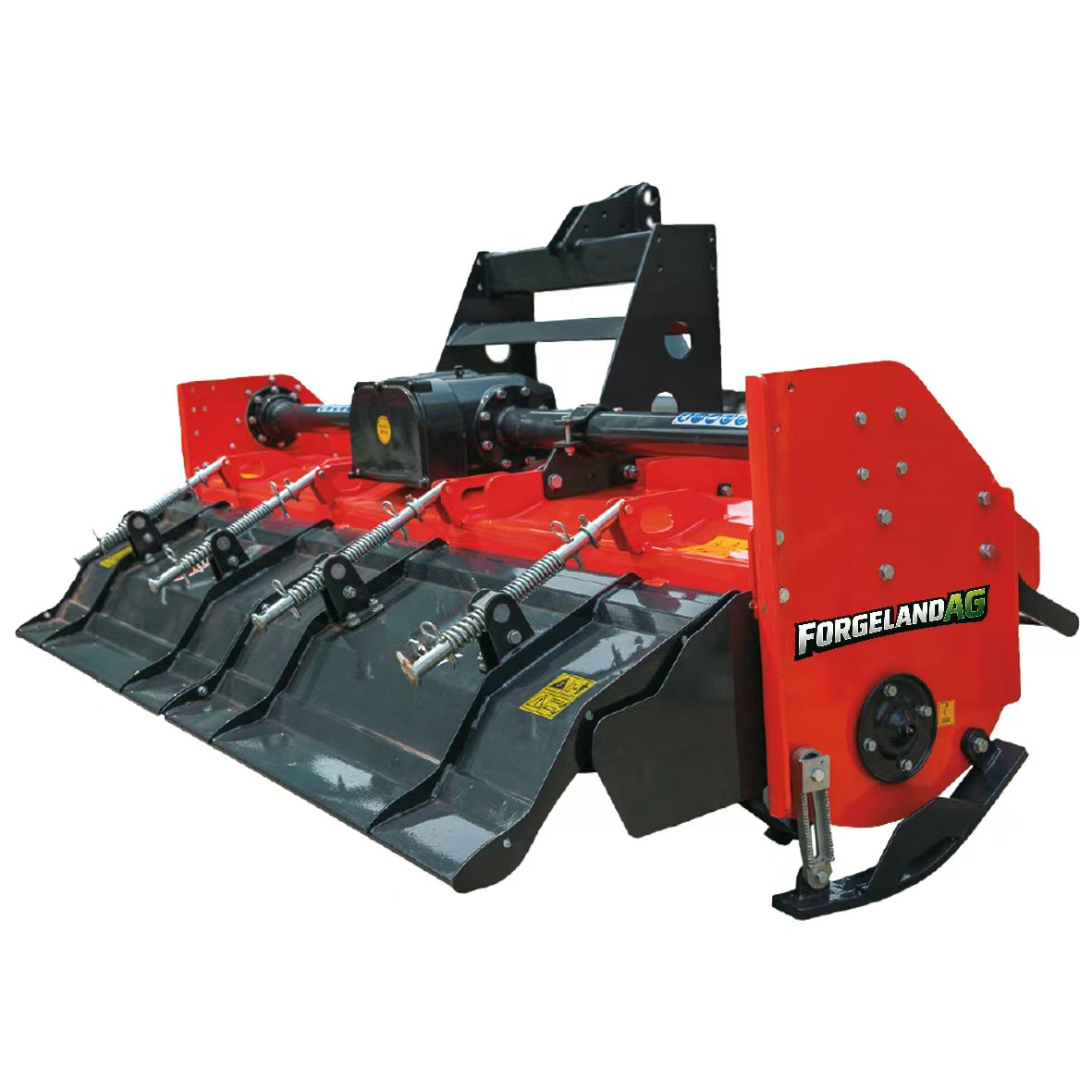

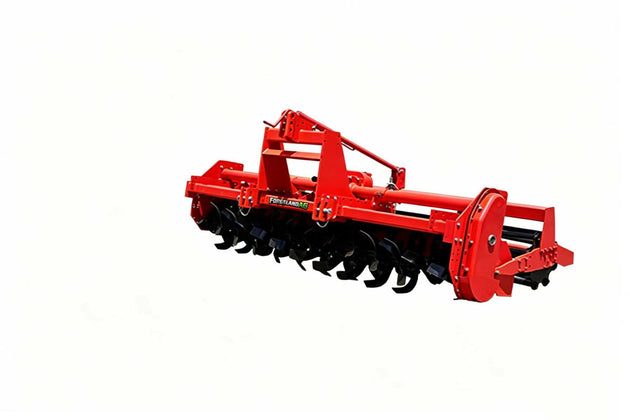

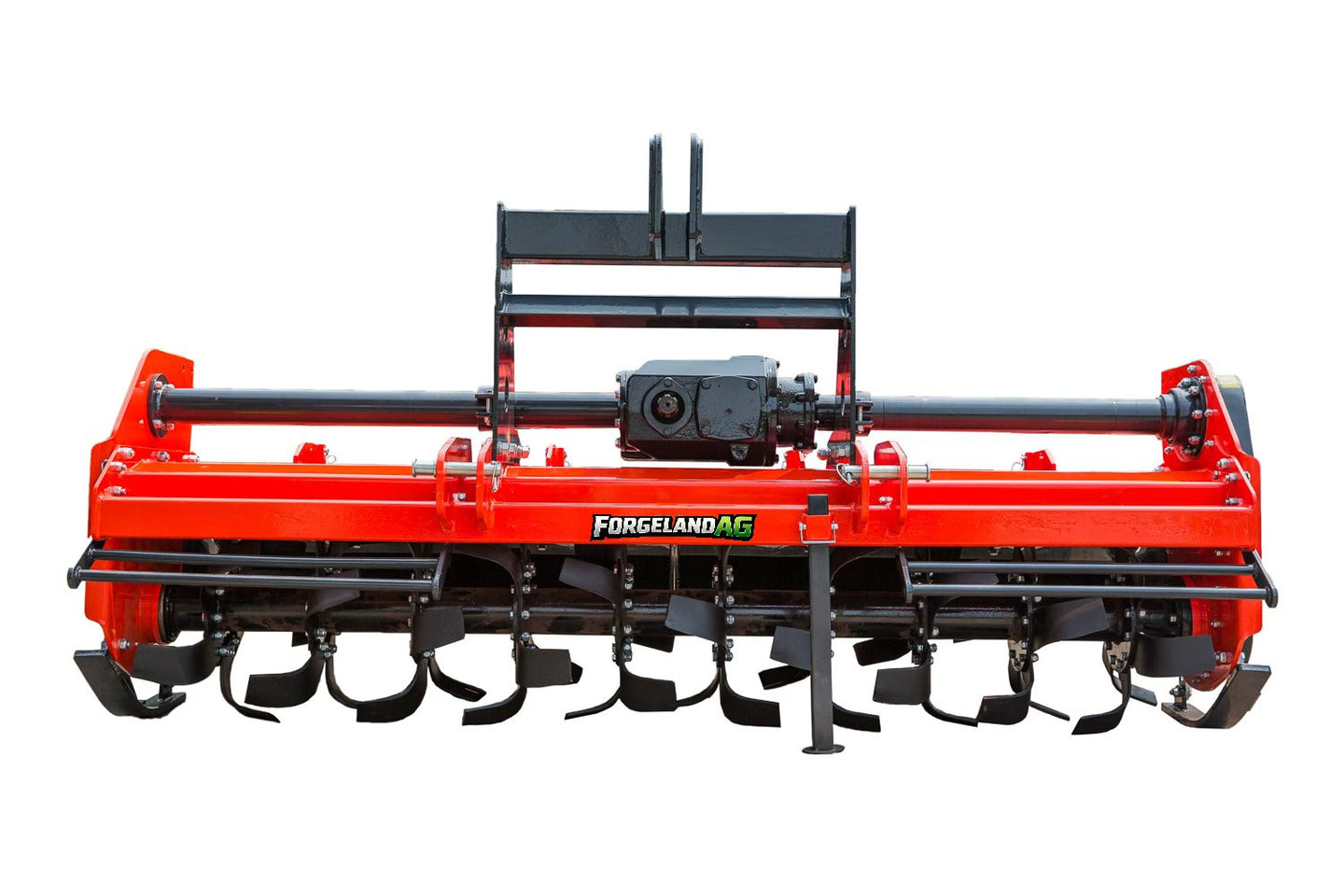

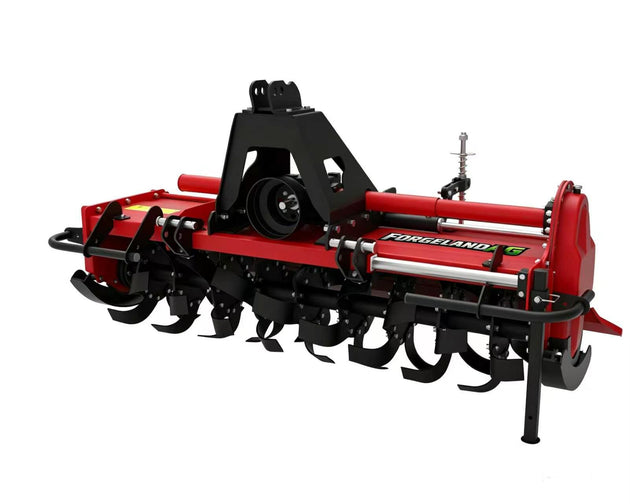

Super Heavy Variable Speed Rotary Tiller - TL-S-S/V Series

The TL-S-S/V Super Heavy Variable Speed Rotary Tiller is the ultimate solution for demanding large-scale tillage. With a 4-speed professional transmission (170, 190, 210, 240 rpm), massive weight to eliminate "tiller bounce", and up to 11 flanges with 66 specially hardened spiral blades, it handles working widths from 70.9" (1800mm) to 98.4" (2500mm) on tractors up to 110HP.

Key Features

4-Speed Professional Transmission (170, 190, 210, 240 rpm)
Massive Weight to Eliminate "Tiller Bounce" Phenomenon
Heavy-Duty Structural Chassis up to 110 HP

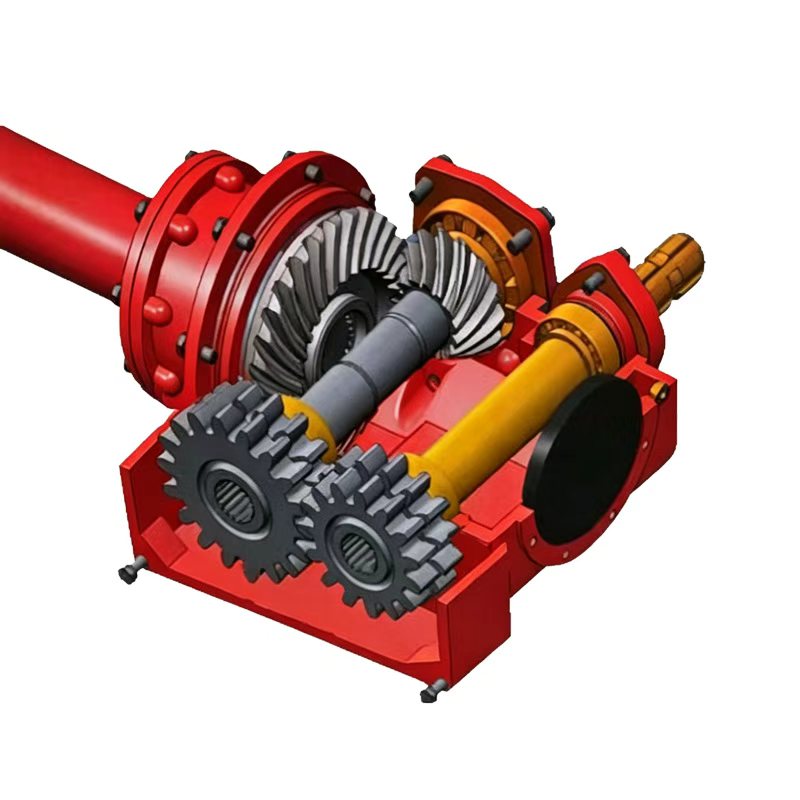

Oil-Bath Lateral Gear Drive
Up to 11 Flanges and 66 Specially Hardened Spiral Blades
Interchangeable & Quick-Change Gearbox (540rpm PTO Group)
3-Point Linkage Cat II
Replaceable Anti-Wear Skids

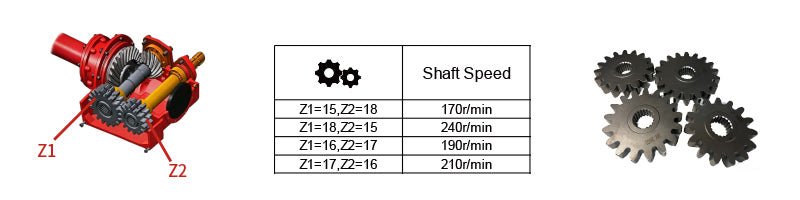

Gear Ratio / Shaft Speed

Gear Combination	Shaft Speed
Z1=15, Z2=18	170 r/min
Z1=18, Z2=15	240 r/min
Z1=16, Z2=17	190 r/min
Z1=17, Z2=16	210 r/min

Optional Accessories

PTO Shaft with Friction Clutch

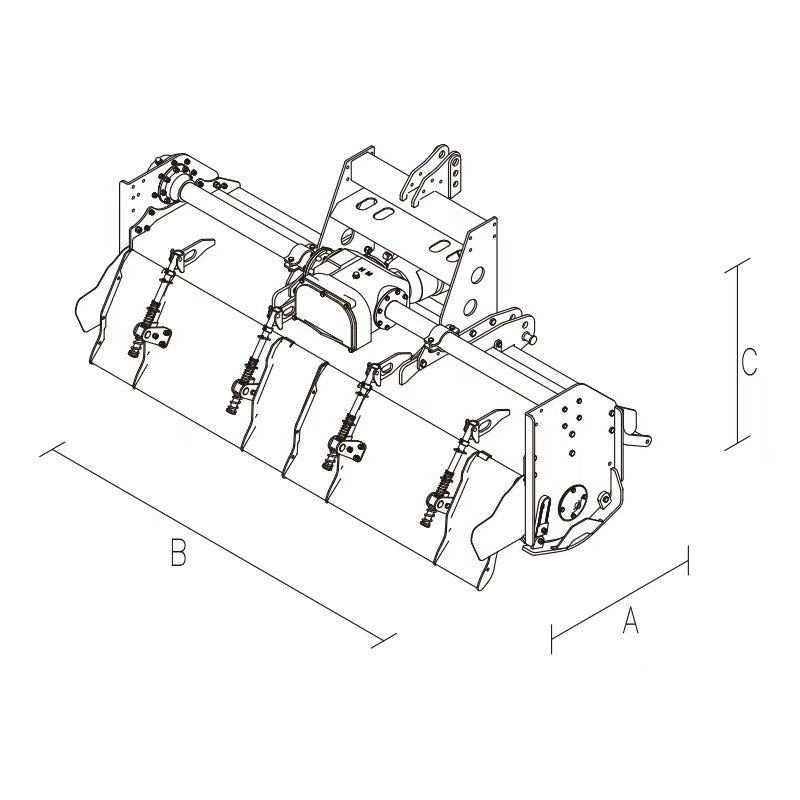

Technical Specifications

Model	Working Width	Flange No.	Blade No.	Tilling Depth	PTO (r/min)	Min HP	Max HP	A	B	C	Weight (kg)
TL-180S-S/V	70.9" (1800mm)	8	24+24	6.3" (160mm)	540	60	68	41.7" (1060mm)	77.6" (1970mm)	45.6" (1158mm)	654
TL-200S-S/V	78.7" (2000mm)	9	27+27	6.3" (160mm)	540	72	80	41.7" (1060mm)	85.4" (2170mm)	45.6" (1158mm)	688
TL-230S-S/V	90.6" (2300mm)	10	30+30	6.3" (160mm)	540	90	100	41.7" (1060mm)	97.2" (2470mm)	45.6" (1158mm)	738
TL-250S-S/V	98.4" (2500mm)	11	33+33	6.3" (160mm)	540	100	108	41.7" (1060mm)	105.1" (2670mm)	45.6" (1158mm)	786
