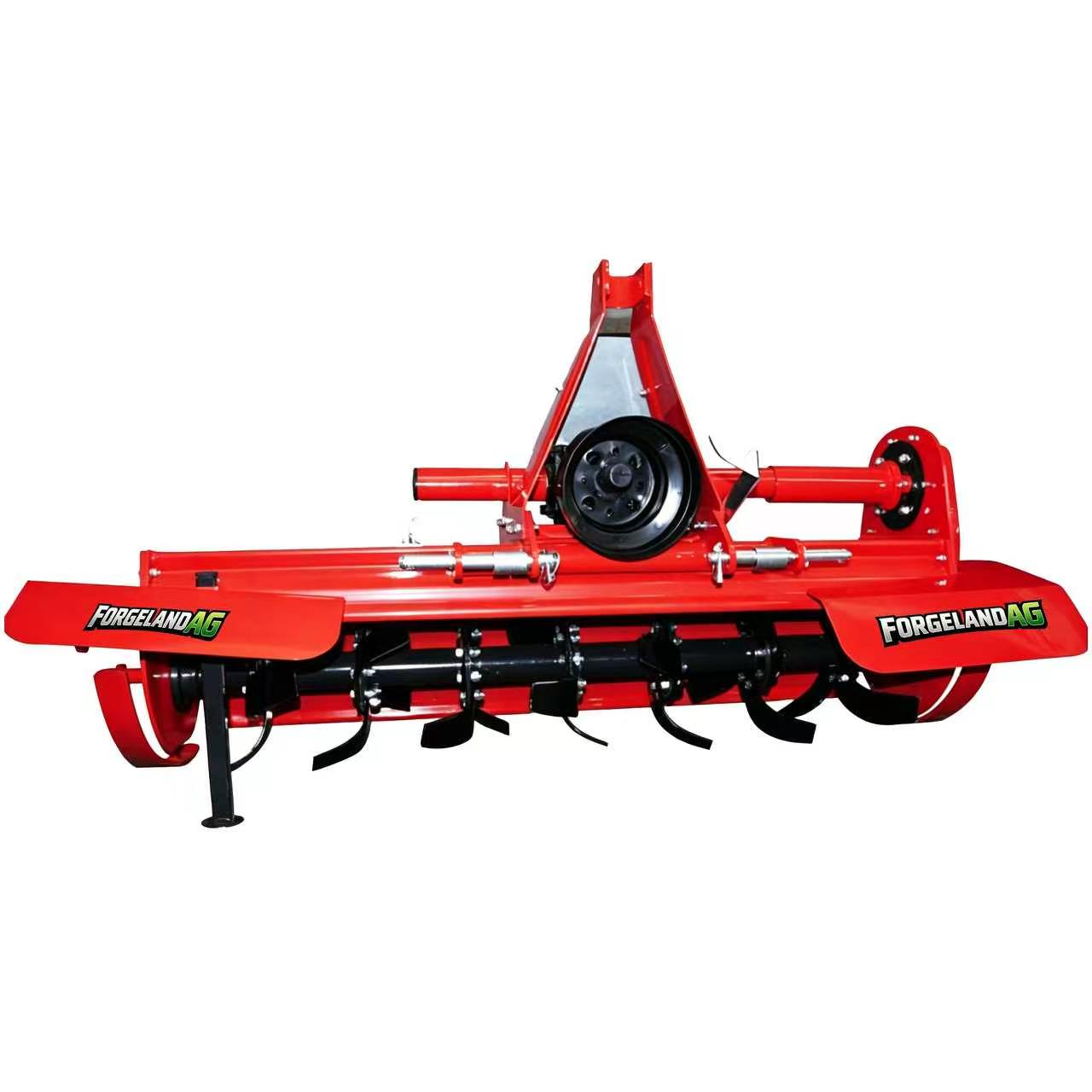

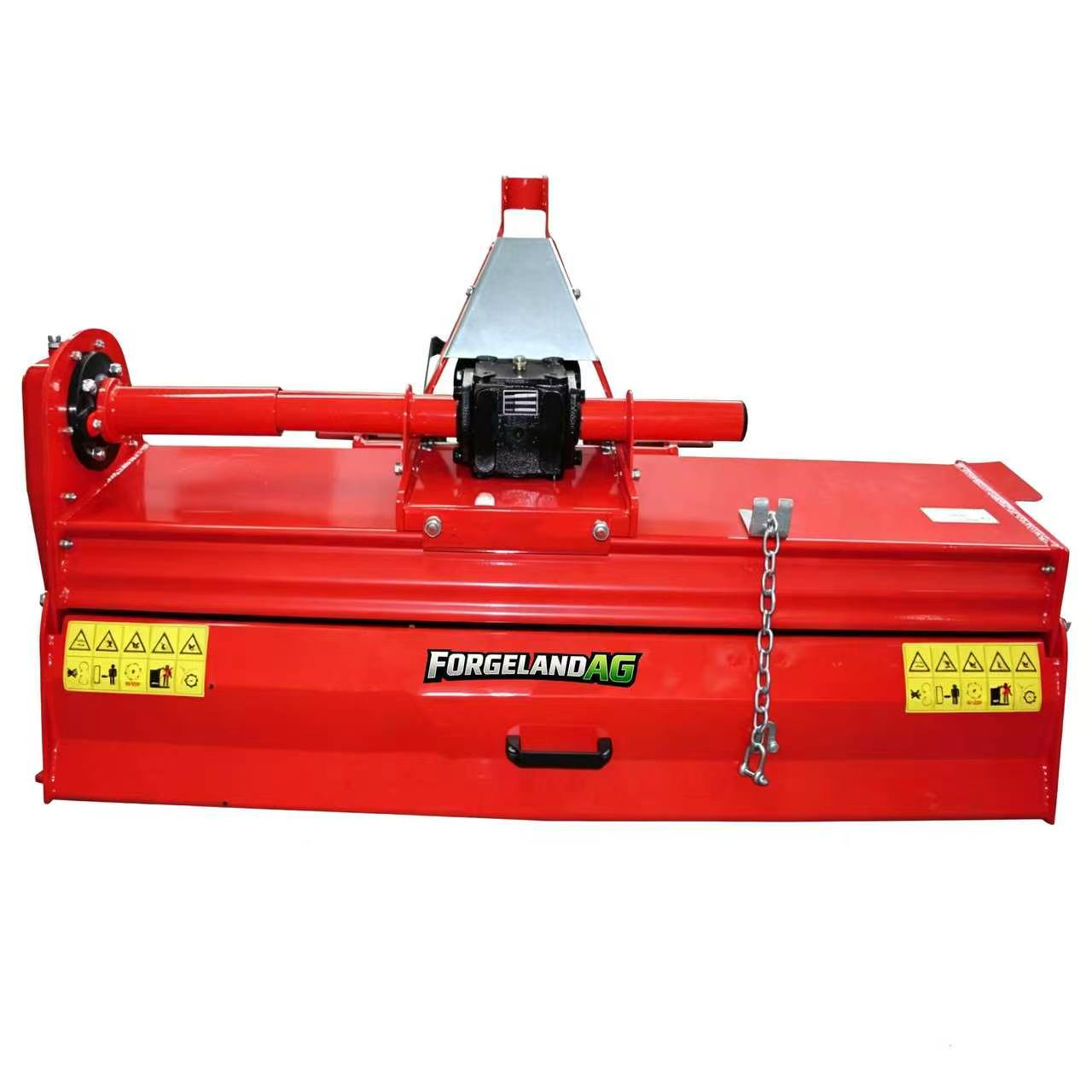

Light-Duty Rotary Tiller - TL-L-DS Series
The TL-L-DS Light-Duty Rotary Tiller is optimized for 12-35HP sub-compact tractors, combining agile lightweight design with tough steel construction. Featuring a cast iron gearbox at 540rpm, heat-treated forged steel blades, and a protective rear leveling shield, it covers working widths from 31.5" (800mm) to 59.1" (1500mm) with ease.
Key Features
- Optimized for 12-35 HP Sub-Compact Tractors
- Agile & Light Weight Design
- Tough Steel Construction
- Cast Iron Gearbox (540 rpm)
- Heat-Treated Forged Steel Blades
- Universal Cat I / 3-Point Hitch
- Protective Rear Leveling Shield
Optional Accessories
- PTO Shaft with Shear Bolt
- PTO Shaft with Friction Clutch
- Models Available from 31.5" (800mm) to 59.1" (1500mm)
Technical Specifications

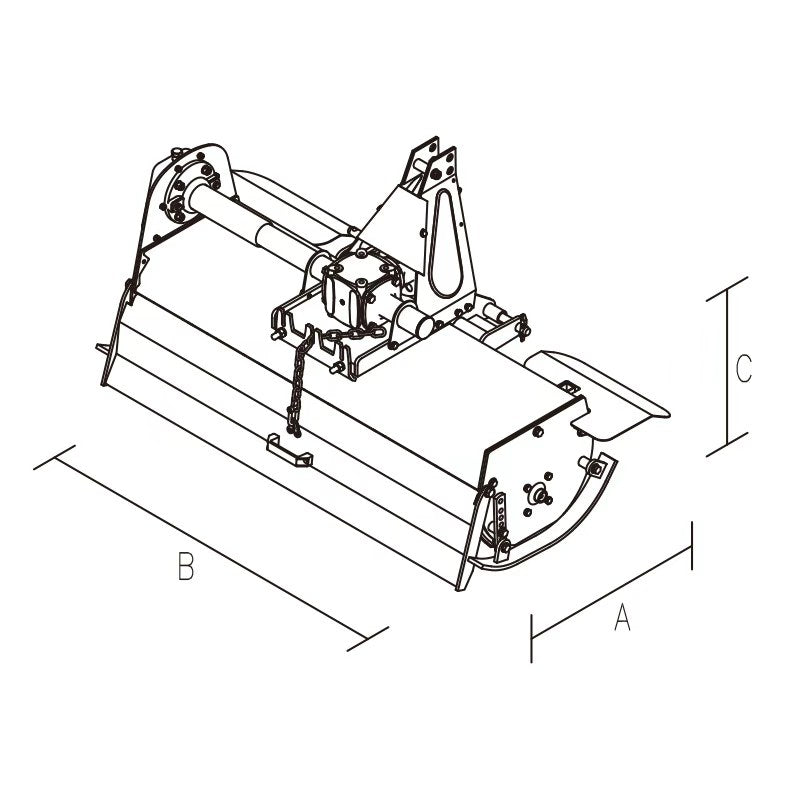

| Model | Working Width | Flange No. | Blade No. | Tilling Depth | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-85L-DS | 31.5" (800mm) | 4 | 8+8 | 3.5" (90mm) | 540 | 12 | 20 | 28.7" (730mm) | 34.3" (870mm) | 36.2" (920mm) | 142 |
| TL-95L-DS | 35.4" (900mm) | 4 | 8+8 | 3.5" (90mm) | 540 | 12 | 20 | 28.7" (730mm) | 38.2" (970mm) | 36.2" (920mm) | 146 |
| TL-105L-DS | 39.4" (1000mm) | 5 | 10+10 | 3.5" (90mm) | 540 | 15 | 22 | 28.7" (730mm) | 42.1" (1070mm) | 36.2" (920mm) | 150 |
| TL-115L-DS | 43.3" (1100mm) | 6 | 12+12 | 3.5" (90mm) | 540 | 15 | 22 | 28.7" (730mm) | 46.1" (1170mm) | 36.2" (920mm) | 160 |
| TL-125L-DS | 47.2" (1200mm) | 7 | 14+14 | 3.5" (90mm) | 540 | 18 | 30 | 28.7" (730mm) | 50.0" (1270mm) | 36.2" (920mm) | 172 |
| TL-135L-DS | 51.2" (1300mm) | 7 | 14+14 | 3.5" (90mm) | 540 | 18 | 30 | 28.7" (730mm) | 53.9" (1370mm) | 36.2" (920mm) | 180 |
| TL-145L-DS | 55.1" (1400mm) | 7 | 14+14 | 3.5" (90mm) | 540 | 20 | 35 | 28.7" (730mm) | 57.9" (1470mm) | 36.2" (920mm) | 187 |
| TL-155L-DS | 59.1" (1500mm) | 8 | 16+16 | 3.5" (90mm) | 540 | 20 | 35 | 28.7" (730mm) | 61.8" (1570mm) | 36.2" (920mm) | 194 |
