Medium Duty Rotary Tiller - TL-SL-A.RO Series
The TL-SL-A.RO Medium Duty Rotary Tiller delivers reliable soil preparation with a high-torque side gear drive and six blades per flange for thorough, even tillage. Built with a vibration-absorbing gearbox, adjustable rear leveling shield, and CE-certified safety guards, it handles working widths from 49.2" (1250mm) to 70.9" (1800mm) across 25-50HP tractors.
Key Features
- High-Torque Side Gear Drive
- Six Blades Per Flange
- Vibration-Absorbing Gearbox
- Adjustable Side Skids
- Universal Cat I & II / 3-Point Hitch
- Adjustable Rear Leveling Shield
- CE-Certified Safety Guards
- Pre-Filled & Greased Components
Optional Accessories
- PTO Shaft with Friction Clutch
- Sizes Ranging from 35.4" (90cm) to 59.1" (150cm)

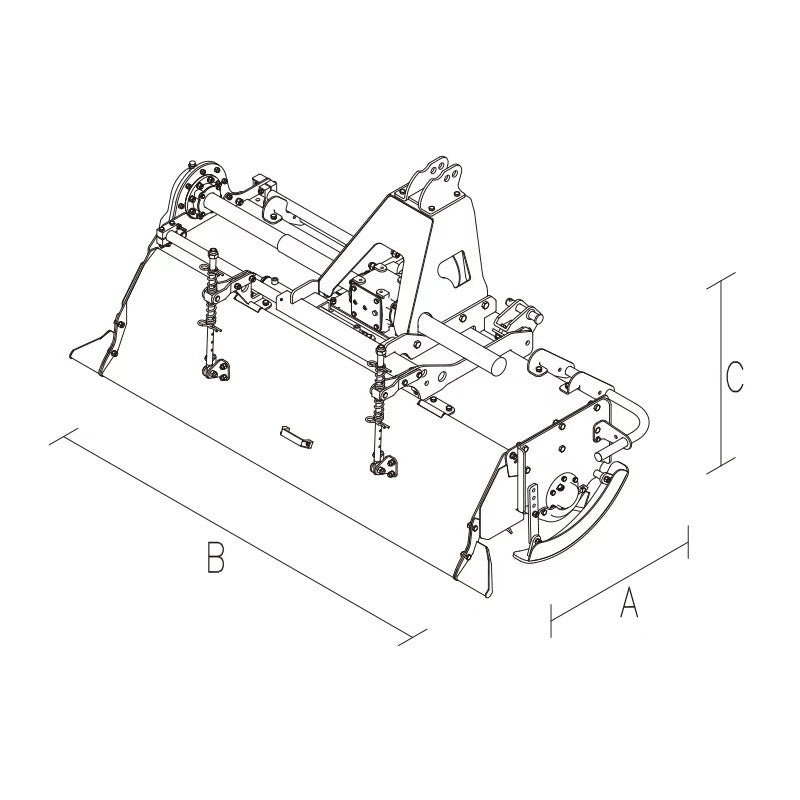

Technical Specifications
| Model | Working Width | Tilling Width | Blade No. | Flange No. | Rotor Speed (rpm) | Rotor Dia. | HP | Cat. | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-SL-125-A.RO | 49.2" (1250mm) | 58.3" (1480mm) | 18+18 | 7 | 205 | 4.7" (120mm) | 25-30 | I & II | 35.8" (910mm) | 65.0" (1652mm) | 41.7" (1060mm) | 298 |
| TL-SL-150-A.RO | 59.1" (1500mm) | 68.1" (1730mm) | 21+21 | 8 | 205 | 4.7" (120mm) | 35-45 | I & II | 35.8" (910mm) | 74.9" (1902mm) | 41.7" (1060mm) | 334 |
| TL-SL-180-A.RO | 70.9" (1800mm) | 79.9" (2030mm) | 24+24 | 9 | 205 | 4.7" (120mm) | 45-50 | I & II | 35.8" (910mm) | 86.7" (2202mm) | 41.7" (1060mm) | 376 |
