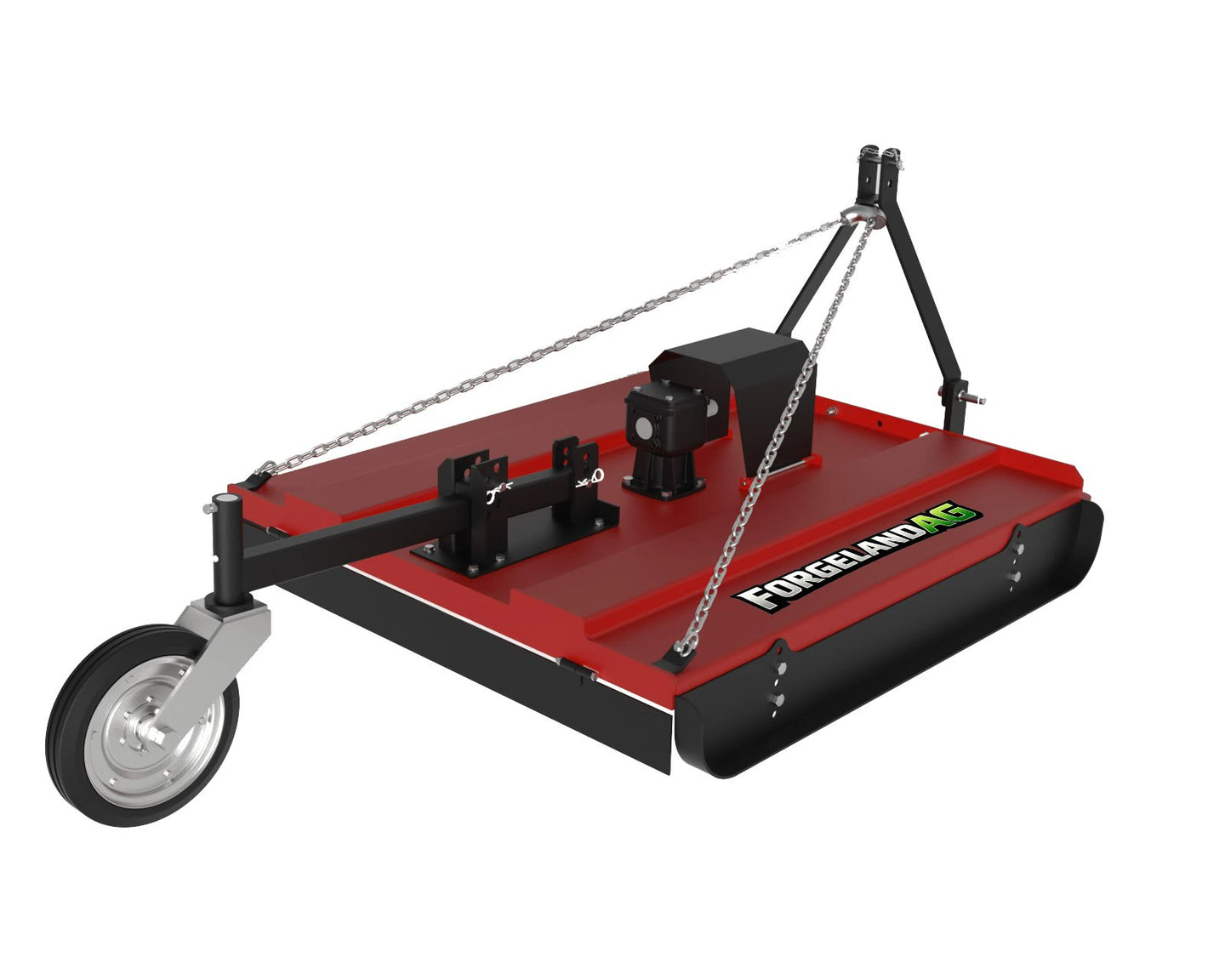

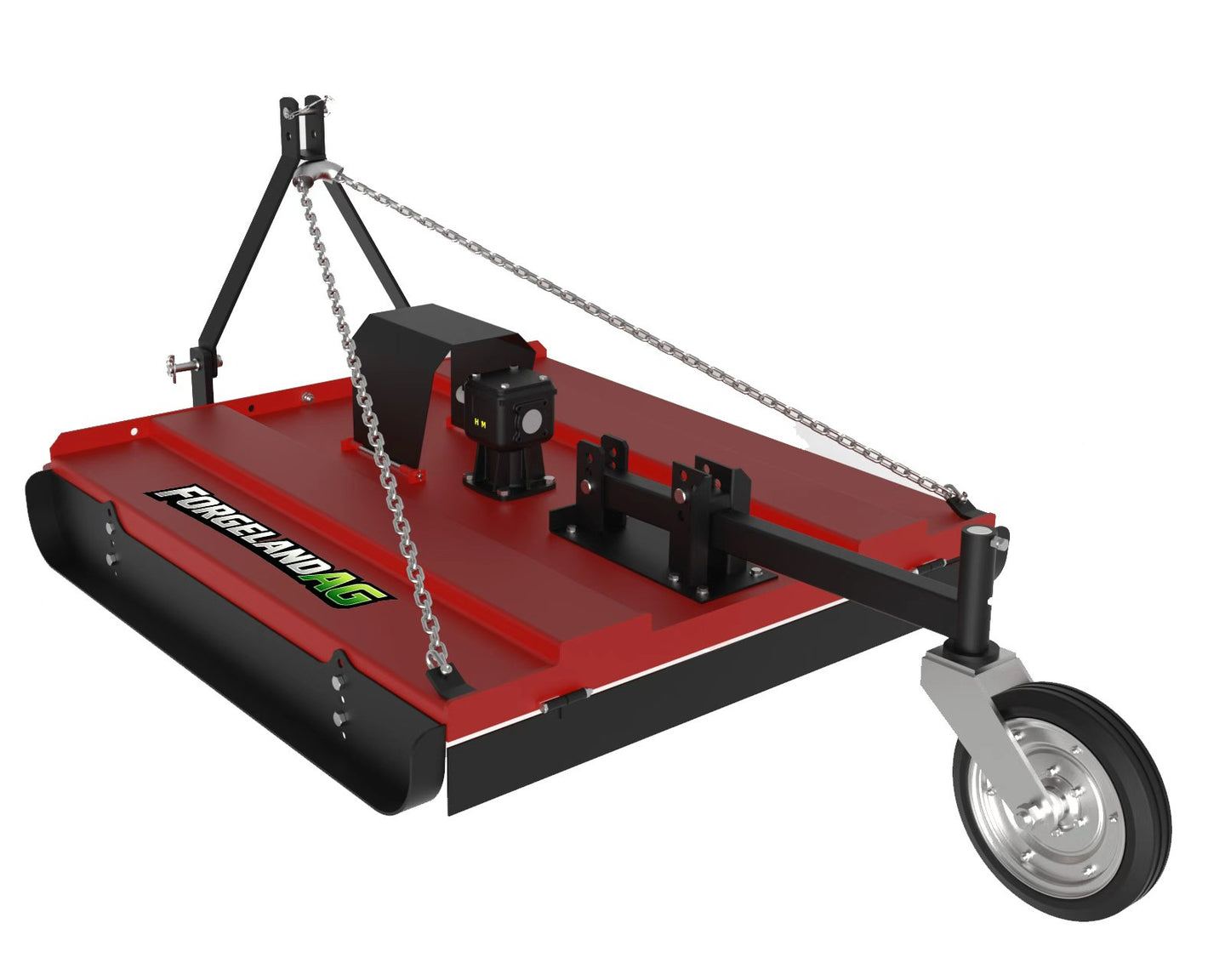

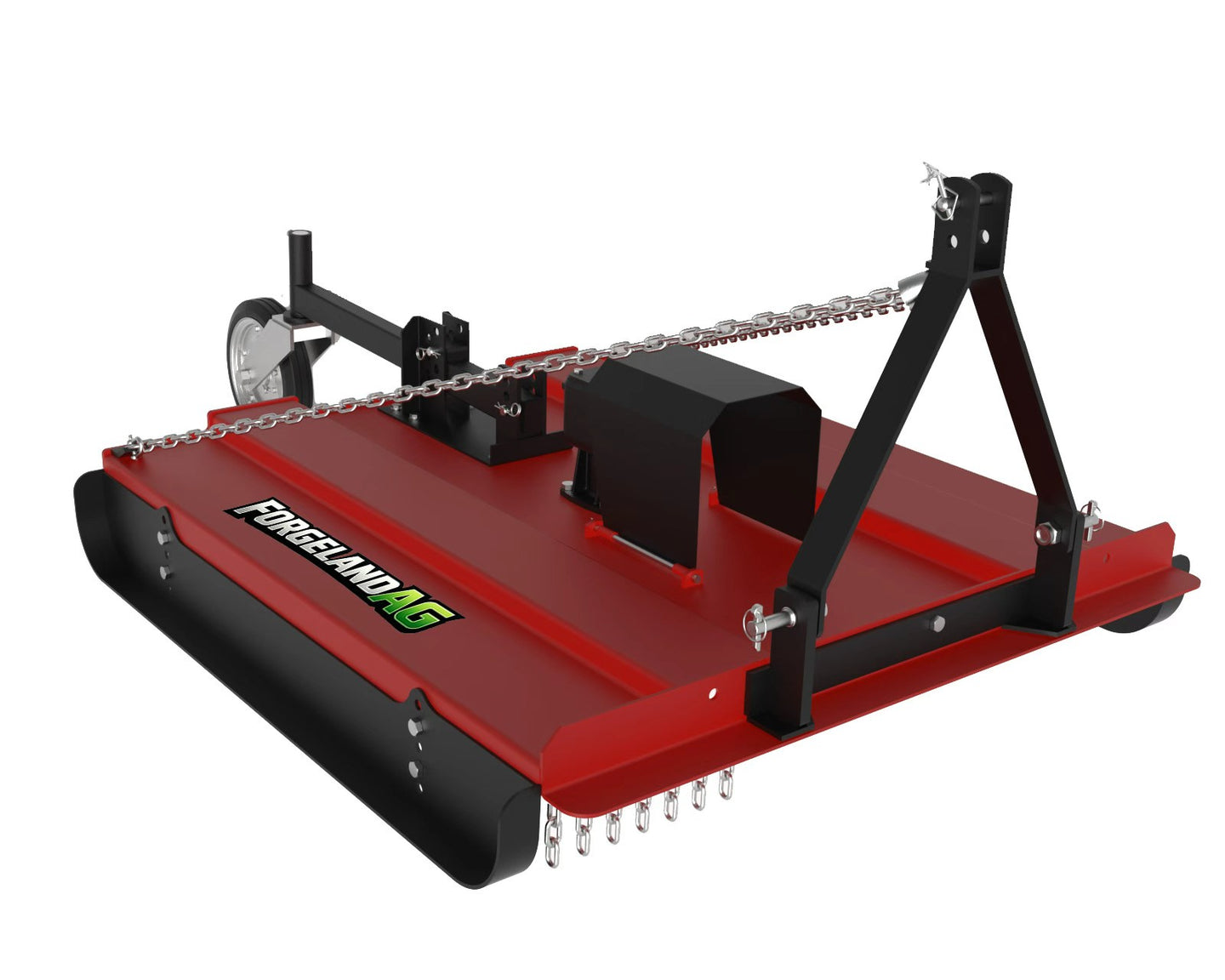

Medium-Duty Rotary Cutter - MO-TP-TMC Series
The MO-TP-TMC Medium-Duty Rotary Cutter is built for low-power tractors (16-60HP) and delivers reliable cutting performance with direct-drive simplicity. Featuring high-strength rotary blades, a shear-bolt PTO shaft for overload protection, and a universal Cat I & II hitch, it handles cutting heights from 2" (5cm) to 9.8" (25cm) across working widths from 43.3" (110cm) to 66.9" (170cm).
Key Features
- Direct-Drive Simplicity
- Compatible with Low-Power Tractors (16-60 HP)
- Cutting Height from 2" (5cm) to 9.8" (25cm)
- High-Strength Rotary Blades
- Shear-Bolt PTO Shaft
- Universal Cat I & II Hitch
Optional Accessories
- Rear Support Wheel Kit
- Additional Chain Guarding
- Models Available from 43.3" (110cm) to 70.9" (180cm)
Technical Specifications

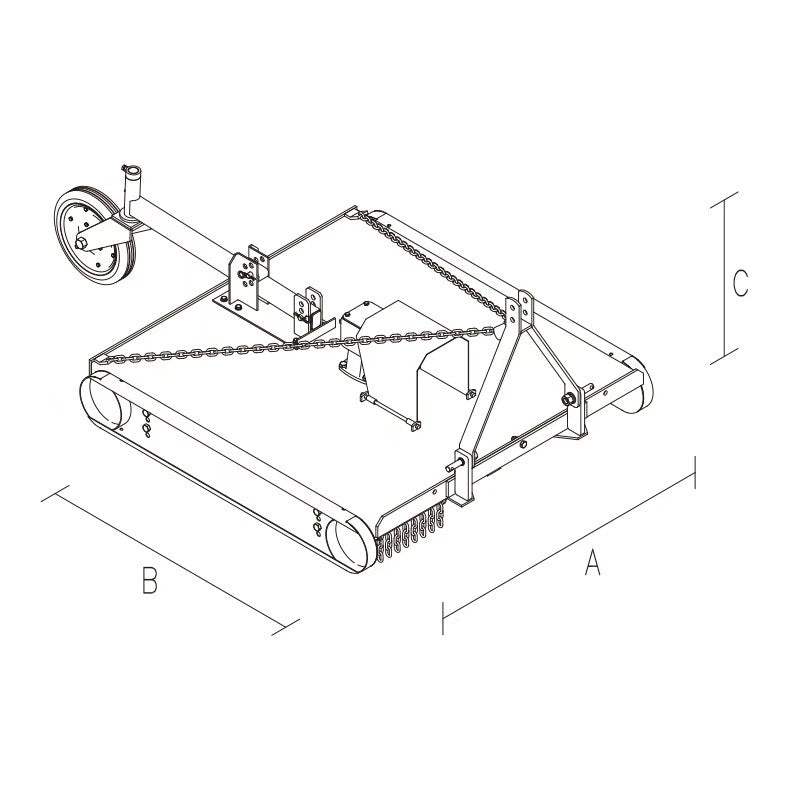

| Model | Dimensions A×B×C | Work Width | Width | Blade No. | Tractor HP | PTO (r/min) | Weight (kg) | Wheel Option |
|---|---|---|---|---|---|---|---|---|
| MO-TP-110.TMC | 47.7"x85.0"x37.5" (1212x2160x953mm) | 43.3" (110cm) | 49.2" (125cm) | 2 | 16-25 | 540 | 177 | √ |
| MO-TP-140.TMC | 59.5"x96.9"x37.5" (1512x2460x953mm) | 55.1" (140cm) | 61.0" (155cm) | 2 | 20-35 | 540 | 202 | √ |
| MO-TP-160.TMC | 67.4"x104.7"x37.5" (1712x2660x953mm) | 63.0" (160cm) | 68.9" (175cm) | 2 | 30-35 | 540 | 256 | √ |
| MO-TP-170.TMC | 71.3"x108.7"x37.5" (1812x2760x953mm) | 66.9" (170cm) | 72.8" (185cm) | 2 | 30-35 | 540 | 296 | √ |
Medium-Duty Rotary Cutter - MO-TP-TMC Series
The MO-TP-TMC Medium-Duty Rotary Cutter is built for low-power tractors (16-60HP) and delivers reliable cutting performance with direct-drive simplicity. Featuring high-strength rotary blades, a shear-bolt PTO shaft for overload protection, and a universal Cat I & II hitch, it handles cutting heights from 2" (5cm) to 9.8" (25cm) across working widths from 43.3" (110cm) to 66.9" (170cm).
Key Features
- Direct-Drive Simplicity
- Compatible with Low-Power Tractors (16-60 HP)
- Cutting Height from 2" (5cm) to 9.8" (25cm)
- High-Strength Rotary Blades
- Shear-Bolt PTO Shaft
- Universal Cat I & II Hitch
Optional Accessories
- Rear Support Wheel Kit
- Additional Chain Guarding
- Models Available from 43.3" (110cm) to 70.9" (180cm)
Technical Specifications
| Model | Dimensions A×B×C | Work Width | Width | Blade No. | Tractor HP | PTO (r/min) | Weight (kg) | Wheel Option |
|---|---|---|---|---|---|---|---|---|
| MO-TP-110.TMC | 47.7"x85.0"x37.5" (1212x2160x953mm) | 43.3" (110cm) | 49.2" (125cm) | 2 | 16-25 | 540 | 177 | √ |
| MO-TP-140.TMC | 59.5"x96.9"x37.5" (1512x2460x953mm) | 55.1" (140cm) | 61.0" (155cm) | 2 | 20-35 | 540 | 202 | √ |
| MO-TP-160.TMC | 67.4"x104.7"x37.5" (1712x2660x953mm) | 63.0" (160cm) | 68.9" (175cm) | 2 | 30-35 | 540 | 256 | √ |
| MO-TP-170.TMC | 71.3"x108.7"x37.5" (1812x2760x953mm) | 66.9" (170cm) | 72.8" (185cm) | 2 | 30-35 | 540 | 296 | √ |
