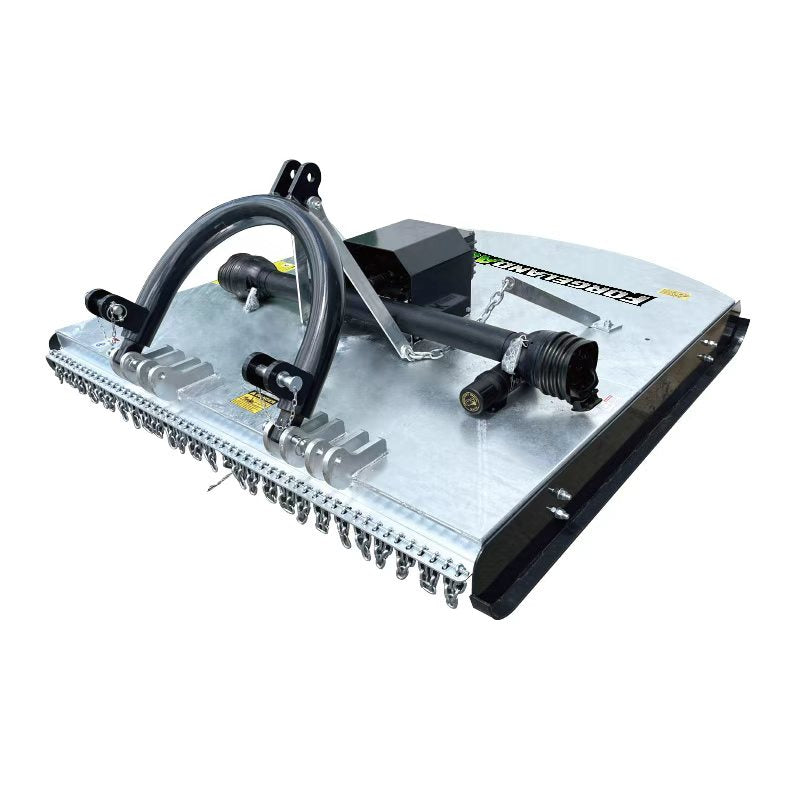

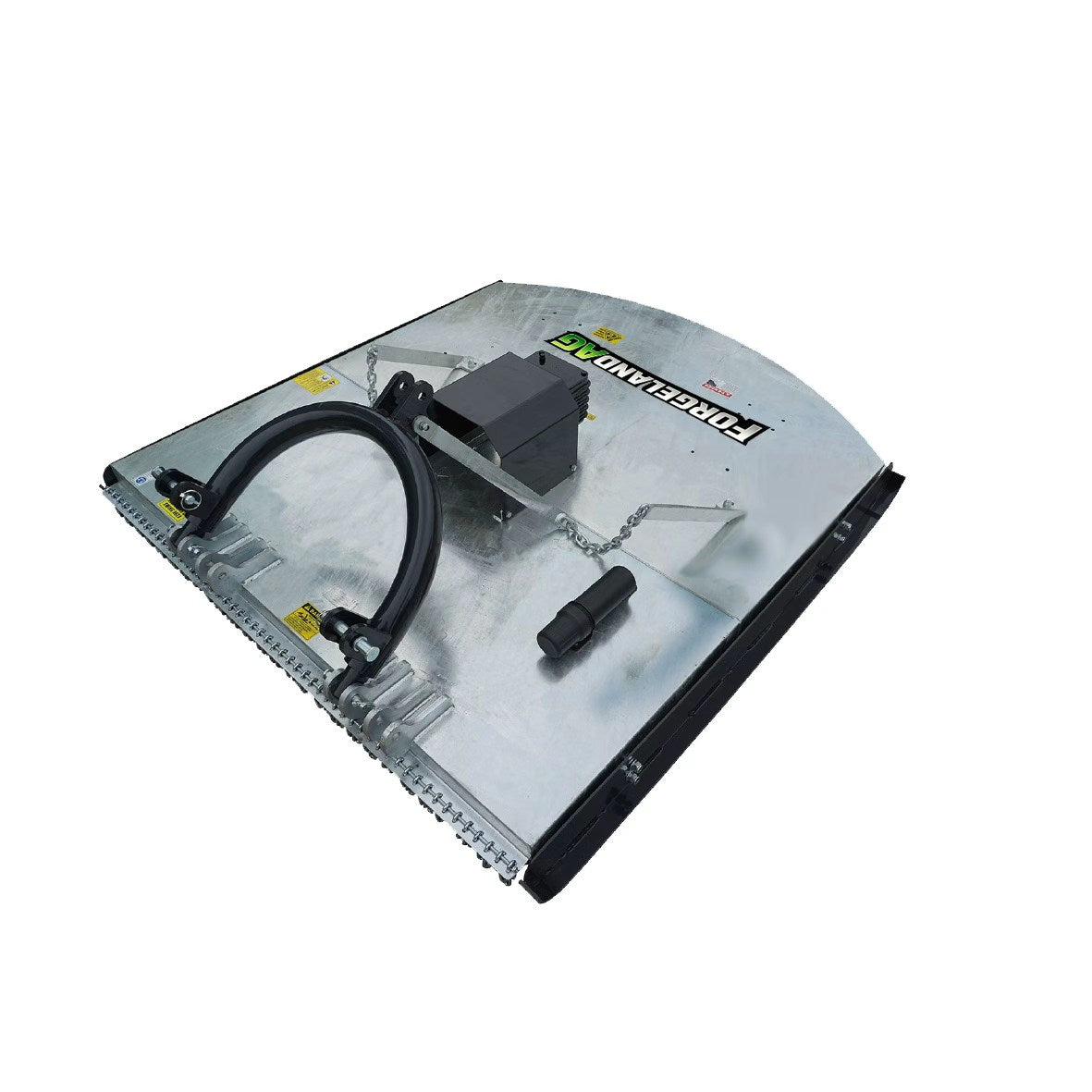

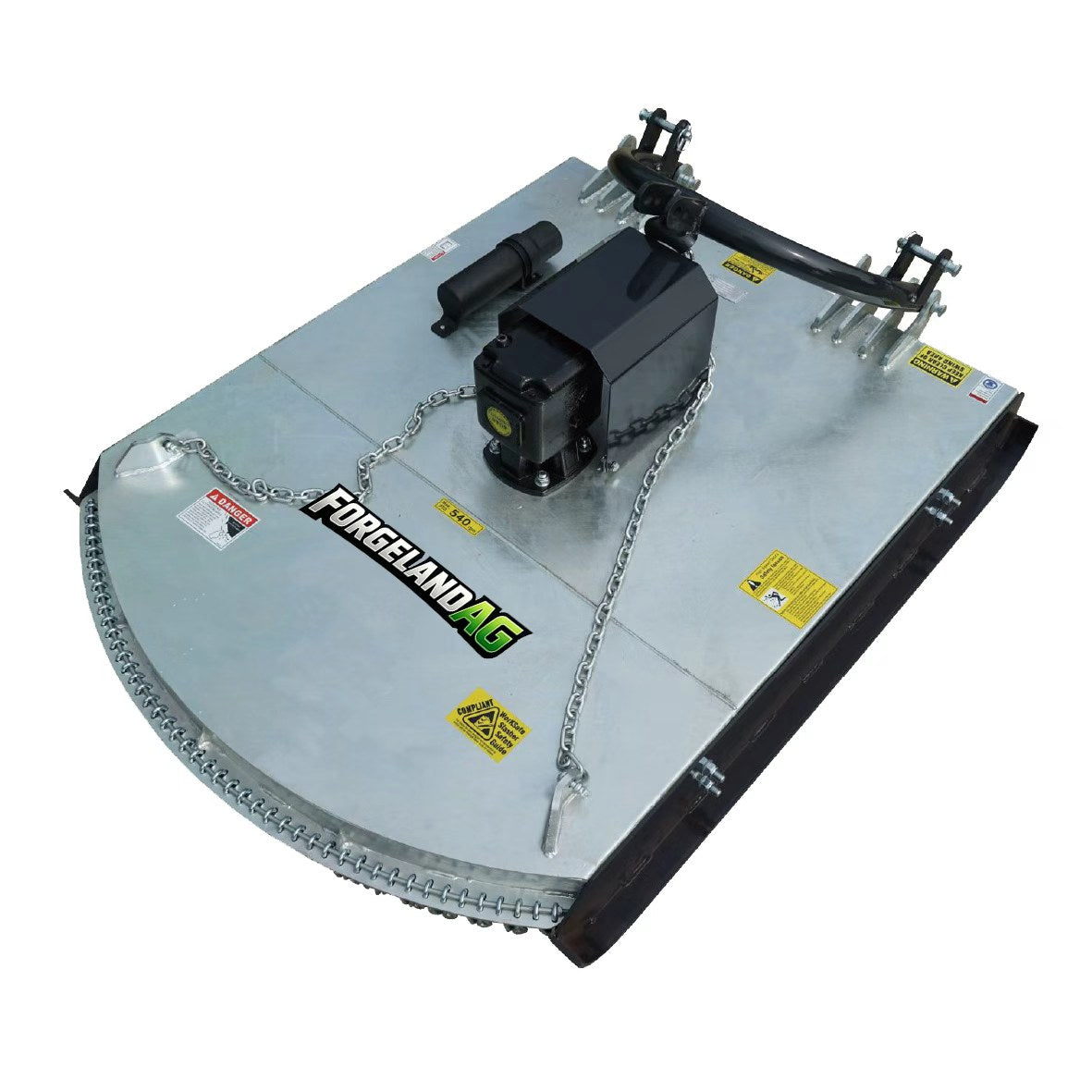

Galvanised Rotary Cutter - MO-TP-G Series
The MO-TP-G Galvanised Rotary Cutter combines superior corrosion resistance with heavy-duty performance. Finished with a hot-dipped galvanised coating, built on a heavy-duty frame rated up to 120HP, and equipped with a high-torque gearbox (up to 100HP) and heat-treated flail blades, it delivers better contouring and long-lasting durability across working widths from 37.0" (940mm) to 70.9" (1800mm).
Key Features
- Hot-Dipped Galvanised Finish
- Heavy Duty Frame for Up to 120 HP

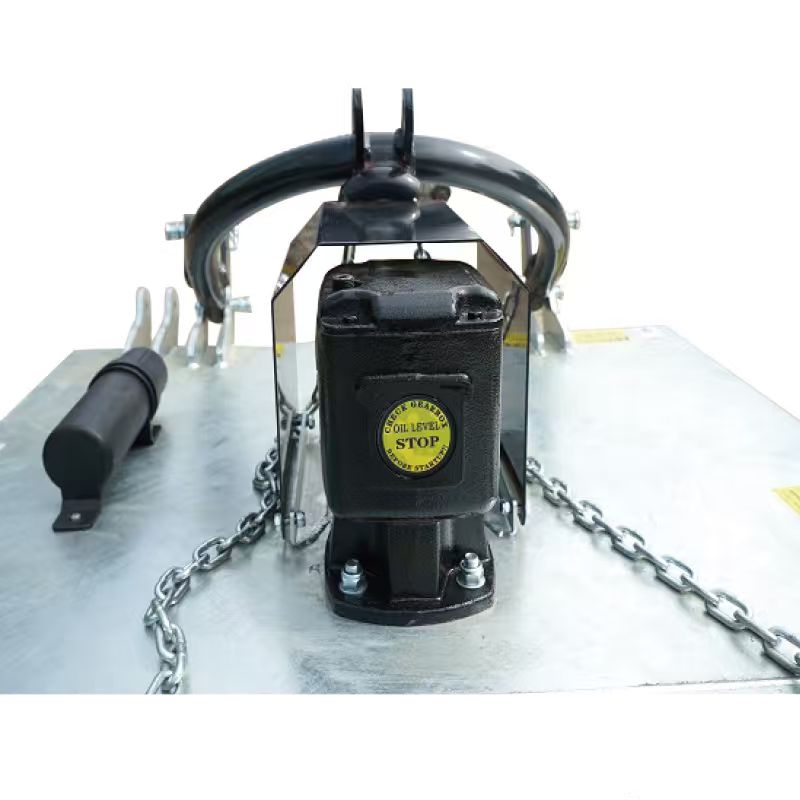

- High-Torque Gearbox (Up to 100HP)
- Better Contouring
- Heat-Treated Flail Blades
- Universal Cat I & II Linkage
Optional Accessories
- Single or Dual Rear Support Wheels (MO-TP-150/180-G)
- PTO Shaft Featuring Friction Clutch
Technical Specifications
| Model | Working Width | Blade No. | PTO (r/min) | Gearbox HP | Wheel No. | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MO-TP-100-G | 37.0" (940mm) | 2 | 540 | 35 | 1 | 35 | 45 | 45.6" (1158mm) | 58.1" (1475mm) | 36.2" (920mm) | 242 |
| MO-TP-120-G | 47.2" (1200mm) | 2 | 540 | 50 | 1 | 50 | 60 | 53.9" (1370mm) | 69.1" (1755mm) | 36.2" (920mm) | 272 |
| MO-TP-150-G | 59.0" (1498mm) | 2 | 540 | 50 | 1 | 50 | 60 | 65.7" (1668mm) | 84.1" (2135mm) | 36.2" (920mm) | 366 |
| MO-TP-180-G | 70.9" (1800mm) | 2 | 540 | 100 | 2 | 100 | 120 | 77.2" (1960mm) | 90.6" (2300mm) | 36.2" (920mm) | 468 |
Galvanised Rotary Cutter - MO-TP-G Series
The MO-TP-G Galvanised Rotary Cutter combines superior corrosion resistance with heavy-duty performance. Finished with a hot-dipped galvanised coating, built on a heavy-duty frame rated up to 120HP, and equipped with a high-torque gearbox (up to 100HP) and heat-treated flail blades, it delivers better contouring and long-lasting durability across working widths from 37.0" (940mm) to 70.9" (1800mm).
Key Features
- Hot-Dipped Galvanised Finish
- Heavy Duty Frame for Up to 120 HP
- High-Torque Gearbox (Up to 100HP)
- Better Contouring
- Heat-Treated Flail Blades
- Universal Cat I & II Linkage
Optional Accessories
- Single or Dual Rear Support Wheels (MO-TP-150/180-G)
- PTO Shaft Featuring Friction Clutch
Technical Specifications
| Model | Working Width | Blade No. | PTO (r/min) | Gearbox HP | Wheel No. | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MO-TP-100-G | 37.0" (940mm) | 2 | 540 | 35 | 1 | 35 | 45 | 45.6" (1158mm) | 58.1" (1475mm) | 36.2" (920mm) | 242 |
| MO-TP-120-G | 47.2" (1200mm) | 2 | 540 | 50 | 1 | 50 | 60 | 53.9" (1370mm) | 69.1" (1755mm) | 36.2" (920mm) | 272 |
| MO-TP-150-G | 59.0" (1498mm) | 2 | 540 | 50 | 1 | 50 | 60 | 65.7" (1668mm) | 84.1" (2135mm) | 36.2" (920mm) | 366 |
| MO-TP-180-G | 70.9" (1800mm) | 2 | 540 | 100 | 2 | 100 | 120 | 77.2" (1960mm) | 90.6" (2300mm) | 36.2" (920mm) | 468 |
