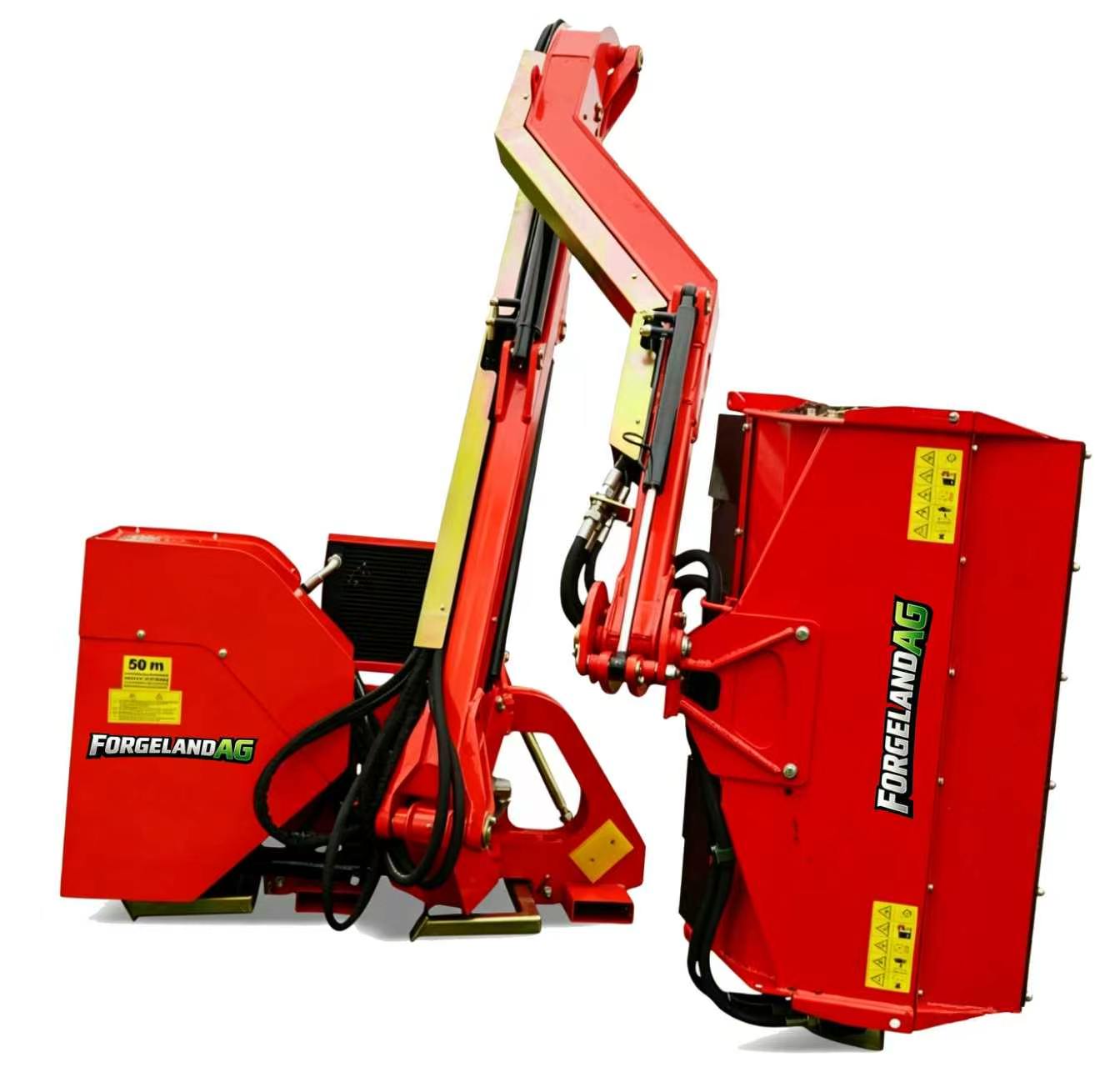

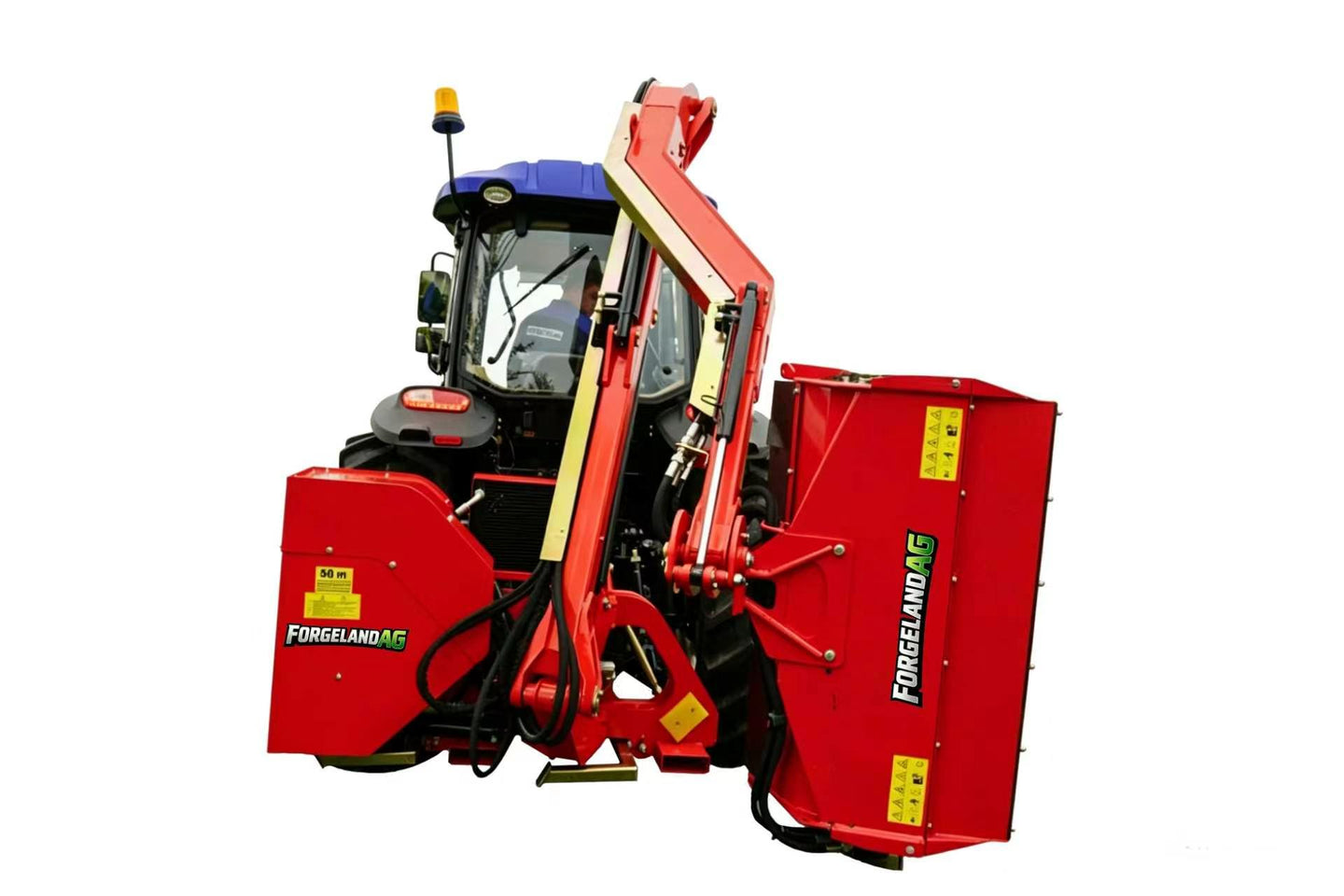

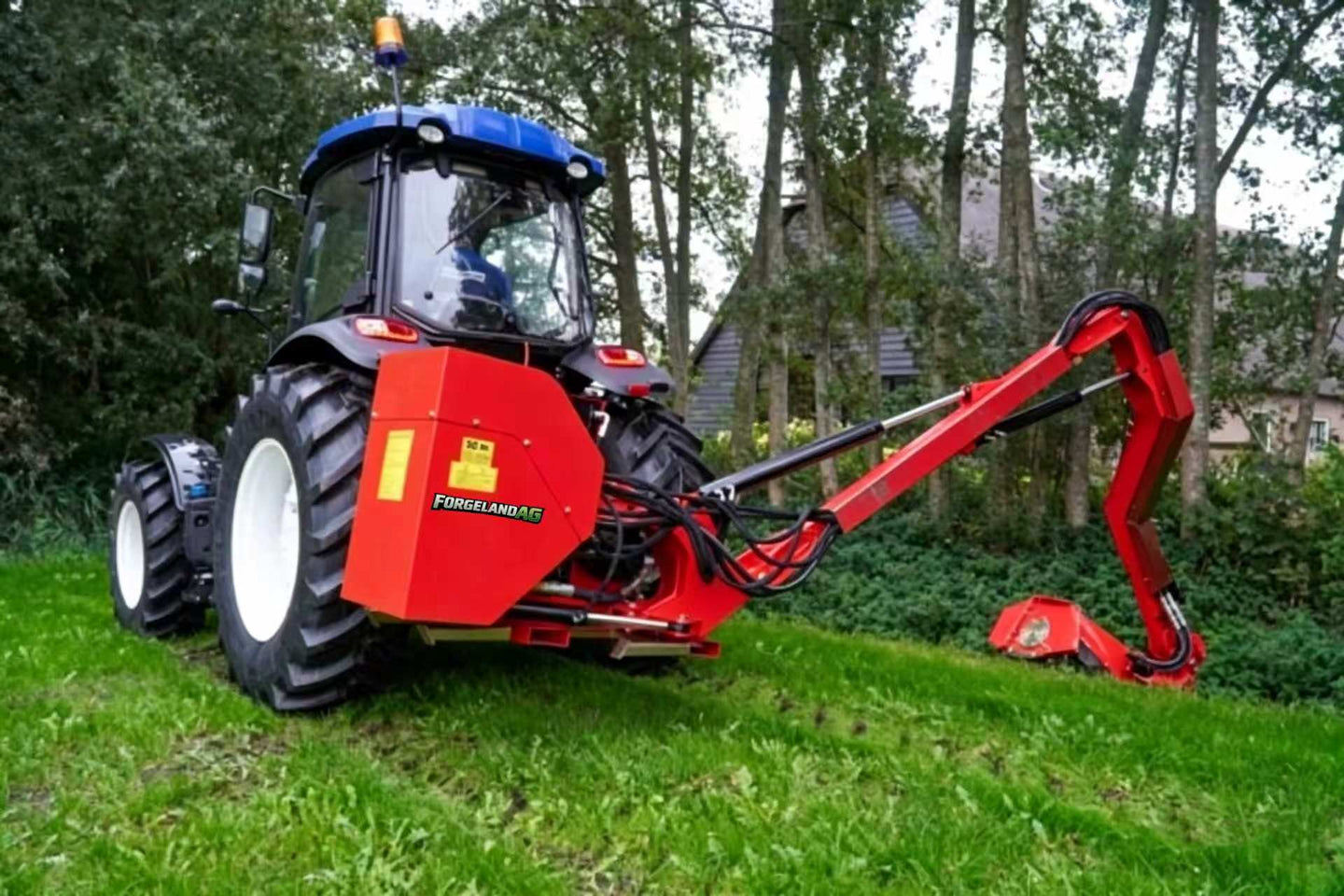

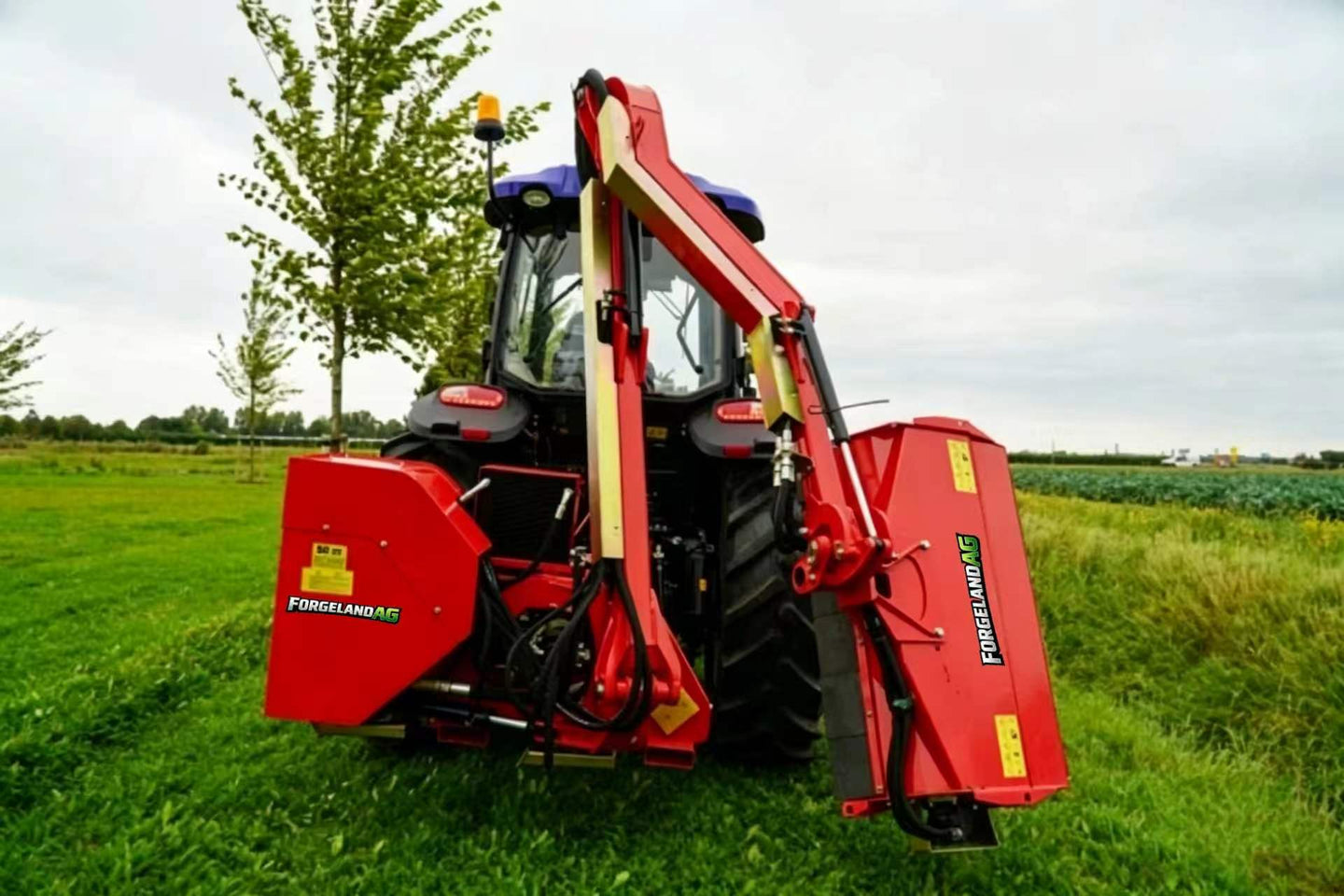

Business Boom Arm Flail Trimmer - TS-BN-52-J
The TS-BN-52-J Business Boom Arm Flail Trimmer is a professional-grade hydraulic boom arm hedge cutter with a 12V electronic proportional joystick, a 160L (42 Gal) high-capacity oil reservoir, and a maximum horizontal reach of 210.3 in (17.5 ft) / vertical reach of 216.5 in (18.0 ft). Featuring a 120/135 flail head with hydraulic motor, a double-helix rotor, and automatic ground contour adjustment, it operates on 120-180HP tractors via a universal Cat II 3-point linkage at 540rpm PTO.
Key Features

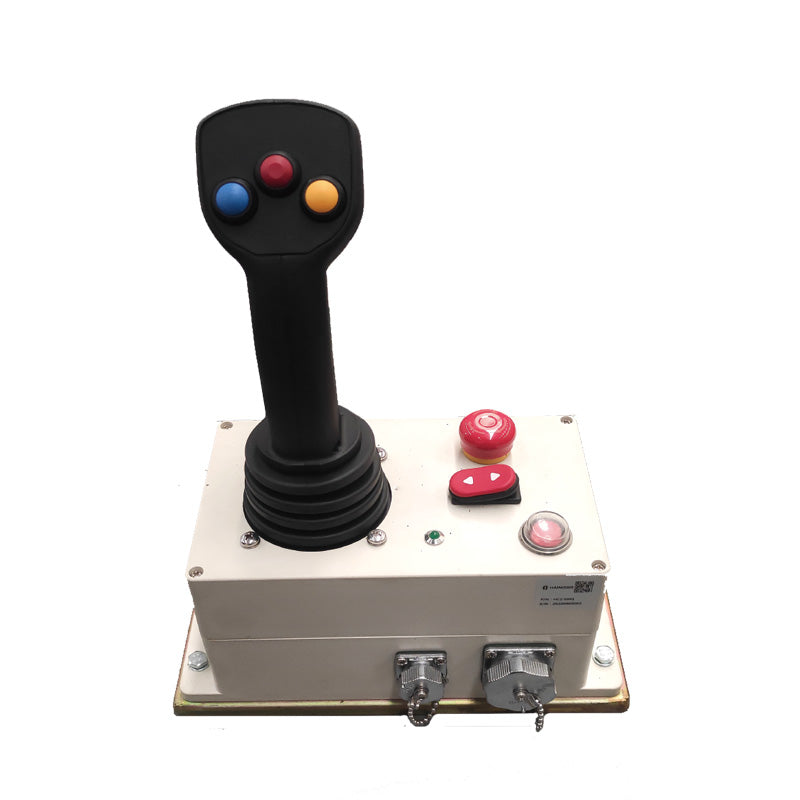

- 12V Electronic Proportional Joystick
- 160L (42 Gal) High-Capacity Oil Reservoir
- Maximum Horizontal Reach of 210.3 in (17.5 ft) / Vertical Reach of 216.5 in (18.0 ft)
- Automatically Adjusts to Ground Contours
- 120/135 Flail Head with Hydraulic Motor
- Double-Helix Rotor
- Universal Cat II / 3-Point Linkage
Optional Accessories
- Circular Saw Bar (for Branches up to 5.9 in)
- Heavy-Duty Hedge Trimmer
Technical Specifications

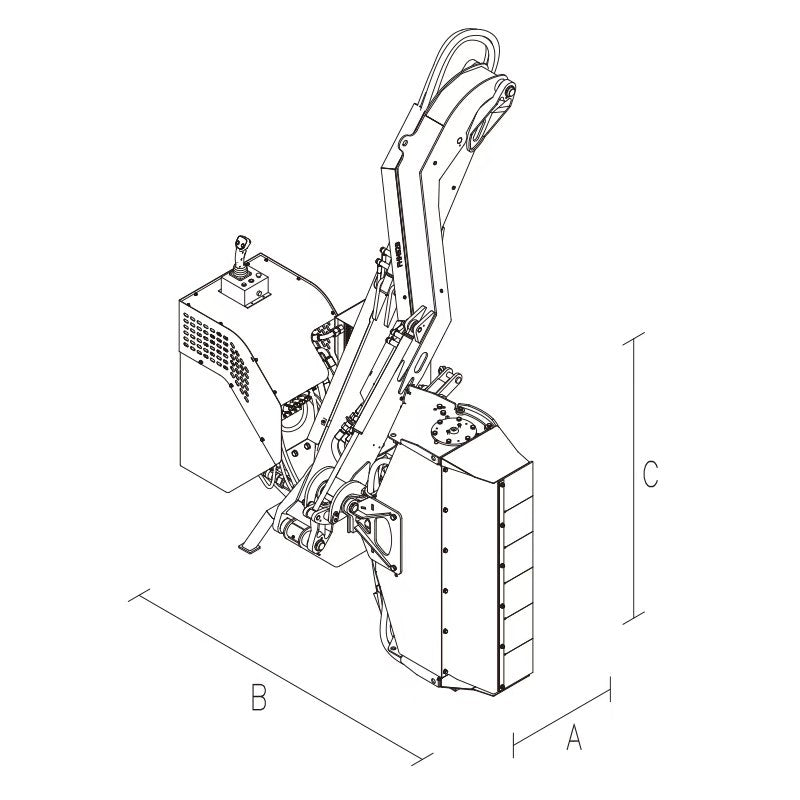

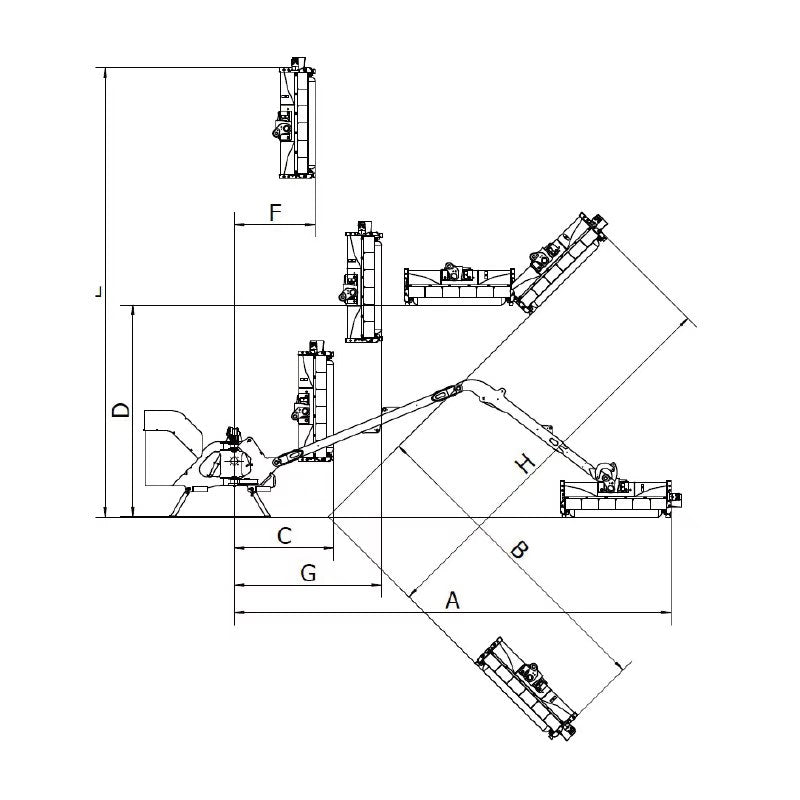

| Model | Cut Width (in) | Oil (Gal) | PTO (r/min) | AxBxC (in) | A | B | C | D | E | F | G | H | Min HP | Max HP | Volt | Weight (lb) | Head Speed (r/min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TS-BN-52-J | 49.2 | 31.7 | 540 | 69.3x98.4x108.7 | 210.3 | 152.6 | 47.9 | 102.2 | 216.5 | 38.1 | 70.9 | 190.0 | 120 | 180 | 12V | 2205 | 3200 |
Business Boom Arm Flail Trimmer - TS-BN-52-J
The TS-BN-52-J Business Boom Arm Flail Trimmer is a professional-grade hydraulic boom arm hedge cutter with a 12V electronic proportional joystick, a 160L (42 Gal) high-capacity oil reservoir, and a maximum horizontal reach of 210.3 in (17.5 ft) / vertical reach of 216.5 in (18.0 ft). Featuring a 120/135 flail head with hydraulic motor, a double-helix rotor, and automatic ground contour adjustment, it operates on 120-180HP tractors via a universal Cat II 3-point linkage at 540rpm PTO.
Key Features
- 12V Electronic Proportional Joystick
- 160L (42 Gal) High-Capacity Oil Reservoir
- Maximum Horizontal Reach of 210.3 in (17.5 ft) / Vertical Reach of 216.5 in (18.0 ft)
- Automatically Adjusts to Ground Contours
- 120/135 Flail Head with Hydraulic Motor
- Double-Helix Rotor
- Universal Cat II / 3-Point Linkage
Optional Accessories
- Circular Saw Bar (for Branches up to 5.9 in)
- Heavy-Duty Hedge Trimmer
Technical Specifications
| Model | Cut Width (in) | Oil (Gal) | PTO (r/min) | AxBxC (in) | A | B | C | D | E | F | G | H | Min HP | Max HP | Volt | Weight (lb) | Head Speed (r/min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TS-BN-52-J | 49.2 | 31.7 | 540 | 69.3x98.4x108.7 | 210.3 | 152.6 | 47.9 | 102.2 | 216.5 | 38.1 | 70.9 | 190.0 | 120 | 180 | 12V | 2205 | 3200 |
- Regular price
- $0.00
Business Boom Arm Flail Trimmer - TS-BN-52-J
The TS-BN-52-J Business Boom Arm Flail Trimmer is a professional-grade hydraulic boom arm hedge cutter with a 12V electronic proportional joystick, a 160L (42 Gal) high-capacity oil reservoir, and a maximum horizontal reach of 210.3 in (17.5 ft) / vertical reach of 216.5 in (18.0 ft). Featuring a 120/135 flail head with hydraulic motor, a double-helix rotor, and automatic ground contour adjustment, it operates on 120-180HP tractors via a universal Cat II 3-point linkage at 540rpm PTO.
Key Features
- 12V Electronic Proportional Joystick
- 160L (42 Gal) High-Capacity Oil Reservoir
- Maximum Horizontal Reach of 210.3 in (17.5 ft) / Vertical Reach of 216.5 in (18.0 ft)
- Automatically Adjusts to Ground Contours
- 120/135 Flail Head with Hydraulic Motor
- Double-Helix Rotor
- Universal Cat II / 3-Point Linkage
Optional Accessories
- Circular Saw Bar (for Branches up to 5.9 in)
- Heavy-Duty Hedge Trimmer
Technical Specifications
| Model | Cut Width (in) | Oil (Gal) | PTO (r/min) | AxBxC (in) | A | B | C | D | E | F | G | H | Min HP | Max HP | Volt | Weight (lb) | Head Speed (r/min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TS-BN-52-J | 49.2 | 31.7 | 540 | 69.3x98.4x108.7 | 210.3 | 152.6 | 47.9 | 102.2 | 216.5 | 38.1 | 70.9 | 190.0 | 120 | 180 | 12V | 2205 | 3200 |
-
Vendor: HAN-SUN
Rear Blade - Manual Angle (GG-RP Series)
Regular price $0.00 -
Vendor: HAN-SUN
Front Blade - Front-Mounted Hydraulic (SC Series)
Regular price $0.00 -
Vendor: HAN-SUN

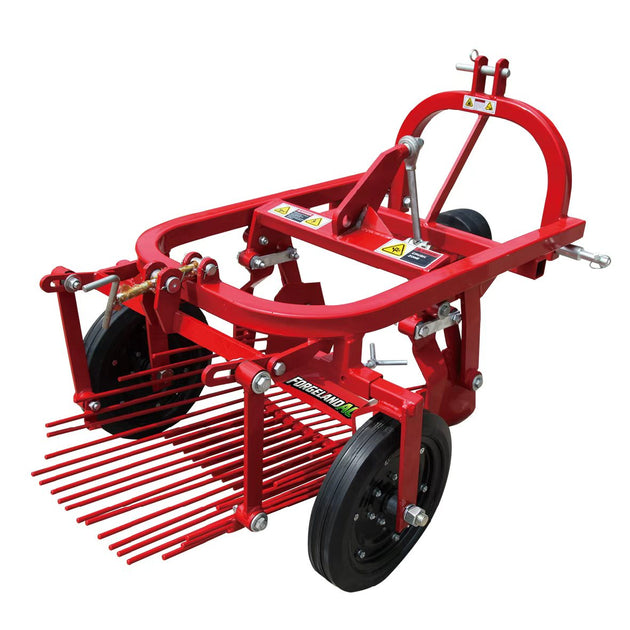

Potato Digger - Back Discharge (PD-50)
