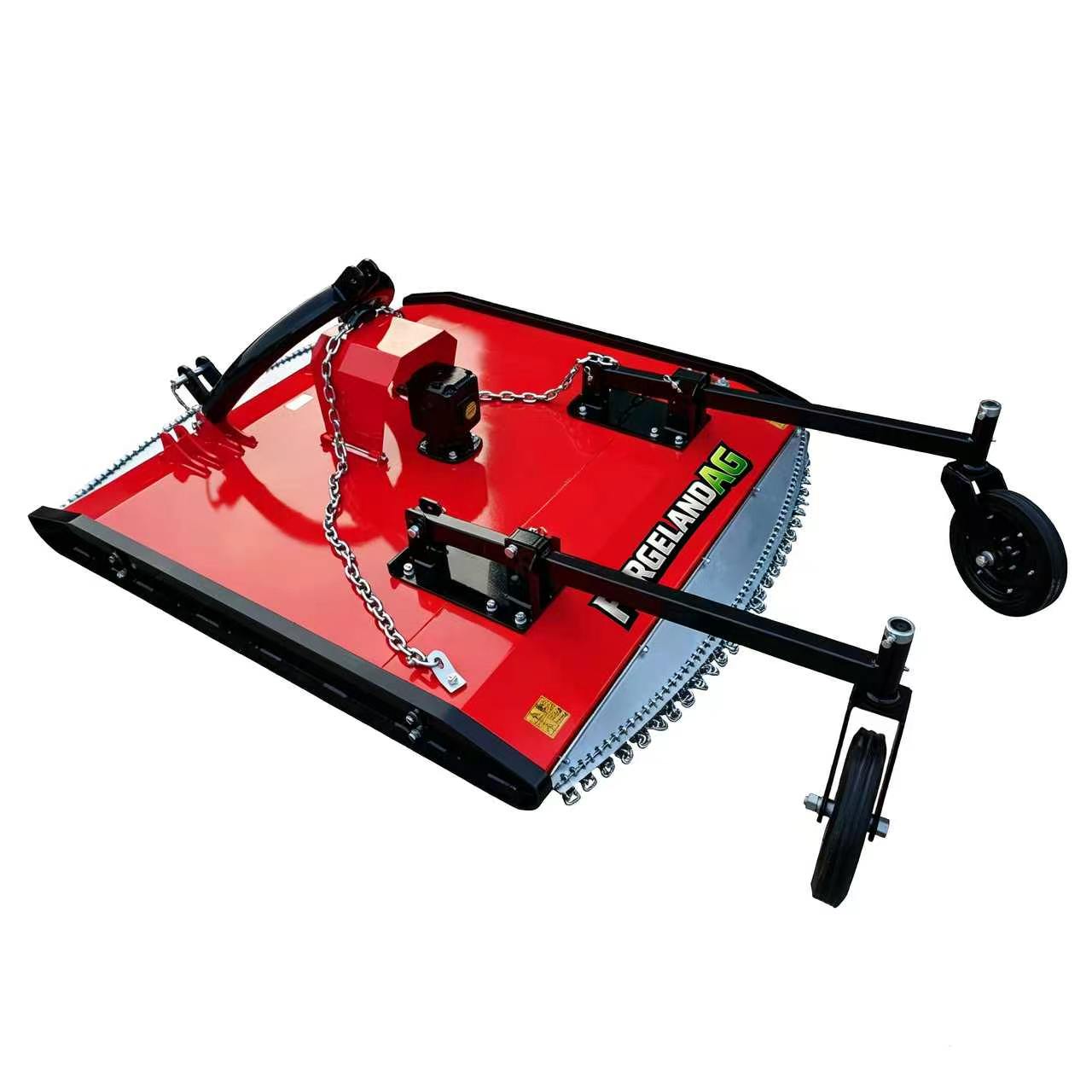

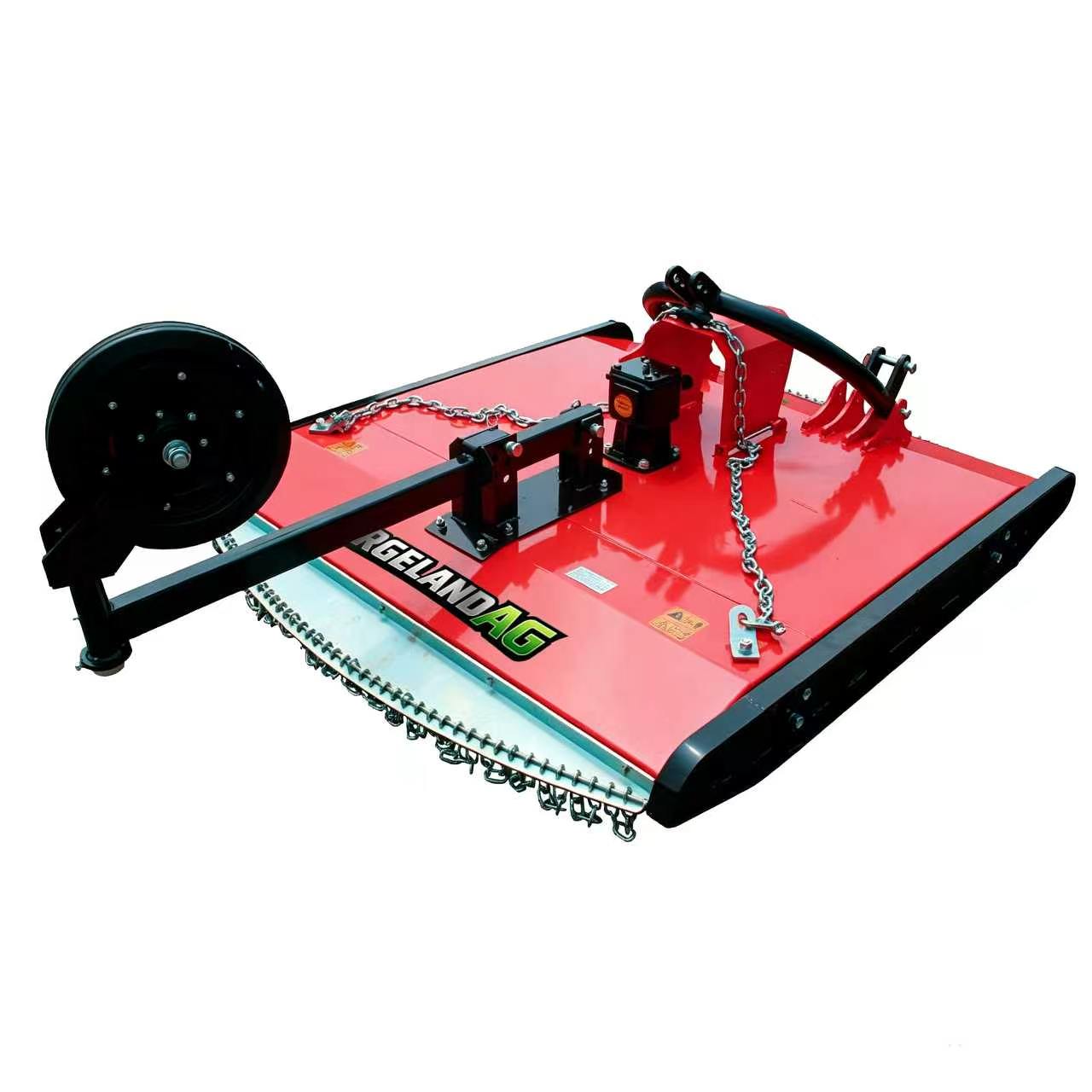

Heavy-Duty Rotary Cutter - MO-TP-CH Series
The MO-TP-CH Heavy-Duty Rotary Cutter is engineered for demanding applications requiring 20-100HP tractors. Featuring a 75-100HP rated gearbox on larger models, heavy-duty heat-treated flail blades, and a reinforced trailing wheel, it delivers powerful cutting performance with adjustable side skid height from 2" (5cm) to 9.8" (25cm) across working widths from 40.6" (1030mm) to 82.4" (2094mm).
Key Features
- 75-100 HP Rated Gearbox (on Larger Models)
- Heavy-Duty Heat-Treated Flail Blades
- Reinforced Trailing Wheel
- Adjustable Side Skids Height from 2" (5cm) to 9.8" (25cm)
- Universal Cat I & II Linkage
Optional Accessories
- Dual Rear Support Wheels
- Friction Clutch
- Shear-Bolt Friction-Clutch
Technical Specifications
| Model | Working Width | Blade No. | PTO (r/min) | Gearbox HP | Wheel No. | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MO-TP-3-CH | 40.6" (1030mm) | 2 | 540 | 40 | 1 | 20 | 30 | 48.4" (1230mm) | 60.2" (1530mm) | 36.2" (920mm) | 272 |
| MO-TP-4-CH | 46.5" (1180mm) | 2 | 540 | 40 | 1 | 20 | 35 | 60.2" (1530mm) | 72.0" (1830mm) | 36.2" (920mm) | 312 |
| MO-TP-5-CH | 58.4" (1484mm) | 2 | 540 | 40 | 1 | 20 | 35 | 68.1" (1730mm) | 91.7" (2330mm) | 36.2" (920mm) | 362 |
| MO-TP-6-CH | 70.4" (1789mm) | 2 | 540 | 75 | 2 | 35 | 75 | 76.0" (1930mm) | 99.6" (2530mm) | 36.2" (920mm) | 576 |
| MO-TP-7-CH | 82.4" (2094mm) | 2 | 540 | 100 | 2 | 50 | 100 | 87.8" (2230mm) | 111.4" (2830mm) | 36.2" (920mm) | 679 |
Heavy-Duty Rotary Cutter - MO-TP-CH Series
The MO-TP-CH Heavy-Duty Rotary Cutter is engineered for demanding applications requiring 20-100HP tractors. Featuring a 75-100HP rated gearbox on larger models, heavy-duty heat-treated flail blades, and a reinforced trailing wheel, it delivers powerful cutting performance with adjustable side skid height from 2" (5cm) to 9.8" (25cm) across working widths from 40.6" (1030mm) to 82.4" (2094mm).
Key Features
- 75-100 HP Rated Gearbox (on Larger Models)
- Heavy-Duty Heat-Treated Flail Blades
- Reinforced Trailing Wheel
- Adjustable Side Skids Height from 2" (5cm) to 9.8" (25cm)
- Universal Cat I & II Linkage
Optional Accessories
- Dual Rear Support Wheels
- Friction Clutch
- Shear-Bolt Friction-Clutch
Technical Specifications
| Model | Working Width | Blade No. | PTO (r/min) | Gearbox HP | Wheel No. | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MO-TP-3-CH | 40.6" (1030mm) | 2 | 540 | 40 | 1 | 20 | 30 | 48.4" (1230mm) | 60.2" (1530mm) | 36.2" (920mm) | 272 |
| MO-TP-4-CH | 46.5" (1180mm) | 2 | 540 | 40 | 1 | 20 | 35 | 60.2" (1530mm) | 72.0" (1830mm) | 36.2" (920mm) | 312 |
| MO-TP-5-CH | 58.4" (1484mm) | 2 | 540 | 40 | 1 | 20 | 35 | 68.1" (1730mm) | 91.7" (2330mm) | 36.2" (920mm) | 362 |
| MO-TP-6-CH | 70.4" (1789mm) | 2 | 540 | 75 | 2 | 35 | 75 | 76.0" (1930mm) | 99.6" (2530mm) | 36.2" (920mm) | 576 |
| MO-TP-7-CH | 82.4" (2094mm) | 2 | 540 | 100 | 2 | 50 | 100 | 87.8" (2230mm) | 111.4" (2830mm) | 36.2" (920mm) | 679 |
