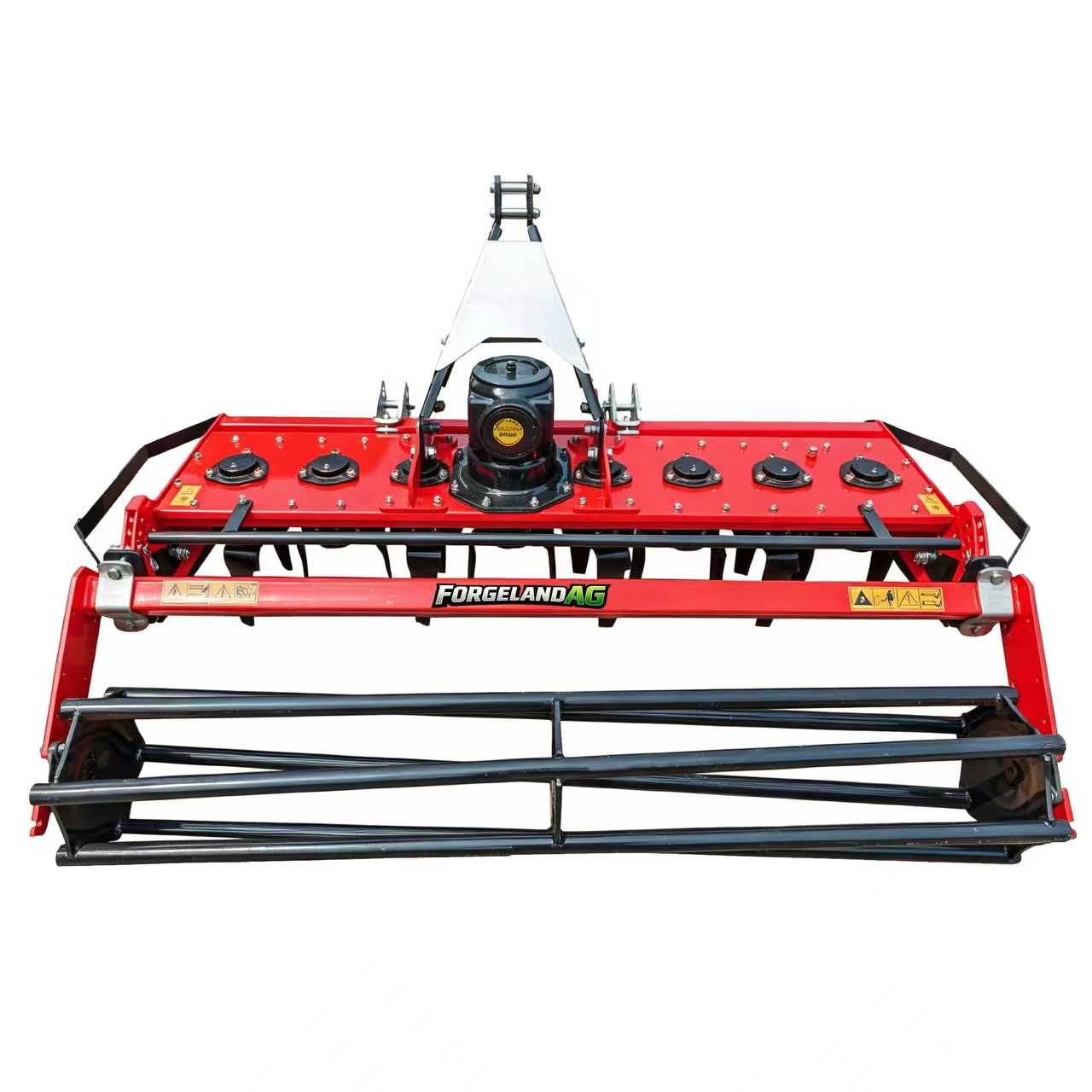

Light-Duty Power Harrow - PH-L-K Series
The PH-L-K Light-Duty Power Harrow is engineered for 20-55HP compact tractors, delivering efficient vertical tine tillage with a high-spec internal gear drive distribution system. Featuring a single-speed heavy-duty gearbox at 540rpm, an integrated rear cage roller, and two hardened tines per rotor, it prepares a fine, level seedbed across working widths from 35.4" (900mm) to 78.7" (2000mm).
Key Features
- Efficient Vertical Tines
- Ideal for Low-HP Compact Tractors (20-55 HP)
- High-Spec Internal Gear Drive Distribution
- Single-Speed Heavy-Duty Gearbox (540 rpm)
- Integrated Rear Cage Roller
- Two Hardened Tines/Rotor
- Universal 3-Point Linkage Cat I & II
Optional Accessories
- PTO Shaft with Shear Bolt
- PTO Shaft with Friction Clutch
- Models Available from 35.4" (900mm) to 82.7" (2100mm)
Technical Specifications

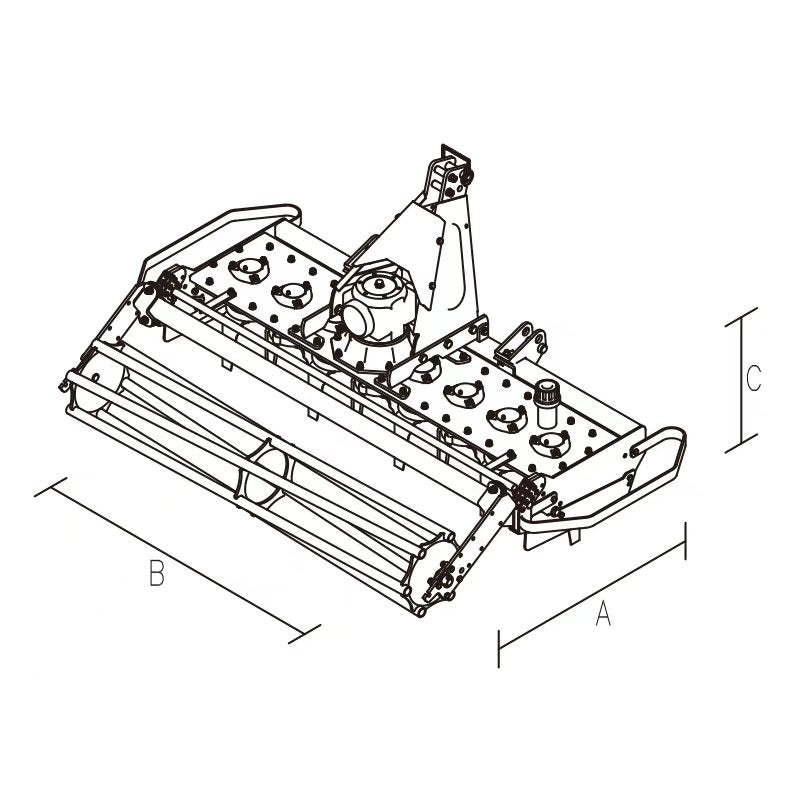

| Model | Working Width | Rotor No. | Tine No. | Tine Depth | Cage Roller Dia. | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PH-90L-K | 35.4" (900mm) | 4 | 4+4 | 7.9" (200mm) | 12.0" (305mm) | 540 | 20 | 30 | 48.4" (1230mm) | 45.3" (1150mm) | 36.2" (920mm) | 258 |
| PH-110L-K | 43.3" (1100mm) | 5 | 5+5 | 7.9" (200mm) | 12.0" (305mm) | 540 | 25 | 35 | 48.4" (1230mm) | 53.1" (1350mm) | 36.2" (920mm) | 288 |
| PH-130L-K | 51.2" (1300mm) | 6 | 6+6 | 7.9" (200mm) | 12.0" (305mm) | 540 | 25 | 35 | 48.4" (1230mm) | 61.0" (1550mm) | 36.2" (920mm) | 324 |
| PH-170L-K | 66.9" (1700mm) | 8 | 8+8 | 7.9" (200mm) | 12.0" (305mm) | 540 | 45 | 50 | 48.4" (1230mm) | 76.8" (1950mm) | 36.2" (920mm) | 375 |
| PH-210L-K | 78.7" (2000mm) | 10 | 10+10 | 7.9" (200mm) | 12.0" (305mm) | 540 | 50 | 55 | 48.4" (1230mm) | 92.5" (2350mm) | 36.2" (920mm) | 451 |
