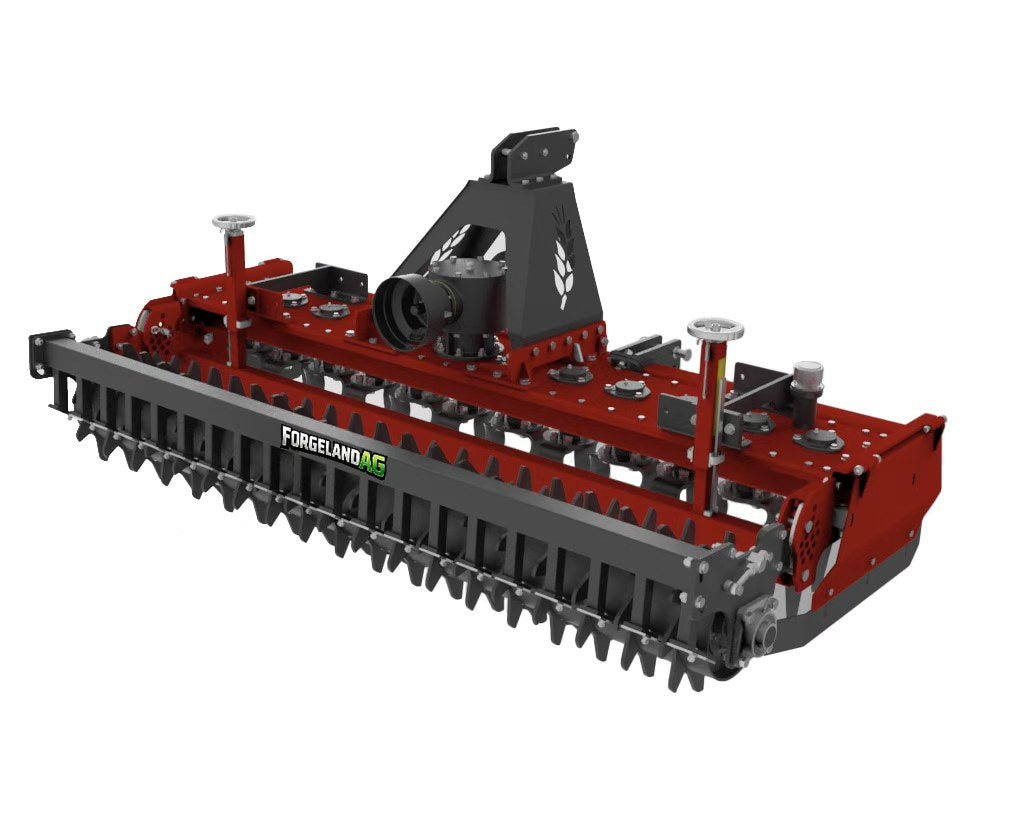

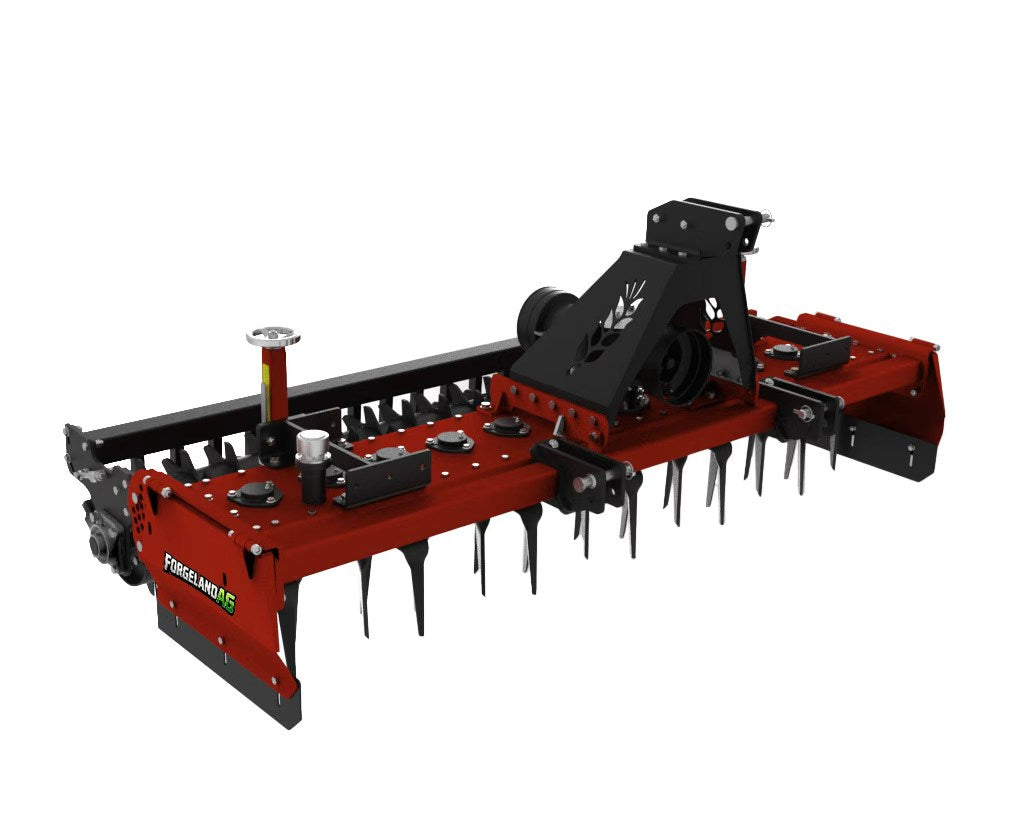

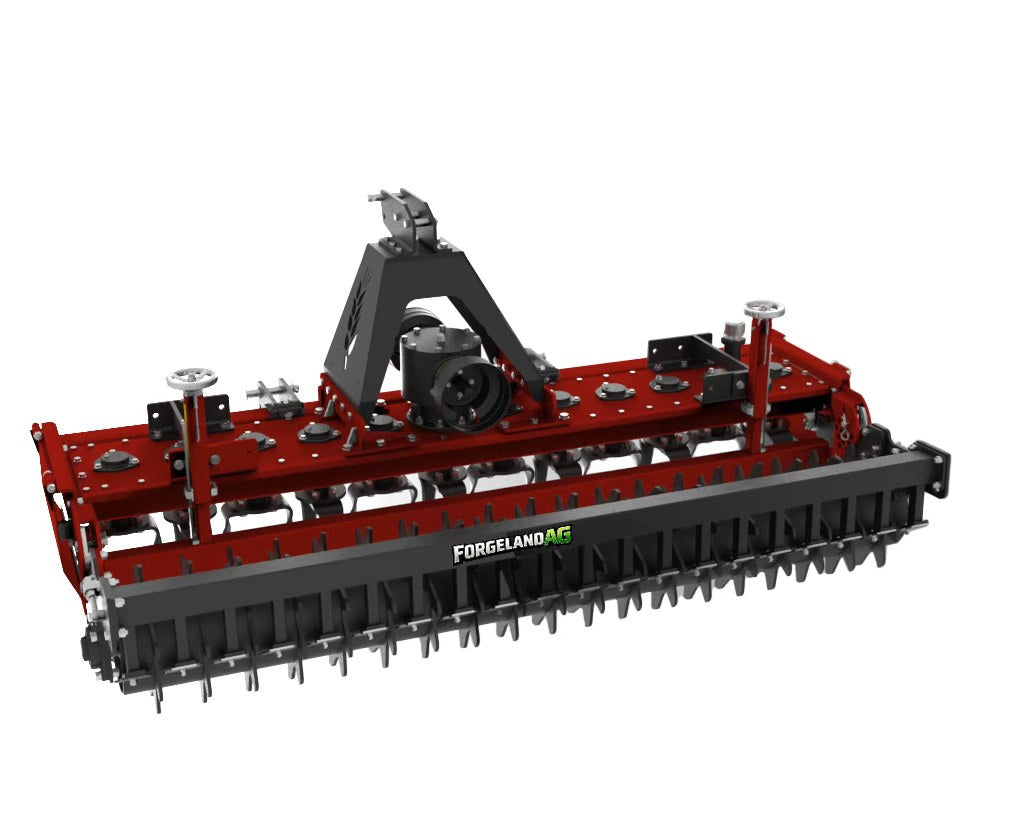

Heavy Duty Power Harrow - PH-250H-PK.PG
The PH-250H-PK.PG Heavy Duty Power Harrow is built to handle the full power of 70-80HP tractors. With a horizontal-rotation gearbox driving 12 sets of vertical rake blades, deep-soil stirring from 2" (50mm) down to 7.9" (200mm), and a reinforced chassis with integrated end deflector plates, it delivers thorough, consistent seedbed preparation across a 98.4" (2500mm) working width at speeds of 3 to 6 km/h.
Key Features
- Reinforced Chassis to Handle the Power of 80 HP
- Horizontal-Rotation Gearbox that Drives Spindles
- Deep-Soil Stirring from 2" (50mm) Down to 7.9" (200mm)
- Single-Speed Cast-Iron Gearbox (540 rpm)
- Heavy-Duty Cat II / Universal 3-Point Hitch
- Tines for Long-Lasting Wear Resistance
- Adjustable Leveling Bar
- Integrated End Deflector Plates
Optional Accessories
- Heavy-Duty Packer Roller
- Cage (Mesh) Roller
- PTO Shaft with Friction Clutch or Shear Bolt
Technical Specifications
| Specification | Details |
|---|---|
| Model | PH-250H-PK.PG |
| Type of Construction | Vertical Rake Blade, Horizontal Rotation |
| Tractor Power Range | 51.5 to 58.8 Kw / 70-80 HP |
| Output Shaft Speed | 540 r/min |
| Connection Way | Three-Point Suspension |
| Spindle Speed | 280 r/min |

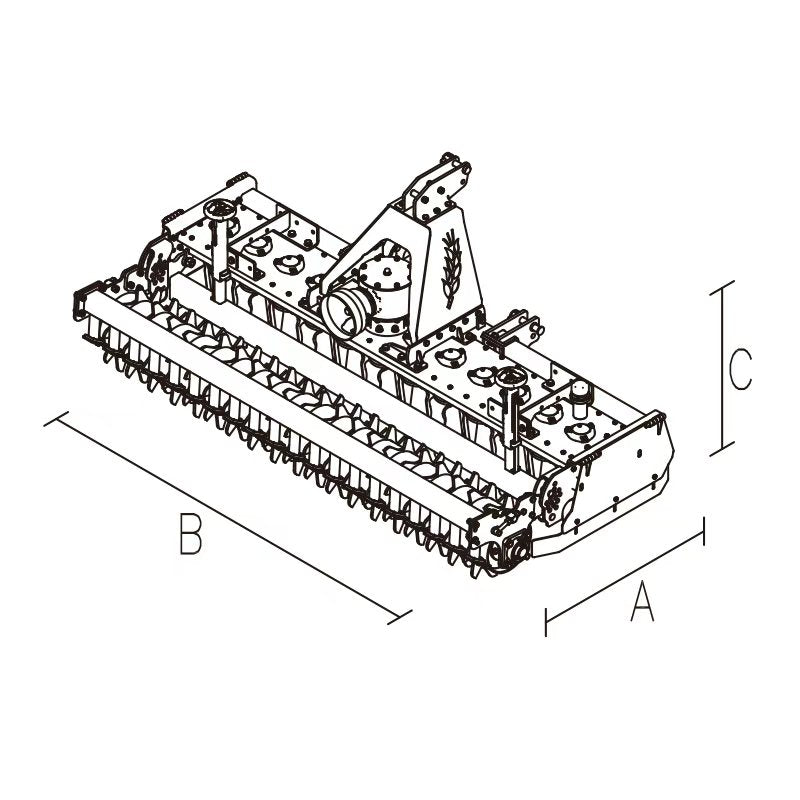

| Overall Dimensions (A×B×C) | 50.6"x103.3"x43.9" (1285x2625x1115mm) |
| Speed | 3 to 6 km/h |
| Working Width | 98.4" (2500mm) |
| Rake Tooth Spacing | 7.9" (200mm) |
| Rake Depth | 2" to 7.9" (50 to 200mm) |
| Number of Rake Sets | 12 |
| Number of Rake Teeth | 12 x 2 |
Heavy Duty Power Harrow - PH-250H-PK.PG
The PH-250H-PK.PG Heavy Duty Power Harrow is built to handle the full power of 70-80HP tractors. With a horizontal-rotation gearbox driving 12 sets of vertical rake blades, deep-soil stirring from 2" (50mm) down to 7.9" (200mm), and a reinforced chassis with integrated end deflector plates, it delivers thorough, consistent seedbed preparation across a 98.4" (2500mm) working width at speeds of 3 to 6 km/h.
Key Features
- Reinforced Chassis to Handle the Power of 80 HP
- Horizontal-Rotation Gearbox that Drives Spindles
- Deep-Soil Stirring from 2" (50mm) Down to 7.9" (200mm)
- Single-Speed Cast-Iron Gearbox (540 rpm)
- Heavy-Duty Cat II / Universal 3-Point Hitch
- Tines for Long-Lasting Wear Resistance
- Adjustable Leveling Bar
- Integrated End Deflector Plates
Optional Accessories
- Heavy-Duty Packer Roller
- Cage (Mesh) Roller
- PTO Shaft with Friction Clutch or Shear Bolt
Technical Specifications
| Specification | Details |
|---|---|
| Model | PH-250H-PK.PG |
| Type of Construction | Vertical Rake Blade, Horizontal Rotation |
| Tractor Power Range | 51.5 to 58.8 Kw / 70-80 HP |
| Output Shaft Speed | 540 r/min |
| Connection Way | Three-Point Suspension |
| Spindle Speed | 280 r/min |
| Overall Dimensions (A×B×C) | 50.6"x103.3"x43.9" (1285x2625x1115mm) |
| Speed | 3 to 6 km/h |
| Working Width | 98.4" (2500mm) |
| Rake Tooth Spacing | 7.9" (200mm) |
| Rake Depth | 2" to 7.9" (50 to 200mm) |
| Number of Rake Sets | 12 |
| Number of Rake Teeth | 12 x 2 |
- Regular price
- $0.00
Heavy Duty Power Harrow - PH-250H-PK.PG
The PH-250H-PK.PG Heavy Duty Power Harrow is built to handle the full power of 70-80HP tractors. With a horizontal-rotation gearbox driving 12 sets of vertical rake blades, deep-soil stirring from 2" (50mm) down to 7.9" (200mm), and a reinforced chassis with integrated end deflector plates, it delivers thorough, consistent seedbed preparation across a 98.4" (2500mm) working width at speeds of 3 to 6 km/h.
Key Features
- Reinforced Chassis to Handle the Power of 80 HP
- Horizontal-Rotation Gearbox that Drives Spindles
- Deep-Soil Stirring from 2" (50mm) Down to 7.9" (200mm)
- Single-Speed Cast-Iron Gearbox (540 rpm)
- Heavy-Duty Cat II / Universal 3-Point Hitch
- Tines for Long-Lasting Wear Resistance
- Adjustable Leveling Bar
- Integrated End Deflector Plates
Optional Accessories
- Heavy-Duty Packer Roller
- Cage (Mesh) Roller
- PTO Shaft with Friction Clutch or Shear Bolt
Technical Specifications
| Specification | Details |
|---|---|
| Model | PH-250H-PK.PG |
| Type of Construction | Vertical Rake Blade, Horizontal Rotation |
| Tractor Power Range | 51.5 to 58.8 Kw / 70-80 HP |
| Output Shaft Speed | 540 r/min |
| Connection Way | Three-Point Suspension |
| Spindle Speed | 280 r/min |
| Overall Dimensions (A×B×C) | 50.6"x103.3"x43.9" (1285x2625x1115mm) |
| Speed | 3 to 6 km/h |
| Working Width | 98.4" (2500mm) |
| Rake Tooth Spacing | 7.9" (200mm) |
| Rake Depth | 2" to 7.9" (50 to 200mm) |
| Number of Rake Sets | 12 |
| Number of Rake Teeth | 12 x 2 |
-
Vendor: HAN-SUN
Stone Burier - W/ Seeder Box (SB-Y Series)
Regular price $0.00 -
Vendor: HAN-SUN
Stone Burier - W/O Seeder (SB Series)
Regular price $0.00 -
Vendor: HAN-SUN
Power Harrow - Light-Duty (PH-L-K Series)
Regular price $0.00 -
Vendor: HAN-SUN

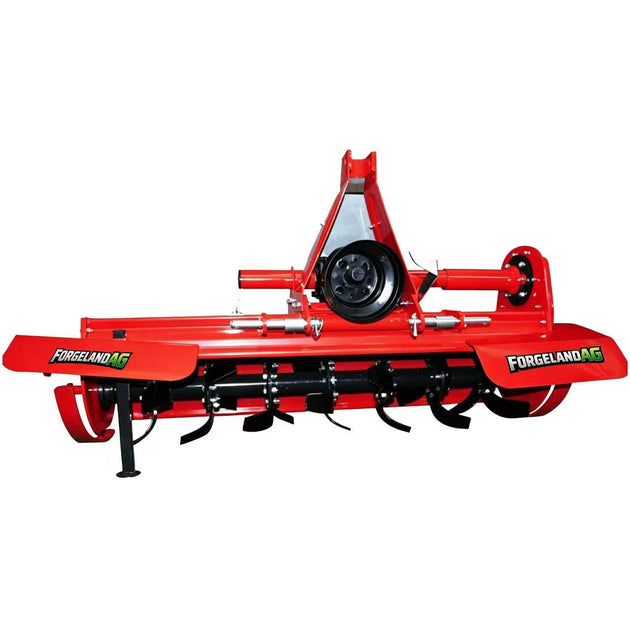

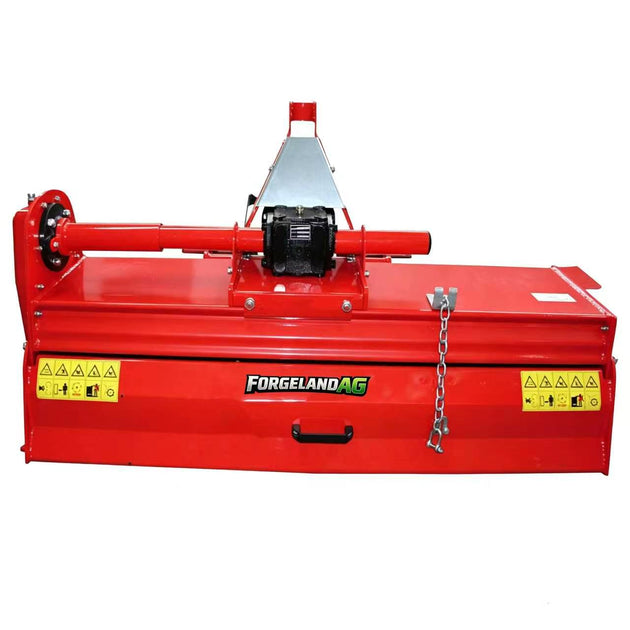

Rotary Tiller - Light-Duty (TL-L-DS Series)
