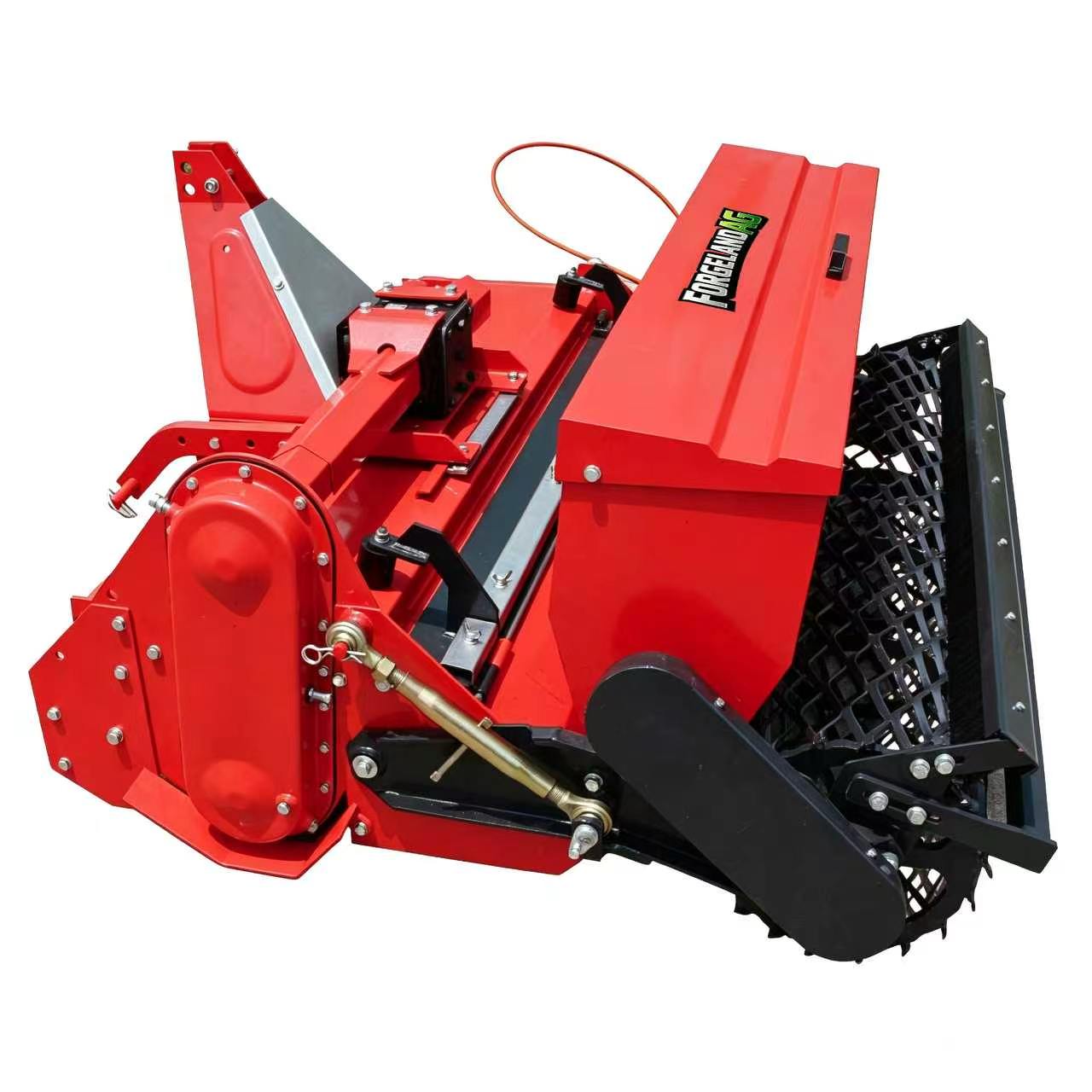

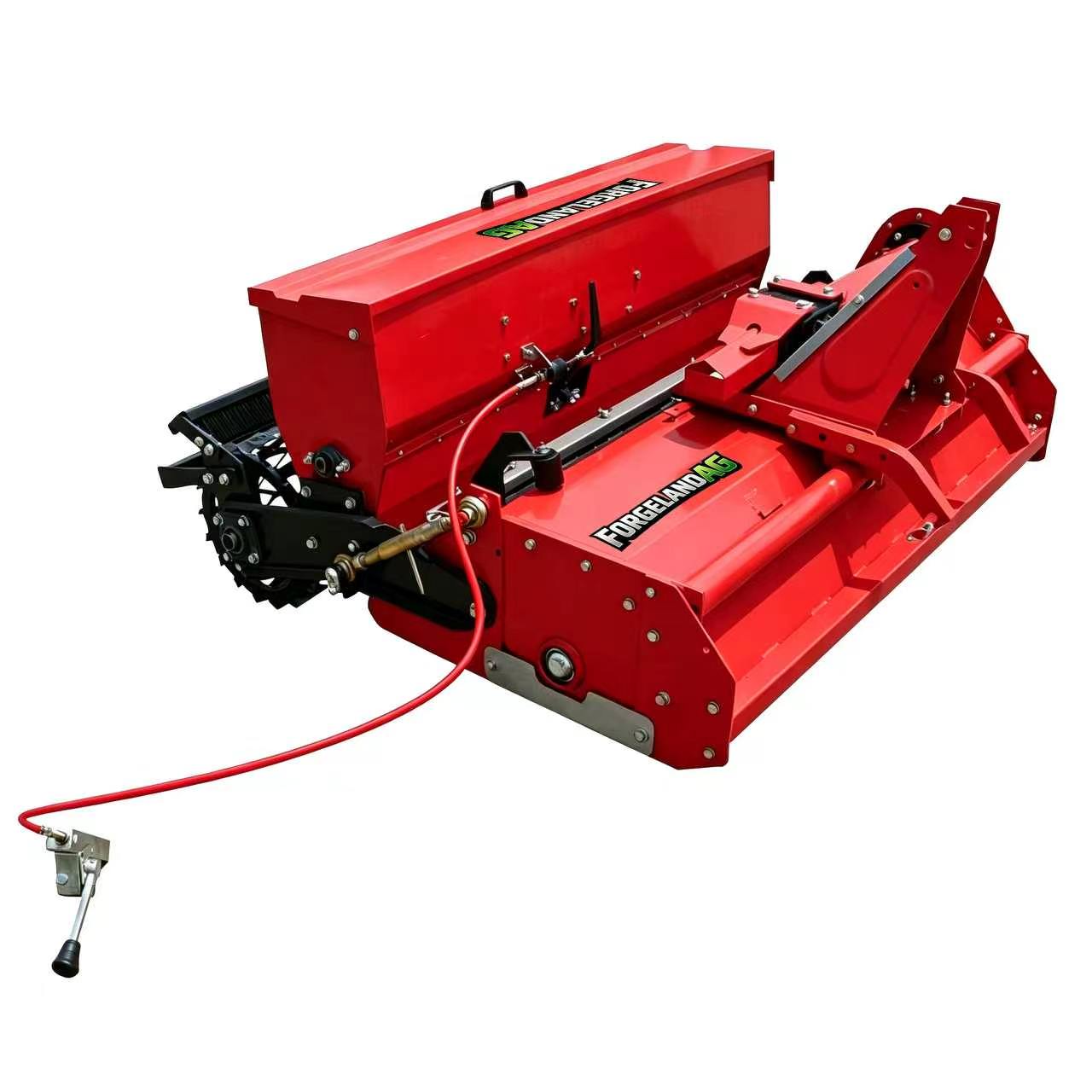

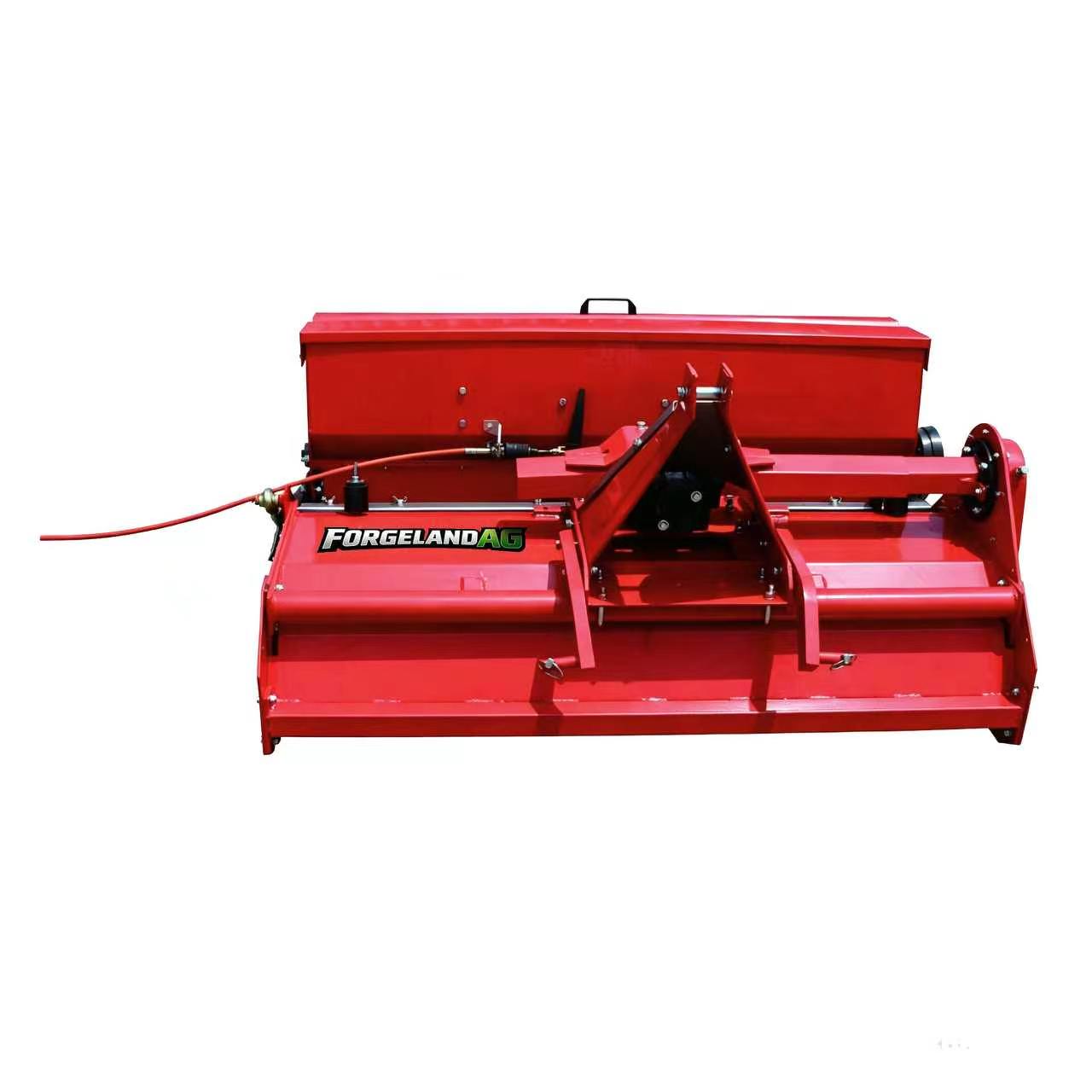

Stone Burier With Seeder Box - SB-Y Series
The SB-Y Series Stone Burier with Seeder Box is a true 5-in-1 machine — primary tilling, stone burial, soil screening, precision seeding, and surface consolidation all in a single pass. Featuring counter-rotating burial tech, a rear mesh roller for perfect seed-to-soil contact, and an integrated high-capacity seeder box from 19.8 gal (75L) to 38.3 gal (145L) with manual remote seeding adjuster, it handles working widths from 37.4" (950mm) to 61.0" (1550mm) on 20-45HP tractors.
Key Features
- 5-in-1 (Primary Tilling, Stone Burial, Soil Screening, Precision Seeding, Surface Consolidation) Integrated
- Counter-Rotating Burial Tech
- Rear Mesh Roller Ensures Perfect Seed-to-Soil Contact
- Integrated High-Capacity Seeder Box from 19.8 gal (75L) to 38.3 gal (145L)
- Manual Remote Seeding Adjuster
- Reinforced Counter-Rotating Blades
- Universal Cat I / 3-Point Hitch
- Compatible With 20-45 HP Tractors
Optional Accessories
- PTO Shaft with Friction Clutch
- Variable Width Seeder Boxes
Technical Specifications

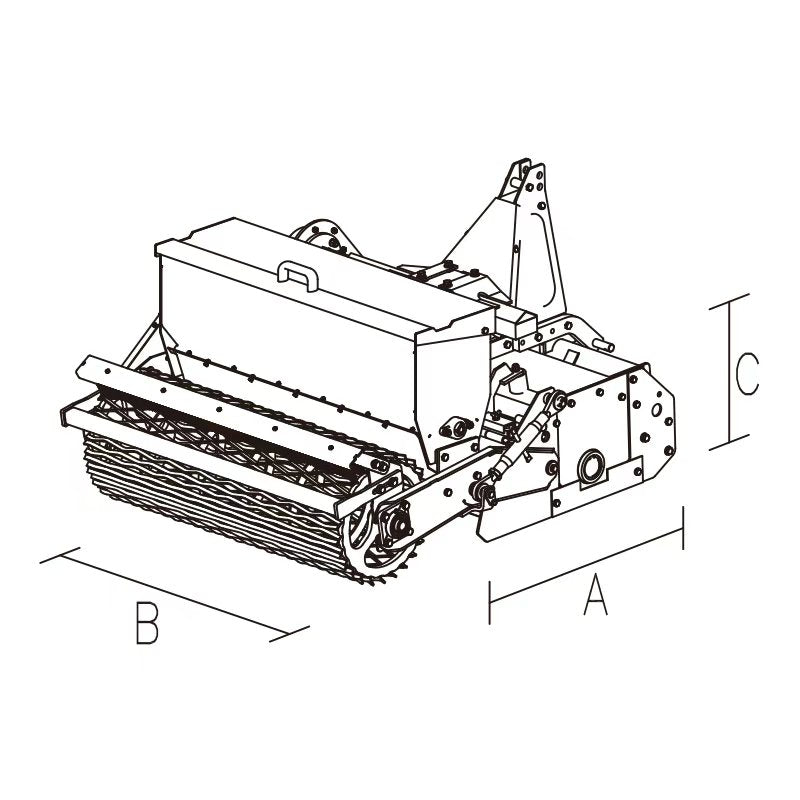

| Model | Working Width | Rotor No. | Blade No. | Tilling Depth | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) | Seeder Box (L) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SB-105-Y | 37.4" (950mm) | 5 | 20 | 4.7" (120mm) | 540 | 20 | 28 | 53.1" (1350mm) | 42.1" (1070mm) | 36.2" (920mm) | 360 | 75 |
| SB-125-Y | 45.3" (1150mm) | 6 | 24 | 4.7" (120mm) | 540 | 25 | 30 | 53.1" (1350mm) | 50.0" (1270mm) | 36.2" (920mm) | 398 | 100 |
| SB-145-Y | 53.1" (1350mm) | 7 | 28 | 4.7" (120mm) | 540 | 28 | 40 | 53.1" (1350mm) | 57.9" (1470mm) | 36.2" (920mm) | 441 | 125 |
| SB-165-Y | 61.0" (1550mm) | 8 | 32 | 4.7" (120mm) | 540 | 35 | 45 | 53.1" (1350mm) | 65.7" (1670mm) | 36.2" (920mm) | 488 | 145 |
Stone Burier With Seeder Box - SB-Y Series
The SB-Y Series Stone Burier with Seeder Box is a true 5-in-1 machine — primary tilling, stone burial, soil screening, precision seeding, and surface consolidation all in a single pass. Featuring counter-rotating burial tech, a rear mesh roller for perfect seed-to-soil contact, and an integrated high-capacity seeder box from 19.8 gal (75L) to 38.3 gal (145L) with manual remote seeding adjuster, it handles working widths from 37.4" (950mm) to 61.0" (1550mm) on 20-45HP tractors.
Key Features
- 5-in-1 (Primary Tilling, Stone Burial, Soil Screening, Precision Seeding, Surface Consolidation) Integrated
- Counter-Rotating Burial Tech
- Rear Mesh Roller Ensures Perfect Seed-to-Soil Contact
- Integrated High-Capacity Seeder Box from 19.8 gal (75L) to 38.3 gal (145L)
- Manual Remote Seeding Adjuster
- Reinforced Counter-Rotating Blades
- Universal Cat I / 3-Point Hitch
- Compatible With 20-45 HP Tractors
Optional Accessories
- PTO Shaft with Friction Clutch
- Variable Width Seeder Boxes
Technical Specifications
| Model | Working Width | Rotor No. | Blade No. | Tilling Depth | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) | Seeder Box (L) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SB-105-Y | 37.4" (950mm) | 5 | 20 | 4.7" (120mm) | 540 | 20 | 28 | 53.1" (1350mm) | 42.1" (1070mm) | 36.2" (920mm) | 360 | 75 |
| SB-125-Y | 45.3" (1150mm) | 6 | 24 | 4.7" (120mm) | 540 | 25 | 30 | 53.1" (1350mm) | 50.0" (1270mm) | 36.2" (920mm) | 398 | 100 |
| SB-145-Y | 53.1" (1350mm) | 7 | 28 | 4.7" (120mm) | 540 | 28 | 40 | 53.1" (1350mm) | 57.9" (1470mm) | 36.2" (920mm) | 441 | 125 |
| SB-165-Y | 61.0" (1550mm) | 8 | 32 | 4.7" (120mm) | 540 | 35 | 45 | 53.1" (1350mm) | 65.7" (1670mm) | 36.2" (920mm) | 488 | 145 |
- Regular price
- $0.00
Stone Burier With Seeder Box - SB-Y Series
The SB-Y Series Stone Burier with Seeder Box is a true 5-in-1 machine — primary tilling, stone burial, soil screening, precision seeding, and surface consolidation all in a single pass. Featuring counter-rotating burial tech, a rear mesh roller for perfect seed-to-soil contact, and an integrated high-capacity seeder box from 19.8 gal (75L) to 38.3 gal (145L) with manual remote seeding adjuster, it handles working widths from 37.4" (950mm) to 61.0" (1550mm) on 20-45HP tractors.
Key Features
- 5-in-1 (Primary Tilling, Stone Burial, Soil Screening, Precision Seeding, Surface Consolidation) Integrated
- Counter-Rotating Burial Tech
- Rear Mesh Roller Ensures Perfect Seed-to-Soil Contact
- Integrated High-Capacity Seeder Box from 19.8 gal (75L) to 38.3 gal (145L)
- Manual Remote Seeding Adjuster
- Reinforced Counter-Rotating Blades
- Universal Cat I / 3-Point Hitch
- Compatible With 20-45 HP Tractors
Optional Accessories
- PTO Shaft with Friction Clutch
- Variable Width Seeder Boxes
Technical Specifications
| Model | Working Width | Rotor No. | Blade No. | Tilling Depth | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) | Seeder Box (L) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SB-105-Y | 37.4" (950mm) | 5 | 20 | 4.7" (120mm) | 540 | 20 | 28 | 53.1" (1350mm) | 42.1" (1070mm) | 36.2" (920mm) | 360 | 75 |
| SB-125-Y | 45.3" (1150mm) | 6 | 24 | 4.7" (120mm) | 540 | 25 | 30 | 53.1" (1350mm) | 50.0" (1270mm) | 36.2" (920mm) | 398 | 100 |
| SB-145-Y | 53.1" (1350mm) | 7 | 28 | 4.7" (120mm) | 540 | 28 | 40 | 53.1" (1350mm) | 57.9" (1470mm) | 36.2" (920mm) | 441 | 125 |
| SB-165-Y | 61.0" (1550mm) | 8 | 32 | 4.7" (120mm) | 540 | 35 | 45 | 53.1" (1350mm) | 65.7" (1670mm) | 36.2" (920mm) | 488 | 145 |
-
Vendor: HAN-SUN
Stone Burier - W/O Seeder (SB Series)
Regular price $0.00 -
Vendor: HAN-SUN
Stone Burier - W/O Seeder (SB Series)
Regular price $0.00 -
Vendor: HAN-SUN

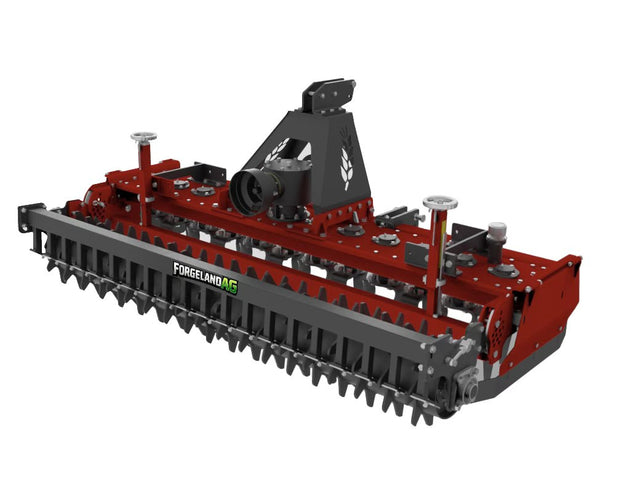

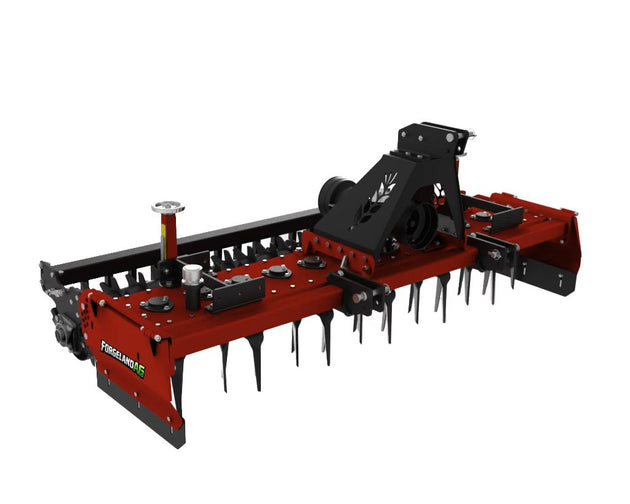

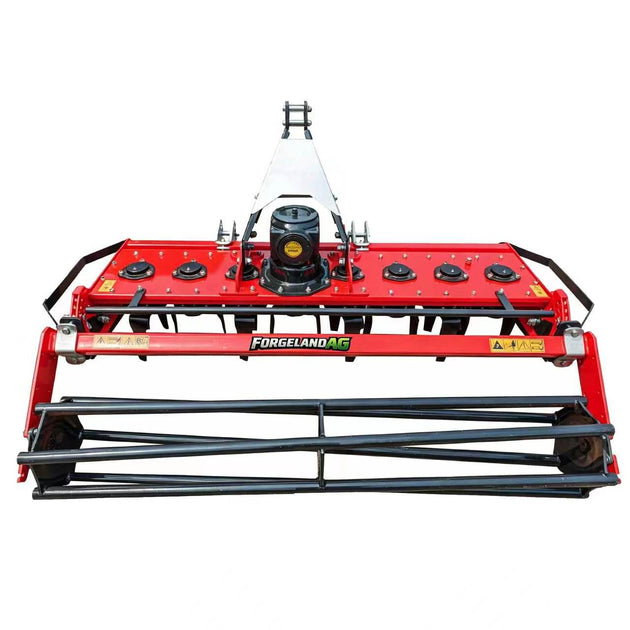

Power Harrow - Heavy Duty (PH-250H-PK.PG)
Regular price $0.00 -
Vendor: HAN-SUN

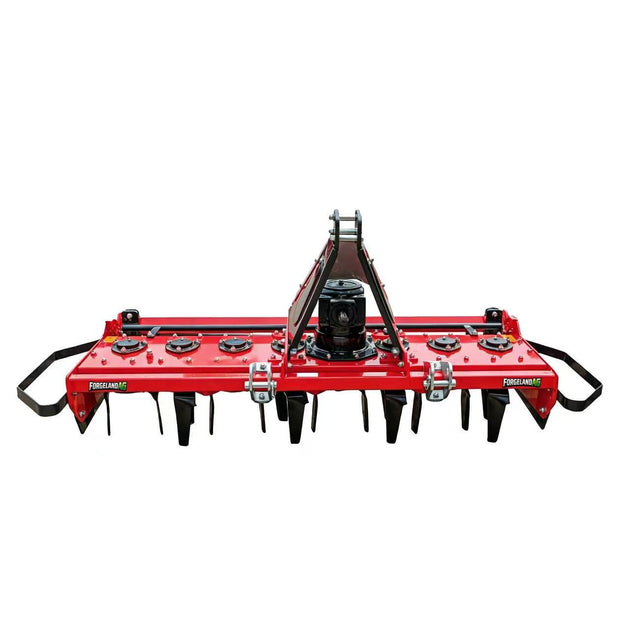

Power Harrow - Light-Duty (PH-L-K Series)
