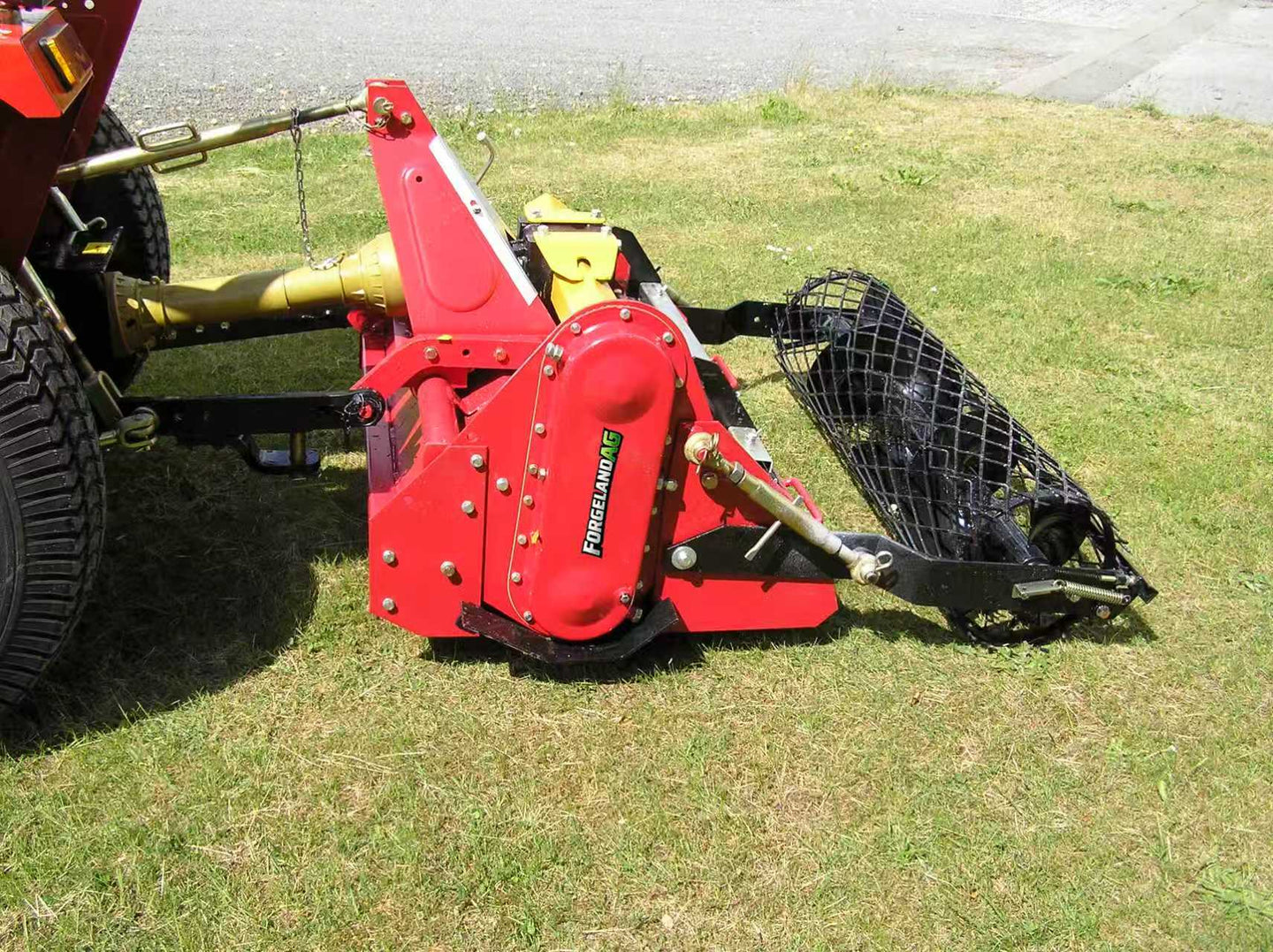

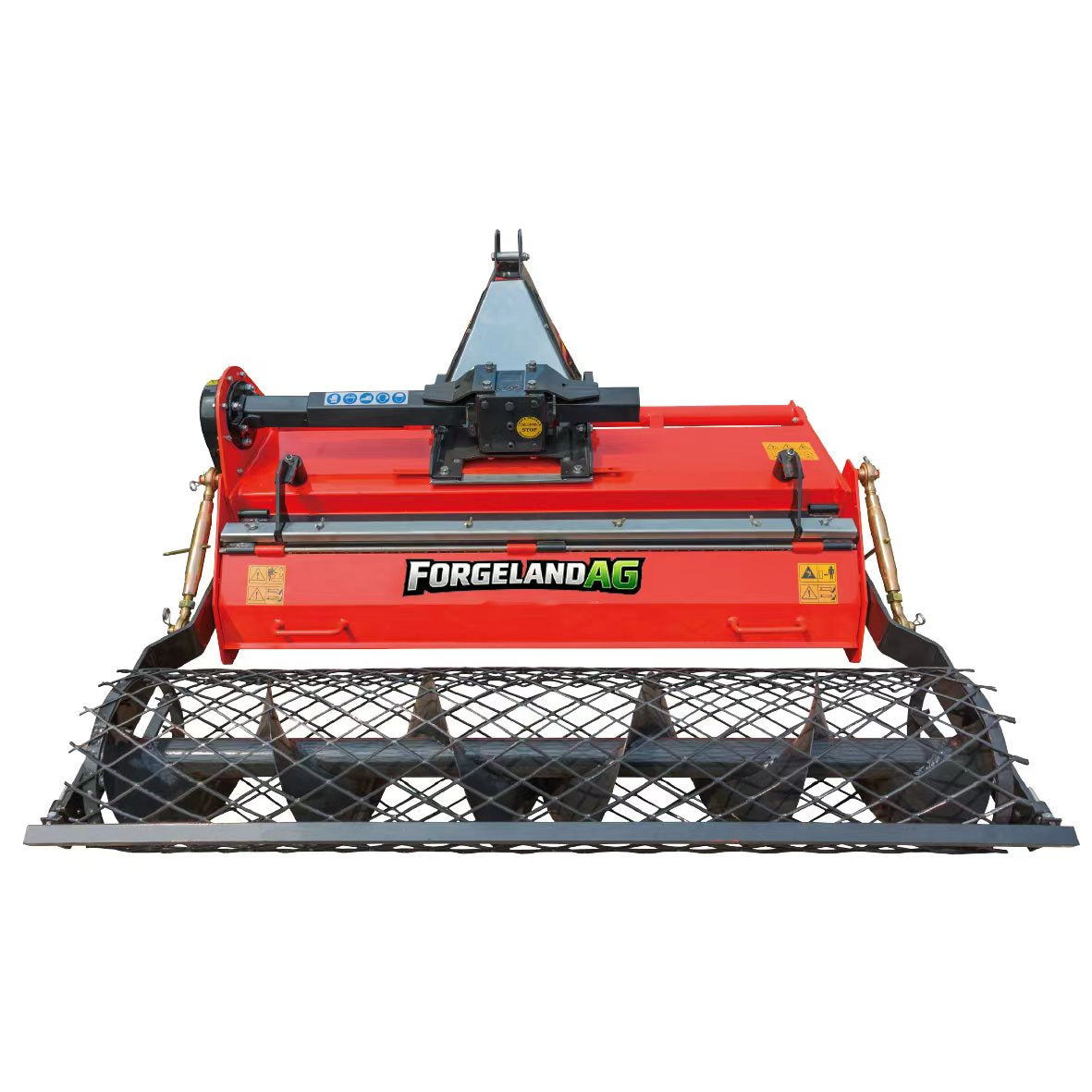

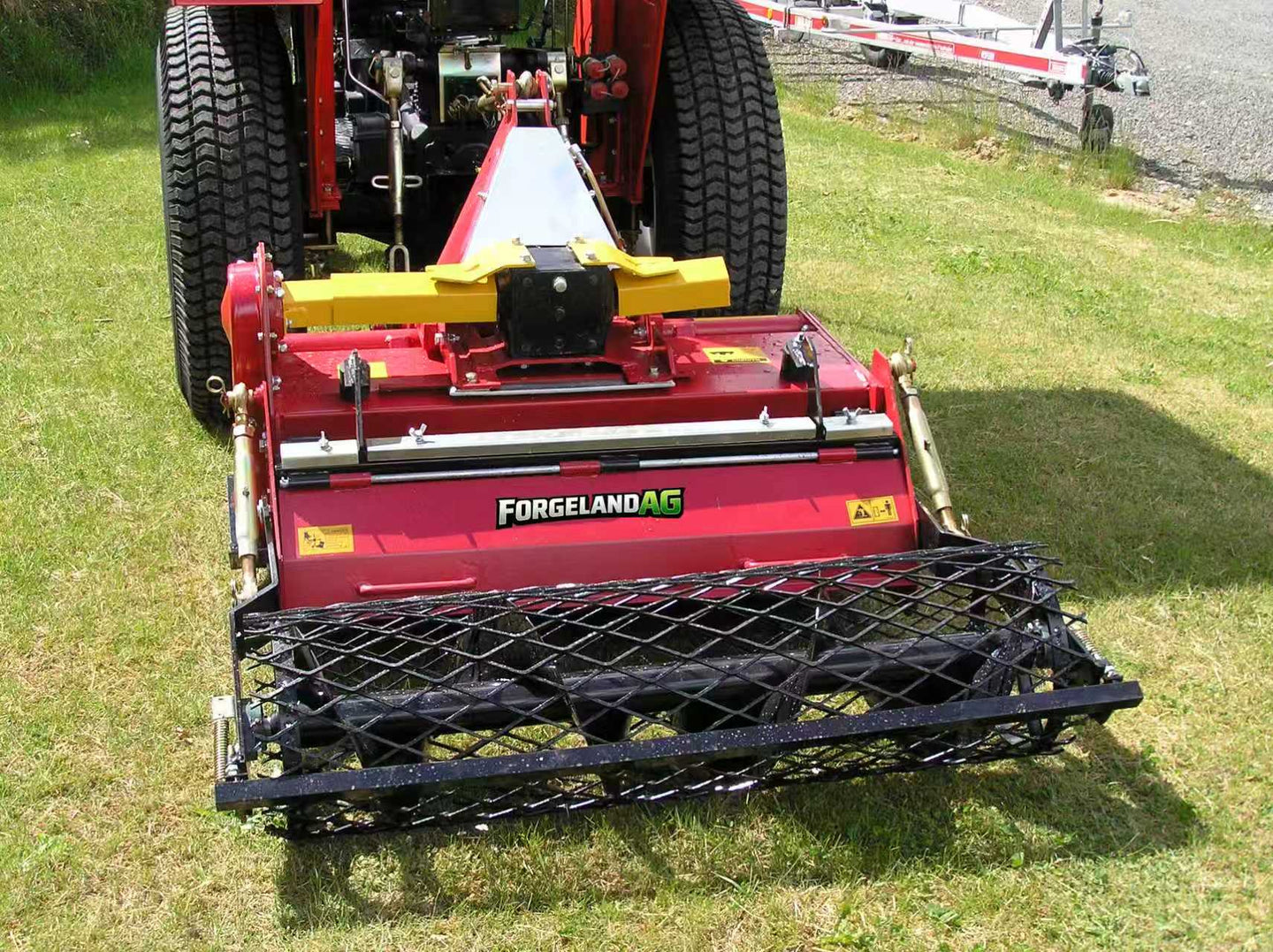

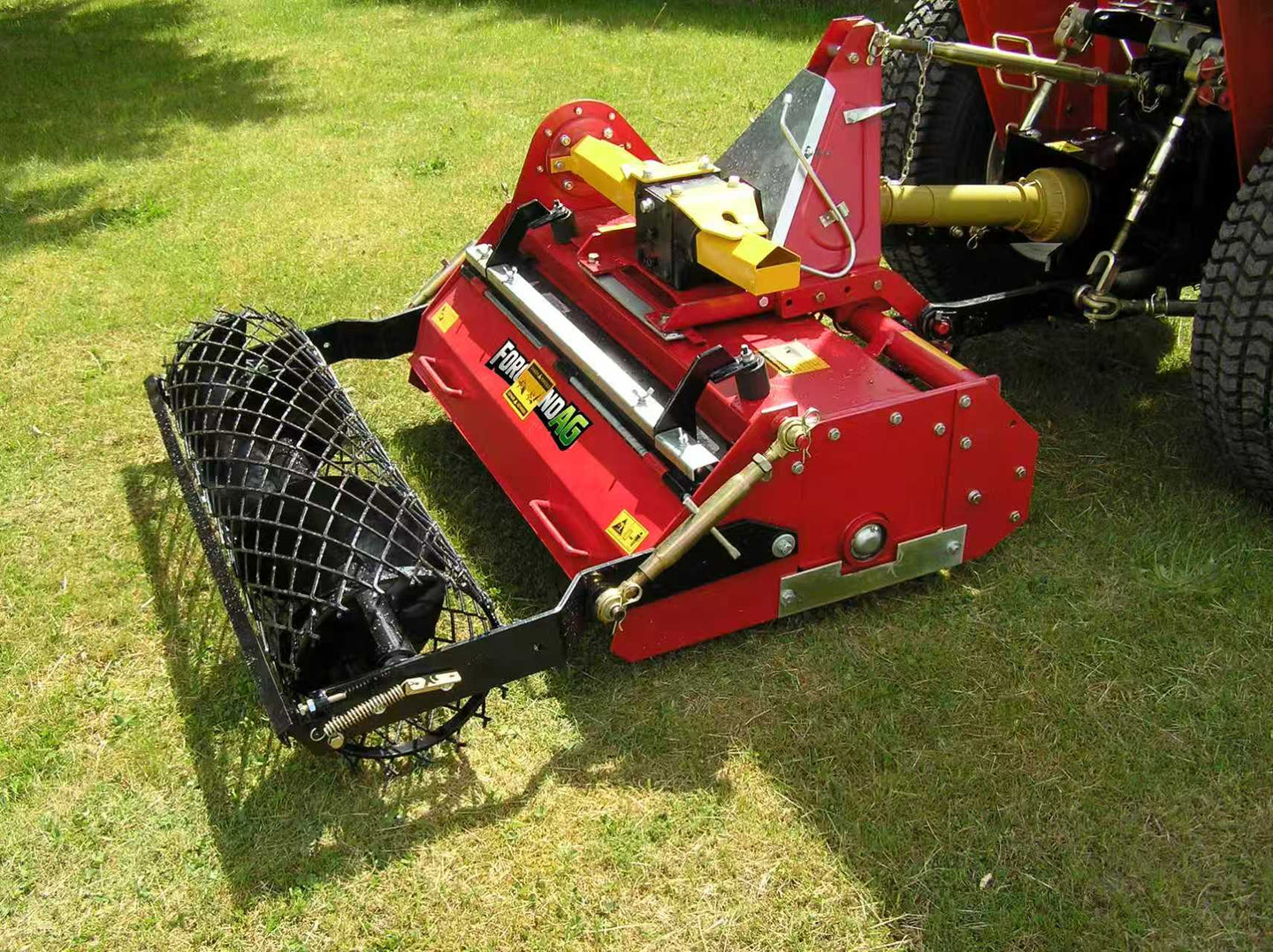

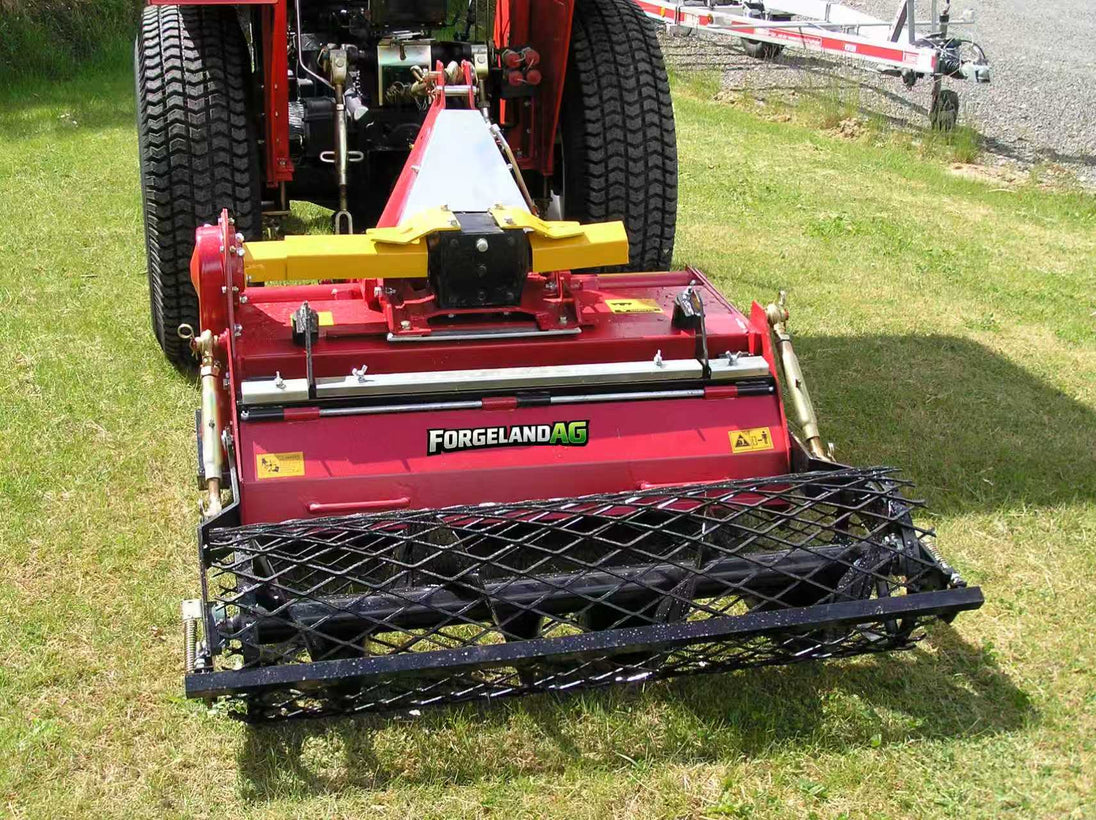

Stone Burier W/O Seeder - SB Series
The SB Series Stone Burier uses one-pass counter-rotating burial technology to bury stones and clods beneath the surface while leaving a clean, level seedbed above. Featuring a chain side drive with automatic chain tensioner, reinforced counter-rotating blades, and a precision leveling mesh roller, it handles working widths from 37.4" (950mm) to 61.0" (1550mm) on 20-45HP tractors.
Key Features
- One-Pass Stone Burial Tech
- Counter-Rotating Burial Tech
- Chain Side Drive with an Automatic Chain Tensioner
- Reinforced Counter-Rotating Blades
- Precision Leveling Mesh Roller
- Single-Speed Cast Iron Gearbox (540 rpm)
- Universal Cat I / 3-Point Hitch
Optional Accessories
- PTO Shaft with Friction Clutch
- Variable Working Widths
Technical Specifications

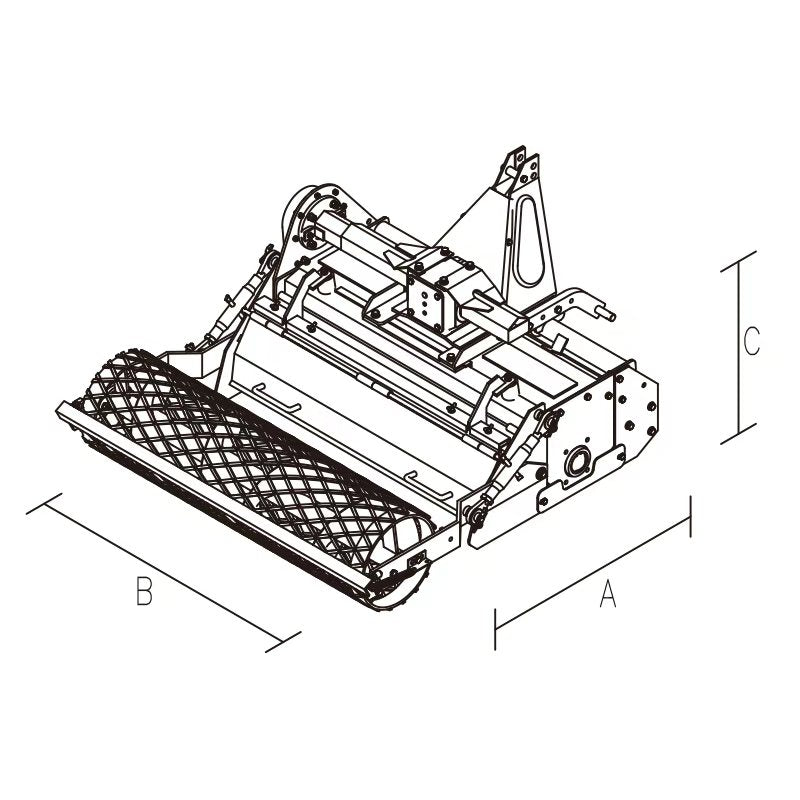

| Model | Working Width | Rotor No. | Blade No. | Tilling Depth | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SB-105 | 37.4" (950mm) | 5 | 20 | 4.7" (120mm) | 540 | 20 | 28 | 47.6" (1210mm) | 42.1" (1070mm) | 36.2" (920mm) | 284 |
| SB-125 | 45.3" (1150mm) | 6 | 24 | 4.7" (120mm) | 540 | 25 | 30 | 47.6" (1210mm) | 50.0" (1270mm) | 36.2" (920mm) | 298 |
| SB-145 | 53.1" (1350mm) | 7 | 28 | 4.7" (120mm) | 540 | 28 | 40 | 47.6" (1210mm) | 57.9" (1470mm) | 36.2" (920mm) | 328 |
| SB-165 | 61.0" (1550mm) | 8 | 32 | 4.7" (120mm) | 540 | 35 | 45 | 47.6" (1210mm) | 65.7" (1670mm) | 36.2" (920mm) | 346 |
Stone Burier W/O Seeder - SB Series
The SB Series Stone Burier uses one-pass counter-rotating burial technology to bury stones and clods beneath the surface while leaving a clean, level seedbed above. Featuring a chain side drive with automatic chain tensioner, reinforced counter-rotating blades, and a precision leveling mesh roller, it handles working widths from 37.4" (950mm) to 61.0" (1550mm) on 20-45HP tractors.
Key Features
- One-Pass Stone Burial Tech
- Counter-Rotating Burial Tech
- Chain Side Drive with an Automatic Chain Tensioner
- Reinforced Counter-Rotating Blades
- Precision Leveling Mesh Roller
- Single-Speed Cast Iron Gearbox (540 rpm)
- Universal Cat I / 3-Point Hitch
Optional Accessories
- PTO Shaft with Friction Clutch
- Variable Working Widths
Technical Specifications
| Model | Working Width | Rotor No. | Blade No. | Tilling Depth | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SB-105 | 37.4" (950mm) | 5 | 20 | 4.7" (120mm) | 540 | 20 | 28 | 47.6" (1210mm) | 42.1" (1070mm) | 36.2" (920mm) | 284 |
| SB-125 | 45.3" (1150mm) | 6 | 24 | 4.7" (120mm) | 540 | 25 | 30 | 47.6" (1210mm) | 50.0" (1270mm) | 36.2" (920mm) | 298 |
| SB-145 | 53.1" (1350mm) | 7 | 28 | 4.7" (120mm) | 540 | 28 | 40 | 47.6" (1210mm) | 57.9" (1470mm) | 36.2" (920mm) | 328 |
| SB-165 | 61.0" (1550mm) | 8 | 32 | 4.7" (120mm) | 540 | 35 | 45 | 47.6" (1210mm) | 65.7" (1670mm) | 36.2" (920mm) | 346 |
- Regular price
- $0.00
Stone Burier W/O Seeder - SB Series
The SB Series Stone Burier uses one-pass counter-rotating burial technology to bury stones and clods beneath the surface while leaving a clean, level seedbed above. Featuring a chain side drive with automatic chain tensioner, reinforced counter-rotating blades, and a precision leveling mesh roller, it handles working widths from 37.4" (950mm) to 61.0" (1550mm) on 20-45HP tractors.
Key Features
- One-Pass Stone Burial Tech
- Counter-Rotating Burial Tech
- Chain Side Drive with an Automatic Chain Tensioner
- Reinforced Counter-Rotating Blades
- Precision Leveling Mesh Roller
- Single-Speed Cast Iron Gearbox (540 rpm)
- Universal Cat I / 3-Point Hitch
Optional Accessories
- PTO Shaft with Friction Clutch
- Variable Working Widths
Technical Specifications
| Model | Working Width | Rotor No. | Blade No. | Tilling Depth | PTO (r/min) | Min HP | Max HP | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SB-105 | 37.4" (950mm) | 5 | 20 | 4.7" (120mm) | 540 | 20 | 28 | 47.6" (1210mm) | 42.1" (1070mm) | 36.2" (920mm) | 284 |
| SB-125 | 45.3" (1150mm) | 6 | 24 | 4.7" (120mm) | 540 | 25 | 30 | 47.6" (1210mm) | 50.0" (1270mm) | 36.2" (920mm) | 298 |
| SB-145 | 53.1" (1350mm) | 7 | 28 | 4.7" (120mm) | 540 | 28 | 40 | 47.6" (1210mm) | 57.9" (1470mm) | 36.2" (920mm) | 328 |
| SB-165 | 61.0" (1550mm) | 8 | 32 | 4.7" (120mm) | 540 | 35 | 45 | 47.6" (1210mm) | 65.7" (1670mm) | 36.2" (920mm) | 346 |
-
Vendor: HAN-SUN

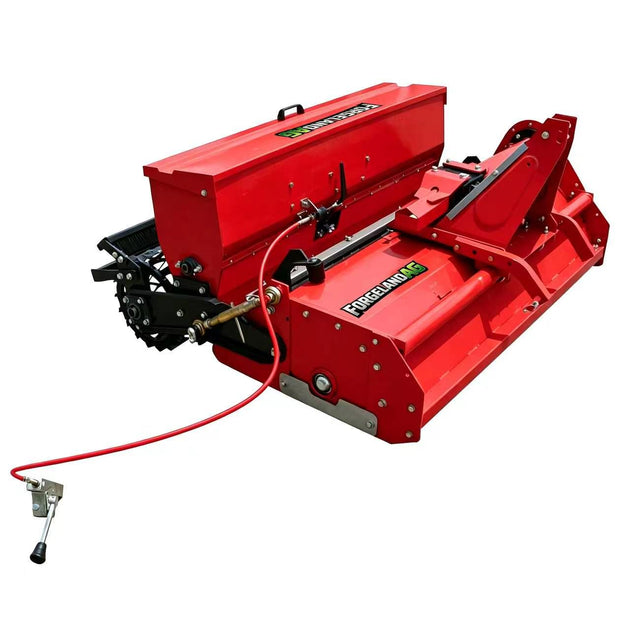

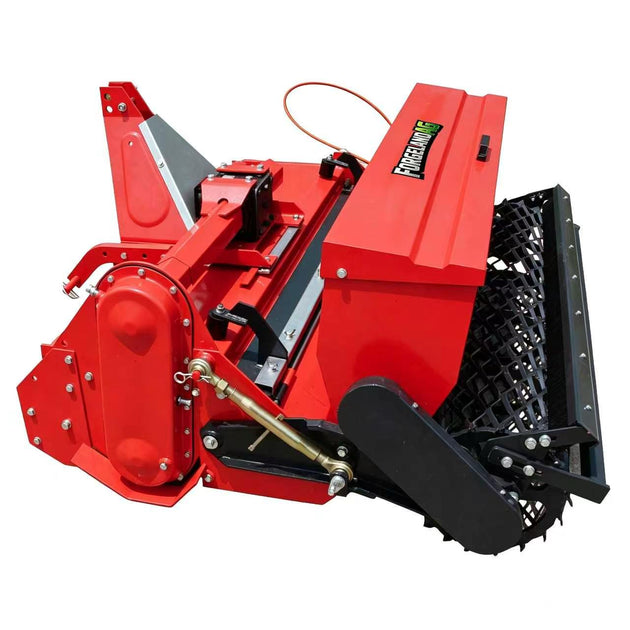

Stone Burier - W/ Seeder Box (SB-Y Series)
