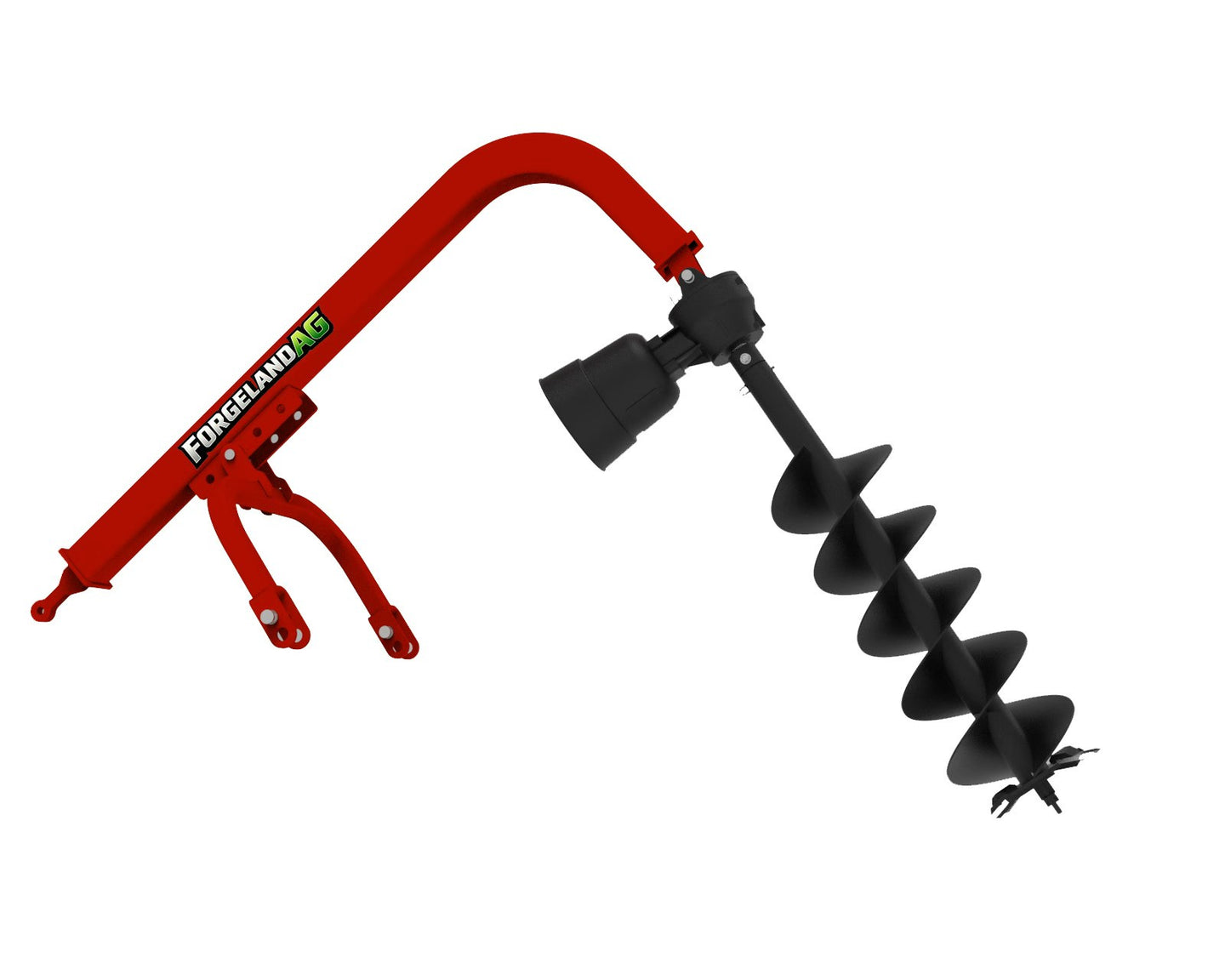

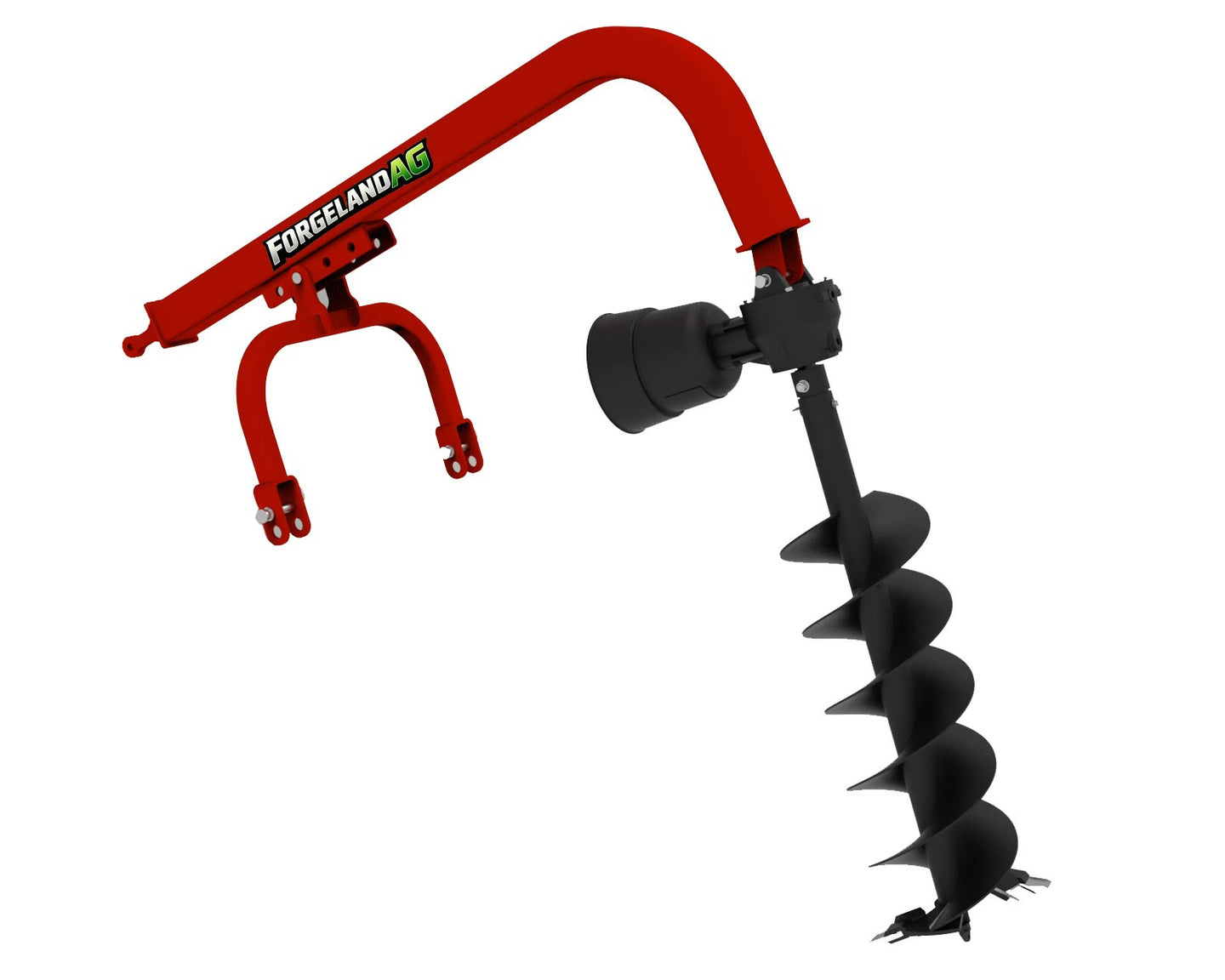

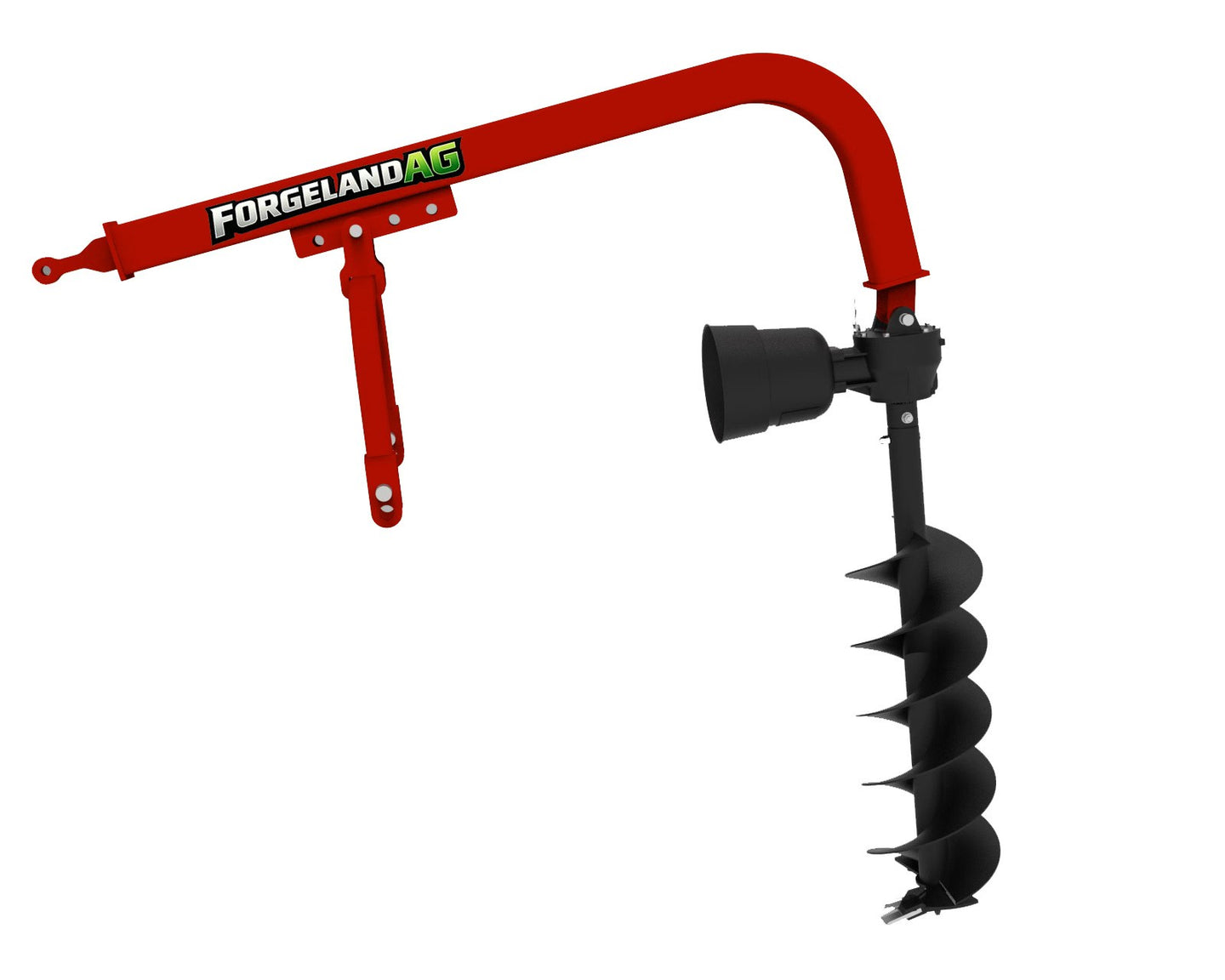

Gravity Assist Post Hole Digger - HD-RT/SB Series
The HD-RT/SB Gravity Assist Post Hole Digger uses a classic gravity-feed design with self-leveling auger alignment for reliable, consistent hole drilling. Built with a cast-iron gearbox, reinforced PTO drive shaft, and universal Cat I & II 3-point linkage, it supports 12" (305mm) augers as standard on 35-50HP tractors.
Key Features
- Classic Gravity-Feed Design
- Self-Leveling Auger Alignment
- Cast-Iron Gearbox
- 35HP / 50HP Performance Gearboxes
- Universal Cat I & II / 3-Point Linkage
- Reinforced PTO Drive Shaft
Optional Accessories

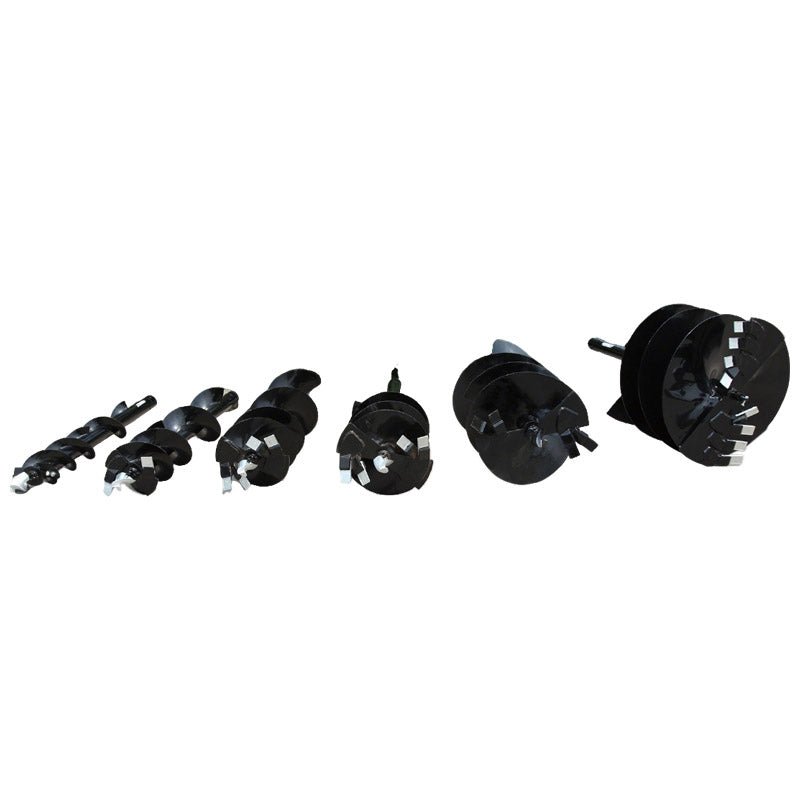

- Auger Sizes from 6" Up to 12"
- Auger Extensions for Deeper Bores or Frost-Line Compliance

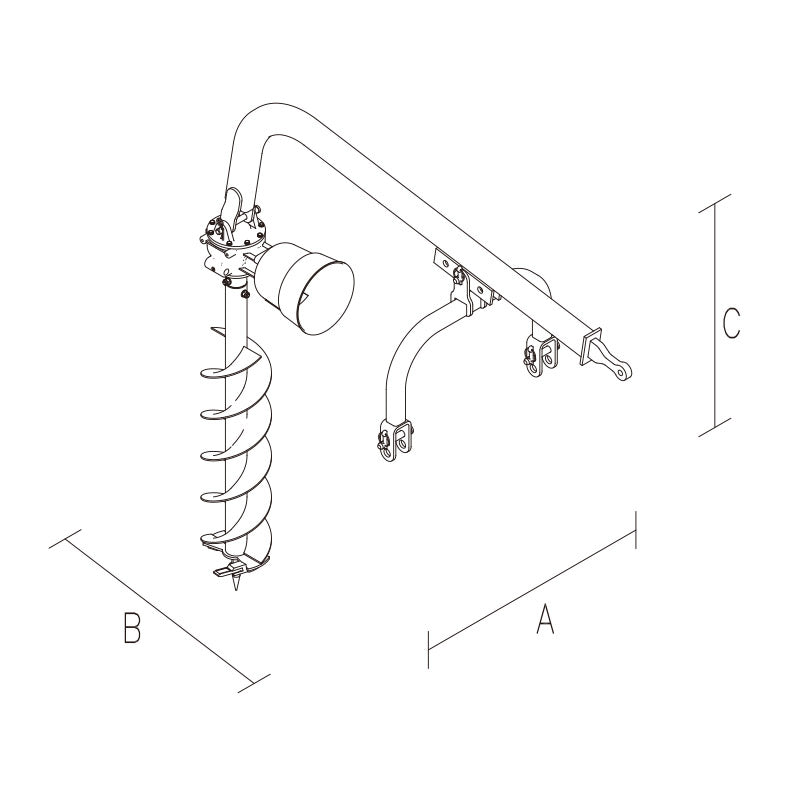

Technical Specifications
| Specification | HD-35-RT | HD-35H-SB | HD-50H-SB |
|---|---|---|---|
| Structure Weight | 212 lb (90kg) | 238 lb (94kg) | 254 lb (120kg) |
| Boom Size | 1.97"x3.9" (50x100mm) | 3.9"x3.9" (100x100mm) | 3.9"x3.9" (100x100mm) |
| Auger (Standard) | 12" (305mm) | 12" (305mm) | 12" (305mm) |
| Gearbox HP | 35 HP | 35 HP | 50 HP |
Gravity Assist Post Hole Digger - HD-RT/SB Series
The HD-RT/SB Gravity Assist Post Hole Digger uses a classic gravity-feed design with self-leveling auger alignment for reliable, consistent hole drilling. Built with a cast-iron gearbox, reinforced PTO drive shaft, and universal Cat I & II 3-point linkage, it supports 12" (305mm) augers as standard on 35-50HP tractors.
Key Features
- Classic Gravity-Feed Design
- Self-Leveling Auger Alignment
- Cast-Iron Gearbox
- 35HP / 50HP Performance Gearboxes
- Universal Cat I & II / 3-Point Linkage
- Reinforced PTO Drive Shaft
Optional Accessories
- Auger Sizes from 6" Up to 12"
- Auger Extensions for Deeper Bores or Frost-Line Compliance
Technical Specifications
| Specification | HD-35-RT | HD-35H-SB | HD-50H-SB |
|---|---|---|---|
| Structure Weight | 212 lb (90kg) | 238 lb (94kg) | 254 lb (120kg) |
| Boom Size | 1.97"x3.9" (50x100mm) | 3.9"x3.9" (100x100mm) | 3.9"x3.9" (100x100mm) |
| Auger (Standard) | 12" (305mm) | 12" (305mm) | 12" (305mm) |
| Gearbox HP | 35 HP | 35 HP | 50 HP |
- Regular price
- $0.00
Gravity Assist Post Hole Digger - HD-RT/SB Series
The HD-RT/SB Gravity Assist Post Hole Digger uses a classic gravity-feed design with self-leveling auger alignment for reliable, consistent hole drilling. Built with a cast-iron gearbox, reinforced PTO drive shaft, and universal Cat I & II 3-point linkage, it supports 12" (305mm) augers as standard on 35-50HP tractors.
Key Features
- Classic Gravity-Feed Design
- Self-Leveling Auger Alignment
- Cast-Iron Gearbox
- 35HP / 50HP Performance Gearboxes
- Universal Cat I & II / 3-Point Linkage
- Reinforced PTO Drive Shaft
Optional Accessories
- Auger Sizes from 6" Up to 12"
- Auger Extensions for Deeper Bores or Frost-Line Compliance
Technical Specifications
| Specification | HD-35-RT | HD-35H-SB | HD-50H-SB |
|---|---|---|---|
| Structure Weight | 212 lb (90kg) | 238 lb (94kg) | 254 lb (120kg) |
| Boom Size | 1.97"x3.9" (50x100mm) | 3.9"x3.9" (100x100mm) | 3.9"x3.9" (100x100mm) |
| Auger (Standard) | 12" (305mm) | 12" (305mm) | 12" (305mm) |
| Gearbox HP | 35 HP | 35 HP | 50 HP |
-
