Medium Duty / Bilateral Belt-Trans Forestry Mulcher - MU-220-M2/CD25.DRM
The MU-220-M2/CD25.DRM combines medium-duty mulching power with a bilateral 4+4 dual-drive belt transmission system, capable of handling 130-180HP tractors. Built around a high-inertia Ø18.1" (460mm) rotor on a reinforced Ø7.9" (200mm) tube, it delivers deep cutting performance down to 3.5" (9cm) underground with ultra-hard fixed tungsten carbide teeth.
Key Features
- Ultra-Hard Fixed Tungsten Carbide Teeth
- Adjustable Skids Down to 3.5" (9cm) Underground
- Belt Transmission (4+4 Dual-Drive Setup)
- PTO Shaft with A Friction Clutch
- High-Inertia Ø18.1" (460mm) Rotor Built on A Reinforced Ø7.9" (200mm) Tube
- 1000 rpm Gearbox with Freewheel
- Hydraulic Push Frame
- Hydraulic Rear Hood
- High-Strength Protection Chains
- Interchangeable Counter-Blades
Optional Accessories
- Rear Roller Push
Technical Specifications

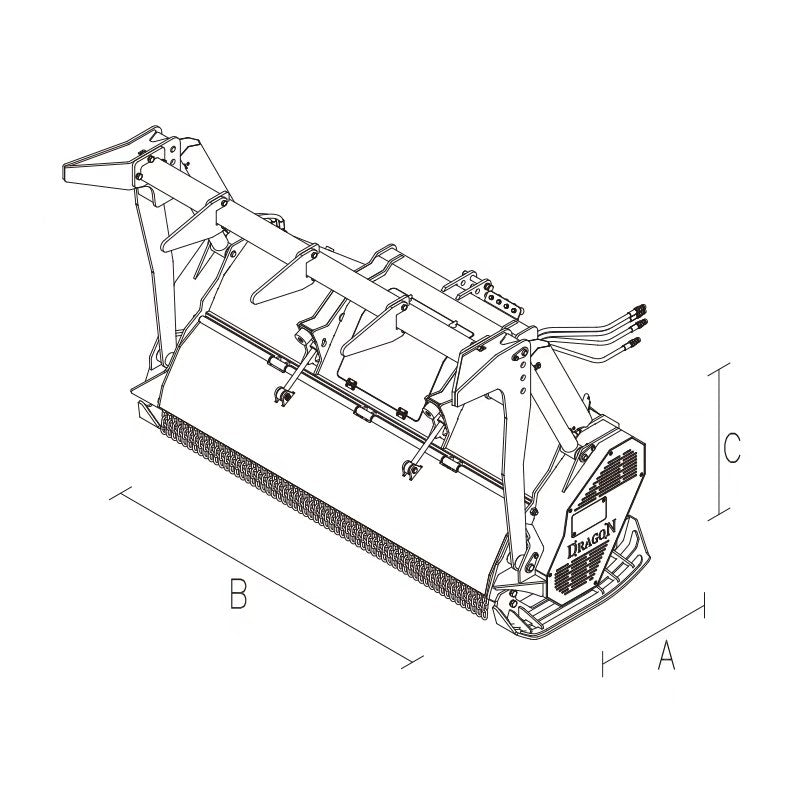

| Model | Cutting Depth | Working Width | Power (HP) | Rotor Speed (r/min) | No. of Blades | No. of Belts | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| MU-220-M2/CD25.DRM | 9.8" (25cm) | 86.6" (220cm) | 130-180 | 1000 | 51 | 4+4 | 63.5" (1614mm) | 103.0" (2616mm) | 66.9" (1700mm) | 1800 |
