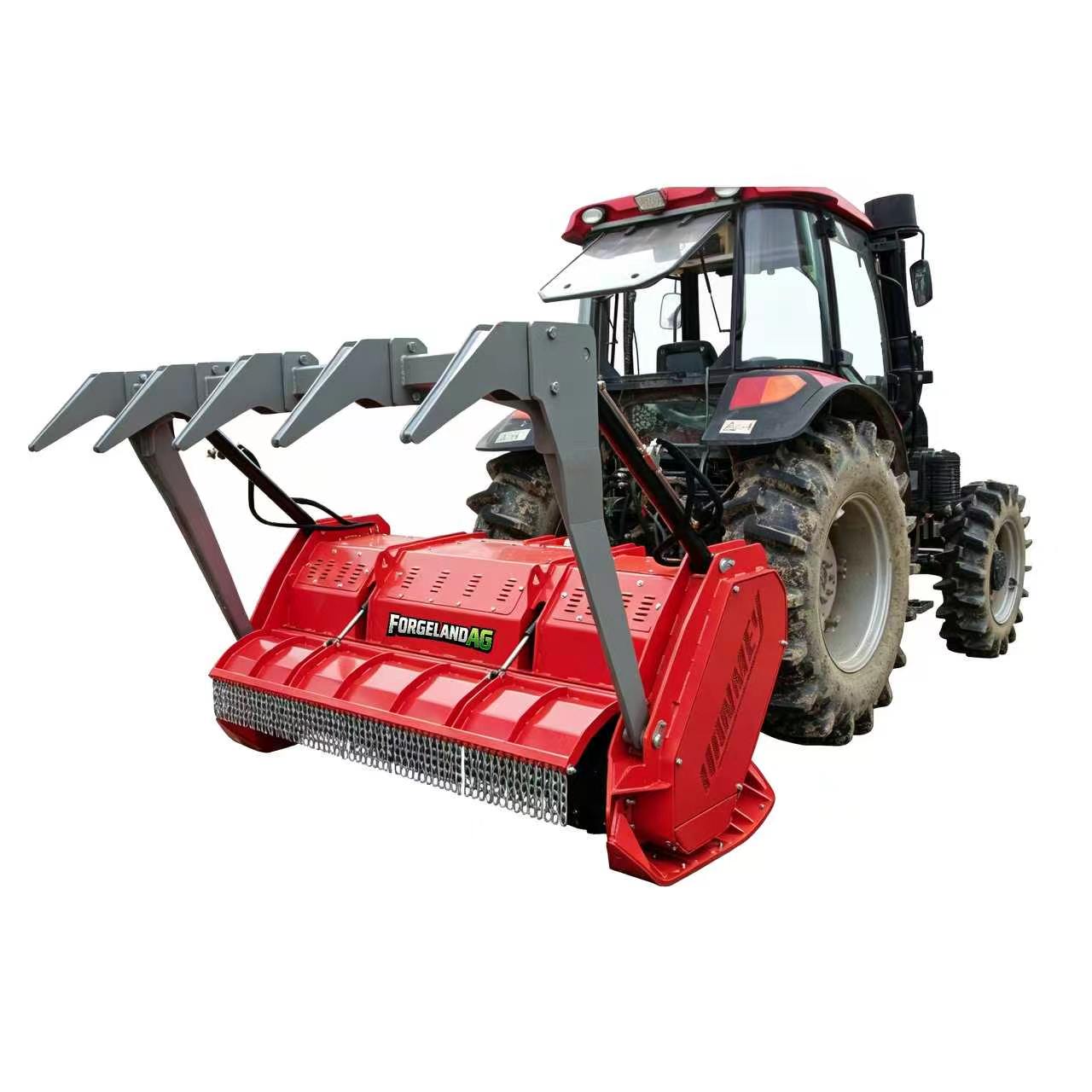

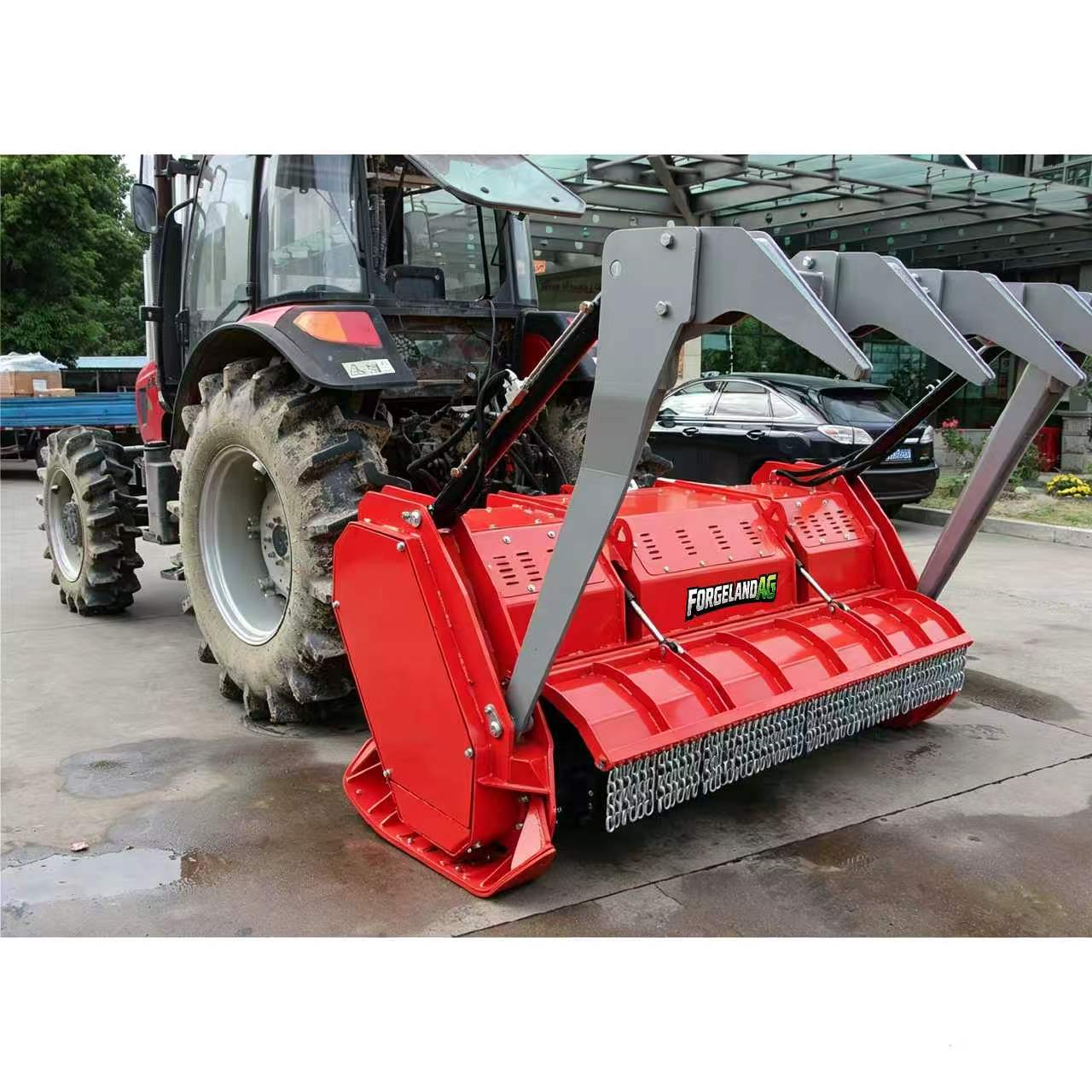

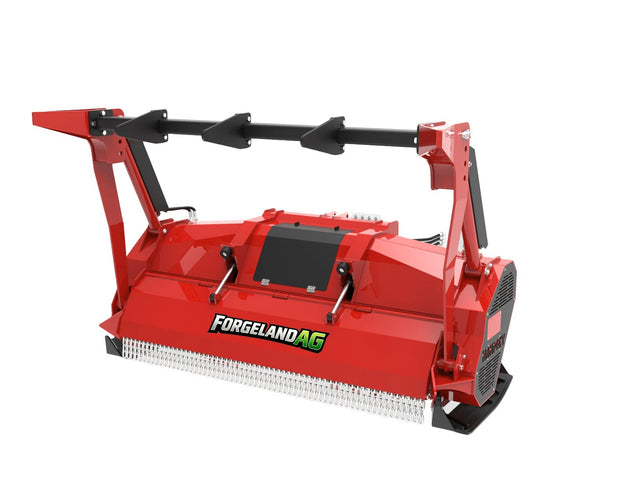

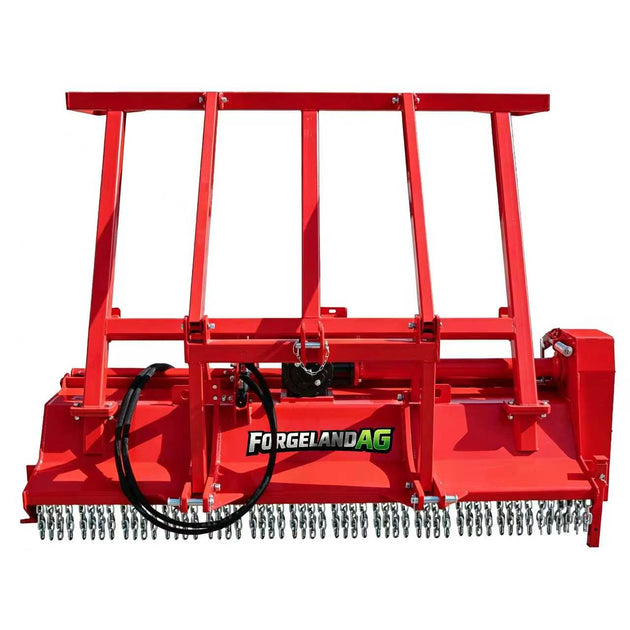

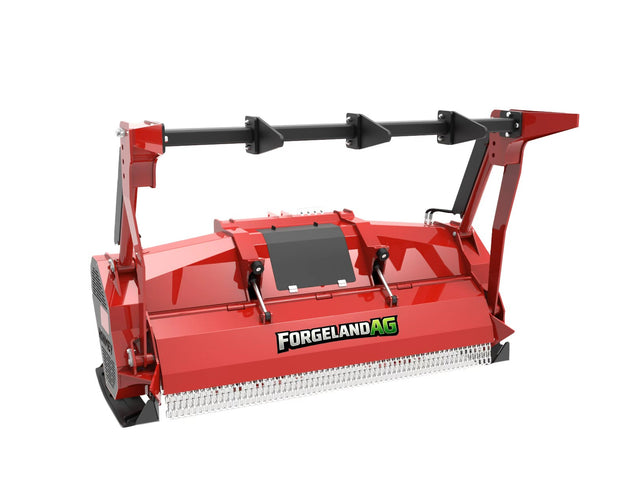

Heavy Duty Forestry Mulcher - MU-220-M2/CD30
The MU-220-M2/CD30 is built for the most demanding land clearing operations, capable of handling up to 250HP tractors. Featuring a massive Ø17.7" (450mm) forestry rotor with Ø10.7"x0.8" (273x20mm) shaft and 51 ultra-hard fixed tungsten carbide teeth, this machine delivers unmatched mulching power and durability in the field.
Key Features
- 5+5 Belt Transmission System Up to 250 HP
- Ø17.7" (450mm) Forestry Rotor with Ø10.7"x0.8" (273x20mm) Shaft

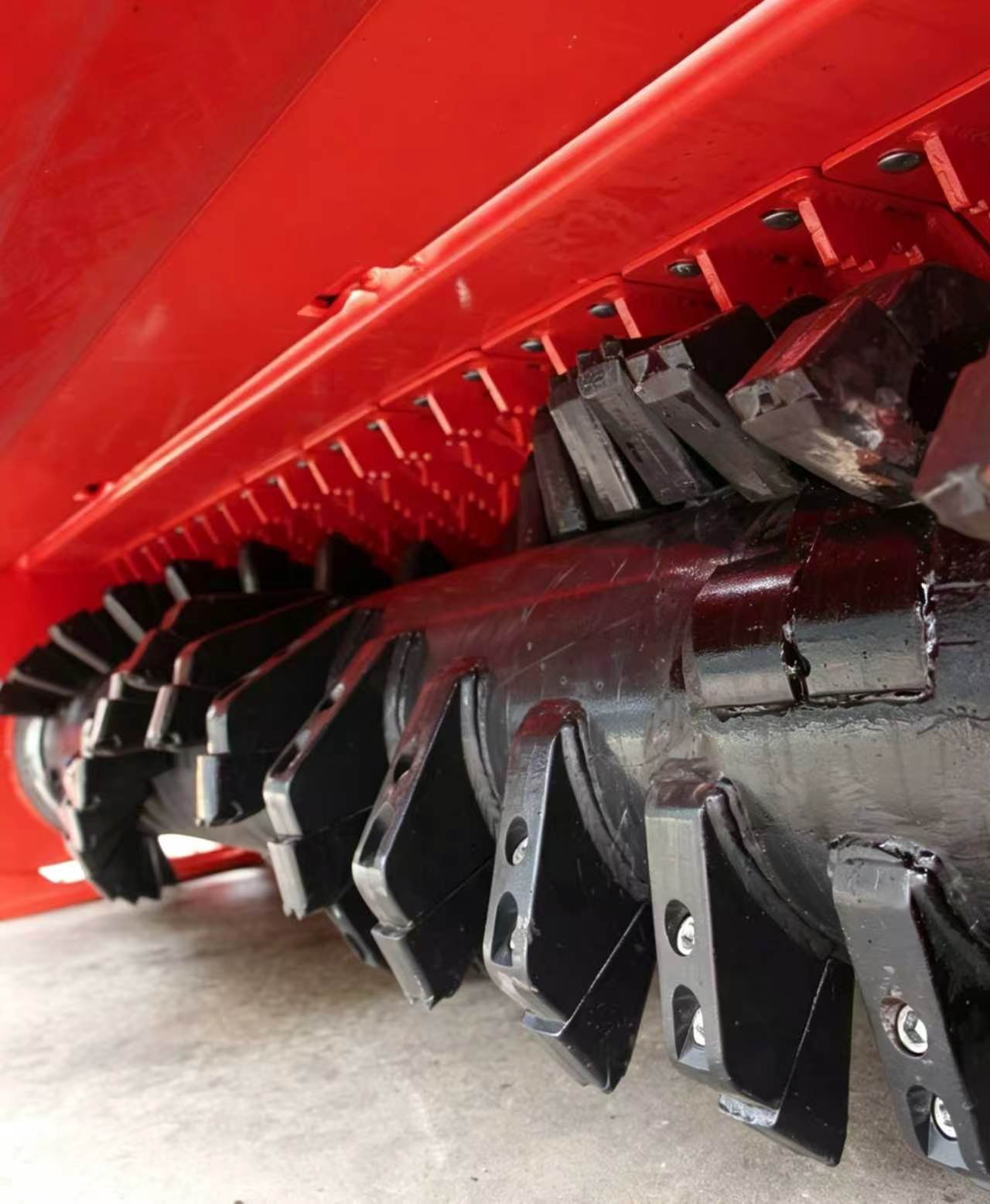

- 51 Ultra-Hard Fixed Tungsten Carbide Teeth
- 8+8mm Double-Lining Chassis and 12mm End Plates
- Hydraulic Rear Hood
- 1000 rpm Heavy-Duty Gearbox with Built-in Free Wheel
- Hydraulic Push Frame
Optional Accessories

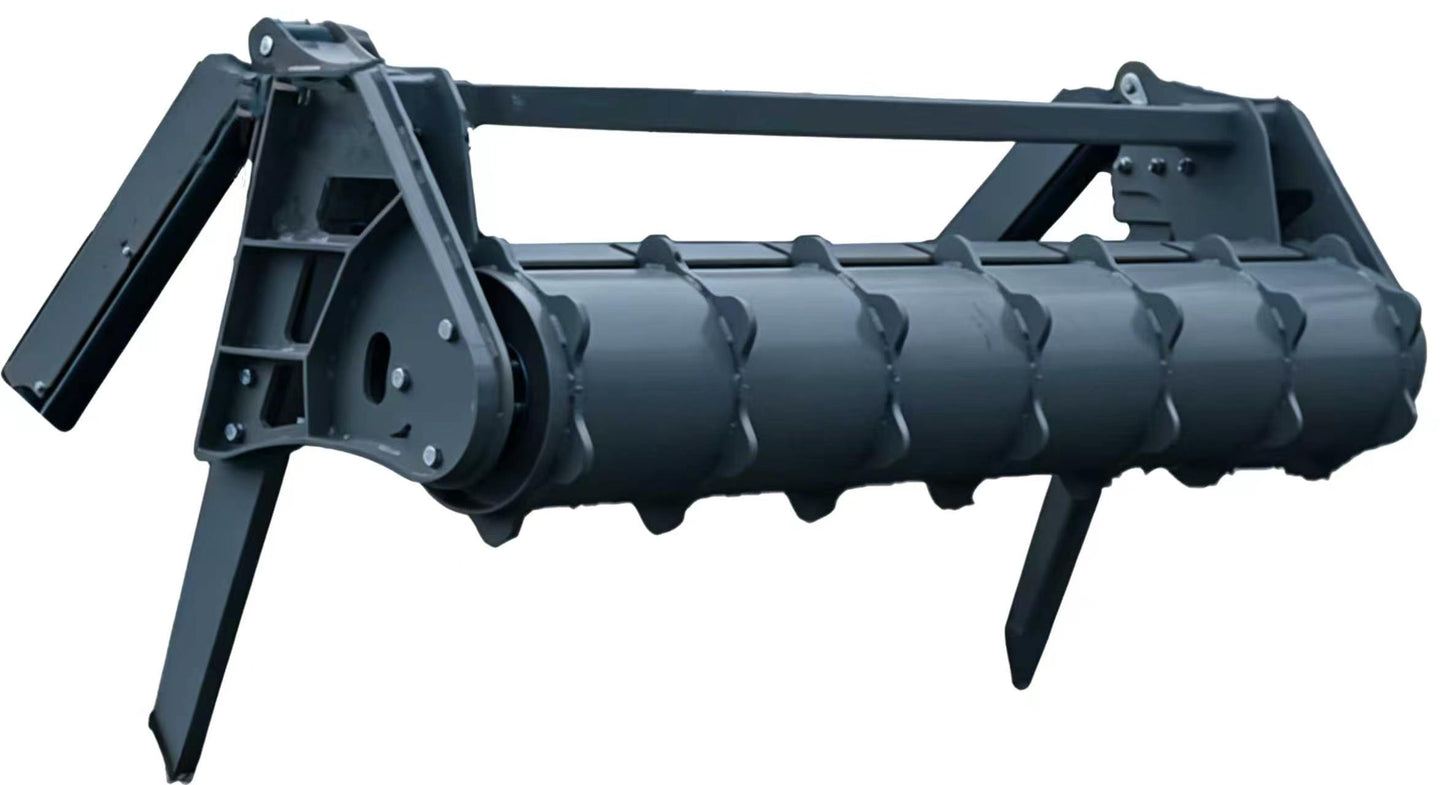

- Rear Roller Push
Technical Specifications

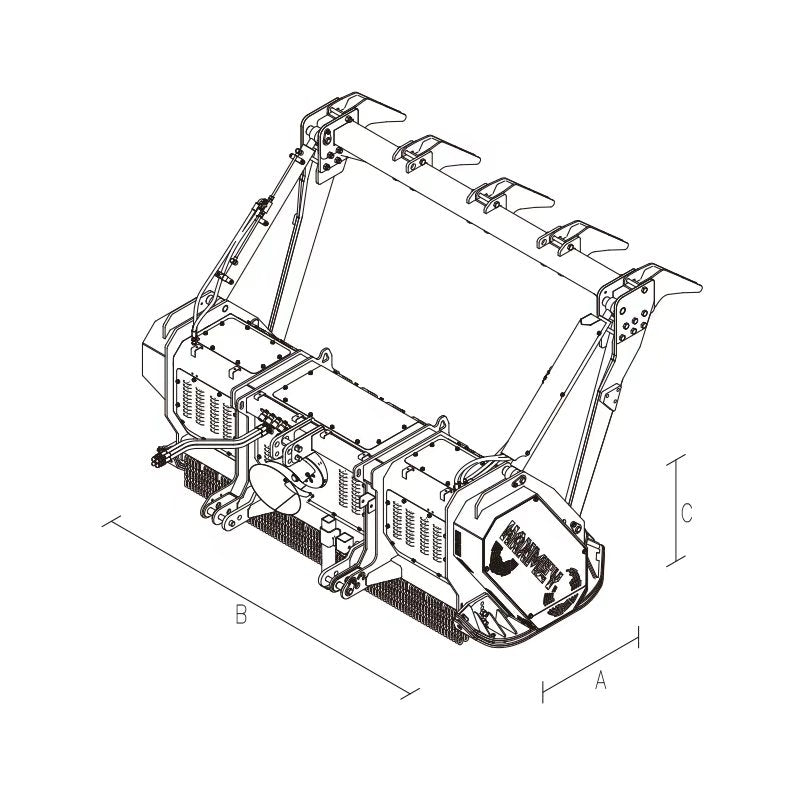

| Model | Cutting Depth | Working Width | Rotor Speed (r/min) | No. of Blades | No. of Belts | Power (HP) | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| MU-220-M2/CD30 | 11.8" (30cm) | 86.6" (220cm) | 1000 | 51 | 5+5 | 160-200 | 87.1" (2211mm) | 105.9" (2690mm) | 76.2" (1935mm) | 2776 |
Heavy Duty Forestry Mulcher - MU-220-M2/CD30
The MU-220-M2/CD30 is built for the most demanding land clearing operations, capable of handling up to 250HP tractors. Featuring a massive Ø17.7" (450mm) forestry rotor with Ø10.7"x0.8" (273x20mm) shaft and 51 ultra-hard fixed tungsten carbide teeth, this machine delivers unmatched mulching power and durability in the field.
Key Features
- 5+5 Belt Transmission System Up to 250 HP
- Ø17.7" (450mm) Forestry Rotor with Ø10.7"x0.8" (273x20mm) Shaft
- 51 Ultra-Hard Fixed Tungsten Carbide Teeth
- 8+8mm Double-Lining Chassis and 12mm End Plates
- Hydraulic Rear Hood
- 1000 rpm Heavy-Duty Gearbox with Built-in Free Wheel
- Hydraulic Push Frame
Optional Accessories
- Rear Roller Push
Technical Specifications
| Model | Cutting Depth | Working Width | Rotor Speed (r/min) | No. of Blades | No. of Belts | Power (HP) | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| MU-220-M2/CD30 | 11.8" (30cm) | 86.6" (220cm) | 1000 | 51 | 5+5 | 160-200 | 87.1" (2211mm) | 105.9" (2690mm) | 76.2" (1935mm) | 2776 |
- Regular price
- $0.00
Heavy Duty Forestry Mulcher - MU-220-M2/CD30
The MU-220-M2/CD30 is built for the most demanding land clearing operations, capable of handling up to 250HP tractors. Featuring a massive Ø17.7" (450mm) forestry rotor with Ø10.7"x0.8" (273x20mm) shaft and 51 ultra-hard fixed tungsten carbide teeth, this machine delivers unmatched mulching power and durability in the field.
Key Features
- 5+5 Belt Transmission System Up to 250 HP
- Ø17.7" (450mm) Forestry Rotor with Ø10.7"x0.8" (273x20mm) Shaft
- 51 Ultra-Hard Fixed Tungsten Carbide Teeth
- 8+8mm Double-Lining Chassis and 12mm End Plates
- Hydraulic Rear Hood
- 1000 rpm Heavy-Duty Gearbox with Built-in Free Wheel
- Hydraulic Push Frame
Optional Accessories
- Rear Roller Push
Technical Specifications
| Model | Cutting Depth | Working Width | Rotor Speed (r/min) | No. of Blades | No. of Belts | Power (HP) | A | B | C | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| MU-220-M2/CD30 | 11.8" (30cm) | 86.6" (220cm) | 1000 | 51 | 5+5 | 160-200 | 87.1" (2211mm) | 105.9" (2690mm) | 76.2" (1935mm) | 2776 |
-
Vendor: HAN-SUN

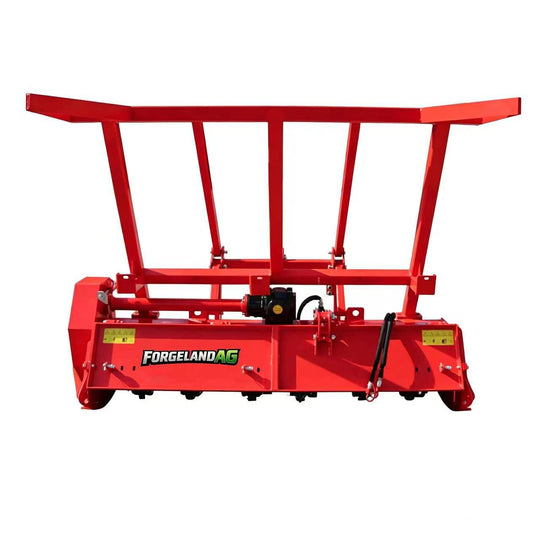

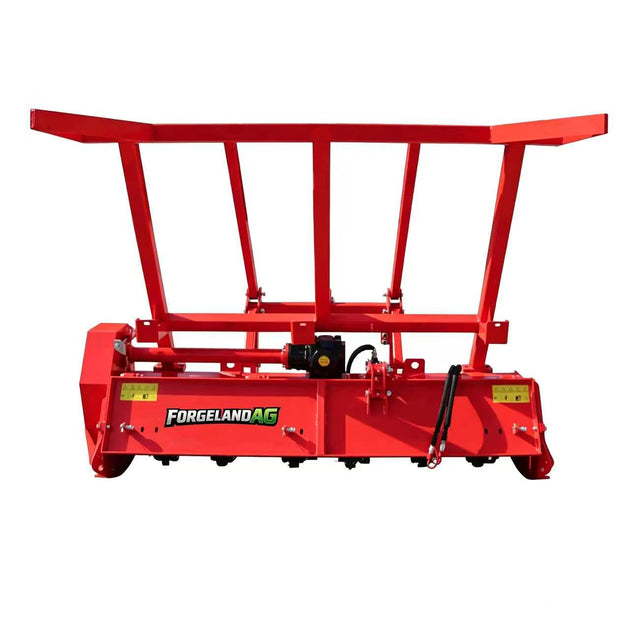

Forestry Mulcher - Medium Duty / Bilateral Belt-Trans (MU-220-M2/CD25.DRM)
Regular price $0.00 -
Vendor: HAN-SUN

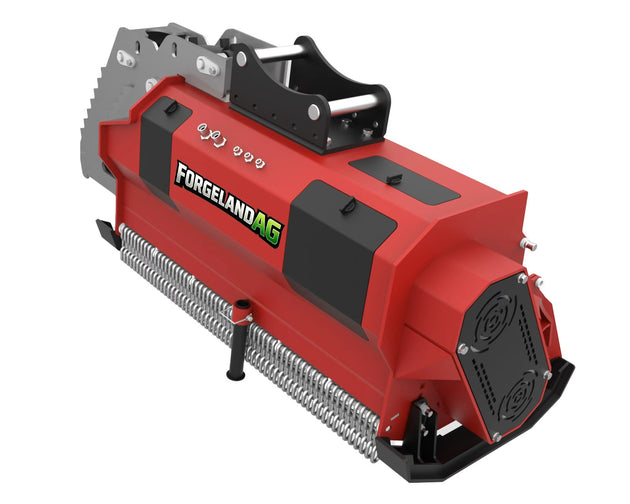

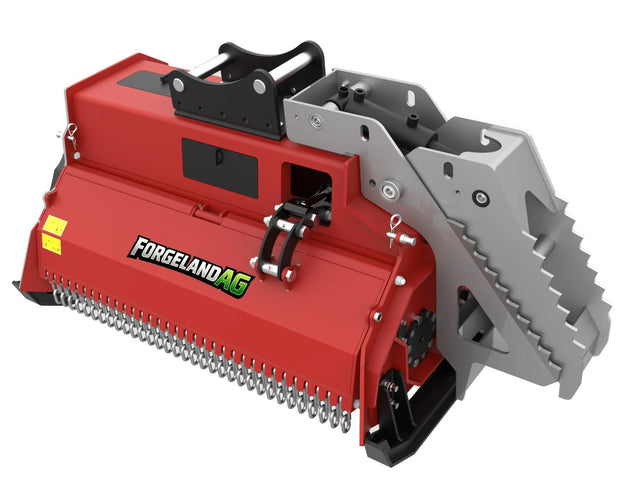

Forestry Mulcher - Excavator (8-14T) Mulcher W/ Thumb (MU-CD15.DRS Series)
