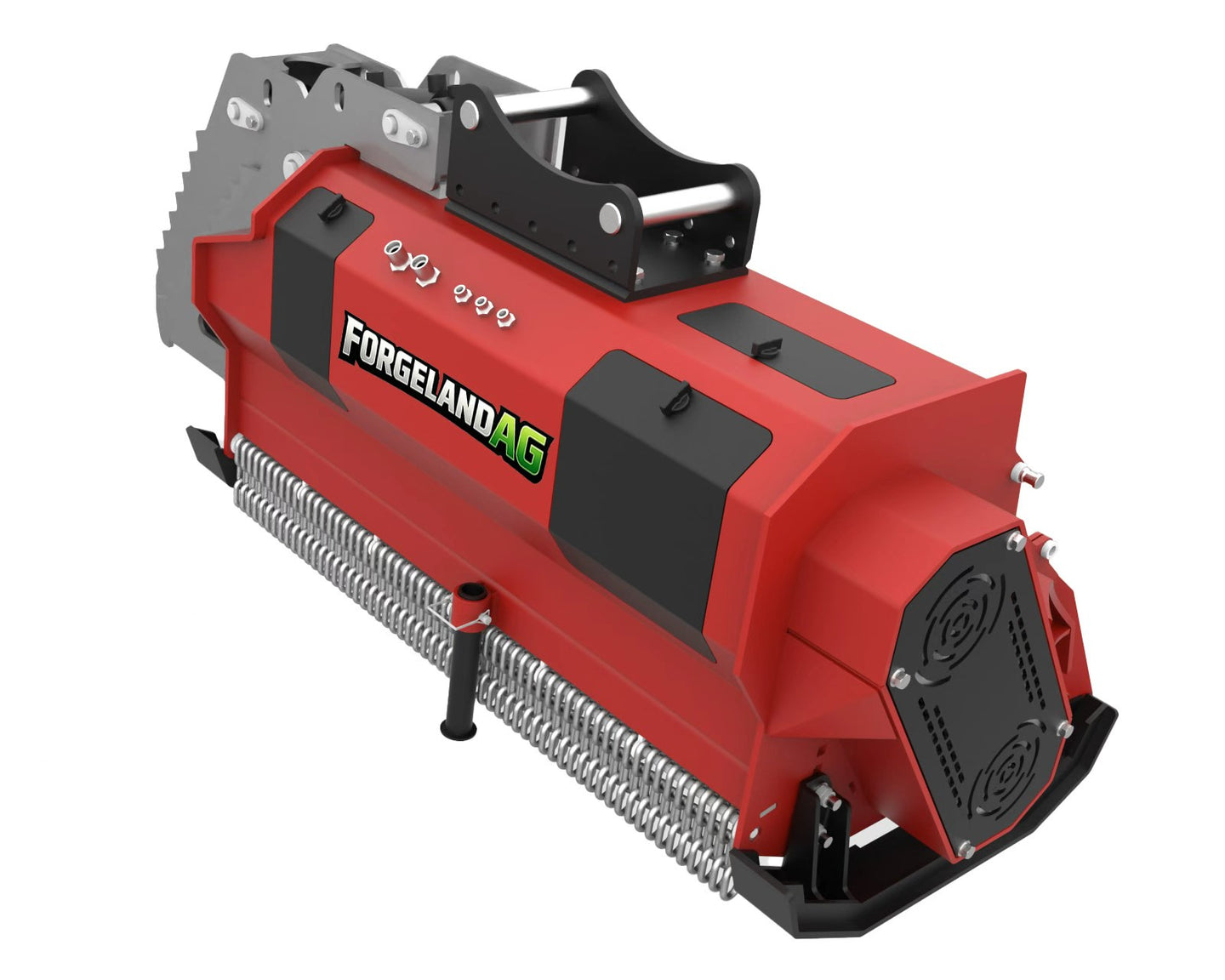

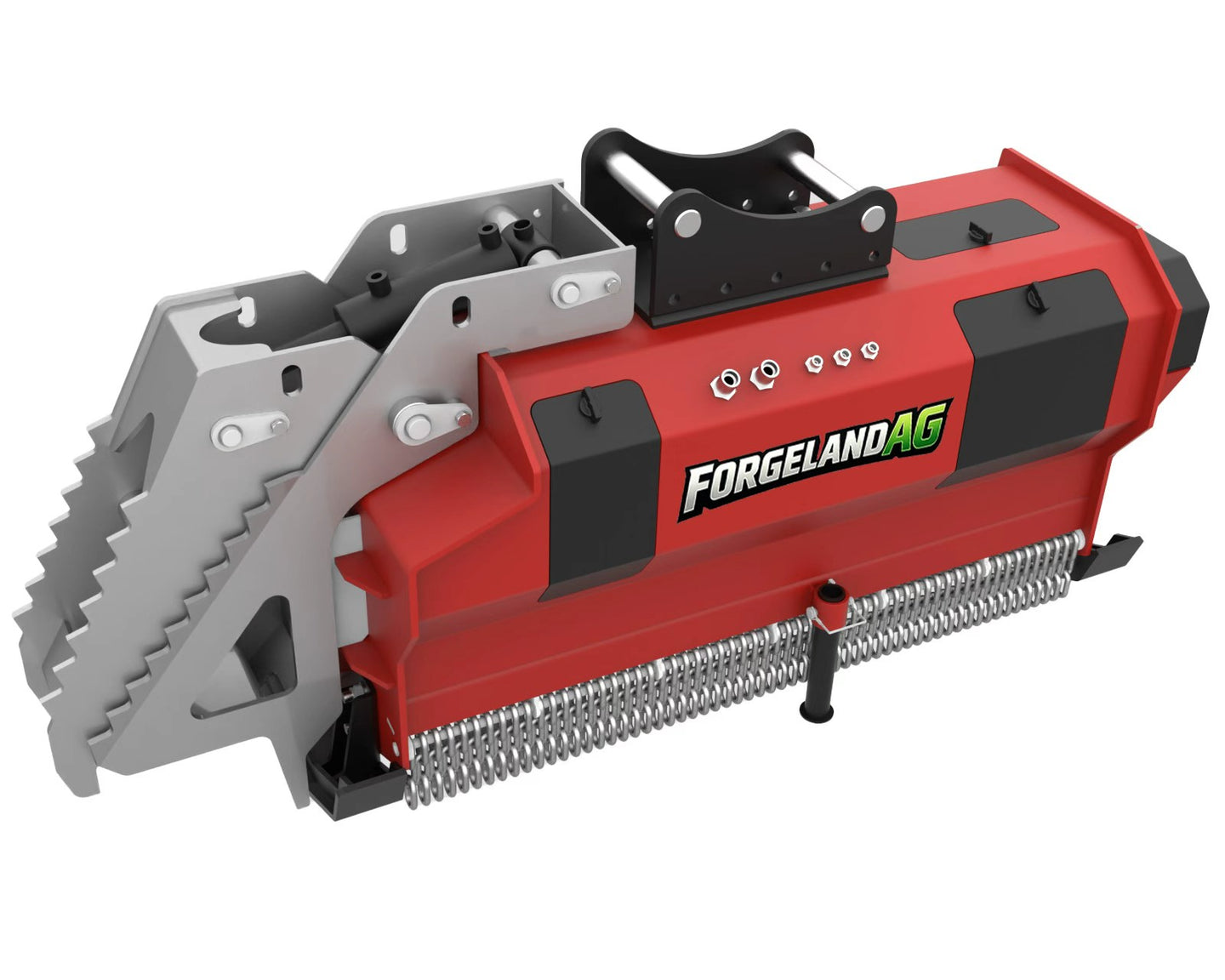

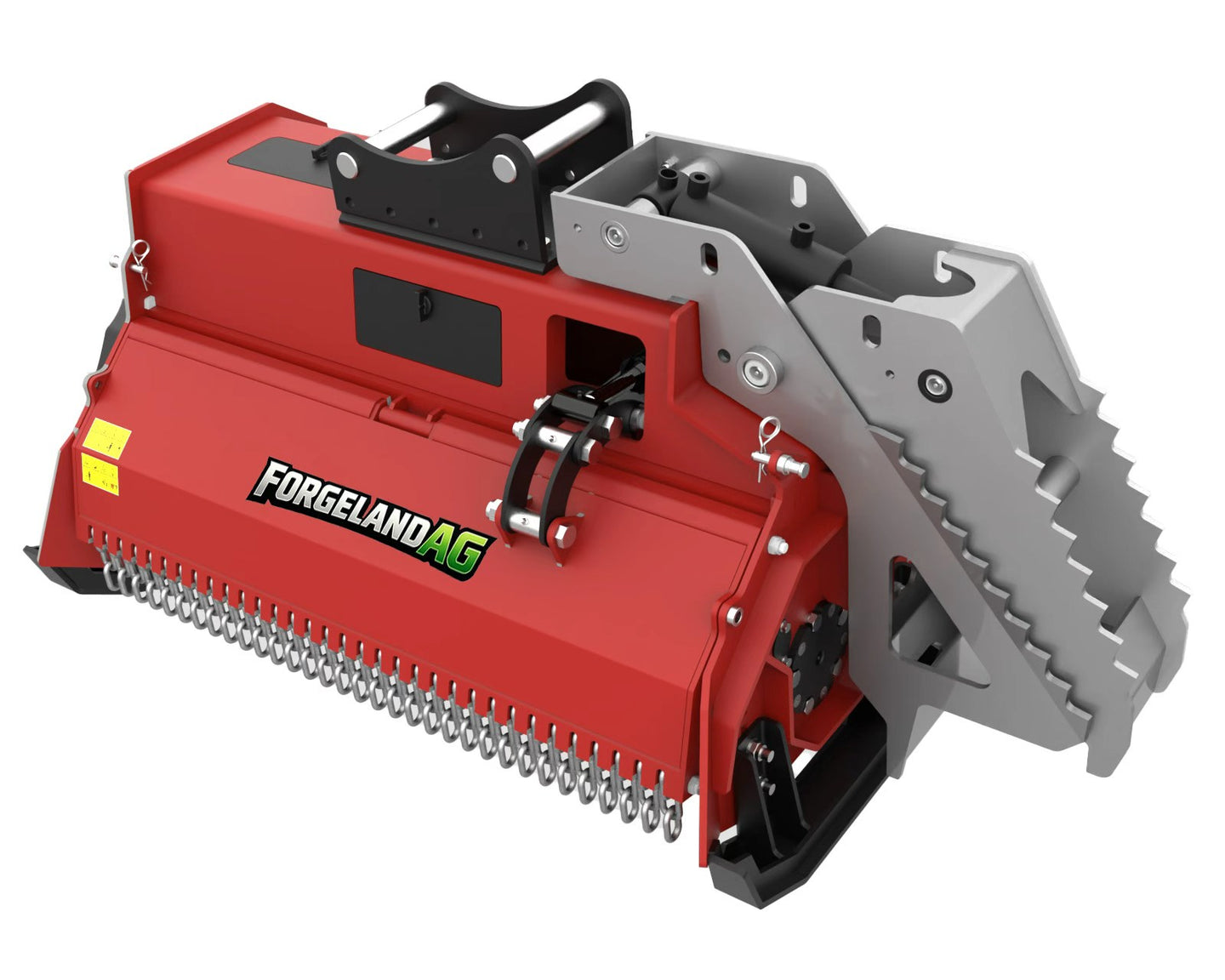

Excavator (8-14T) Forestry Mulcher with Thumb - MU-CD15.DRS Series

Designed for 8-14 tonne excavators, the MU-CD15.DRS series delivers precision forestry mulching with tungsten carbide cutting technology and an optional hydraulic thumb for superior material handling. With adjustable dual-direction skids and safety anticavitation valve, this mulcher is built for reliable performance in the toughest clearing conditions.

Key Features

  • 45cc / 56cc / 63cc Hydraulic Piston Motor
  • Mulching Branches Up to 5.9" (15cm)
  • Tungsten Carbide Cutting
  • Adjustable Dual-Direction Skids
  • Safety and Anticavitation Valve
  • Rear Hood with Mechanical Adjustment

Optional Accessories

  • Hydraulic Thumb & Bracket
  • Hydraulic Rear Hood Control

Technical Specifications

Specification MU-120-CD15.DRS MU-140-CD15.DRS

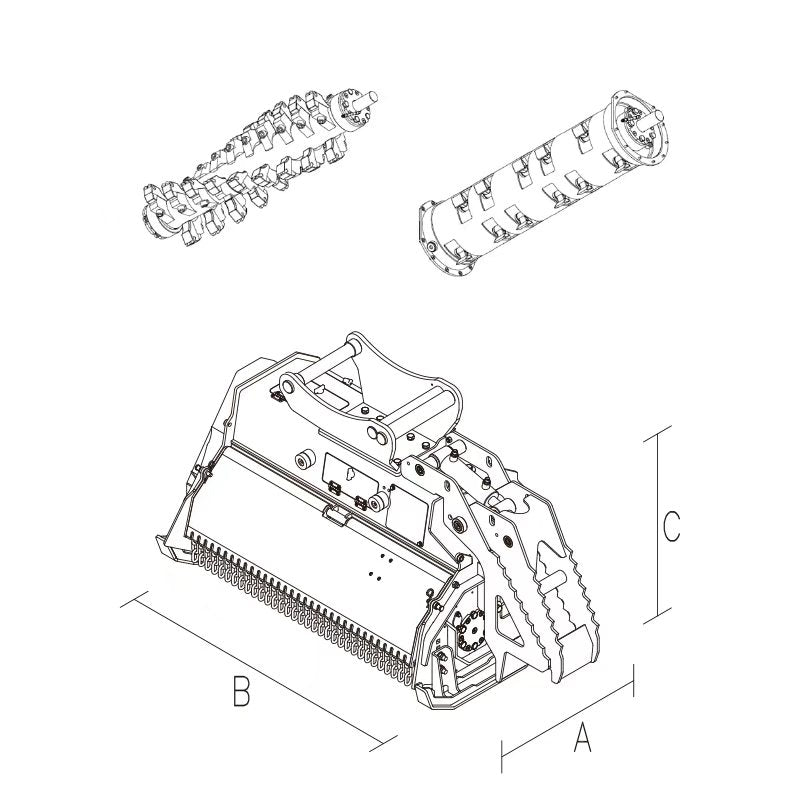

Overall Dimensions (AxBxC) 30.2"x71.3"x37.4" (768x1812x950mm) 30.2"x79.2"x37.4" (768x2012x950mm)
Flow Rate 80-140 L/min
Pressure 180-350 bar
Excavator Weight 8-14 t
Working Width 47.2" (1200mm) 55.1" (1400mm)
Weight (kg) 620 720
Rotor Diameter 14.6" (370mm)
Max Shredding Diameter 5.9" (150mm)
No. Teeth Type 27 33
No. Hammers Type 22 26

HAN-SUN

Forestry Mulcher - Excavator (8-14T) Mulcher W/ Thumb (MU-CD15.DRS Series)

$0.00

Excavator (8-14T) Forestry Mulcher with Thumb - MU-CD15.DRS Series

Designed for 8-14 tonne excavators, the MU-CD15.DRS series delivers precision forestry mulching with tungsten carbide cutting technology and an optional hydraulic thumb for superior material handling. With adjustable dual-direction skids and safety anticavitation valve, this mulcher is built for reliable performance in the toughest clearing conditions.

Key Features

  • 45cc / 56cc / 63cc Hydraulic Piston Motor
  • Mulching Branches Up to 5.9" (15cm)
  • Tungsten Carbide Cutting
  • Adjustable Dual-Direction Skids
  • Safety and Anticavitation Valve
  • Rear Hood with Mechanical Adjustment

Optional Accessories

  • Hydraulic Thumb & Bracket
  • Hydraulic Rear Hood Control

Technical Specifications

Specification MU-120-CD15.DRS MU-140-CD15.DRS
Overall Dimensions (AxBxC) 30.2"x71.3"x37.4" (768x1812x950mm) 30.2"x79.2"x37.4" (768x2012x950mm)
Flow Rate 80-140 L/min
Pressure 180-350 bar
Excavator Weight 8-14 t
Working Width 47.2" (1200mm) 55.1" (1400mm)
Weight (kg) 620 720
Rotor Diameter 14.6" (370mm)
Max Shredding Diameter 5.9" (150mm)
No. Teeth Type 27 33
No. Hammers Type 22 26
$0.00

Excavator (8-14T) Forestry Mulcher with Thumb - MU-CD15.DRS Series

Designed for 8-14 tonne excavators, the MU-CD15.DRS series delivers precision forestry mulching with tungsten carbide cutting technology and an optional hydraulic thumb for superior material handling. With adjustable dual-direction skids and safety anticavitation valve, this mulcher is built for reliable performance in the toughest clearing conditions.

Key Features

  • 45cc / 56cc / 63cc Hydraulic Piston Motor
  • Mulching Branches Up to 5.9" (15cm)
  • Tungsten Carbide Cutting
  • Adjustable Dual-Direction Skids
  • Safety and Anticavitation Valve
  • Rear Hood with Mechanical Adjustment

Optional Accessories

  • Hydraulic Thumb & Bracket
  • Hydraulic Rear Hood Control

Technical Specifications

Specification MU-120-CD15.DRS MU-140-CD15.DRS
Overall Dimensions (AxBxC) 30.2"x71.3"x37.4" (768x1812x950mm) 30.2"x79.2"x37.4" (768x2012x950mm)
Flow Rate 80-140 L/min
Pressure 180-350 bar
Excavator Weight 8-14 t
Working Width 47.2" (1200mm) 55.1" (1400mm)
Weight (kg) 620 720
Rotor Diameter 14.6" (370mm)
Max Shredding Diameter 5.9" (150mm)
No. Teeth Type 27 33
No. Hammers Type 22 26
