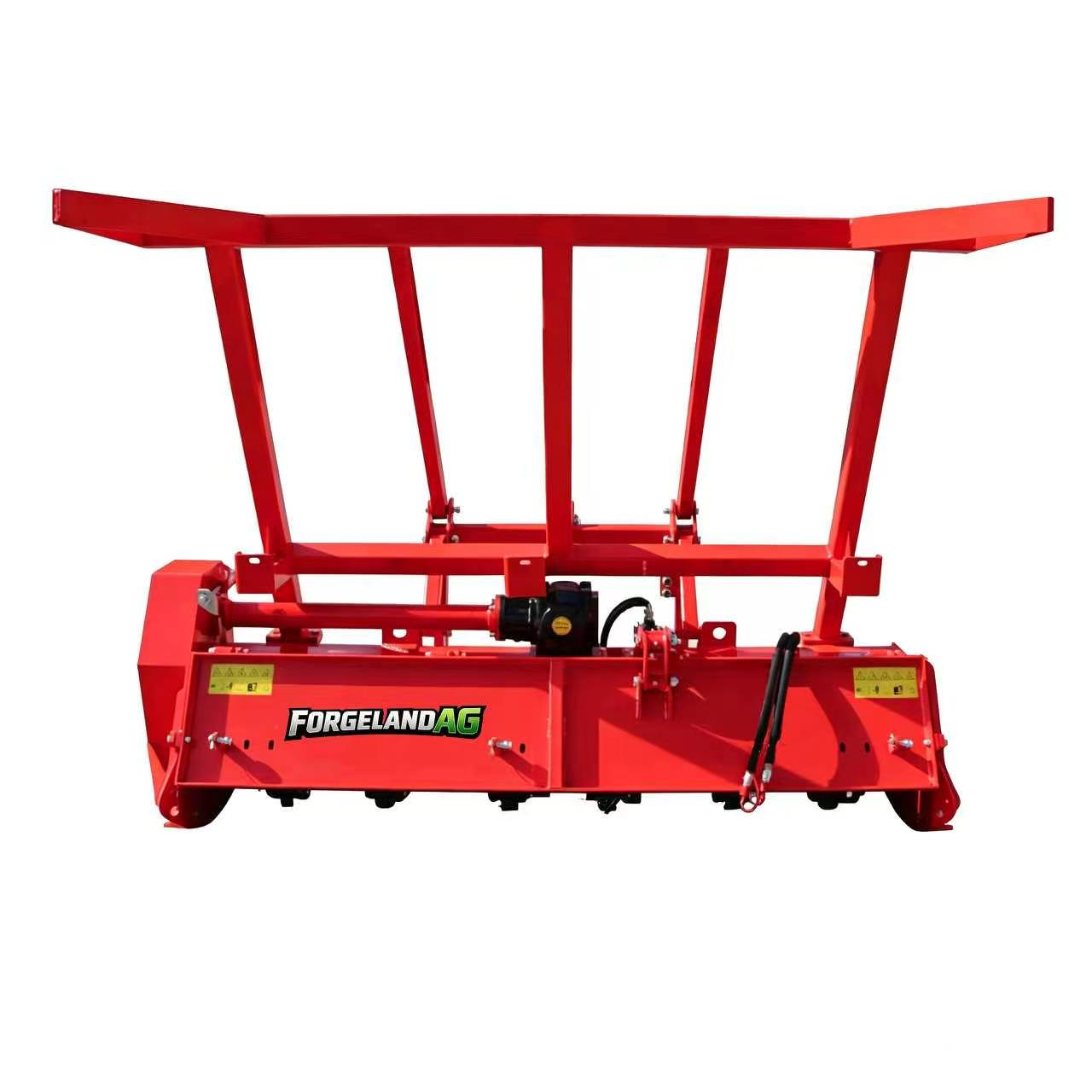

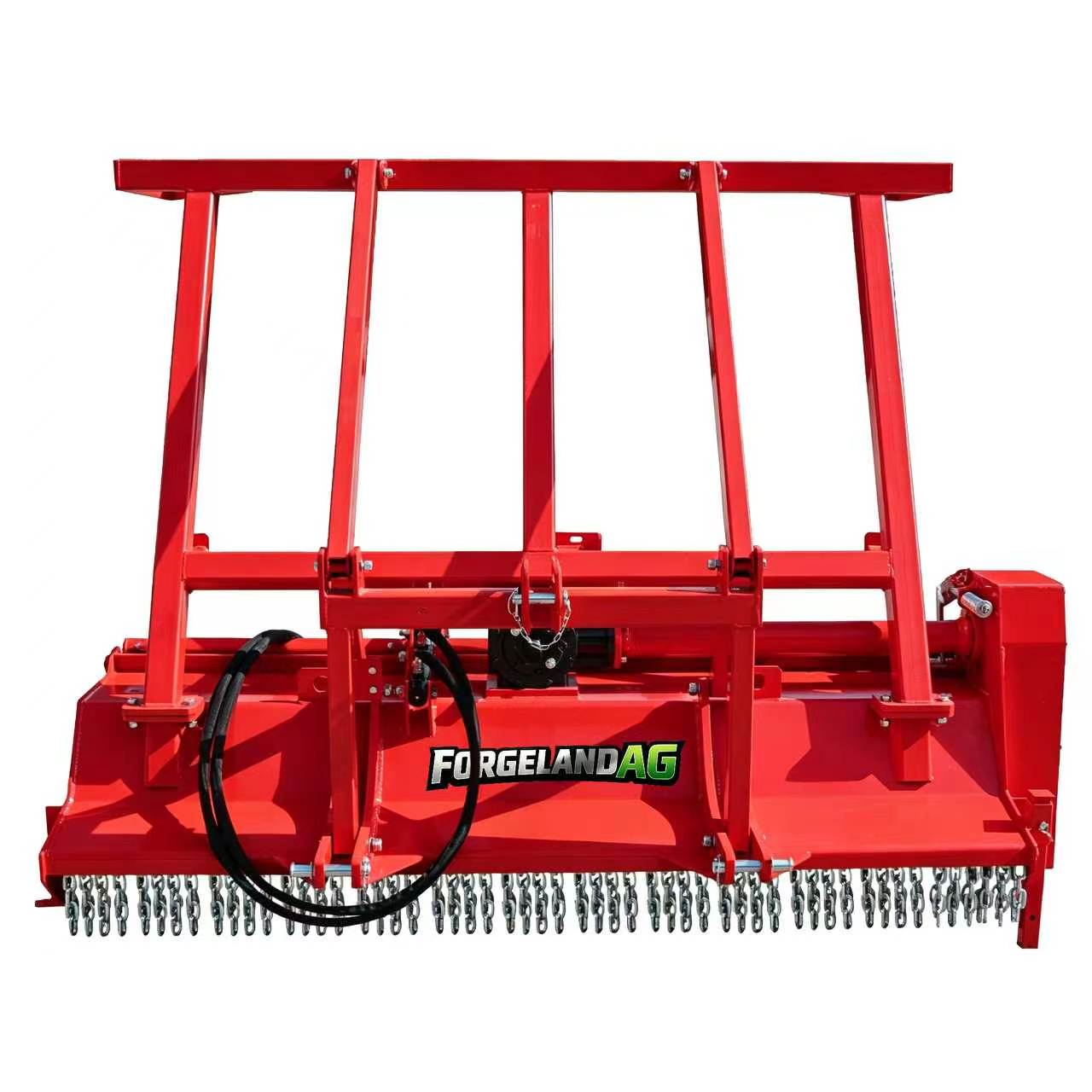

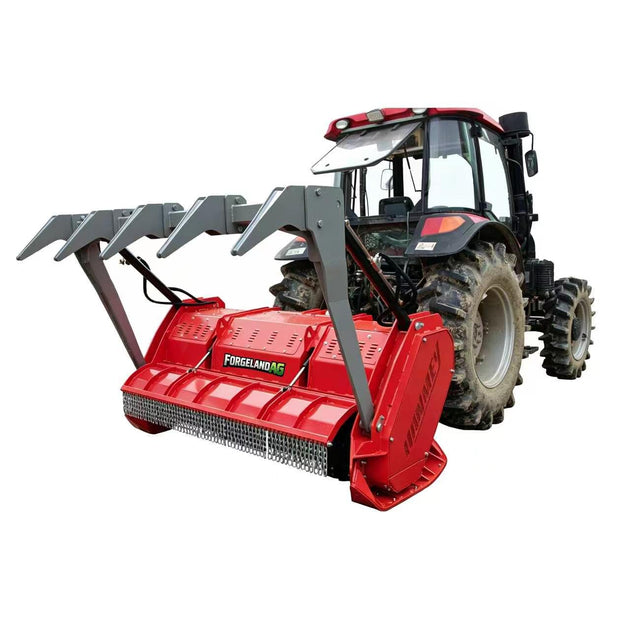

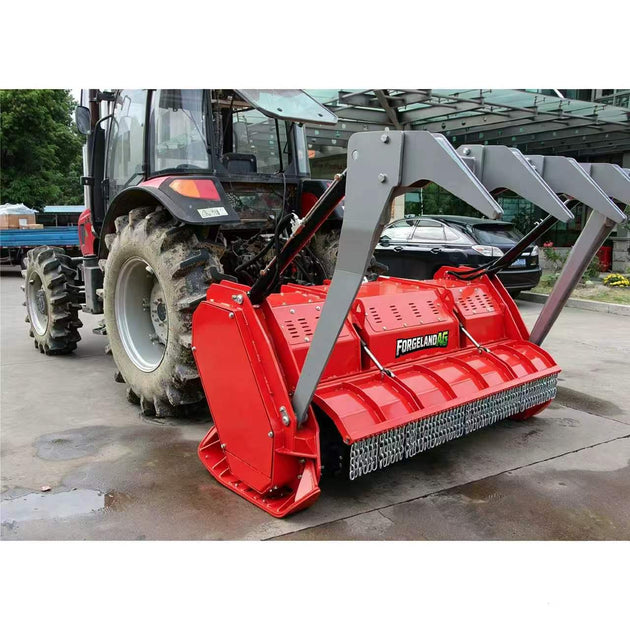

Light Duty / Single Trans Forestry Mulcher - MU-M1/CD12 Series
The MU-M1/CD12 series forestry mulcher is engineered for light-duty land clearing and vegetation management. Featuring a massive 8.7"x0.6" (220x15mm) helical rotor and 650g Cat II hammers, it delivers powerful mulching performance with a 6-belt drive and hydraulic rear hood for reliable operation in demanding conditions.
Key Features

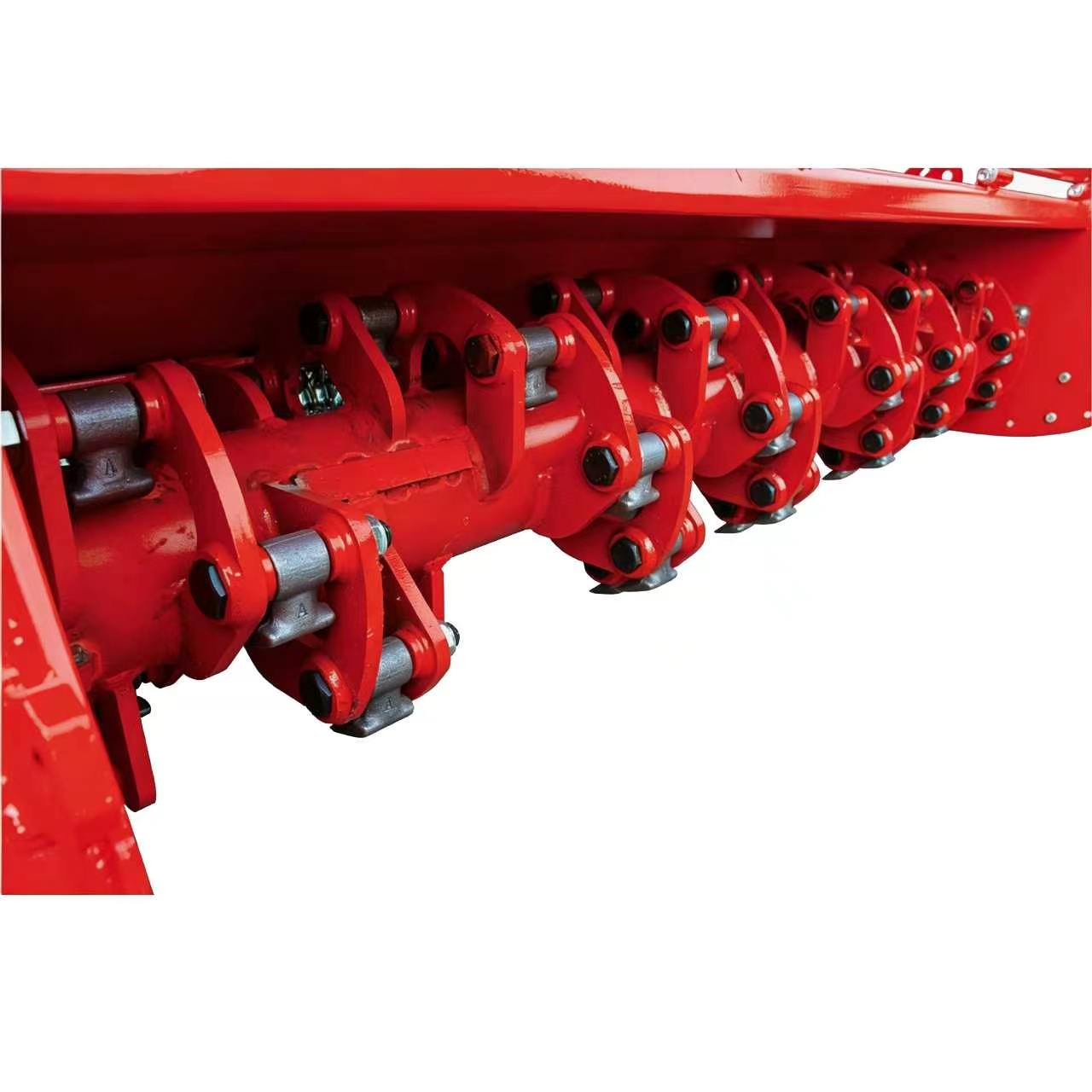

- Massive 8.7"x0.6" (220x15mm) Helical Rotor

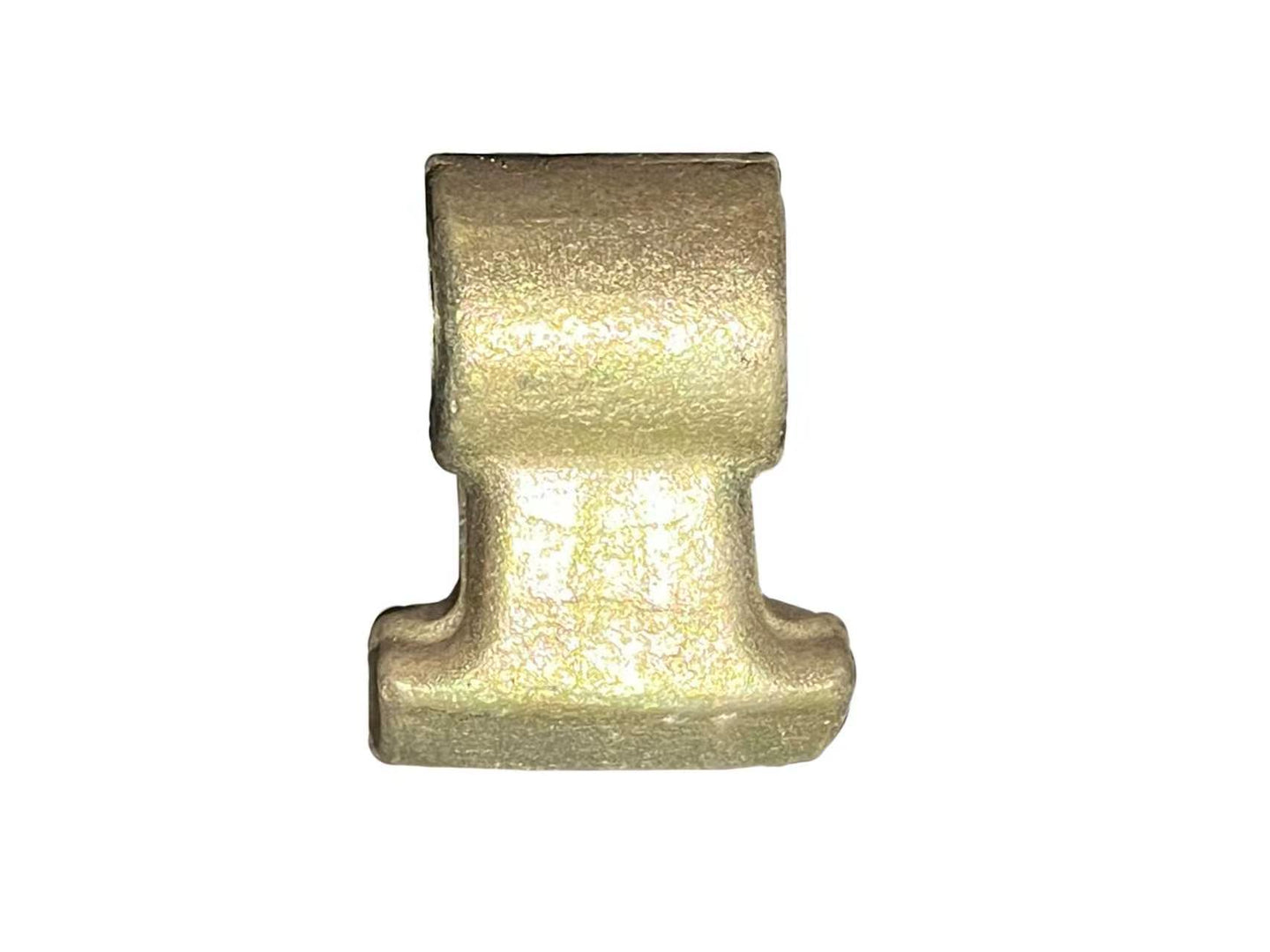

- 650g Hammers / Cat II
- 0.39" (10mm) Front Steel Chain Protection
- 1000 rpm Gearbox

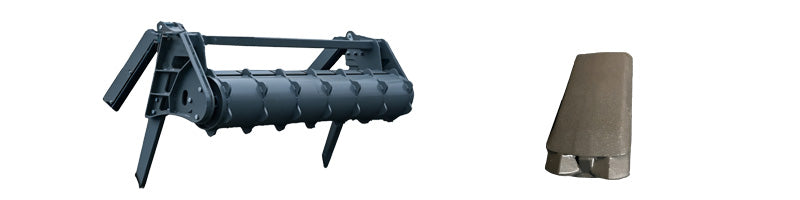

- Integrated Push Frame with Teeth
- 6-Belt Drive with Auto-Tensioner
- Hydraulic Rear Hood / Helical Rotor Design
Optional Accessories
- Interchangeable Tungsten Carbide Tips
Technical Specifications
| Specification | MU-180-M1/CD12 | MU-200-M1/CD12 | MU-226-M1/CD12 |
|---|---|---|---|

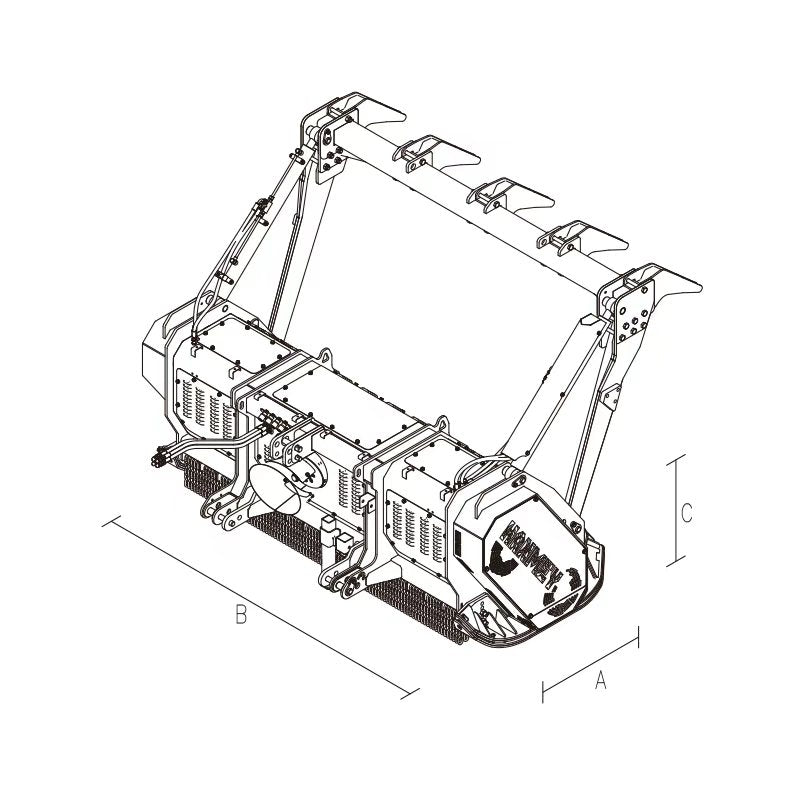

| Size (AxBxC) | 83.7"x65.0"x77.2" (2125x1650x1961mm) | 91.5"x65.0"x77.2" (2325x1650x1961mm) | 101.8"x65.0"x77.2" (2585x1650x1961mm) |
| Weight (kg) | 1086 | 1074 | 1068 |
| Working Width | 70.9" / 78.7" / 89.0" (1800 / 2000 / 2260mm) | ||
| PTO Speed | 1000 r/min | ||
| Rotor Speed | 1900 r/min (PTO 1000rpm) | ||
| Suspension | Cat II | ||
| Horse Power | Min. 59kW / 80HP | Min. 66kW / 90HP | Min. 66kW / 90HP |
| Branch Cutting Diameter | 4.7" (120mm) | ||
| Blade QTY | 36 | 40 | 46 |
| Belt QTY | 6 | ||
| Rotating Roller Diameter | 6.6" (168mm) | ||
| Rotor Maximum Rotational Diameter | 18.3" (466mm) | ||
Light Duty / Single Trans Forestry Mulcher - MU-M1/CD12 Series
The MU-M1/CD12 series forestry mulcher is engineered for light-duty land clearing and vegetation management. Featuring a massive 8.7"x0.6" (220x15mm) helical rotor and 650g Cat II hammers, it delivers powerful mulching performance with a 6-belt drive and hydraulic rear hood for reliable operation in demanding conditions.
Key Features
- Massive 8.7"x0.6" (220x15mm) Helical Rotor
- 650g Hammers / Cat II
- 0.39" (10mm) Front Steel Chain Protection
- 1000 rpm Gearbox
- Integrated Push Frame with Teeth
- 6-Belt Drive with Auto-Tensioner
- Hydraulic Rear Hood / Helical Rotor Design
Optional Accessories
- Interchangeable Tungsten Carbide Tips
Technical Specifications
| Specification | MU-180-M1/CD12 | MU-200-M1/CD12 | MU-226-M1/CD12 |
|---|---|---|---|
| Size (AxBxC) | 83.7"x65.0"x77.2" (2125x1650x1961mm) | 91.5"x65.0"x77.2" (2325x1650x1961mm) | 101.8"x65.0"x77.2" (2585x1650x1961mm) |
| Weight (kg) | 1086 | 1074 | 1068 |
| Working Width | 70.9" / 78.7" / 89.0" (1800 / 2000 / 2260mm) | ||
| PTO Speed | 1000 r/min | ||
| Rotor Speed | 1900 r/min (PTO 1000rpm) | ||
| Suspension | Cat II | ||
| Horse Power | Min. 59kW / 80HP | Min. 66kW / 90HP | Min. 66kW / 90HP |
| Branch Cutting Diameter | 4.7" (120mm) | ||
| Blade QTY | 36 | 40 | 46 |
| Belt QTY | 6 | ||
| Rotating Roller Diameter | 6.6" (168mm) | ||
| Rotor Maximum Rotational Diameter | 18.3" (466mm) | ||
