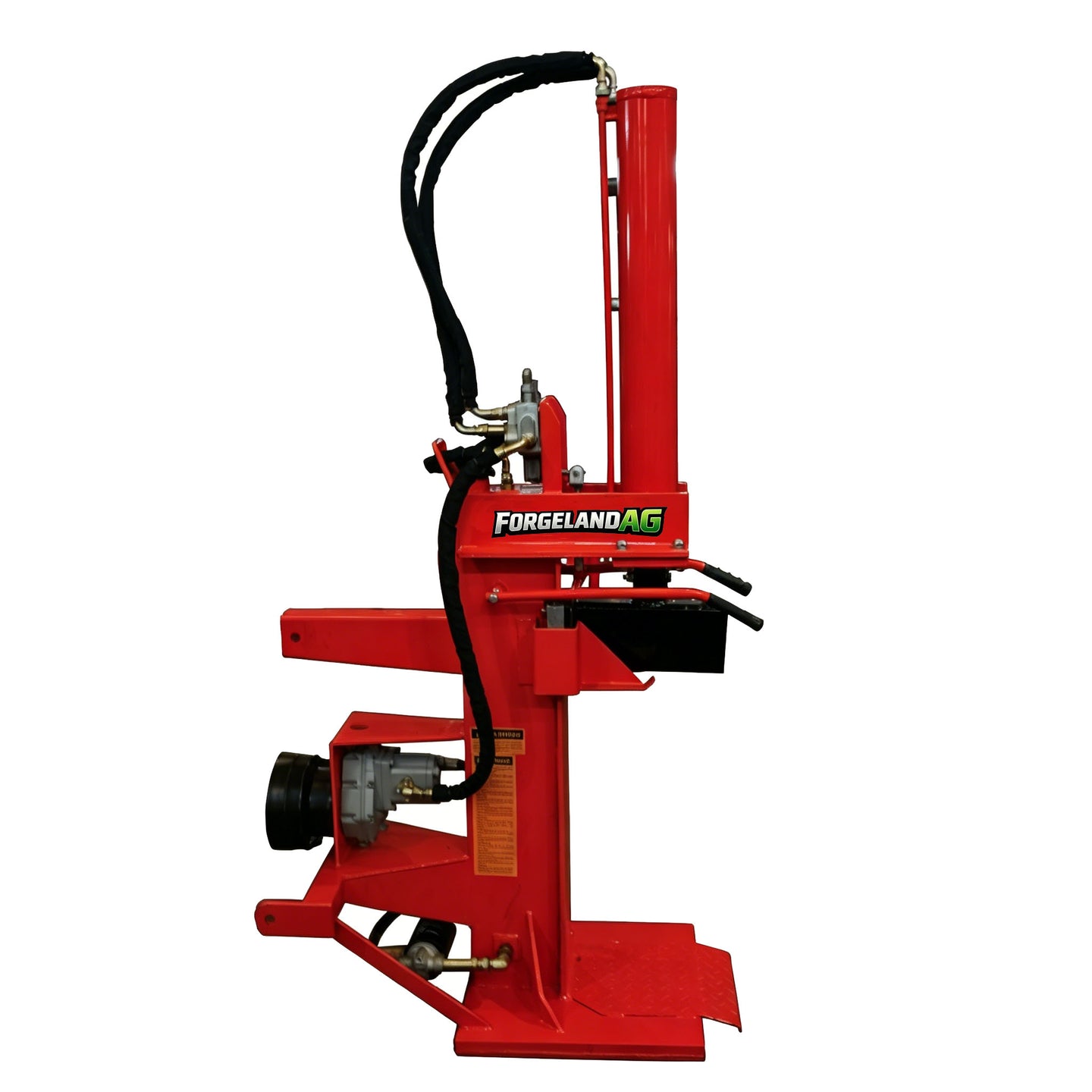

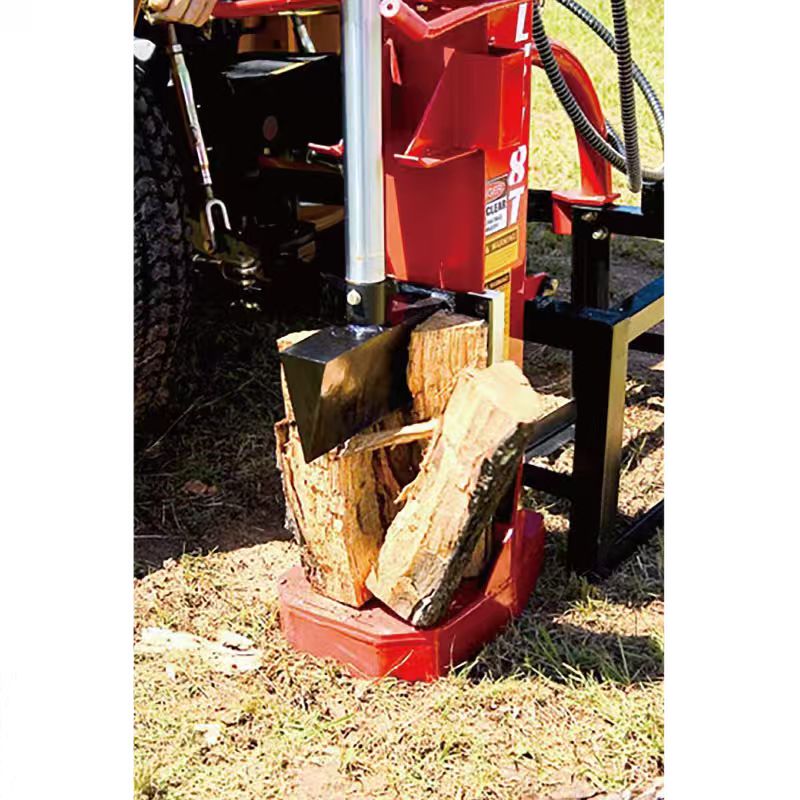

PTO Gear Pump Log Splitter - LS-Z Series
The LS-Z Series PTO Gear Pump Log Splitter delivers devastating vertical splitting force — up to 22 tons of RAM force — powered directly by your tractor's 540rpm PTO. With vertical ergonomics placing the base plate at ground level, a high-strength steel vertical beam, and a wide-base stabilizer plate, it handles the toughest logs safely and efficiently on 15-55HP tractors.
Key Features
- Vertical Ergonomics (Base Plate at Ground Level)
- Independent Hydraulic Pump and Oil Reservoir
- Devastating 22-Ton RAM Force
- High-Strength Steel Vertical Beam
- Working Speed of 2.3 m/min
- Pump Designed for 540 rpm PTO Input
- Universal Cat I / 3-Point Hitch
- Tractors Ranging From 15 to 55 HP
- Dual-Hand Safety Levers
- Forged & Heat-Treated Steel Wedge
- Wide-Base Stabilizer Plate
Optional Accessories
- Cross Multi-Splitting Wedge

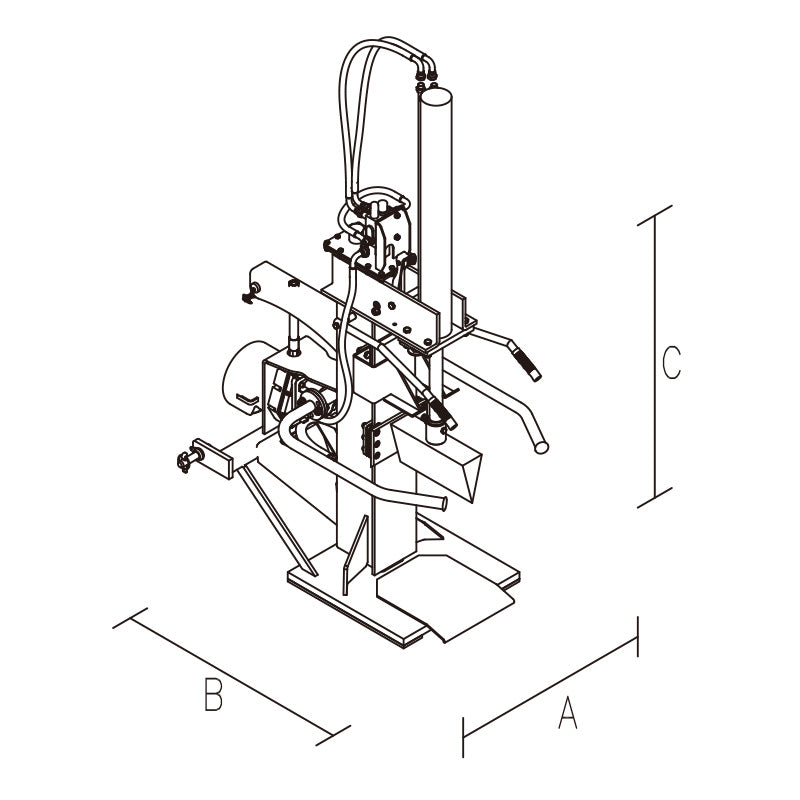

Technical Specifications
| Specification | LS-18-Z | LS-22-Z |
|---|---|---|
| Tractor HP | 15-55 HP | |
| Structure Weight | 190 kg | 220 kg |
| RAM Force | 18 ton | 22 ton |
| Length | 42.5" (1080mm) | 42.5" (1080mm) |
| Width | 28.2" (716mm) | 28.2" (716mm) |
| Height | 78.1" (1985mm) | 109.3" (2775mm) |
| Operation | Hydraulic | |
| 3-Point Linkage | Cat-I | |
| Working Position | Vertical | |
