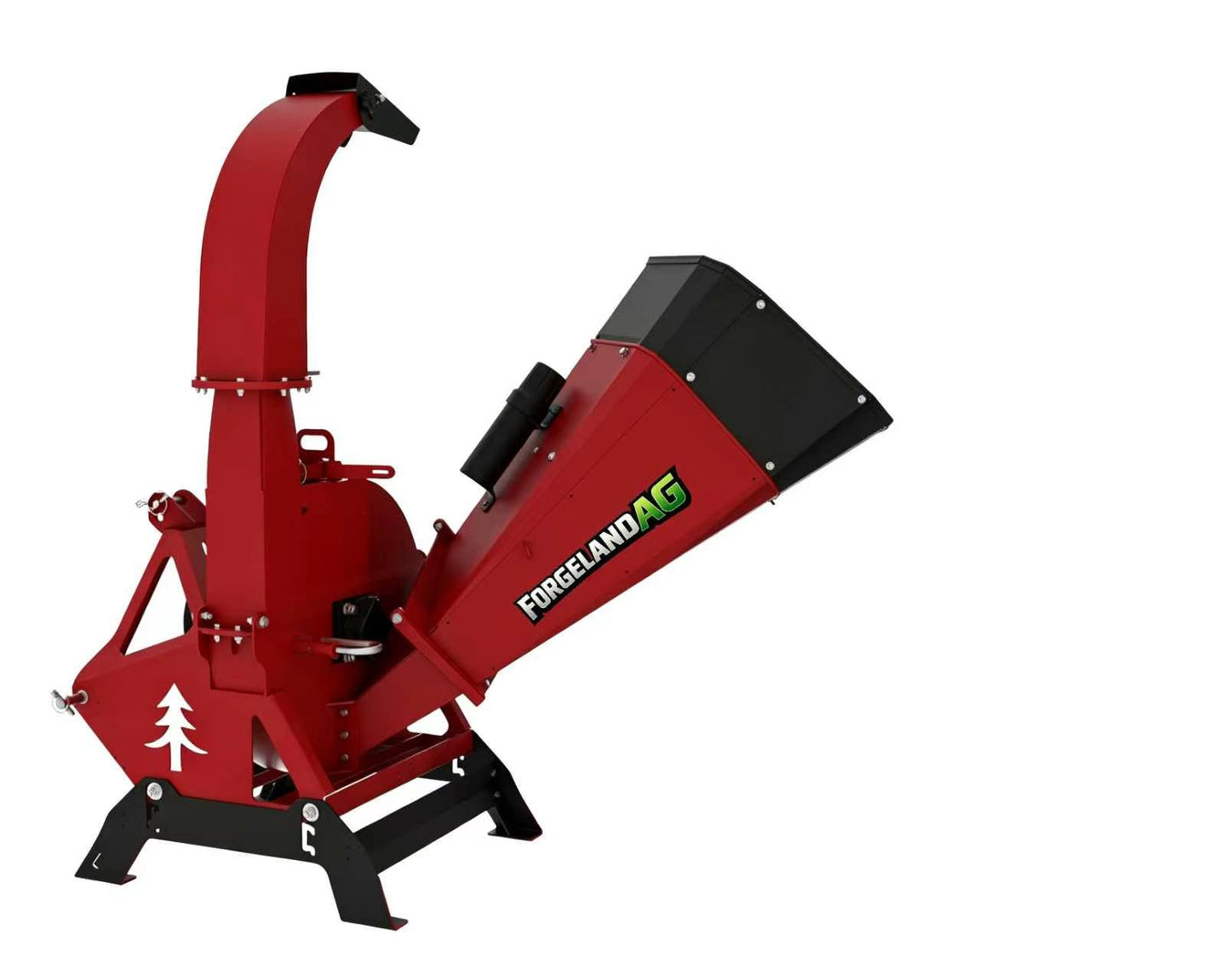

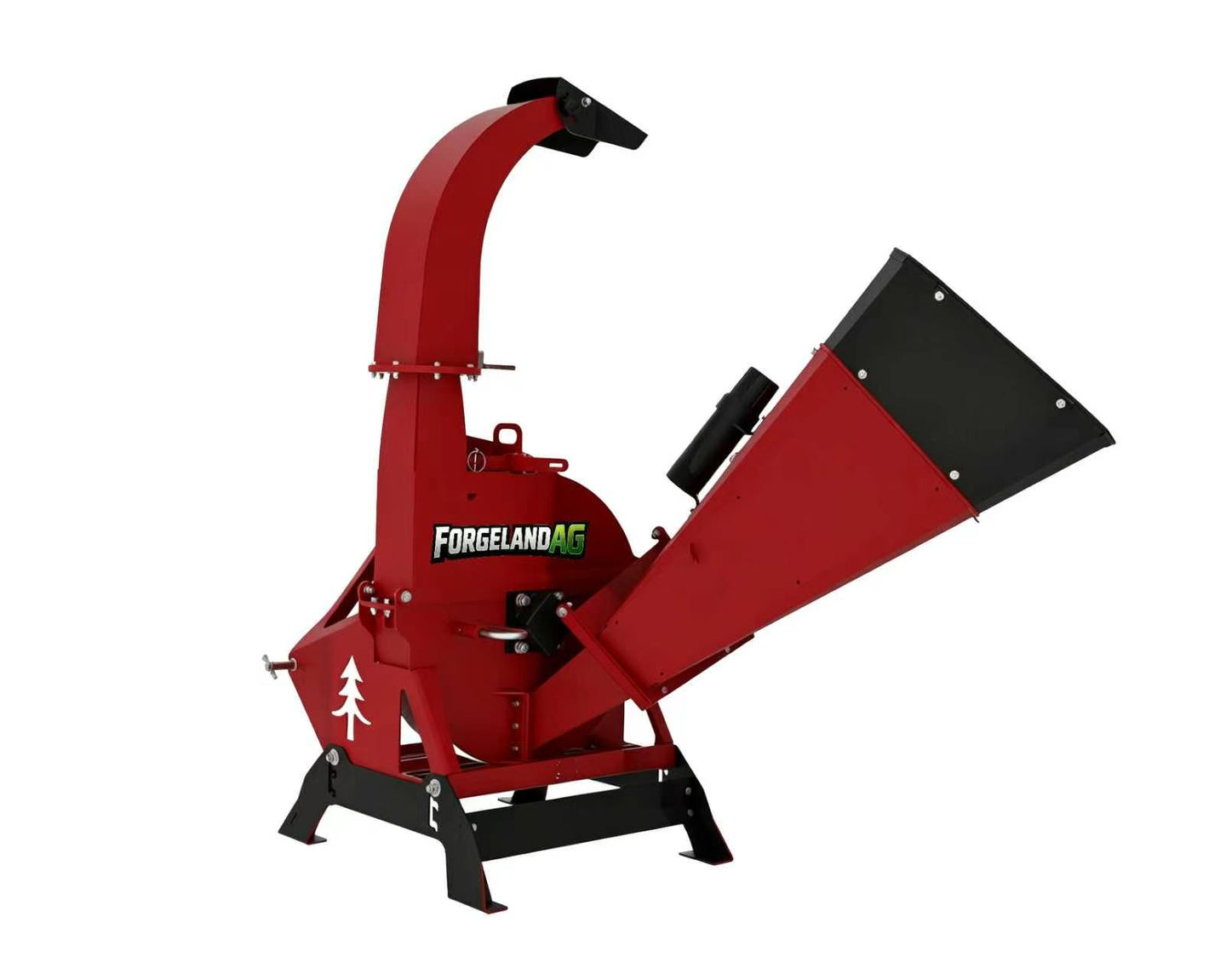

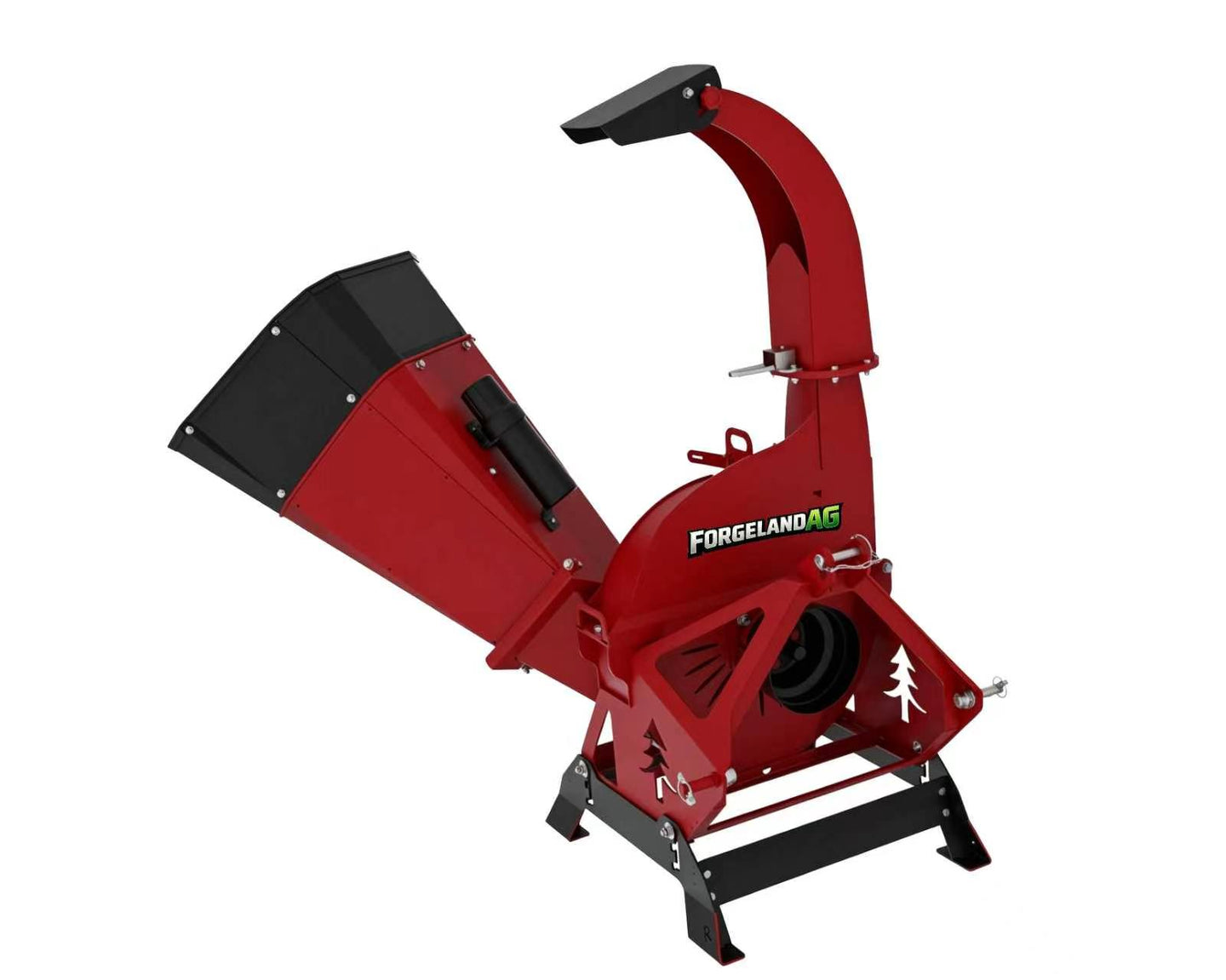

Topo Wood Chipper - WC-TF Series
The WC-TF Topo Wood Chipper features gravity-assisted intake and a quick-open housing for no-hassle operation. With a substantial 24.7"-30.3" (628-770mm) rotor, 4 hardened steel rotor blades, and a 270° rotating discharge chute, it handles branches up to 7.5" (190mm) on 18-65HP tractors at both 540 and 1000 rpm PTO.
Key Features
- Gravity-Assisted Intake
- Quick-Open Housing for 'No-Hassle' Operation
- Substantial 628mm Rotor to Branches Up to 5" (127mm) (WC-TF-5)
- Both 540 and 1000 rpm PTO
- 4 Hardened Steel Rotor Blades
- 270° Rotating Discharge Chute
- Universal Cat I / 3-Point Linkage
- Tractor-Driven PTO System
Optional Accessories
- Extended Hopper Extension
- PTO Shaft with Friction Clutch
- Factory-Installed Gearbox
Technical Specifications
| Specification | WC-TF-5 | WC-TF-8 |
|---|---|---|
| Overall Dimensions (W×L×H) | 53.4"x58.9"x67.3" (1357x1495x1710mm) | 59.4"x78.9"x77.4" (1508x2005x1965mm) |
| Rotor Knives | 4 | |
| Rotor Size | 24.4" (620mm) | 30.3" (770mm) |
| Rotor Weight | 123 lb (56kg) | 172 lb (78kg) |
| Chipper Capacity | 5" (127mm) | 7.5" (190mm) |
| Chipper Housing Opening | 5.0"x10.0" (127x254mm) | 7.0"x12.0" (177x304mm) |
| Discharge Hood Rotation | 270° | |
| Discharge Hood Height | 67.3" (1710mm) | 77.4" (1965mm) |
| PTO RPM | 540-1000 r/min | |
| Tractor HP | 18-45 HP | 25-65 HP |
| Weight | 392 lb (178kg) | 866 lb (393kg) |
