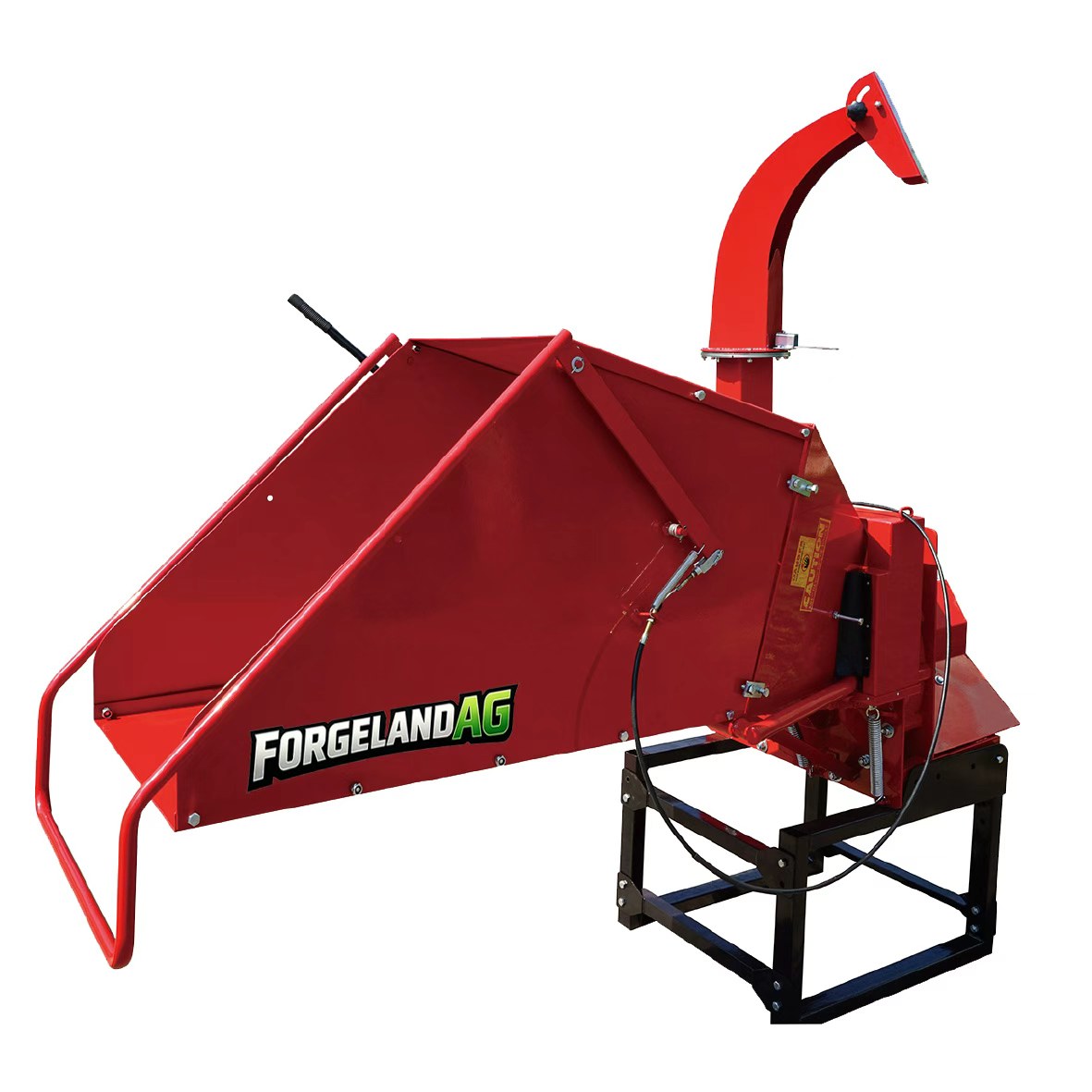

Ostrich Wood Chipper - WC-HF Series
The WC-HF Ostrich Wood Chipper uses a 300mm precision-balanced flywheel and a uniquely angled intake hopper and blade that create a "Vacuum Effect" to draw material in automatically. With dual hardened steel blades, a wide-opening 21.4"x22.8" (544x578mm) chute, and 360° discharge, it handles chipping diameters up to 8" (200mm) on 25-45HP tractors.
Key Features
- 300mm Precision-Balanced Flywheel

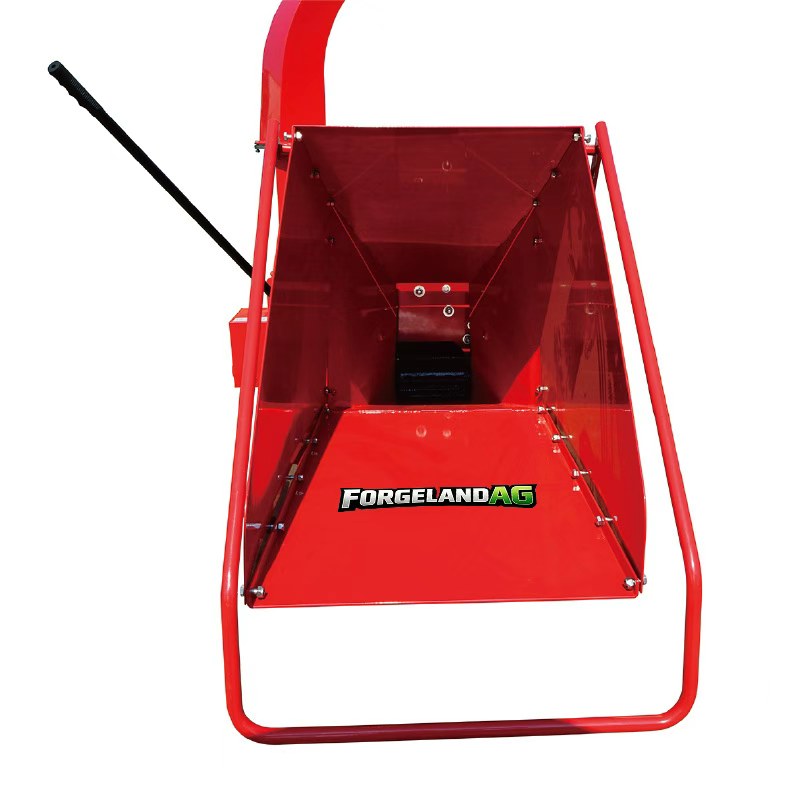

- Intake Hopper and Blade Angle Create "Vacuum Effect"
- Max 8" (200mm) Capacity
- 360° Discharge
- Dual Hardened Steel Blades
- Wide-Opening Chute: 21.4"x22.8" (544x578mm)
- Universal 3-Point Linkage
- Suitable for 25-45 HP
- Shear Bolt Protected PTO
Optional Accessories
- Enhanced Perimeter Safety Bar
Technical Specifications
| Specification | WC-HF-6 | WC-HF-8 |
|---|---|---|

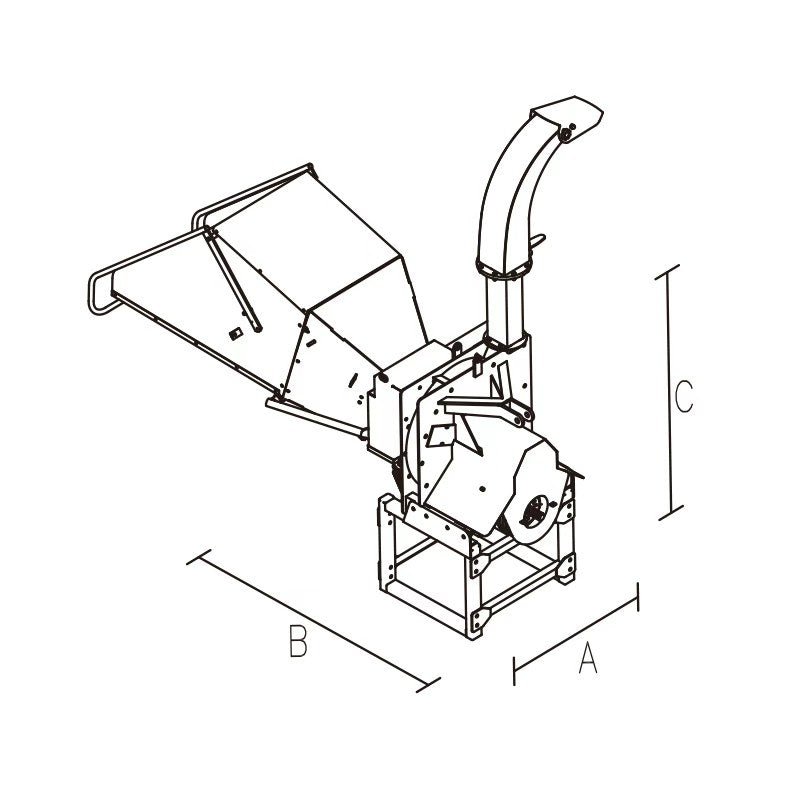

| Overall Dimensions (A×B×C) | 38.7"x89.8"x86.6" (982x2280x2200mm) | |
| Structure Weight | 970 lb (370kg) | 992 lb (374kg) |
| Fly Wheel Blade | 12" (300mm) | |
| Blade No. | Long 2 + Short 2 + 1 Counter Blade | |
| Chipping Diameter | 6" (150mm) | 8" (200mm) |
| Working Efficiency | 7-8 m³/h | 8-9 m³/h |
| PTO | 540 r/min | |
| Tractor HP | 25-30 HP | 30-45 HP |
