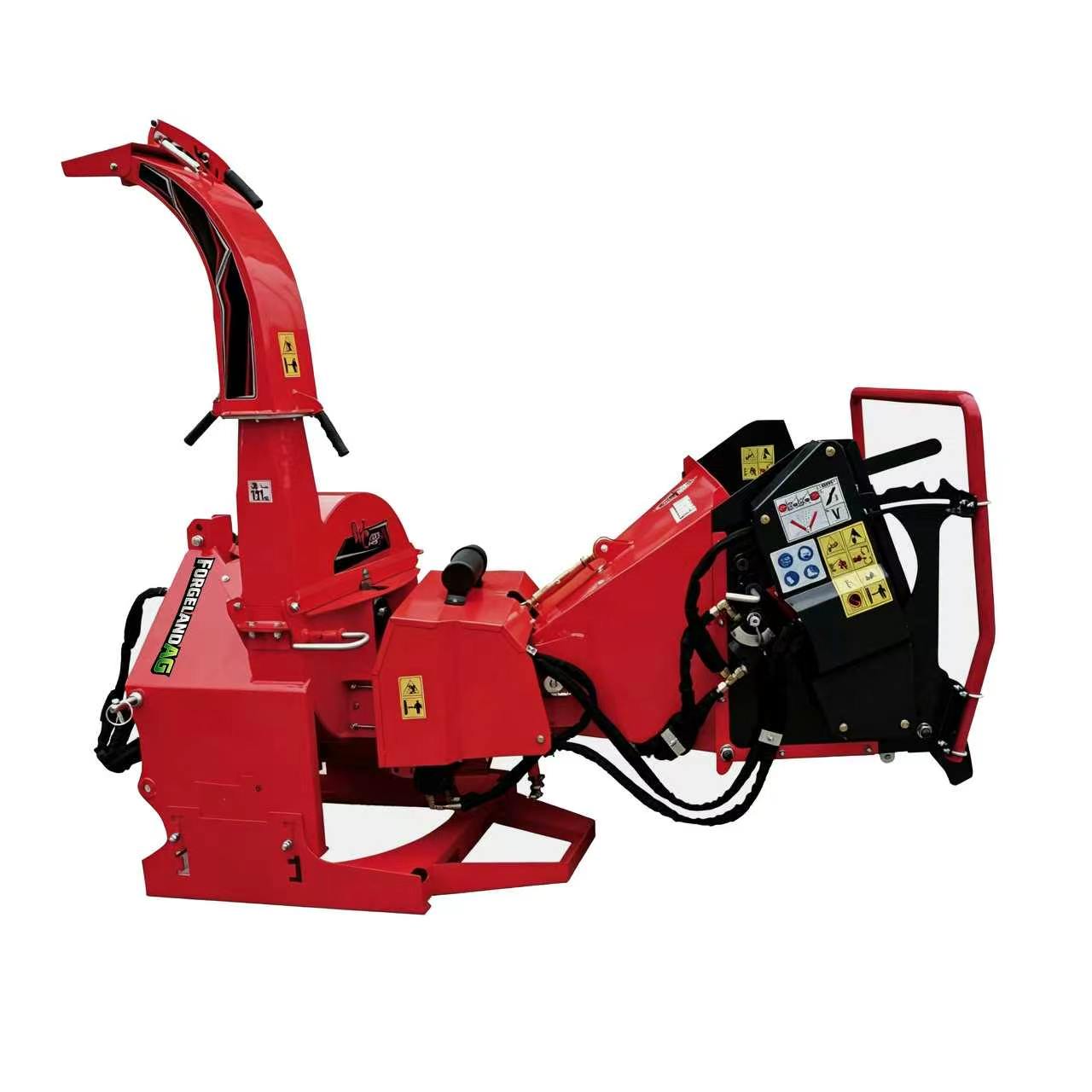

Hydraulic Feeding Heavy Duty Wood Chipper - WC-X Series
The WC-X Series Hydraulic Feeding Wood Chipper scales from 20HP to 120HP tractors, delivering chipping capacities from 3.9" (100mm) up to 8.7" (220mm). Featuring dual-roller hydraulic intake, a hydraulic valve with forward/neutral/reverse control, and 4 hardened rotor blades + 1 counter blade, it handles the most demanding wood chipping tasks with a 360° rotating discharge hood.
Key Features
- Dual-Roller Hydraulic Intake
- Safety Control Bar / 20HP Up to 120HP
- 4 Hardened Rotor Blades + 1 Counter Blade
- Hydraulic Valve Allows for Forward / Neutral / Reverse
- 360° Rotating Discharge Hood
Optional Accessories
- Independent Hydraulic Reservoir
- Variable Speed Flow Regulator
- CE-Compliant Triple-Direction Emergency Stop System
Technical Specifications
| Specification | WC-42 | WC-52 | WC-72 | WC-92 |
|---|---|---|---|---|

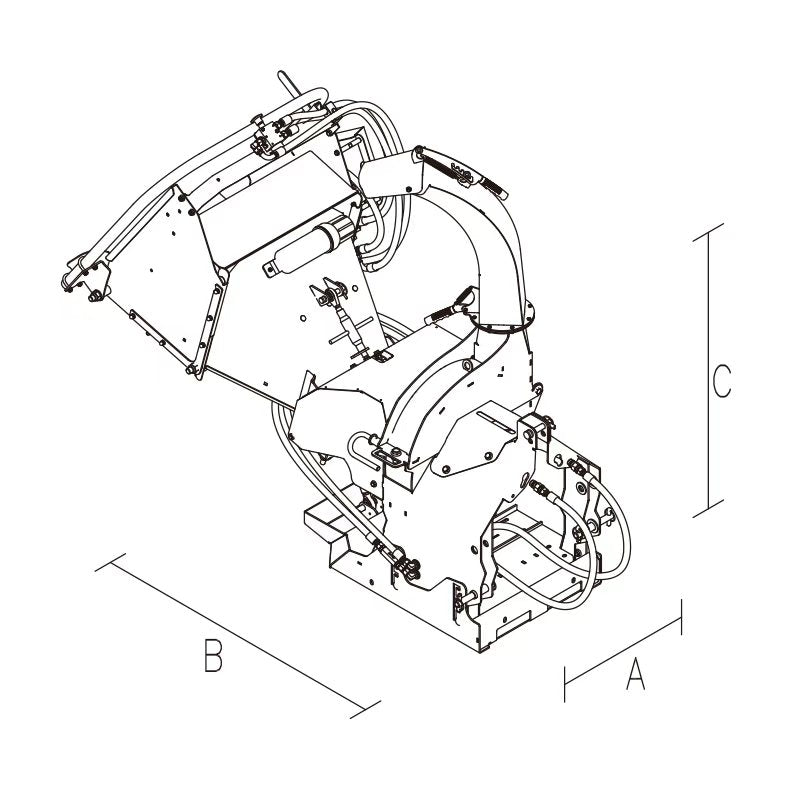

| Overall Dimensions (A×B×C) | 75.9"x46.5"x65.4-73.2" (1927x1180x1666-1860mm) | 91.9"x69.2"x70.4-75.9" (2336x1759x1788-1928mm) | 101.7"x80.0"x85.6" (2583x2033x2174mm) | 104.3"x84.6"x86.6" (2650x2150x2200mm) |
| Rotor Knives | 4 | |||
| Rotor Size | 21.7" (550mm) | 23.6" (600mm) | 28.0" (712mm) | 36.1" (916mm) |
| Rotor Weight | 106 lb (48kg) | 128 lb (58kg) | 212 lb (96kg) | 276 lb (125kg) |
| Counter Knives | 1 | |||
| Chipper Capacity | 3.9" (100mm) | 5.1" (130mm) | 6.7" (170mm) | 8.7" (220mm) |
| Hydraulic Flow | 40 L/min | |||
| Chipper Housing Opening | 7.1"x4.7" (180x120mm) | 6.0"x9.4" (152x240mm) | 8.0"x11.4" (202x290mm) | 10.1"x15.0" (256x380mm) |
| Hopper Opening | 27.4"x25.8" (695x655mm) | 35.7"x31.9" (906x810mm) | 27.6"x35.8" (700x910mm) | 32.3"x39.8" (820x1010mm) |
| Discharge Hood Rotation | 360° | |||
| Discharge Hood Height | 65.6-73.2" (1666-1860mm) | 70.4-75.9" (1788-1928mm) | 85.6" (2174mm) | 87.0" (2210mm) |
| PTO RPM | 540 r/min | 540 r/min | 540 r/min | 1000 r/min |
| Tractor HP | 20-50 HP | 20-90 HP | 55-120 HP | 90-100 HP |
| Weight | 736 lb (334kg) | 952 lb (432kg) | 1420 lb (644kg) | 1874 lb (850kg) |
