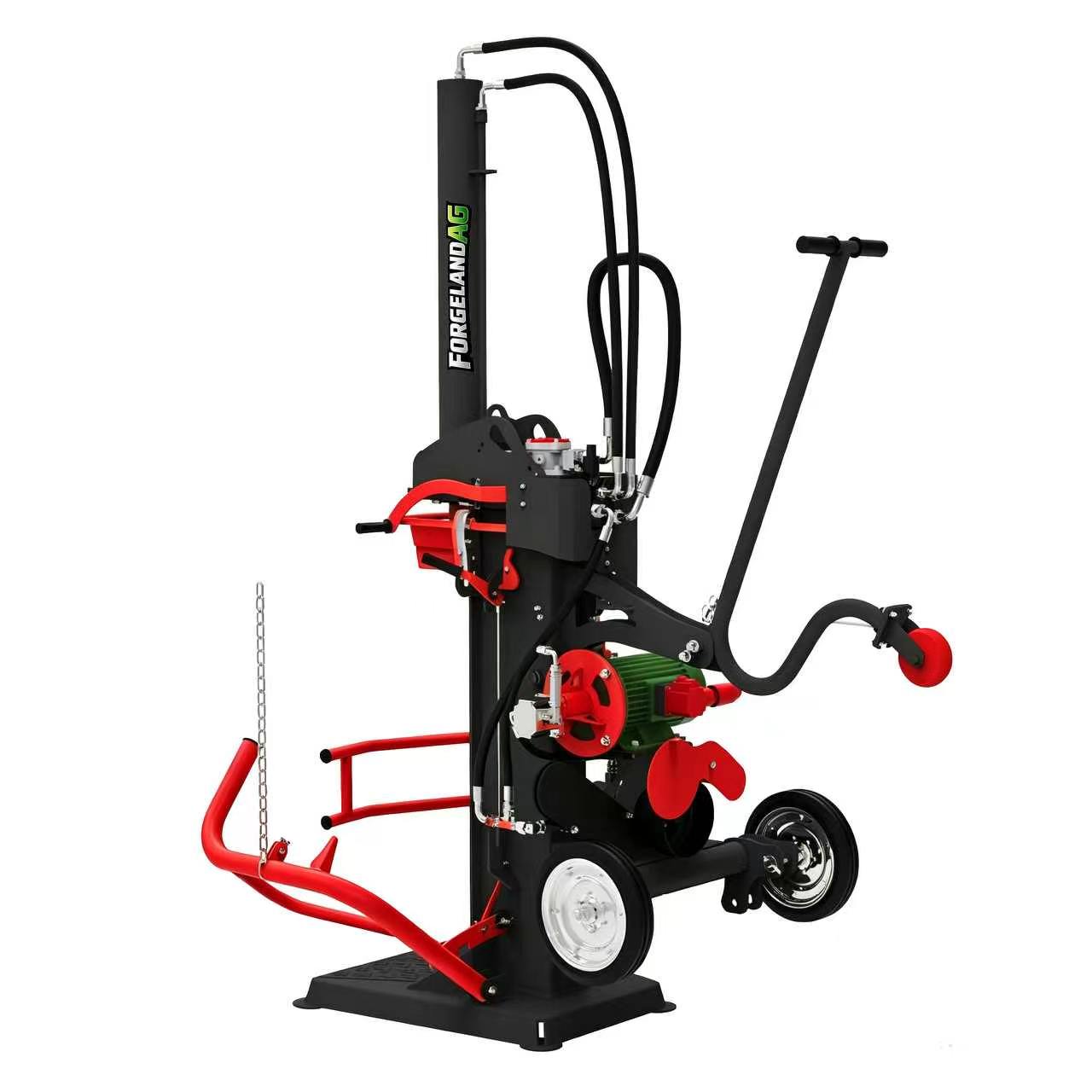

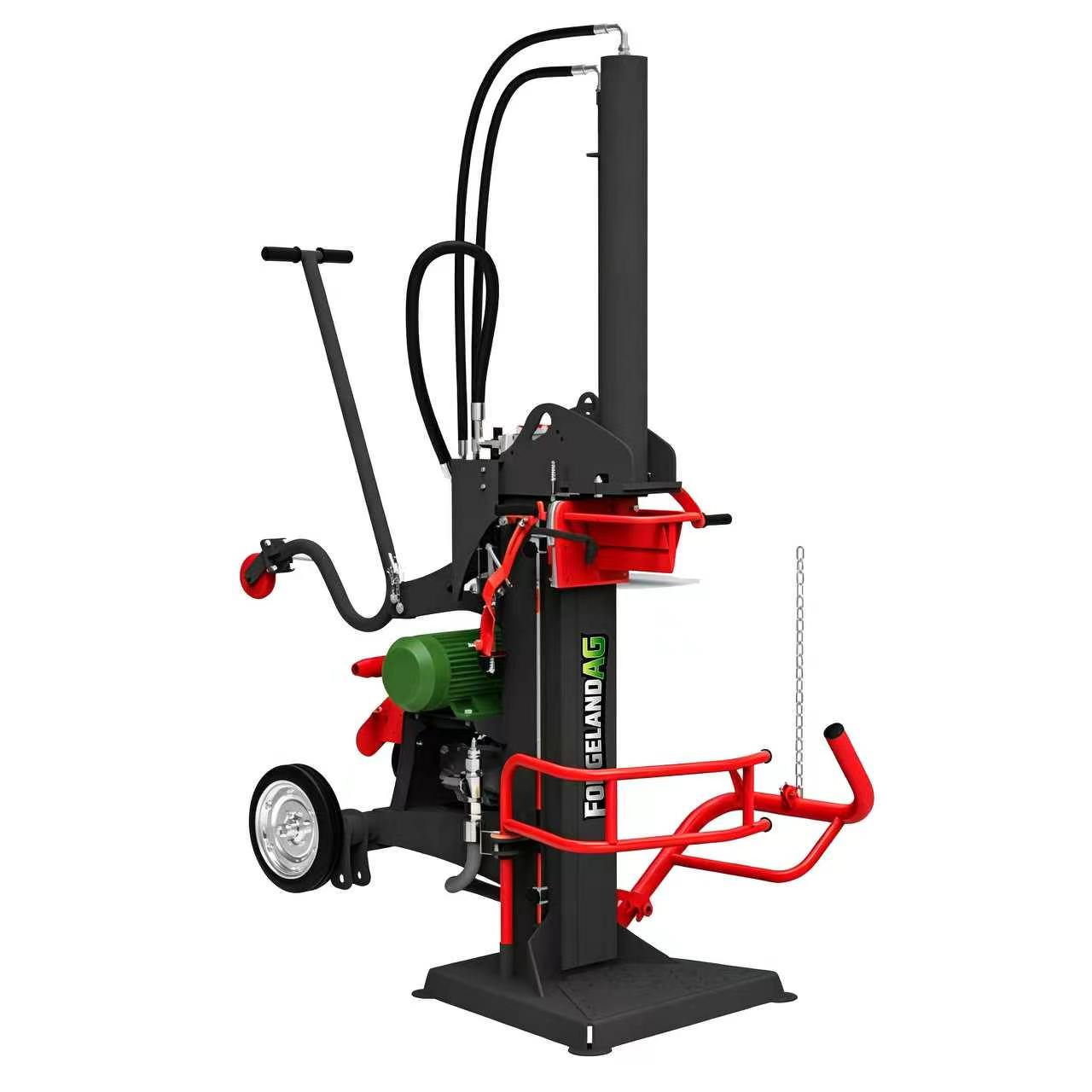

PTO & E-Motor Log Splitter - LS-25-Z/EM
The LS-25-Z/EM is the ultimate dual-drive log splitter — use it in the field with your tractor's PTO, or switch to the 7.5KW electric motor for stationary yard work. With a massive 25-ton splitting force at 43.3" (1100mm) height, a "2-speed Automatic" smart valve, and a double-bottom 45L tank, it handles the heaviest logs at ground level with ease.
Key Features
- PTO Drive (For Field Use with Tractors) & Electric Motor (For Stationary Yard Work)
- Massive 25-Ton Splitting Force at 43.3" (1100mm) Height
- "2-Speed Automatic" Smart Valve
- Easier Handling of Heavy Logs at Ground Level
- Double-Bottom Tank Design with 45L Capacity
- Industrial Cast-Iron Pump Oil Flow (30-81 L/min)
- Heat-Treated Steel Wedge
- Ergonomic Levers Designed to Keep Safe
- Heavy-Duty Wheels for Easy Moving
Optional Accessories
- Multi-Way Cross Wedge
Technical Specifications
| Specification | Details |
|---|---|
| Model | LS-25-Z/EM |
| PTO Power Needed | 30 KW / 41 HP |
| Rated Tractor | 50 HP |
| Electrical Power | 7.5 KW |
| Splitting Force | 25 T |
| Splitting Height | 43.3" (1100mm) |
| Oil Flow Speed (PTO) | 81 L/min (540 rpm) |
| Oil Flow Speed (E-Motor) | 30 L/min (1400 rpm) |

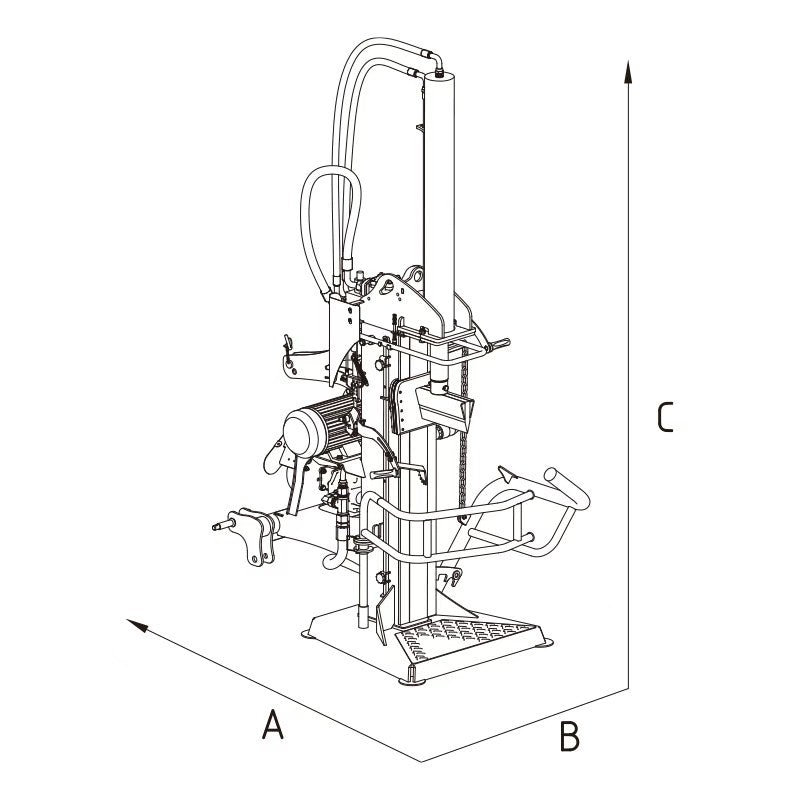

| Overall Dimensions (A×B×C) | 41.7"x82.7"x112.2" (1060x2100x2850mm) |
| Weight | 400 kg |
PTO & E-Motor Log Splitter - LS-25-Z/EM
The LS-25-Z/EM is the ultimate dual-drive log splitter — use it in the field with your tractor's PTO, or switch to the 7.5KW electric motor for stationary yard work. With a massive 25-ton splitting force at 43.3" (1100mm) height, a "2-speed Automatic" smart valve, and a double-bottom 45L tank, it handles the heaviest logs at ground level with ease.
Key Features
- PTO Drive (For Field Use with Tractors) & Electric Motor (For Stationary Yard Work)
- Massive 25-Ton Splitting Force at 43.3" (1100mm) Height
- "2-Speed Automatic" Smart Valve
- Easier Handling of Heavy Logs at Ground Level
- Double-Bottom Tank Design with 45L Capacity
- Industrial Cast-Iron Pump Oil Flow (30-81 L/min)
- Heat-Treated Steel Wedge
- Ergonomic Levers Designed to Keep Safe
- Heavy-Duty Wheels for Easy Moving
Optional Accessories
- Multi-Way Cross Wedge
Technical Specifications
| Specification | Details |
|---|---|
| Model | LS-25-Z/EM |
| PTO Power Needed | 30 KW / 41 HP |
| Rated Tractor | 50 HP |
| Electrical Power | 7.5 KW |
| Splitting Force | 25 T |
| Splitting Height | 43.3" (1100mm) |
| Oil Flow Speed (PTO) | 81 L/min (540 rpm) |
| Oil Flow Speed (E-Motor) | 30 L/min (1400 rpm) |
| Overall Dimensions (A×B×C) | 41.7"x82.7"x112.2" (1060x2100x2850mm) |
| Weight | 400 kg |
- Regular price
- $0.00
PTO & E-Motor Log Splitter - LS-25-Z/EM
The LS-25-Z/EM is the ultimate dual-drive log splitter — use it in the field with your tractor's PTO, or switch to the 7.5KW electric motor for stationary yard work. With a massive 25-ton splitting force at 43.3" (1100mm) height, a "2-speed Automatic" smart valve, and a double-bottom 45L tank, it handles the heaviest logs at ground level with ease.
Key Features
- PTO Drive (For Field Use with Tractors) & Electric Motor (For Stationary Yard Work)
- Massive 25-Ton Splitting Force at 43.3" (1100mm) Height
- "2-Speed Automatic" Smart Valve
- Easier Handling of Heavy Logs at Ground Level
- Double-Bottom Tank Design with 45L Capacity
- Industrial Cast-Iron Pump Oil Flow (30-81 L/min)
- Heat-Treated Steel Wedge
- Ergonomic Levers Designed to Keep Safe
- Heavy-Duty Wheels for Easy Moving
Optional Accessories
- Multi-Way Cross Wedge
Technical Specifications
| Specification | Details |
|---|---|
| Model | LS-25-Z/EM |
| PTO Power Needed | 30 KW / 41 HP |
| Rated Tractor | 50 HP |
| Electrical Power | 7.5 KW |
| Splitting Force | 25 T |
| Splitting Height | 43.3" (1100mm) |
| Oil Flow Speed (PTO) | 81 L/min (540 rpm) |
| Oil Flow Speed (E-Motor) | 30 L/min (1400 rpm) |
| Overall Dimensions (A×B×C) | 41.7"x82.7"x112.2" (1060x2100x2850mm) |
| Weight | 400 kg |
-
Vendor: HAN-SUN

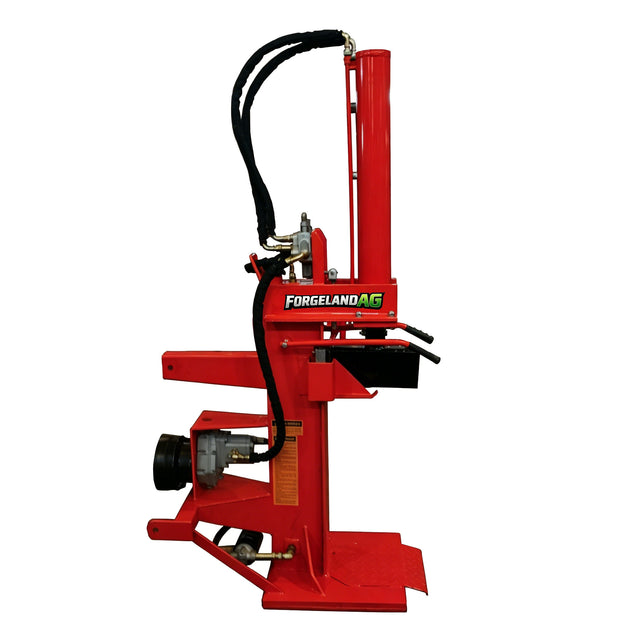

Log Splitter - PTO Gear Pump (LS-Z Series)
